4 Slot Expansion Industrial Embedded Computer

Embedded PC, 4-slot Expansion,Support All Generation i3 i5 i7 Series CPU, Multi-serial support.

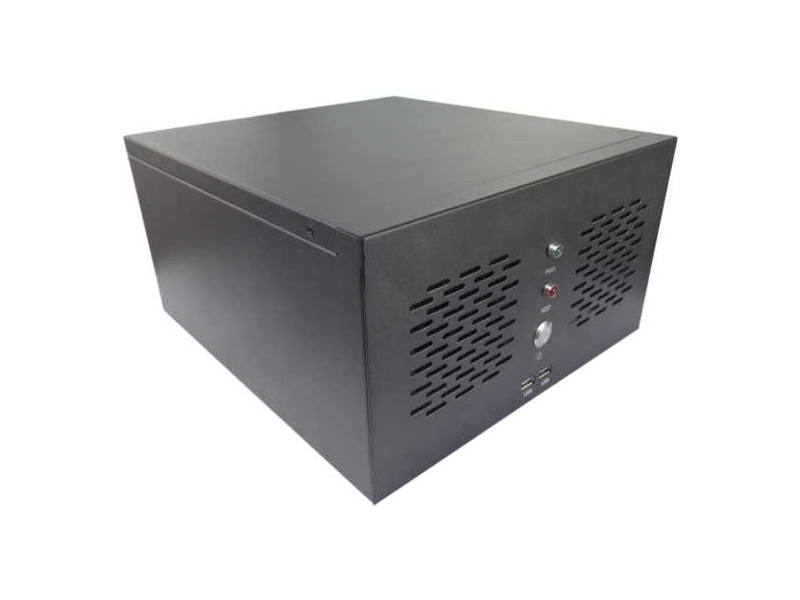

4 Slot Expansion Industrial Embedded Computer



Product Introduction

Yanyue MIS-MATX01 Industrial Embedded Computer, rough environments require tough equipment. Get industrial-grade computers with PCIe/PCI expansion. We make computing simple.



Specifications Optional Configurations
Chassis All steel construction, industrial black Other colours such as industrial grey are available
Front Power Switch, Power/HDD indicator, 2FAN,2USB2.0 Customizable with customer logo or more serial or parallel ports

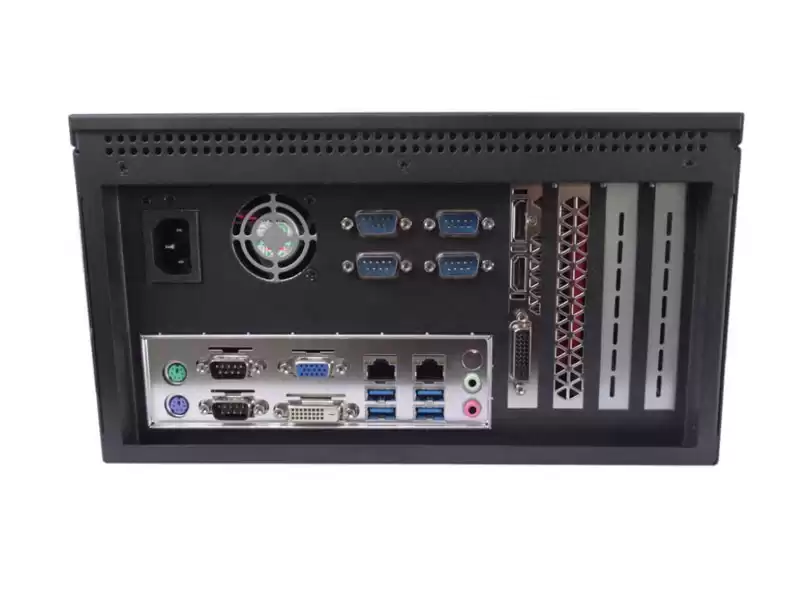

Back Large square holes in motherboard, 4-slot expansion; 10DB9, 4USB,1DB25
Hard Disk Rack 1 x 2.5" hard drive cages Can add 1 shock-resistant hard drive cage, supports 3.5" or 2 x 2.5" hard drives
Adaptive Motherboard Intel B75/H81/H110 etc. chip Micro-ATX motherboards in Yanyue Support All Micro-ATX Motherboard in Yanyue
CPU/GPU Intel i3 2120 Supports 3rd/4th/6th/7th Gen desktop CPU or soldered onboard CPU
Memory 4G DDR3  Optional 2G/8G/16G/32G memory
Hard Disk 128G SSD Optional 32G/64G/256G/1T SSD; support 2.5 inch SSD and HDD
Interfaces AC input;6USB(4USB3.0);2RJ45(Gigabite ethnet)VGA;DVI;Audio Out;MIC in;6COM(Standard) Optionally available with all interfaces on the chassis
Expand PCIEx16;  PCIEx4; 2PCI Depends on the expansion slot on the motherboard
Size Handle not included:270*291*148mm Net/Gross Weight 4.5/5KG
Power Supply 200W 1U Industrial Powern Supply Optional 400W, 600W 1U industrial power supply
Installation Mode Bracket installation



Product Features

■ Heat dissipation, dust and vibration resistance

■ Support All Micro-ATX Motherboard in Yanyue

■ 4-slot Expansion

■ Can be added 4COM  on the back

■ Flexible configuration, CPU, memory, hard disk according to customer requirements

4-slot Embedded Computer4-slot Embedded PC

Work and Environment
Working Temperature (-20~60)℃ Storage Temperature -40~75℃ Environmental Humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

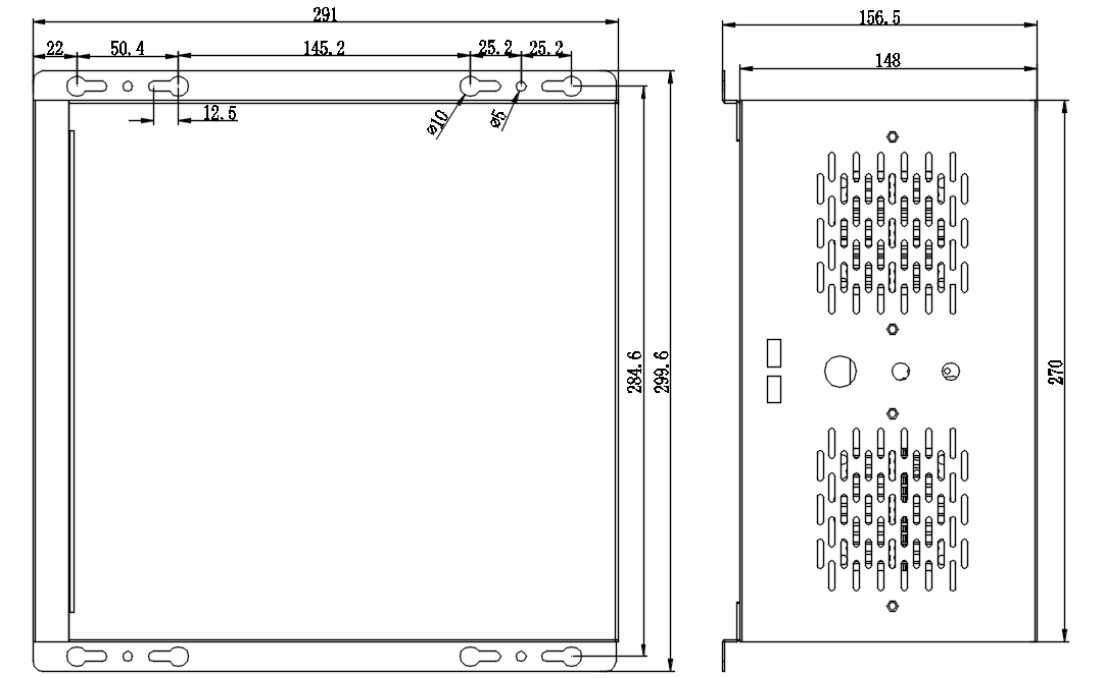

Product Installation Dimension Diagram

Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
