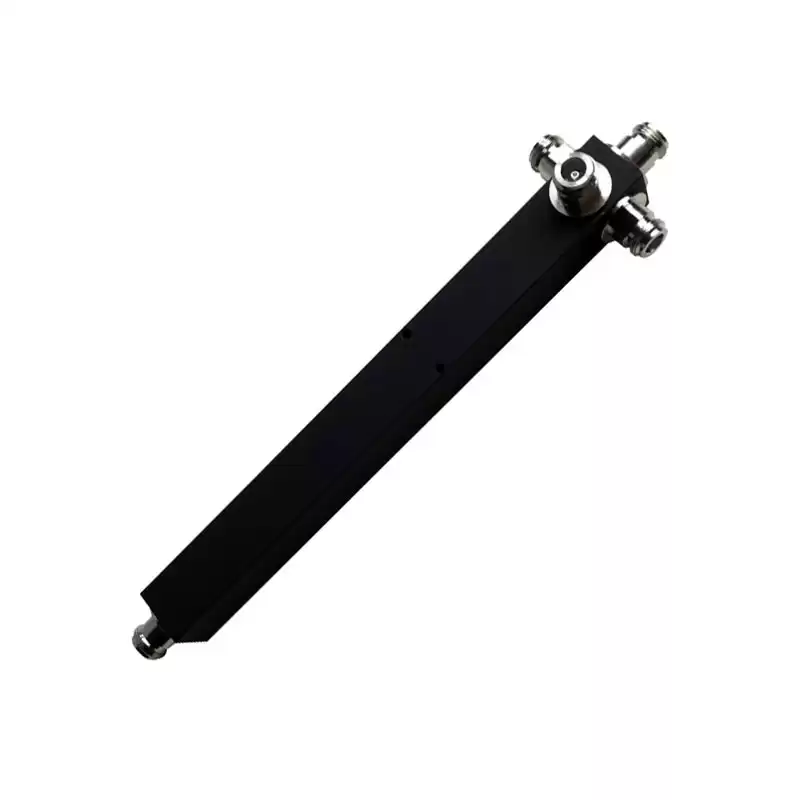

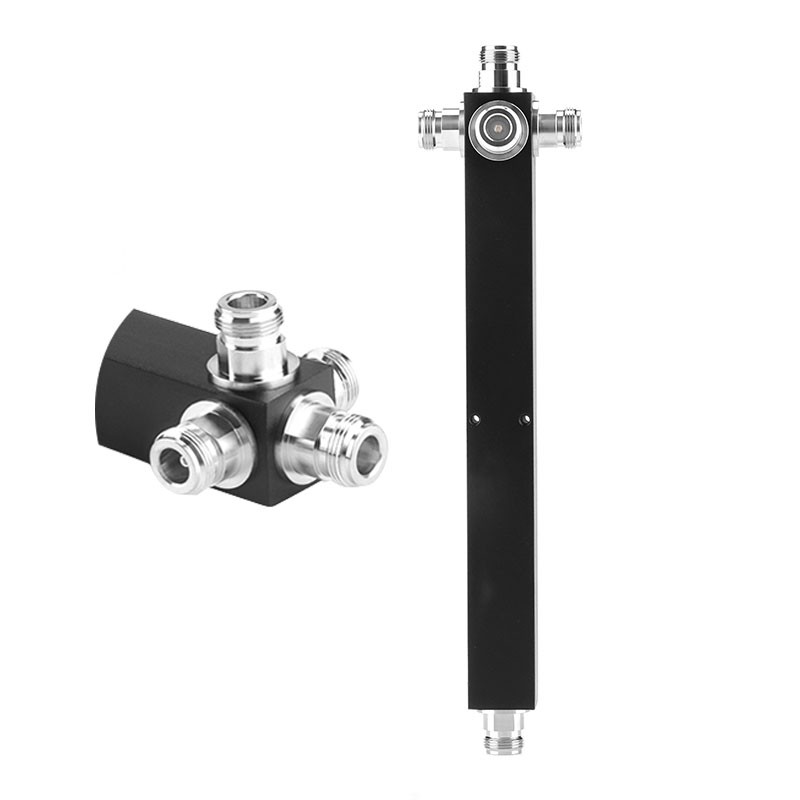

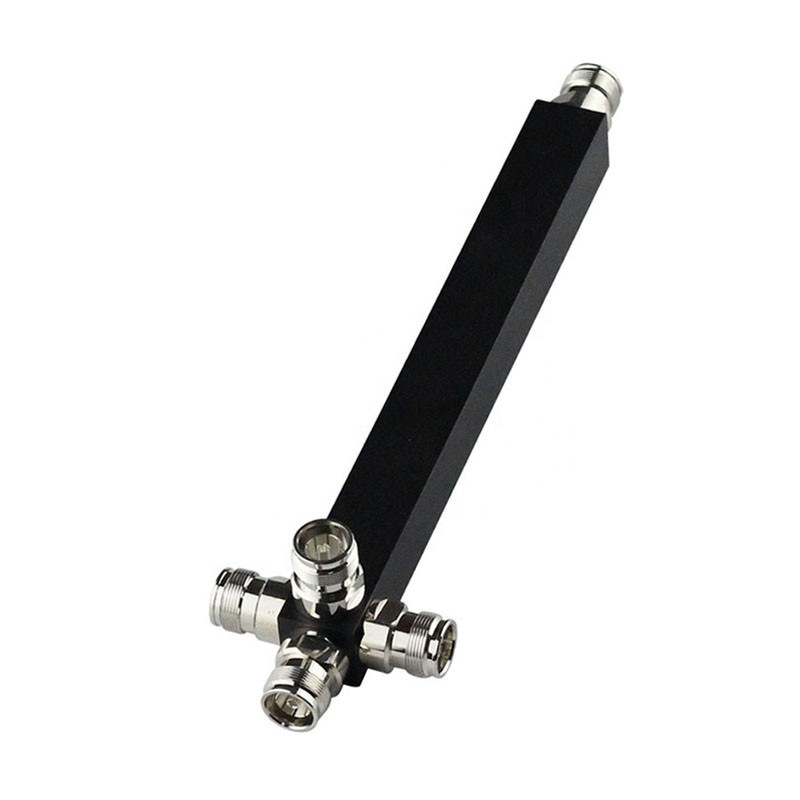

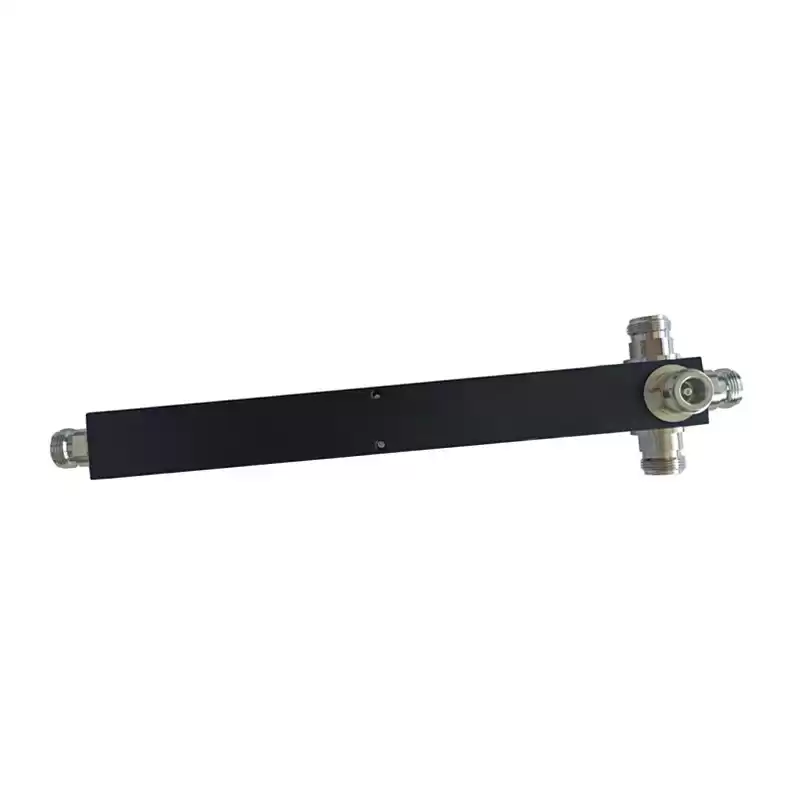

4 Way Power Splitter 698-4000MHz N Female Square Cavity for IBS DAS
The 4 way type N Power Splitter (also known as 4 way type N Power Divider) is rated for a minimum frequency of 617MHz and a maximum frequency of 4GHz. This 4 port type N power divider / coaxial splitter has a 50ohm impedance and a maxium input power of 500W. ROHO's type N coaxial RF splitter / divider has a female N type input and 4 female type N output ports;This 4 way N type RF power divider is a reactive design and has a maximum insertion loss of 0. The maximum input VSWR of this type N reactive splitter / divider is and the minimum isolation is 0 dB. The 4 port type N power divider is one of RF, microwave and millimeter wave components supplied,ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized customized.
Specifications
| Electrical Specifications |
|
| Frequency Range(MHz) |
698-4000 |
| Type |
4 Way |
| Impedance(Ω) |
50 |
| Average Power(W) |
300W |
| VSWR |
≤1.25 |
| Split Loss(dB) |
≤6.0 |
| Insertion Loss(dB) |
≤0.5 |
| PIM (dBc) |
≤-150dBc@2*43dBm;≤-160dBc@2*43dBm;Or specify |
| RF Connector Interface |
N Female |
| Environmental Specifications |
|
| IP Grade |
IP65 |
| Operating Temperature(℃) |
-35~ +65 |
| Relative Humidity |
5%-95% |
| Application |
Indoor or Outdoor |
Applications
- In-building Distribution System and Mobile Communication Network Optimization;
- Split the one Input signal into 2,3 or more paths in telecommunication applications;
- Radar, electronic navigation and electric confrontation;
- Aerospace equipment systems;
- Cluster communication, satellite communication, shortwave communication and hopping radio.
