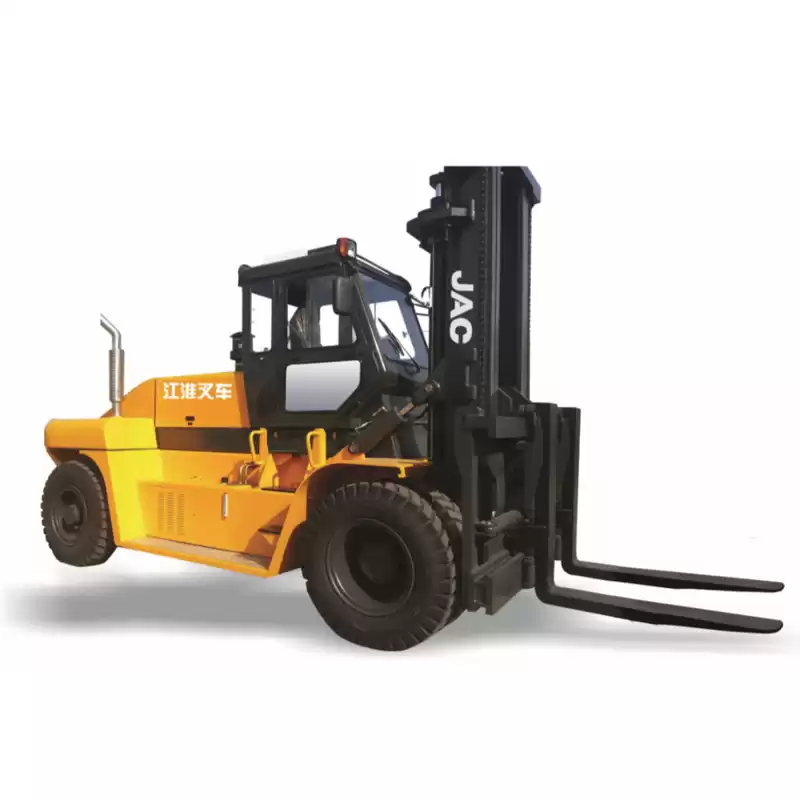

Diesel Forklift Truck 12 ton to 18 ton
Counterbalanced forklift with Diesel Engine, large loading capacity, Chinese engine, Cummins engine for option
1. Features
Scientifically designed power transmission system
Dedicated twin axle for heavy-load lift truck
The tip-over of the spacious cab can be
controlled manually or electrically.
2. Specification
|
Model
|
CPCD120
|
CPCD150
|
CPCD160
|
CPCD180
|
|
1
|
Features
|
Powe type
|
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
|
2
|
Rated load
|
kg
|
12000
|
16000
|
16000
|
18000
|
|
3
|
Load center distance
|
mm
|
600
|
900
|
900
|
900
|
|
4
|
Lift height
|
mm
|
3000
|
4000
|
4000
|
4000
|
|
5
|
Free lift height
|
mm
|
85
|
100
|
100
|
100
|
|
6
|
Fork size
|
L×W×T
|
mm
|
1820×200×85
|
2400×250×90
|
2400×250×90
|
2400×250×90
|
|
7
|
Mast tilt angle
|
FR/RR
|
。
|
8/10
|
8/10
|
8/10
|
8/10
|
|
8
|
Minimum turning radius
|
mm
|
4750
|
5250
|
5250
|
5250
|
|
9
|
Minimum right angle stacking aisle width
|
mm
|
8485
|
9176
|
9176
|
9176
|
|
10
|
Minimum right angle aisle width
|
mm
|
4486
|
4354
|
4354
|
4354
|
|
11
|
Minimum ground clearance
|
Frame center(no load)
|
mm
|
320
|
350
|
350
|
350
|
|
12
|
Mast Bottom（no load）
|
mm
|
210
|
265
|
265
|
265
|
|
13
|
Height of overhead guard
|
mm
|
3060
|
3300
|
3300
|
3300
|
|
14
|
前悬距 Overhang (FR)
|
mm
|
784
|
1040
|
1040
|
1040
|
|
15
|
Performance
|
Maximum travel speed
|
Full load
|
km/h
|
20
|
18
|
18
|
18
|
|
No load
|
km/h
|
24
|
20
|
20
|
20
|
|
16
|
Maximum lift speed
|
Full load
|
mm/s
|
370
|
220
|
220
|
220
|
|
No load
|
mm/s
|
400
|
300
|
300
|
300
|
|
17
|
Maximum drawbar pull
|
Full load
|
KW
|
80
|
101
|
101
|
101
|
|
18
|
Maximum gradeability
|
%
|
20
|
20
|
20
|
20
|
|
19
|
Dimensions
|
Overall length
|
Without forks
|
mm
|
4800
|
5885
|
5885
|
5885
|
|
20
|
Overall width
|
mm
|
2600
|
2620
|
2620
|
2620
|
|
21
|
Mast height at maximum lift (with backrest)
|
mm
|
4725
|
5845
|
5845
|
5845
|
|
22
|
Mast lowered height
|
mm
|
3230
|
3850
|
3850
|
3850
|
|
23
|
Chassis
|
Tires
|
Front wheel
|
|
11.00-20-18PR
|
12.00-24-24PR
|
12.00-24-24PR
|
12.00-24-24PR
|
|
24
|
Rear wheel
|
|
11.00-20-18PR
|
12.00-24-24PR
|
12.00-24-24PR
|
12.00-24-24PR
|
|
25
|
Wheelbase
|
mm
|
3000
|
3800
|
3800
|
3800
|
|
26
|
Tread
|
Front wheel/rear wheel
|
mm
|
1950/2050
|
1968/2248
|
1968/2248
|
1968/2248
|
|
27
|
Self weight
|
Without load
|
Kg
|
18700
|
25000
|
25000
|
26600
|
|
28
|
Drive
|
Battery
|
Voltage/capacity
|
V/Ah
|
24/150
|
24/150
|
24/150
|
24/150
|
|
29
|
Engine
|
Model
|
|
CA6DF3
|
YC6J175-T302
|
YC6J175-T302
|
YC6J175-T302
|
|
30
|
Rated output
|
kw/r.p.m
|
118/2200
|
129/2200
|
129/2200
|
129/2200
|
|
31
|
Rated torque
|
Nm/r.p.m
|
640/1500
|
710/1600-1800
|
710/1600-1800
|
710/1600-1800
|
|
32
|
Bore x stroke
|
mm
|
110×125
|
105×125
|
105×125
|
105×125
|
|
33
|
Number of cylinders
|
|
6
|
6
|
6
|
6
|
|
34
|
Displacement
|
L
|
7.127
|
6.494
|
6.494
|
6.494
|
|
35
|
Fuel tank capacity
|
L
|
130
|
200
|
200
|
200
|
|
36
|
Transmissions (FWD/RWD)
|
|
2/2 electronic gearshifting
|
3/3 electronic gearshifting
|
3/3 electronic gearshifting
|
3/3 electronic gearshifting
|
|
37
|
Operating pressure
|
Mpa
|
20
|
20
|
20
|
20
|
|
38
|
Supplement
|
Tire type (FR/RR)
|
|
Pneumatic
|
Pneumatic
|
Pneumatic
|
Pneumatic
|
|
39
|
Number of wheels (FR/RR)
|
只
|
4/2
|
4/2
|
4/2
|
4/2
|
|
40
|
Lowering speed (full load)
|
mm/s
|
410
|
410
|
410
|
410
|
|
41
|
Lowering speed (no load)
|
mm/s
|
320
|
320
|
320
|
320
|
|
42
|
Axle load distribution (full load) (FR/RR)
|
kg
|
27650/3050
|
36000/4000
|
37200/3800
|
40000/4600
|
|
43
|
Axle load distribution (no load) (FR/RR)
|
kg
|
7500/11200
|
10200/14800
|
10200/14800
|
13000/13600
|
