4 Wheel Electric counterbalance Forklift For Storage

4 Wheel electric counterbalance forklifts have lead-acid battery and lithium battery,loading capacity 1.5-5.0 tons with lifting heights 3-6meters, with AC drive motor for higher working efficiency,more stable and safer.



4 Wheel Electric Counterbalance Forklift For Storage

4 Wheel Electric Counterbalance Forklift For Storage can be lead-acid battery and lithium battery,loading capacity 1.5-5.0 tons with lifting heights 3-6meters.Pneumatic tires and solid rubber tires can be selected, which can adapt to various complex working conditions. Large capacity battery, strong power. Suitable for logistics, warehousing, food, electronics, chemical and other industries.

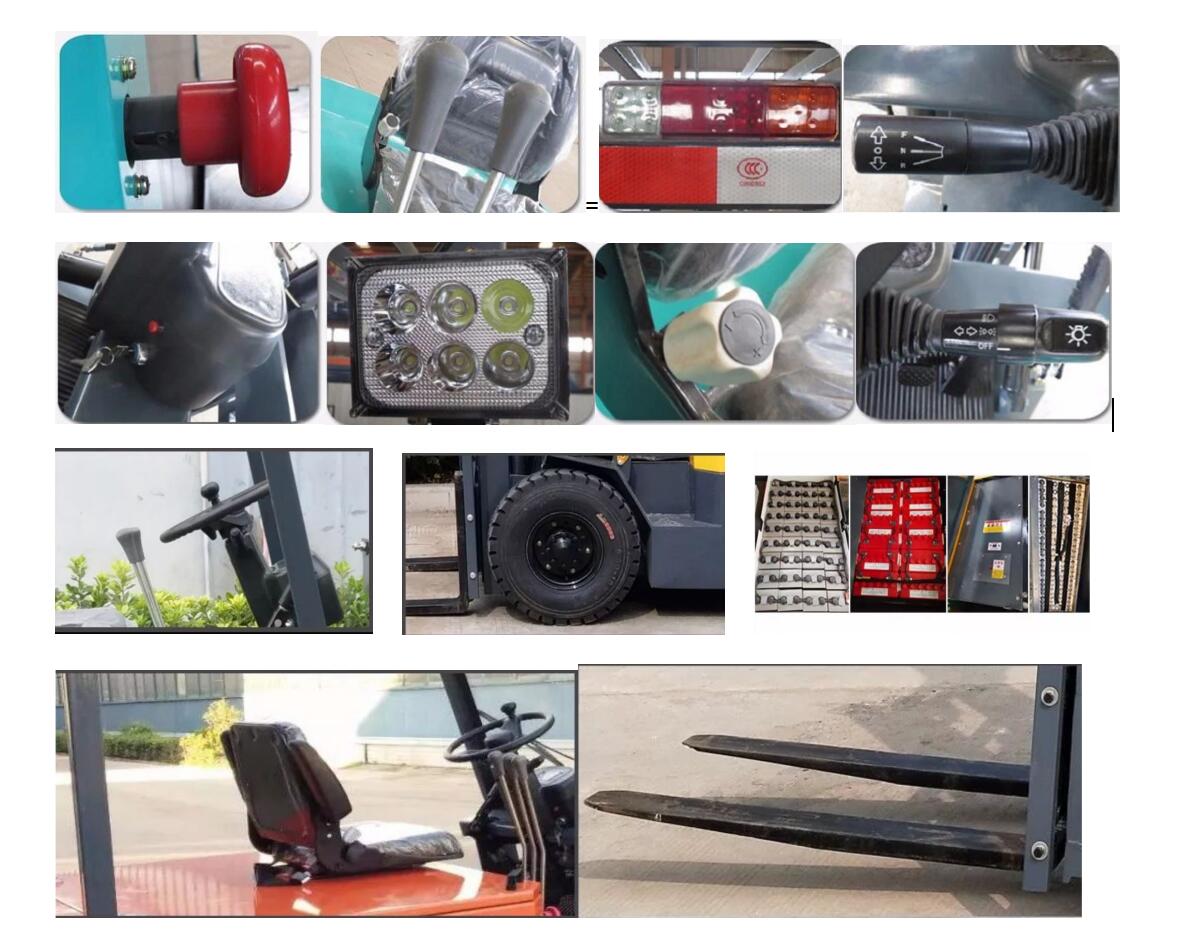

Details of 4 Wheel Electric Counterbalance Forklift

Features:

1.Adopt hanging counterweight design, greatly improve the maneuverability

2. Low energy consumption and good heat dissipation.

3. Standard smart meter, optional full AC system

4. Larger space, more comfortable and easy to operate

5. Low center of gravity design, more secure

6. The layout of the whole vehicle is more reasonable, the size is small, and the own weight is low

7. Imported controller, more stable and safer

8. Wide vision gantry design to improve work efficiency

9. Various attachments can be configured to meet the needs of different working condition

Specification:


  Manufacturer   NEOlift
Model   NPS10 NPS15 NPS20 NPS25 NPS30
Power Type   Battery Battery Battery Battery Battery
Rated Capacity kg 1000 1500 2000 2500 3000
Service Weight(incl.battery) kg 1900 2700 3200 4000 4200
Lift height mm 3000 3000 3000 3000 3000
Overall length without forks mm 1850 1950 2350 2700 2700
Overall width mm 1100 1110 1100 1230 1230
Fork size mm 1070/100/30 1070/100/35 1070/100/40 1070/100/45 1070/100/45
Installation level   2A 2A 2A 2A 2A
Driving motor(S2-60min) kw AC4 AC5 AC7.5 AC10 AC13
Battery voltage/capacity V/Ah 48/350 48/480  48/480  48/550  48/550
Steering system   Hydraulic type Hydraulic type Hydraulic type Hydraulic type Hydraulic type

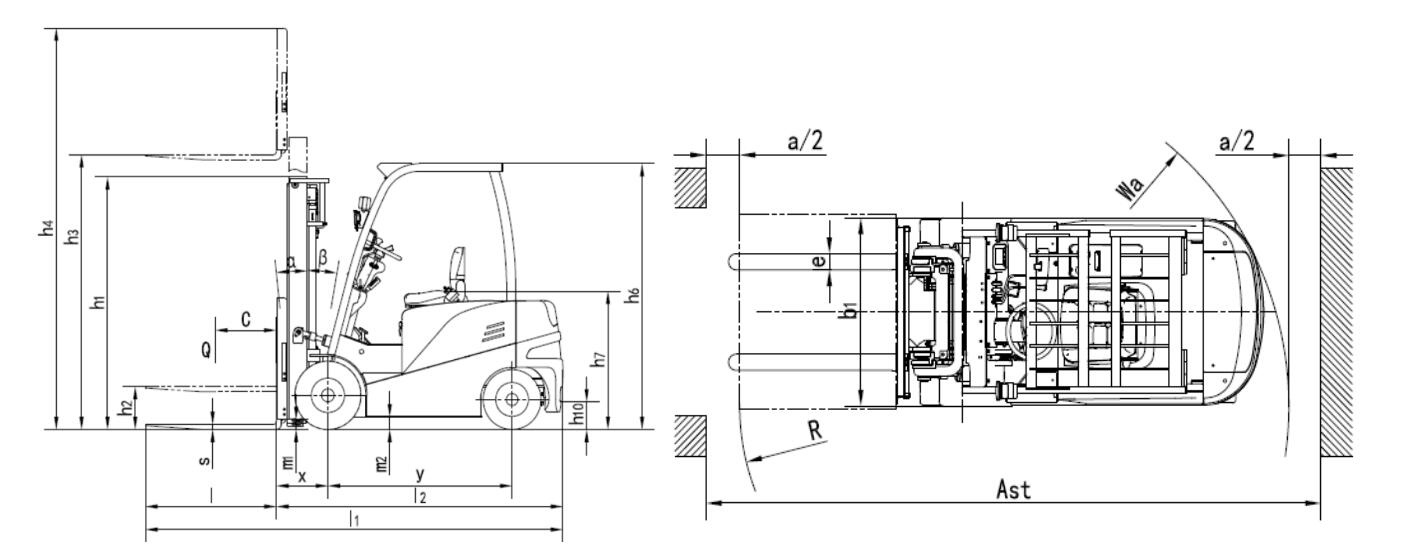

Size Of 4 Wheel Electric counterbalance Forklift

Application:

1.Food

2.Medical

3.Electronics

4.Hardware

5.Chemical

6.Logistics

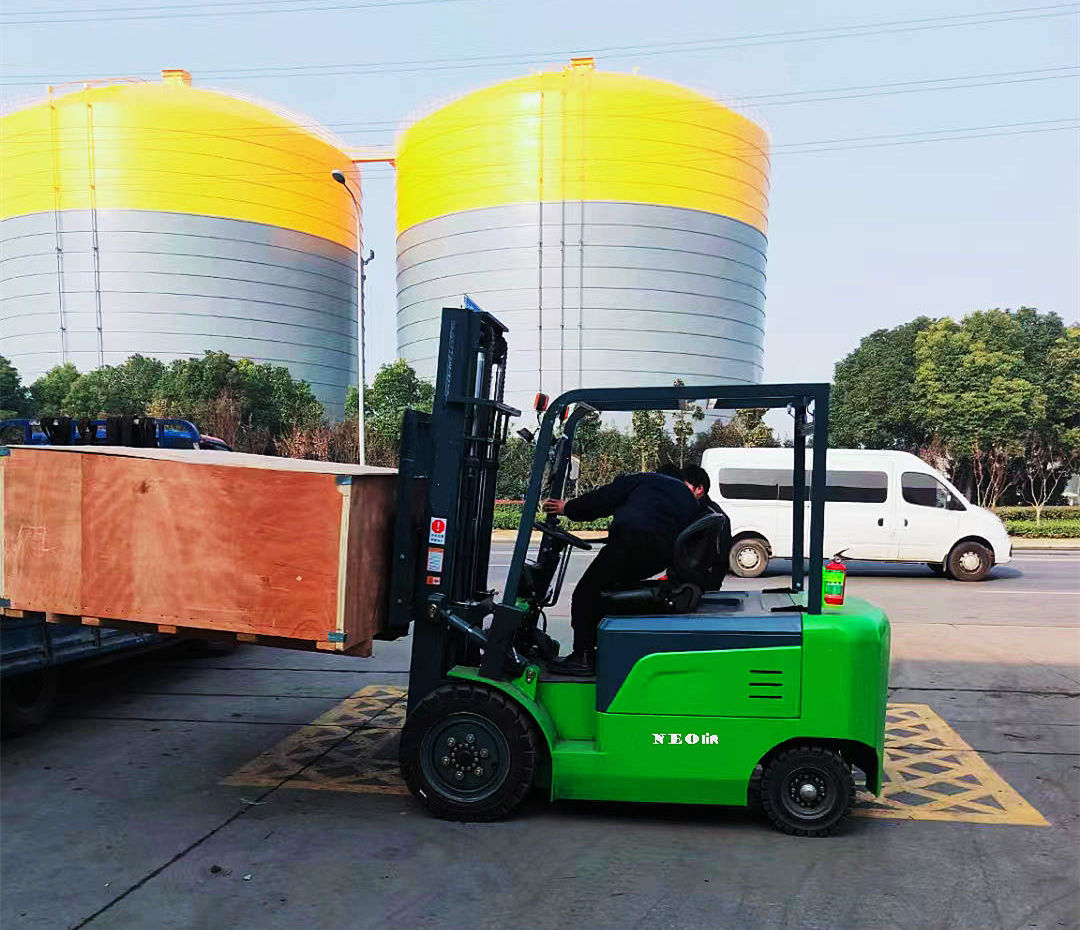

Application Of 4 Wheel Electric counterbalance Forklift

Certificate:

Certificate

Why choose NEOlift?

1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.

2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.

3.Professional and strong technical research and development team and timely and effective after-sales service. Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
