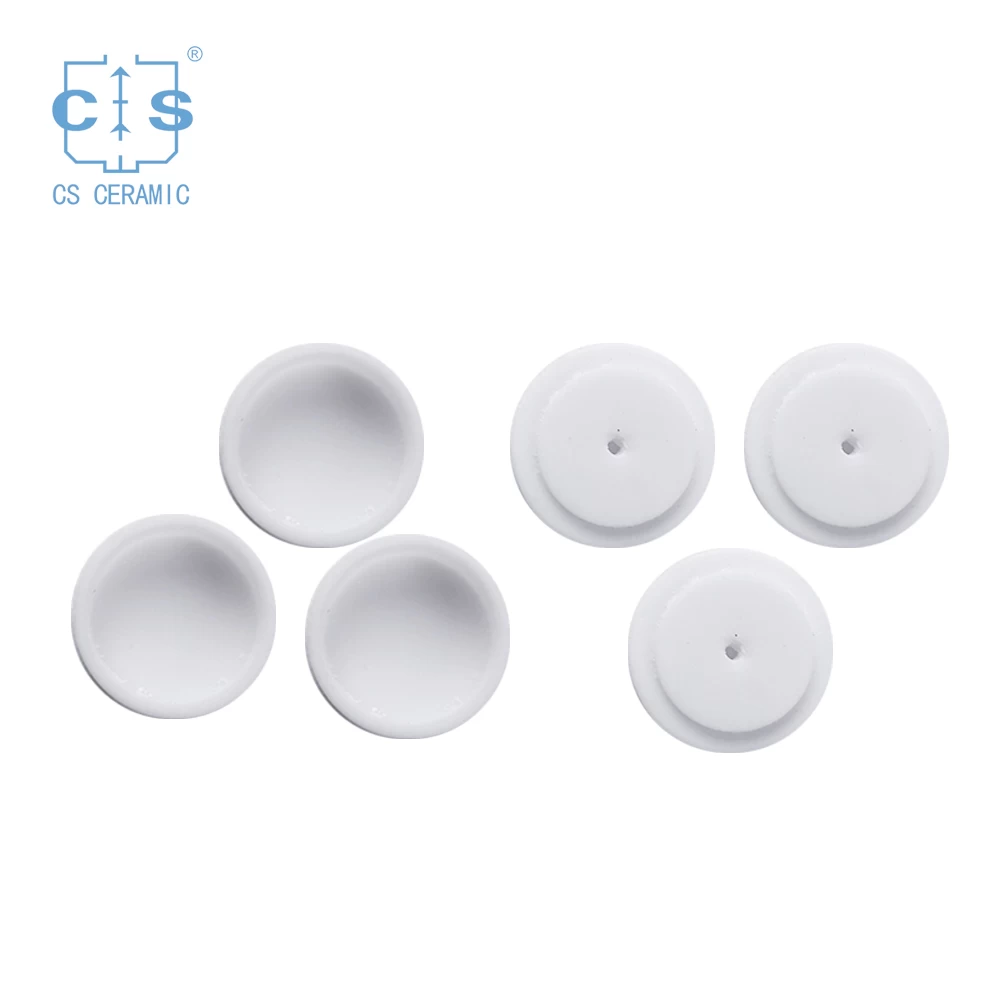

Product Item: 40μl Thermal analysis Alumina crucible PE N5190180 for PerkinElmer(Sample Pan)
Item info :
|
Type
|
Sample pan /crucible
|
|
Suitable for
|
PE
|
|
Part NO
|
PE N5190180
|
|
Capacity
|
40μl
|
|
Llid
|
With
|
|
Material
|
Alumina Ceramic
|
|
Temperature range
|
Room temperature to 1600℃
|
|
QTY/PKG
|
20PCS/BOX ; 100PCS/BOX (Both available)
|
|
Brand
|
CS CERAMIC
|
|
Original
|
MADE IN CHINA
|
The purpose of the crucible cover hole :
Keep the sample in contact with the atmosphere, allow a certain degree of gas-solid reaction, and allow the gas products to be carried away with the dynamic atmosphere.so as to keep pressure balance inside and outside the crucible.
Alumina crucibles Features:
Wide temperature range.The sample has a wide application range.However, compared with PTRH crucible, its sensitivity, peak separation ability, baseline drift and other aspects are slightly inferior.Becoming semitransparent at high temperature increases the interference of thermal radiation and sample color to the test, so it is not suitable for measuring specific heat.
Shipping: We do international shipping for clients.
Special offer: Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
