40-400KVA HPXM Plus Modular UPS

40-400KVA HPXM Plus Modular UPS

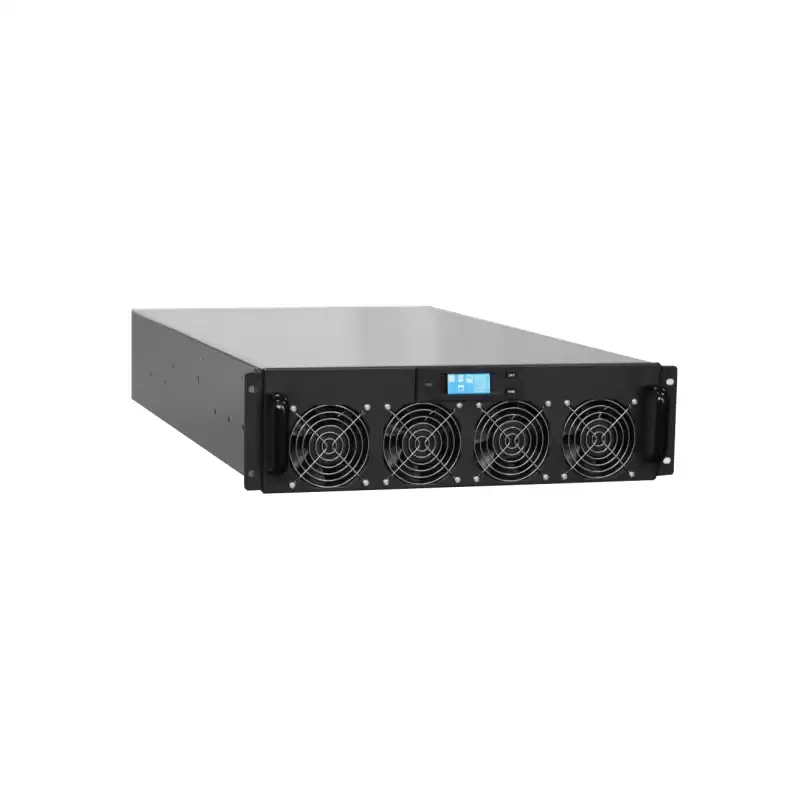

40kVA Module

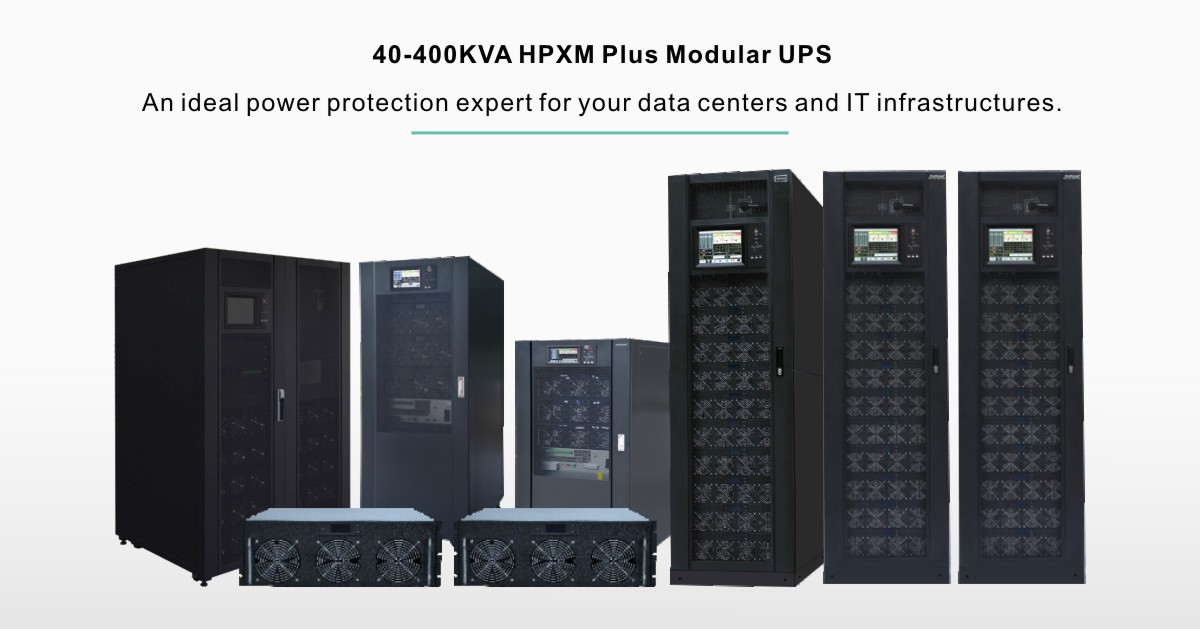

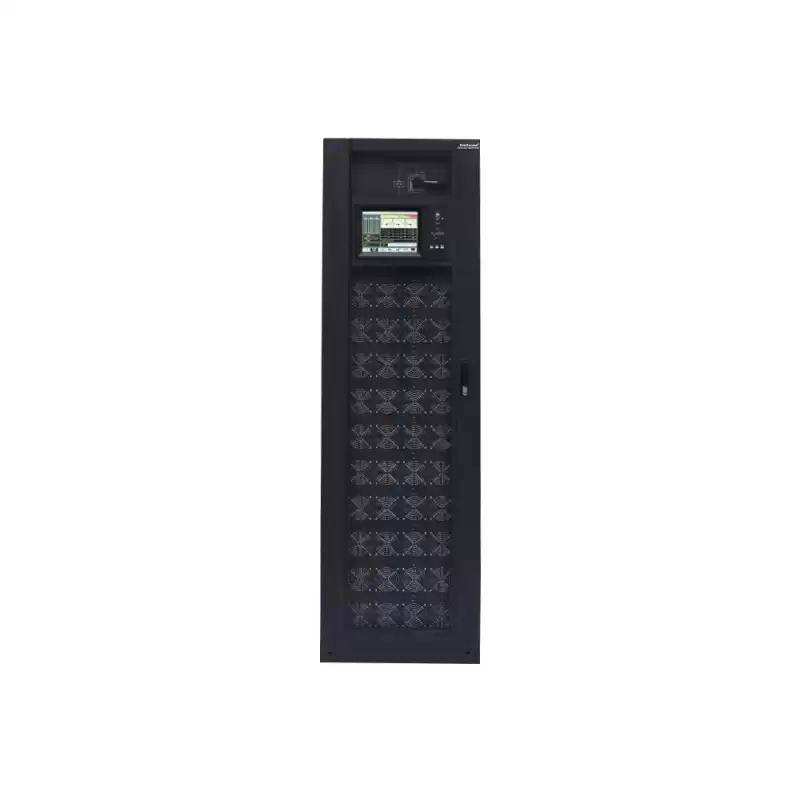

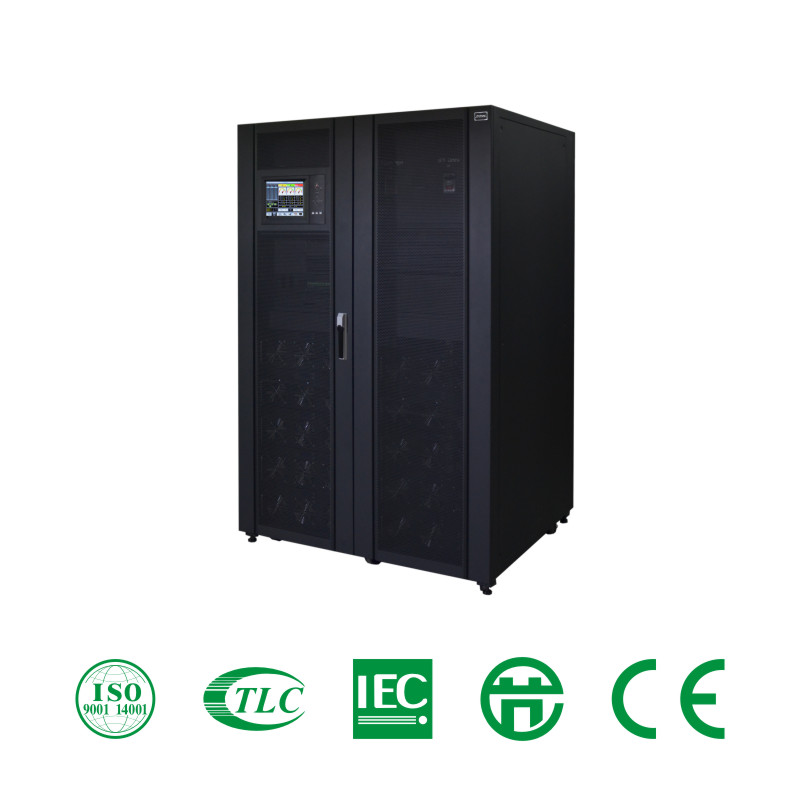

HPXM Plus (40-400KVA) series online modular UPS ranging from 40KVA to 400KVA is designed to protect any critical load for medium and large data center achieving maximum availability. This series feature the latest 3-level technology and PFC input control which guarantees high efficiency of 96%. Its compact design ensures power density of 400kVA in one cabinet and 3units can be paralleled for capacity or redundancy up to 1200KVA, making it an excellent choice for today's data center & IT room application.



  • ApplicationsISP, IDC, Server room, IT equipment
  • Efficiency99%
  • Rated voltage40-400KVA
  • TypeModular
  • Model HPXM Plus
  • CertificateTLC, CE



Technical Features




Power module design

Space saving compact design

High efficiency

This design helps to be easily removed at runtime & installed without effecting system operation and output. Capacity expansion is also possible allowing users to achieve dynamic growth with business development
400KVA in one cabinet. Footprint less than 1.45m2, saving valuable room space
Advanced 3-level technology guarantees high efficiency operation in double conversion mode up to 96%



Intelligent charging management

High power density

High scalability

The system intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery
200kVA with footprints of about 0.5m2, saving valuable data center space
40 KVA power module in 4U height,The system can be configured from 40KVA to 400KVA in one single cabinet, 3units in parallel for a capacity expansion



Smart sleep function

Friendly HMI

Multi communication interface

 Intelligently shutdown some power modules to increase total load rate, achieving higher efficiency
10.4 inch touch color LCD with graphioc display, independent LCD for each power module
The system is provided with RS232,RS485, USB, SNMP, AS400 and programmable dry contacts.which is easier for customer to operate

Application

Intelligent equipments, Server centers IDC, ISP, IT Room ,Precision instruments
