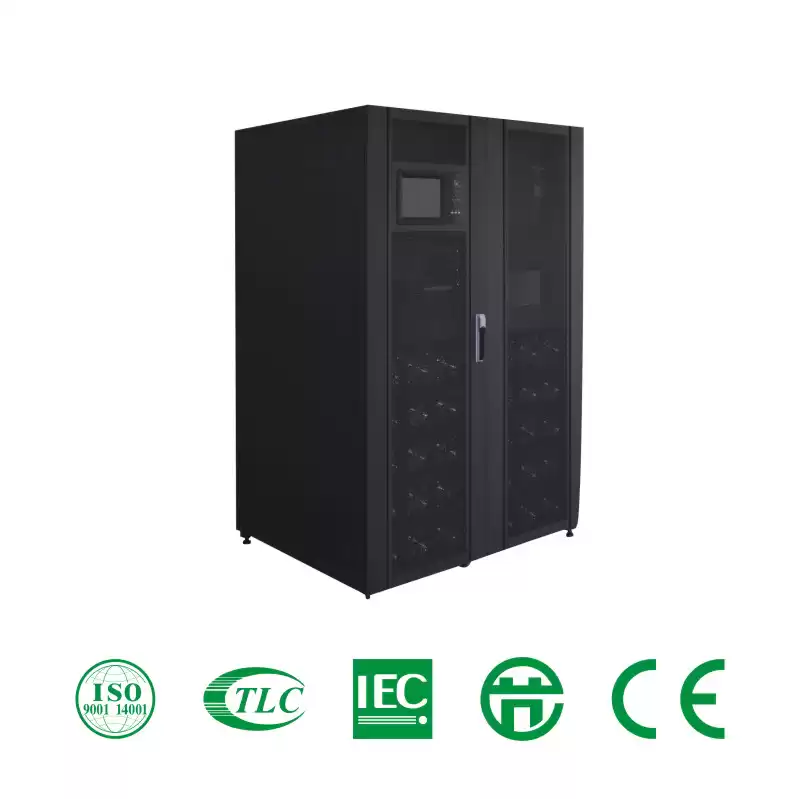

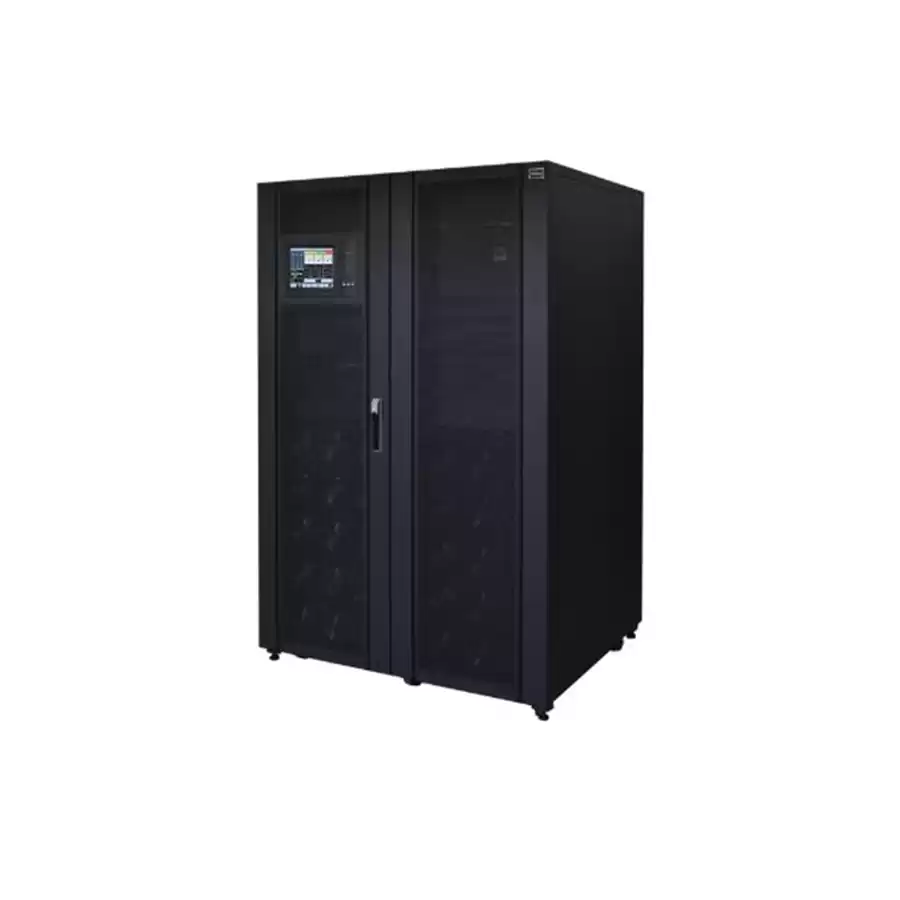

40-500kVA PXM PLUS Series Modular UPS

40-500kVA PXM PLUS Series Modular UPS

40kVA and 50kVA module, 380/400/415VAC, 3:3

PXM PLUS (40-500KVA) series power systems structure is extremely flexible. The concept of power modular design can be easily removed at runtime and installed without effecting system operation and output, implement investment planning with the need to expand, allowing users to achieve dynamic growth with business development. It saves customer's costs for initial equipment purchasing and future expansion. When user estimates the UPS capacity, they often underestimates or over expects, PXM PLUS(40- 500KVA) series power can solve the above problems effectively, help user to carry out construction and investment in phase under the condition if the future development direction is not clear. When users want to add additional loads to the UPS, they only needs to add the required number of modules for expansion.


  • CertificateTLC, CE
  • ApplicationsISP, IDC, IT room, server room, intelligent equipment,precision instruments
  • EfficiencyUp to 96%
  • Rated frequency40Hz-70Hz
  • Rated voltage380/400/415VAC
  • Rated capacity40-500kVA
  • TypeModular
  • ModelPXM Plus



Technical Feature











High scalability


Smart sleep function

High efficiency

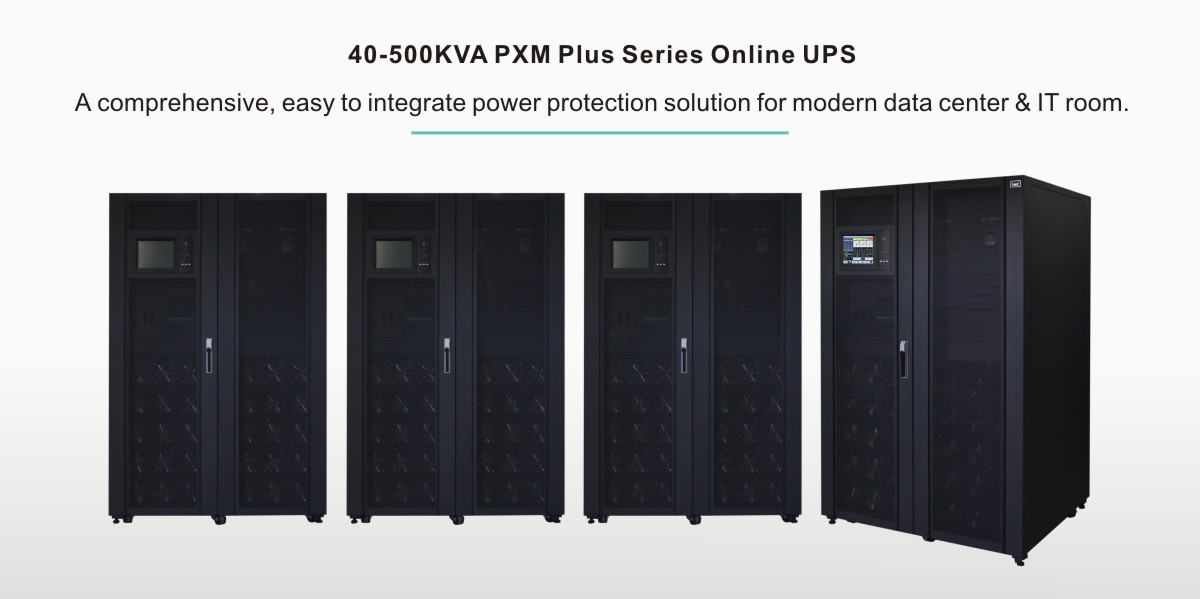

The system can be configured from 40KVA to 500KVA in one single cabinet, 3 units in parallel for a capacity up to 1500KVA


System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency


Advanced 3-level technology guarantees high efficicency operating in double conversion mode up to 96%











Intelligent charging management


High power density


Friendly HMI

The system intelligently control the whole process of charging & discharging, effectively improve the life time of the battery

50KVA power module in 4U height, easy for capacity expansion


10.4" touch color LCD with graphic display, independent LCD for each power module











Compact design


Battery cold start


Multi communication interface

500KVA in one cabinet, footprint less than 1.45m², saving valuable room space


It will add great value to your workflow by providing on-demand power


Provide RS232, RS485, USB, SNMP, AS400 & programmable dry contacts






Application:


Intelligent equipments;    Server centers;    IDC;    ISP;    IT Room ;    Precision instruments

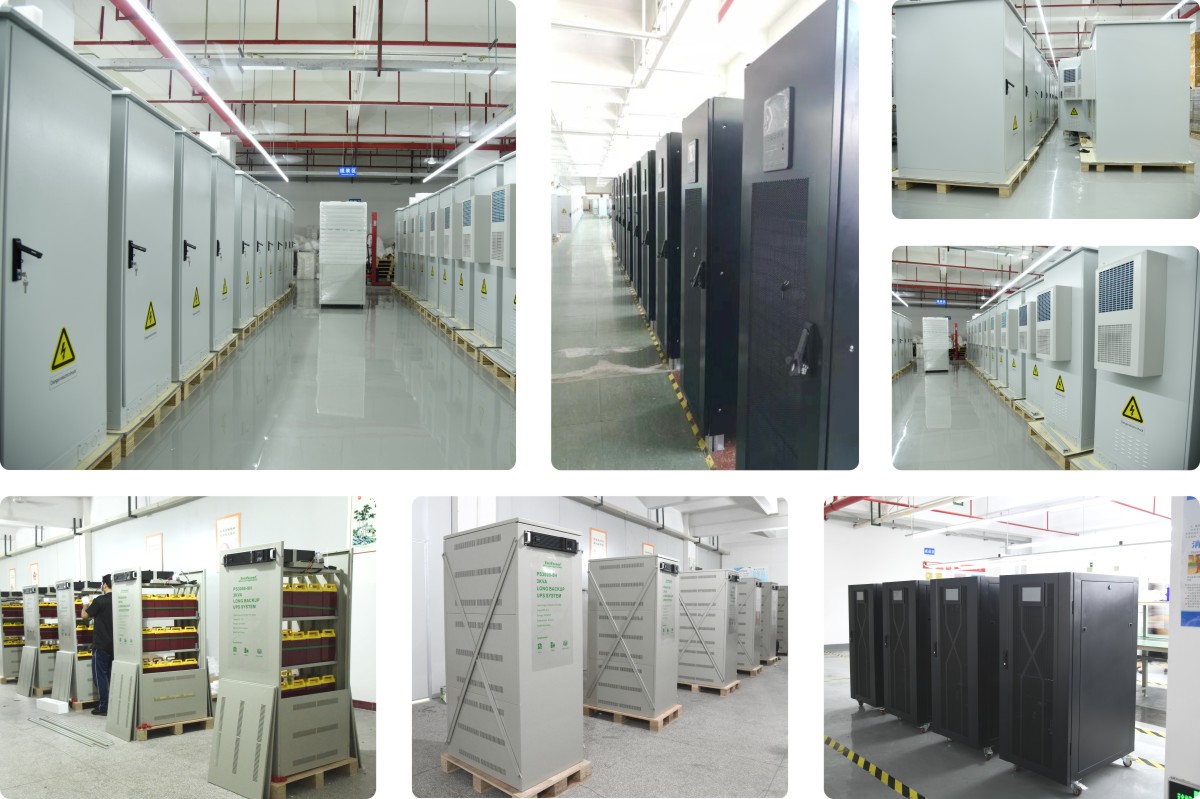

Factory:
