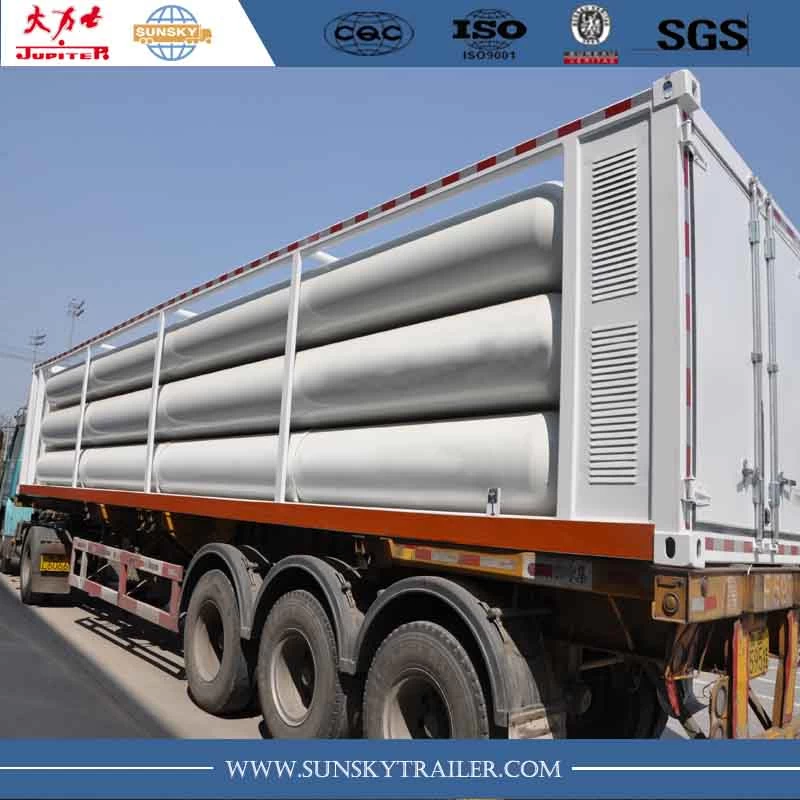

40 FT CNG Tube Skid Container Trailer

SO11120 Cylinder-design, structure and test of seamless and reusable steel tube with a capacity between 150 L to 3000 L.



Iteam:40 FT CNG Tube Skid Container Trailer

CNG tube bundle container can store and transport CNG; they are designed, manufactured, inspected and accepted according to: ISO11120 Cylinder-design, structure and test of seamless and reusable steel tube with a capacity between 150 L to 3000 L. Series 1: ISO 668 Classification, dimensions and ratings of container


Application of 40FT CNG Trailer For Sale

1. For CNG transportation from Mother station/gas reserve to daughter station;

2. For CNG transportation to places where pipeline network hasn’t been built;

3. For CNG transportation to places where can’t reach existing distribution system etc;

4. For CNG storage at gas stations.


Feature of CNG Tube Bundle Container Trailer

12-Tube Bundle Container

Execution standard : ISO11120 Cylinder-design , structure and test of seamless and reusable steel tube with a capacity between 150 L to 3000 L .ISO 668 Classification , dimensions and ratings of series 1 container













Tube Bundle Container

Item

Data










Cylinder

Item

Data

Type

GSJ12-2450-CNG-25

Working pressure

25MPa

Container quality

34760Kg

Working temperature

-50~65℃

Filling quality

6615Kg

Main material

30CrMoLX

Rated weight

41375Kg

Cylinder QTY

12

Major risk category

2.1

Total volume

29.4M3

UN code

1049

Pressure for water pressure test

37.5MPa

Filling medium

CNG

Dimension(mm)

559x11570

Gas tightness test pressure

25MPa

Design temperature

65℃

Pipeline water pressure test pressure

37.5MPa

Medium property

Explosive

Filling amount

9261Nm3




Bursting

discs

Burst pressure

37.5MPa

Dimension (mm)

12192x2438x2000

Transporting

Highway combined transport

Bursting disc device discharge aperture

≥20

Design service life

Fifteen years

40FT skeleton trailer

Dimension(mm)

12420*2480*1540

Tire size:

315/80R22.5

Payload(kgs):

50,000kgs

Rim size:

9.00*22.5

Tare weight

56,00kgs

Axle:

13 TONS

Kingpin:

2" BOLT-IN

Suspension

Spring suspension

Landing gear:

19"

Braking system

Dual-line air brake system


Quality guarantee&after-sales service for the CNG Storage Trailer

1. Products Quality Certificate, User’s Manuel will be supplied when delivery documents.

2. Within the guarantee period, the products can not continue usage or repair because of seller’s fault, the Seller is obliged to replace the defective goods by a new one at its own expense. Upon the Seller’s request the defective Goods will be sent back to the Seller at its own expense.

3. When the customer proposes the quality objection of our products, we guarantee to make deal with comments after the objection of customer within 24 hours. If it needs the on-site solution, we ensure to send the professional and technical personnel, the technical personnel will not evacuate unless the quality objection solved. All the feedback of the product quality problems and the solution results will be record.
