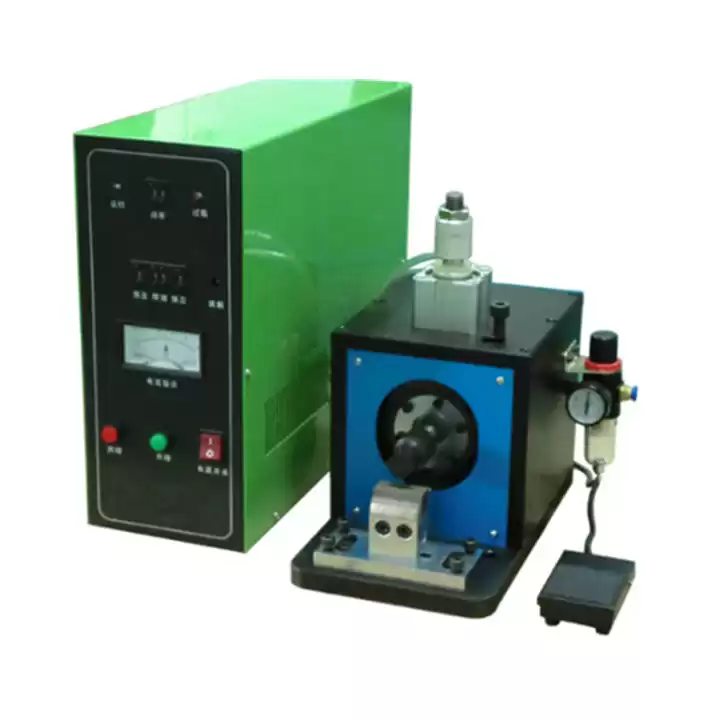

40 Layers Pouch Cell Tab Ultrasonic Welder
TMAX-USW-3000W ultrasonic metal welding machine is Designed for Lithium battery tab welding with touch-screen controller.
It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-ion
pouch cells in R&D laboratories and production line.
The 3000w Battery Welding Machine can weld stacked electrode with 10-40 layers aluminum foil or copper foil with Al tab and
Nickel tab, If with bigger battery with layer up to 30 layers, can choose the
|
Model
|
Battery Welding Machine TMAX-USW-3000W
|
|
Type
|
Ultrasonic spot welding machine
|
|
Welding ability:
|
|
1 10-30 sheets 0.09-0.012mm copper foil + 0.1-0.3mm Ni or Nickel-clad copper tab welding.
Welding point : 4*6, 4*8, 4*10, 4*12 mm customized
|
|
2 10-30 sheets 0.09-0.012mm aluminum foil + 0.1-0.3mm Al tab welding.
Welding point : 4*6, 4*8, 4*10, 4*12 mm customized
|
|
3 0.2mm Al belt +0.2mm Ni belt or Nickel-clad copper wrapping welding.
Welding point : 4*6, 4*8, 4*10, 4*12mm customized
|
|
4 2-4 sheets 0.2mm Al tab or 2-4 sheets 0.2mm Ni tab weld.
Welding point : 4*6, 4*12mm customized
|
|
Frequency
|
24KHZ
|
|
Max output power
|
3000W
|
|
Control mode
|
CPU control
|
|
Air supply
|
≥0.5MPa
|
|
Voltage source
|
110/ 220V 50HZ/60HZ
|
