The
bulk cement tanker trailer is also called
bulk powder transport vehicle, it’s combined by special designed chassis, tanker, pneumatic piping system and discharging devices. It’s commonly used in the transportation of bulk cement, coal powder, lime powder and other dry powder material with diameter no more than
0.1mm. It’s most used in cement factory, cement warehouse and construction sites for the reduction of packaging and discharging cost.

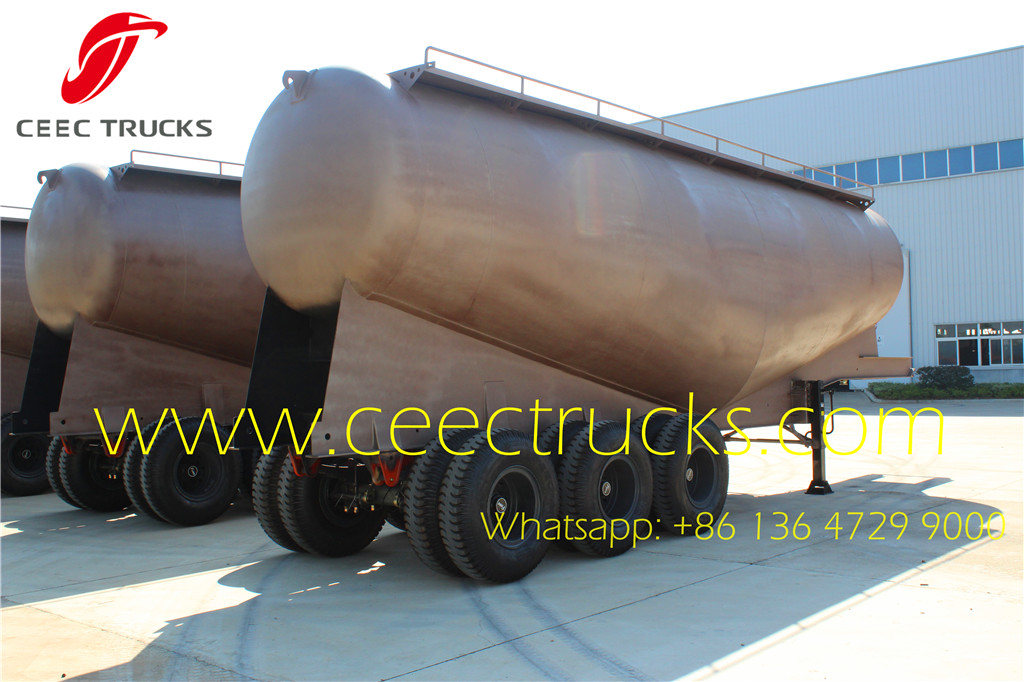

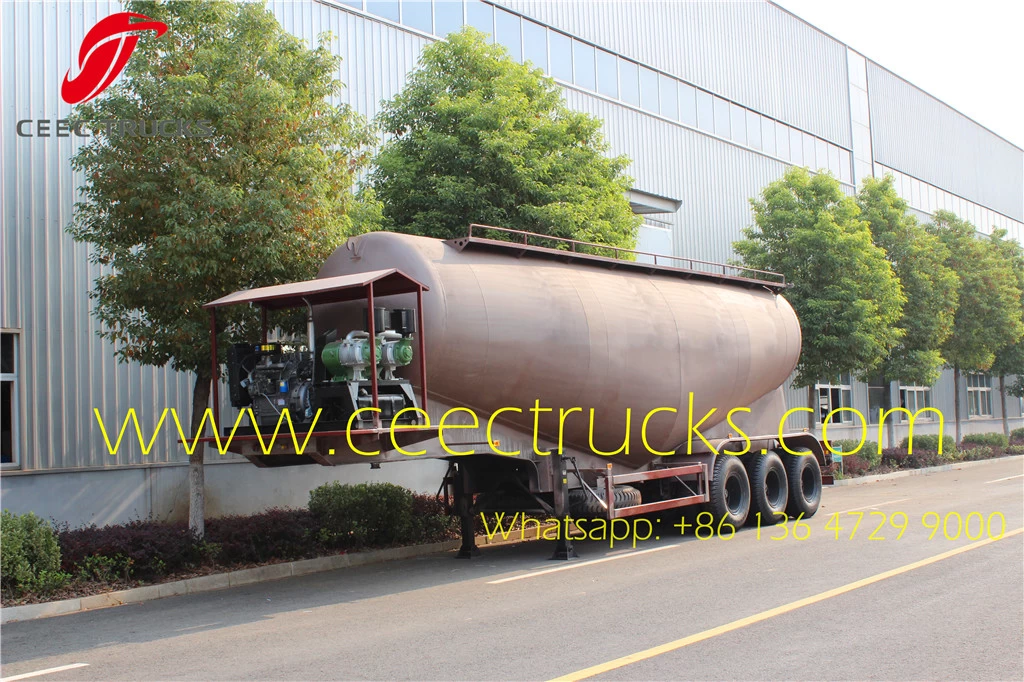

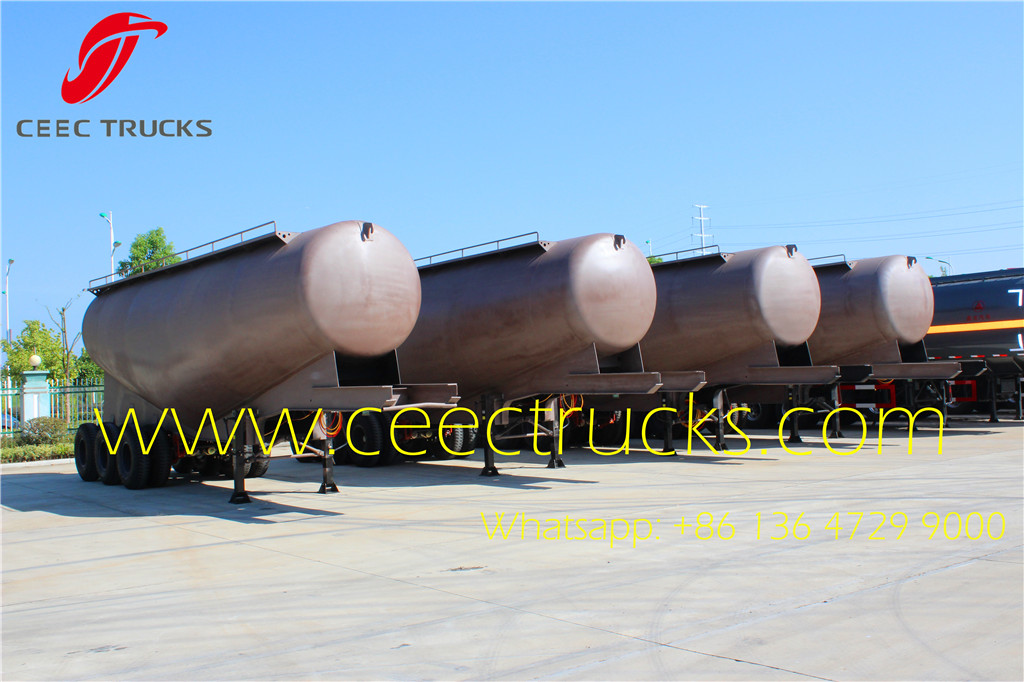

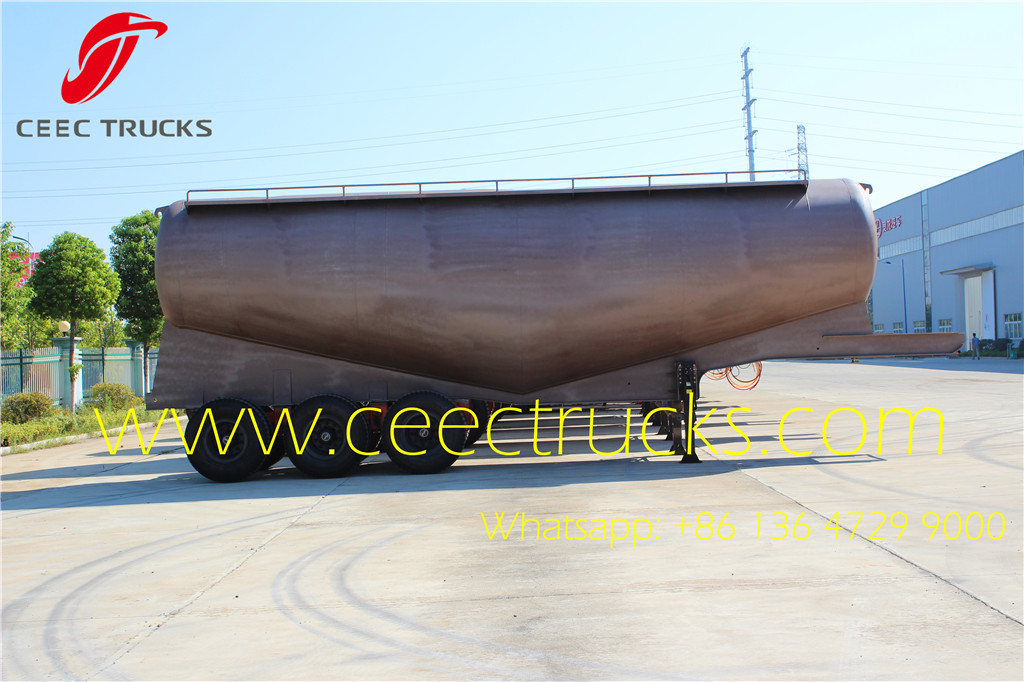

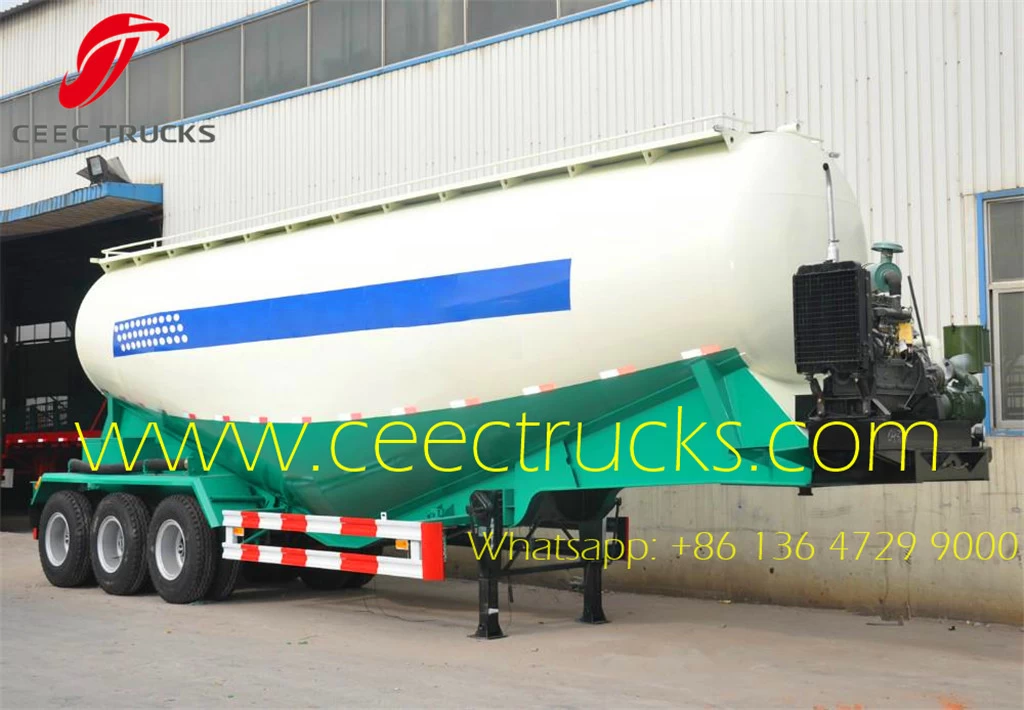

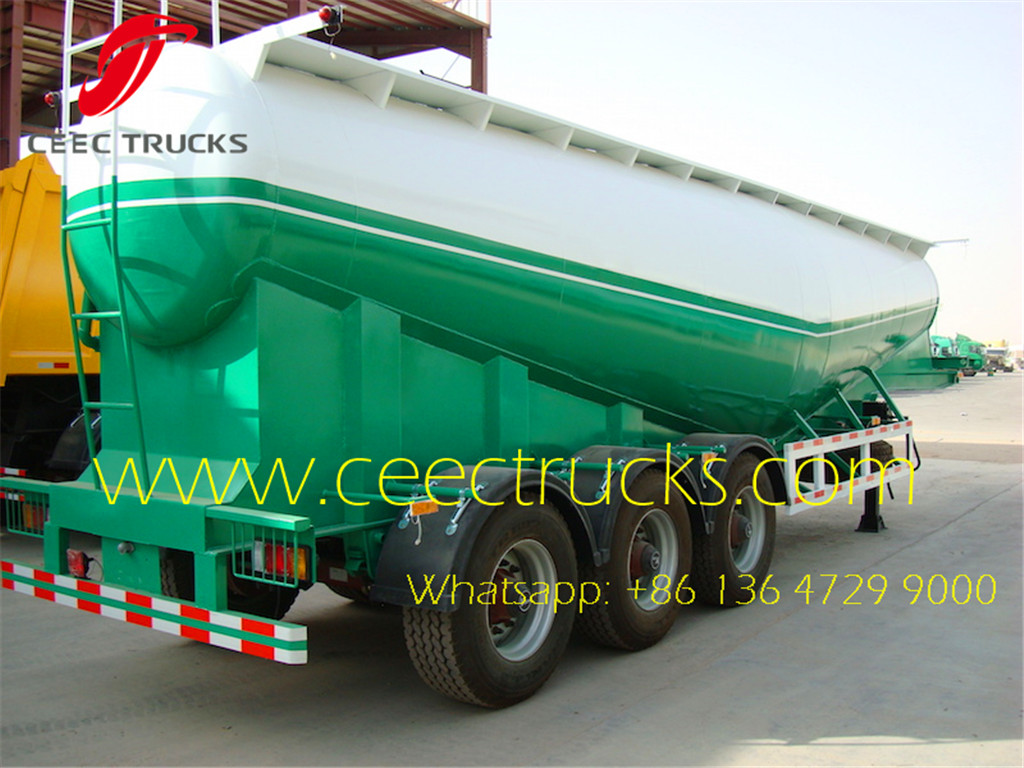

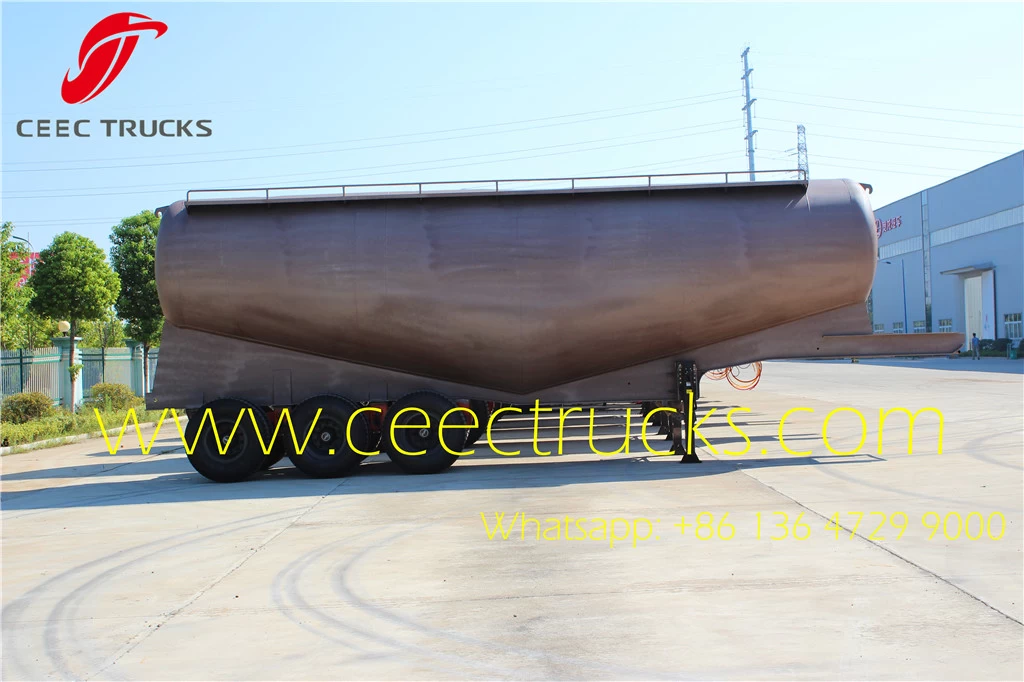

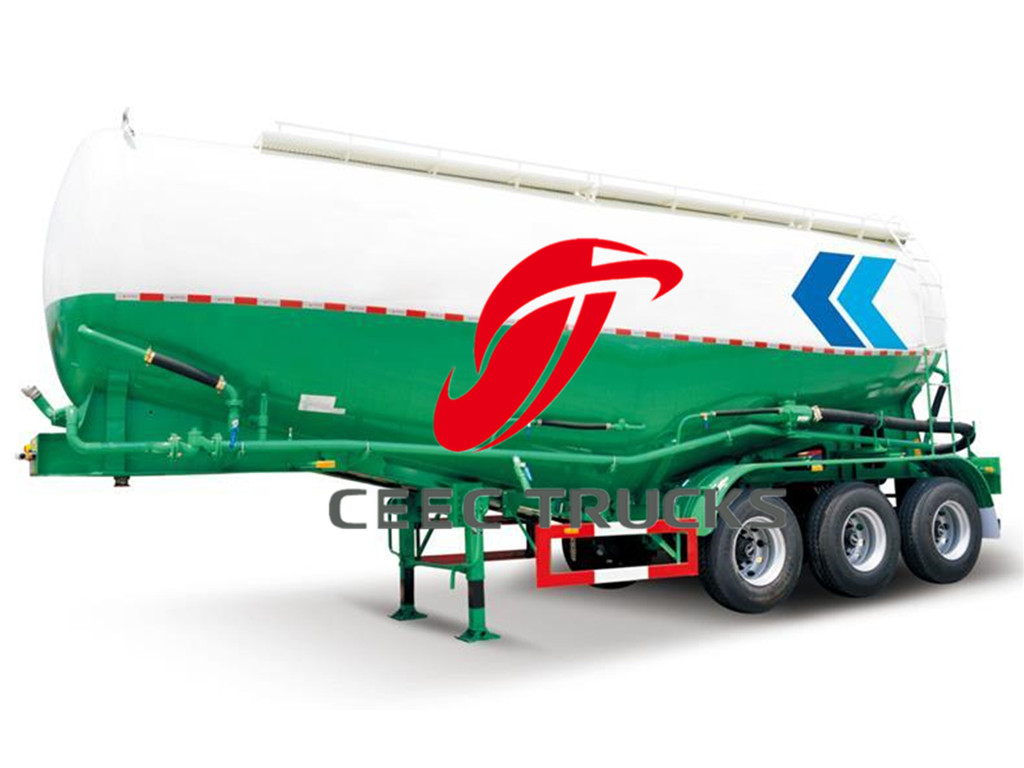

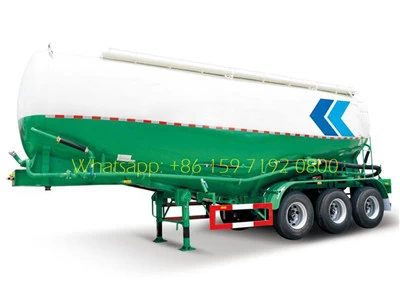

40 m³ Bulk Cement Trailer On Sale
Some key points to be notice when the 40 CBM bulk cement tanker trailer is on duty:
★ The working pressure of the air compressor is 0.2MPa, do not exceed this limit due to over-speed driving or overload.
★ Do not switch on or switch off the AM suddenly, it will cause extra damage.
★ Do not change the spinning direction of the air compressor.
★ When the pressure is reduced, do not stop the AM suddenly, otherwise the powder will flow backwards, causing damages.
★ Check the fuel supply and lubrication of the A.M.
★ The maintenance should be given every 30 hours to clear the air filter. Change the filter after 5 times of maintenance.
Being the professional 2-axle / 3-axle bulk powder tanker semitrailer manufacturer and supplier in China, we CEEC TRUCKS export nearly one hundred units 30-70 CBM cement tanker trailers to Asia Phillippine, Myanmar, etc; Africa Kenya, Nigeria, Tanzania, Algeria, Cameroon, Togo, Ivory Coast etc every year.

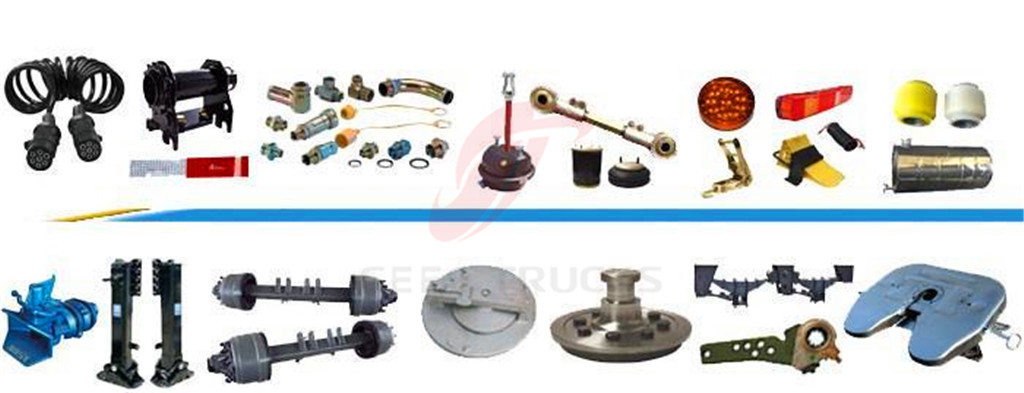

(Above show spare parts provide by China CEEC TRUCKS to meet all customer requirement)
Similar Key Works: heavy 40 m³ Bulk cement tanker semitrailer, 40CBM powder tanker semitrailer, Cement flour tanker semitrailer, 3 axle cement tanker semitrailer, 3-axle powder semitrailer, 40 CBM bulk powder transport semitrailer, Africa 40 CBM bulk cement trailer
| Type
|
40 m³ Bulk cement semi trailer
|
| Gross weight
|
10 tons
|

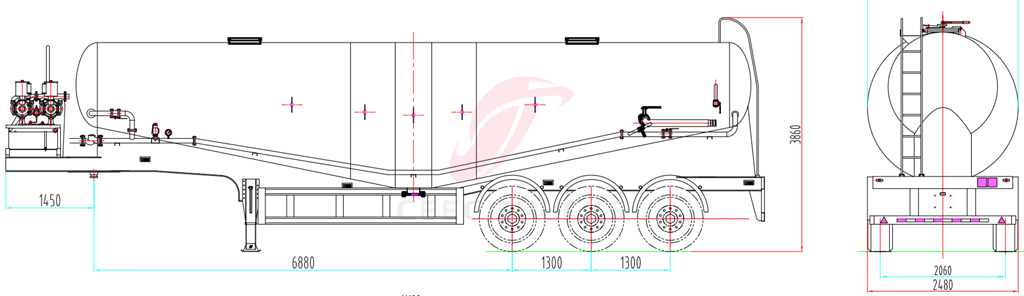

| Outside size
|
10260*2500*3950(mm)
|
| Loading capacity
|
50T or others
|
| Compressor
|
10m³ or other size tank
|
| Tank body
|
6mm thickness steel
|
| Forehead and back head
|
6mm thickness steel
|
| Axle weight
|
13T 3axles or others
|
| Tire
|
12.00R22.5 12pieces or others
|
| Rim
|
8.5-20 12pieces or others
|
| Suspension
|
Mechanical suspension or air suspension or others
|
| Leaf spring
|
10 pieces
|
| Kingpin
|
JOST brand 50#(2.0”)bolts type or other sizes
|
| Landing gear
|
JOST D200T
|
| Main beam
|
Height :500mm upper plate is 14mm.middle plate is 8mm.down plate is 16mm.Q345 steel.side beam 16#channel steel
|
| Platform
|
3mm diamond Q235 steel plate
|
| Brake chamber
|
4 double and 2single chambers
|
| Light
|
LED light
|
| Voltage
|
24V
|
| Receptacle
|
7 ways(7wire harness)
|
| Tool box
|
One piece 1m*0.5m*0.5m
|
