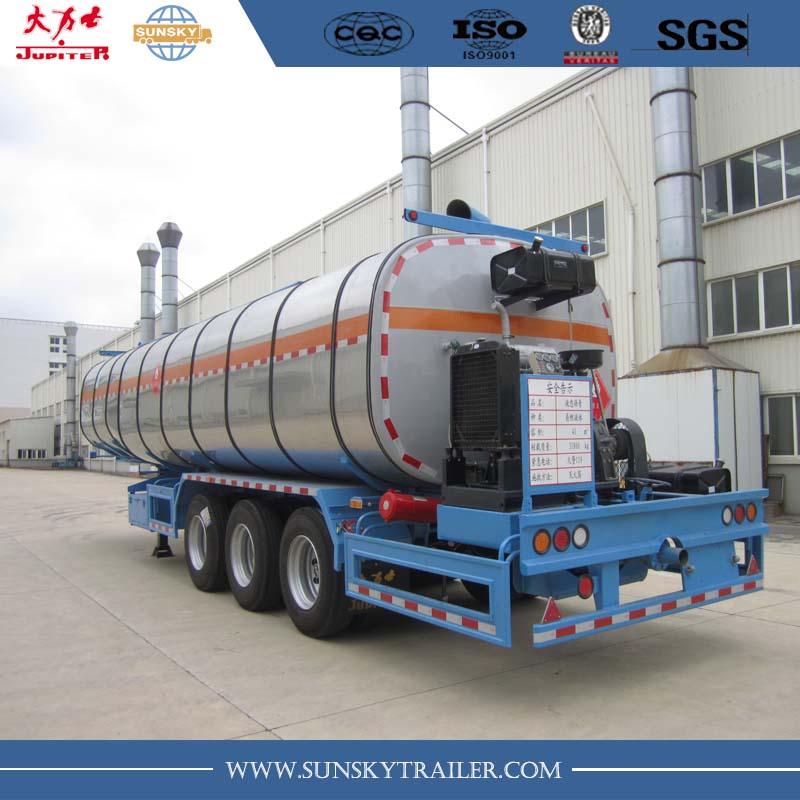

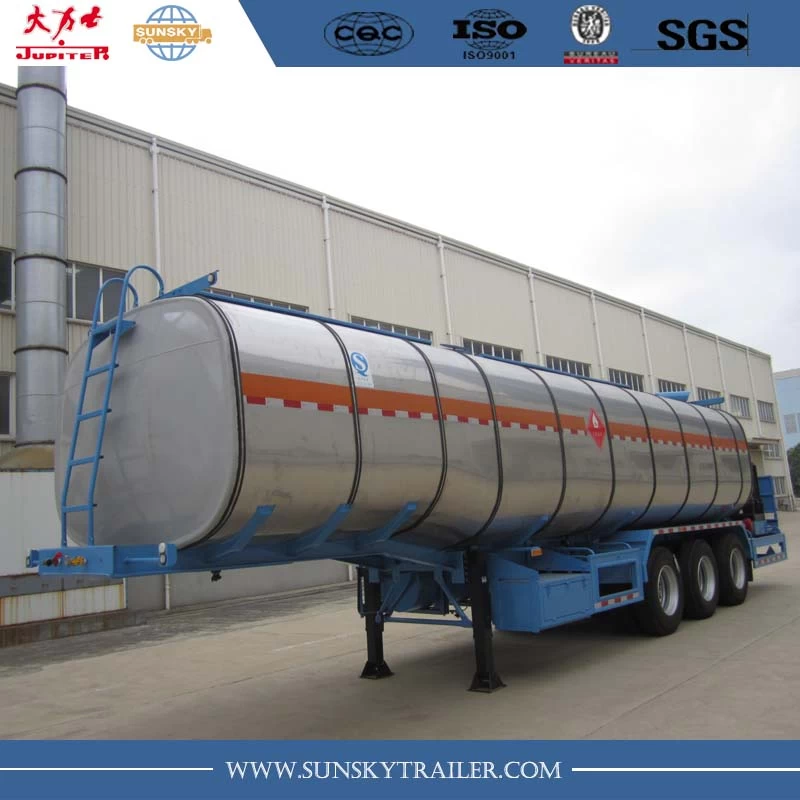

40 Tons 3 Axle Asphalt Tanker Trailer

asphalt tanker trailer used to carry asphalt,bitumen.

Use rock wool insulation.

optional to install burner,diesel ,pump



Item:40 Tons 3 Axle Asphalt Tanker Trailer


Feature of 40 tons bitumen tanker trailer


1.Stainless steel and carbon steel tanks built for your specific hauling needs ensure safe and efficient material transportation

2.Exclusive jacketing system reduces circumference seams for proper expansion and contraction and superior heat retention

3.Optional pumps for faster unloading

4.Quick-opening, U.S. standard 20-inch manhole


Specification of 3 axle asphalt tanker trailer


40 tons 3-axle asphalt trailer

Feature:

Carry bitumen,asphalt

Dimension(L*W*H):

11800*2500*3700mm(35,000L)

Model

SS9400GRY

Material:

Carbon Steel

Thickness

5mm for shell and 6mm for dish ,stainless steel on surface

Compartment:

1

Capacity(kgs):

40,000

Tare weight(kgs):

About 9200kgs

Kingpin

JOST brand bolt-in 2”

Landing gear

JOST brand 19”

Tire size

12R22.5

Rim size

9.00*22.5

Axle

Original FUWA brand 13Tons

Leafs spring

Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension

Brake system

RE 6 relay valve

Manhole:

2 sets, 20 inch

Heating system

One set burner(diesel/gasoline)

Insulation layer

75mm,rock wool insulation

Diesel engine

40KW, four cylinder

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Prime & Topcoat painting

S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting

Optional

Discharge pump and pipe

We can build the trailers according to customer’s design, requirement and budget. Different specification cost different price.



Quality Guarantee of asphalt tanker trailer for sale


1. More than 30 years experience in manufacturing semi-trailers since 1984.

2. One year warranty on the chassis of semi-trailer.

3. Spare parts support service.

4. The best brand-Wabco brand of braking system to ensure the brake performance and keep the driver safe.

5. Heavy duty design especially for the bad road condition in Africa and southeast Asia.
