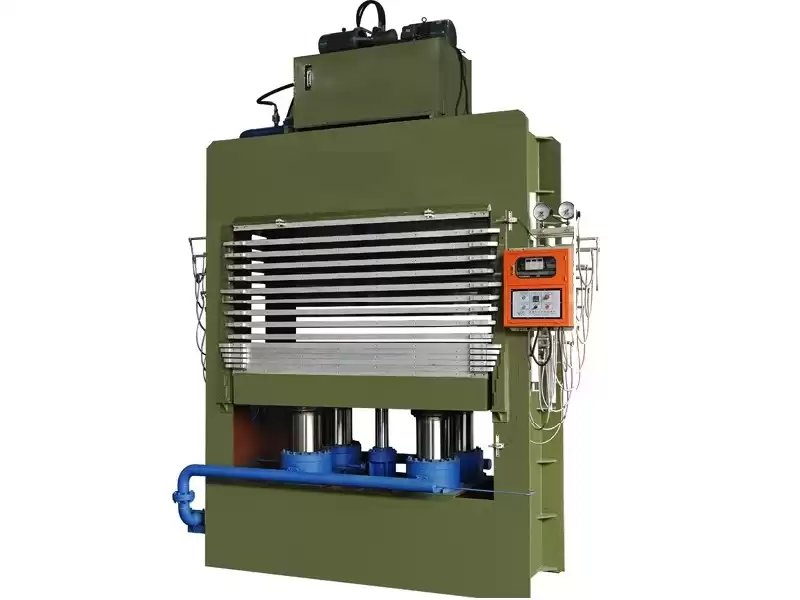

Product Name:Plywood hot press machine

Major Technical Parameters

Work layer:                         15 layers

Pressboard dimension:         1370*2700*42/52mm

No. of pressboard:               16 pcs

Distance of pressboard:        73mm

Cylinder:                              φ400*2   φ125*1

Closing time:                        15 S

Total power:                         26kw

Total weight:                         35000kg

Overall dimension                3400*1350*4300mm

Main Features

• New designed frame, to ensure machine steady and use life.
• Auto temperature-controlled system, accept heat even.
• With hydraulic system for high speed movement, saving time and raising producing ability.
