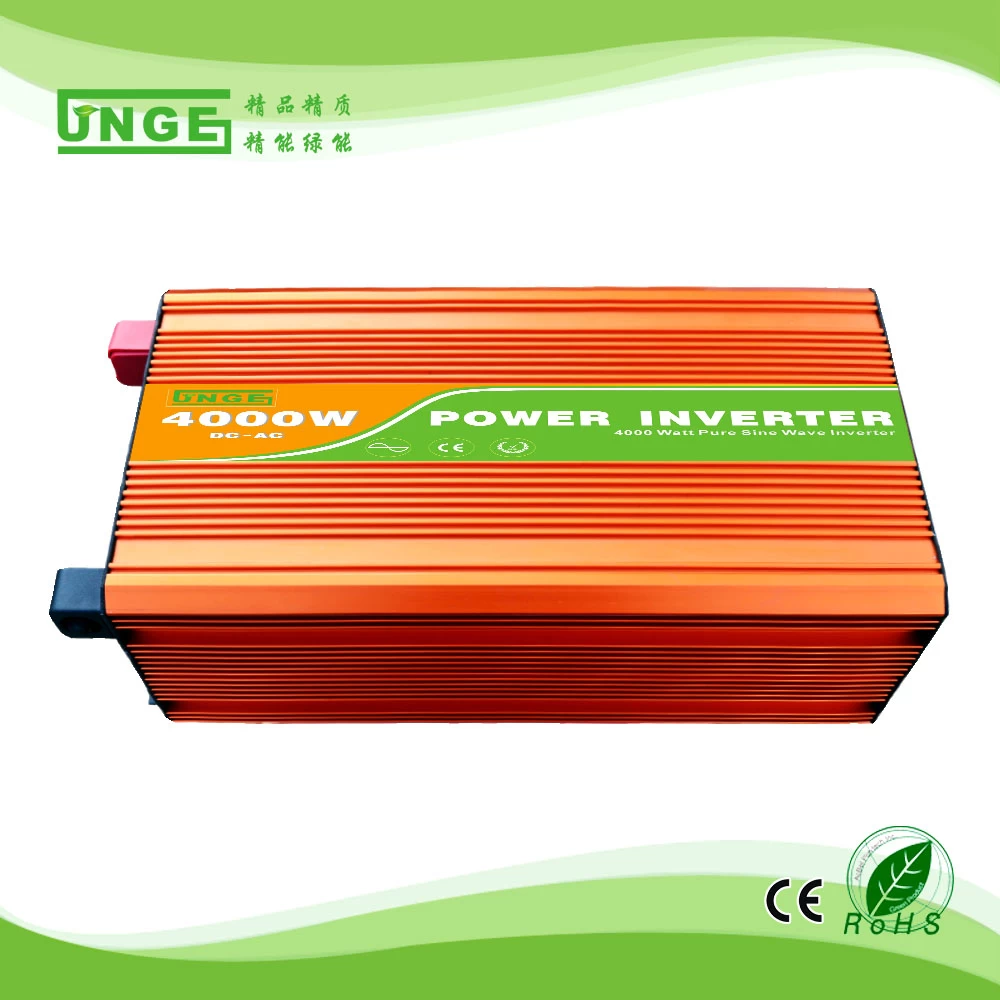

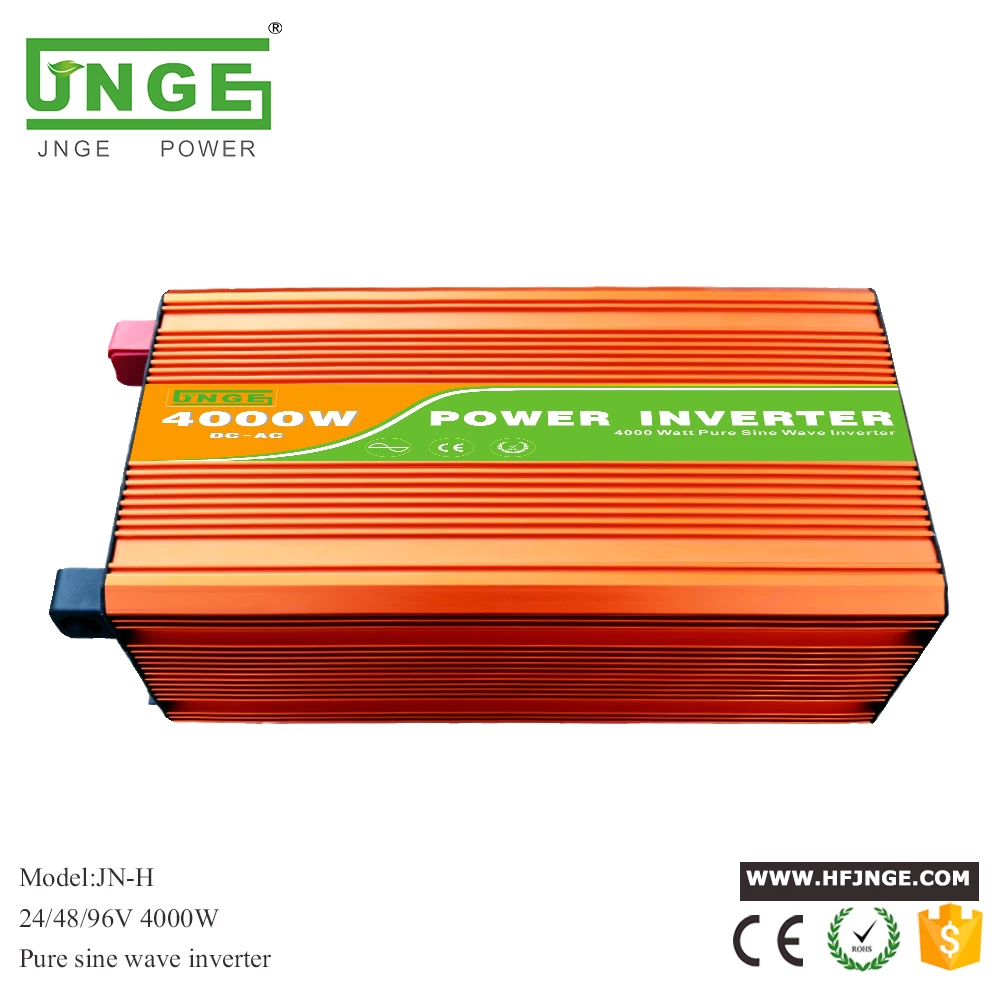

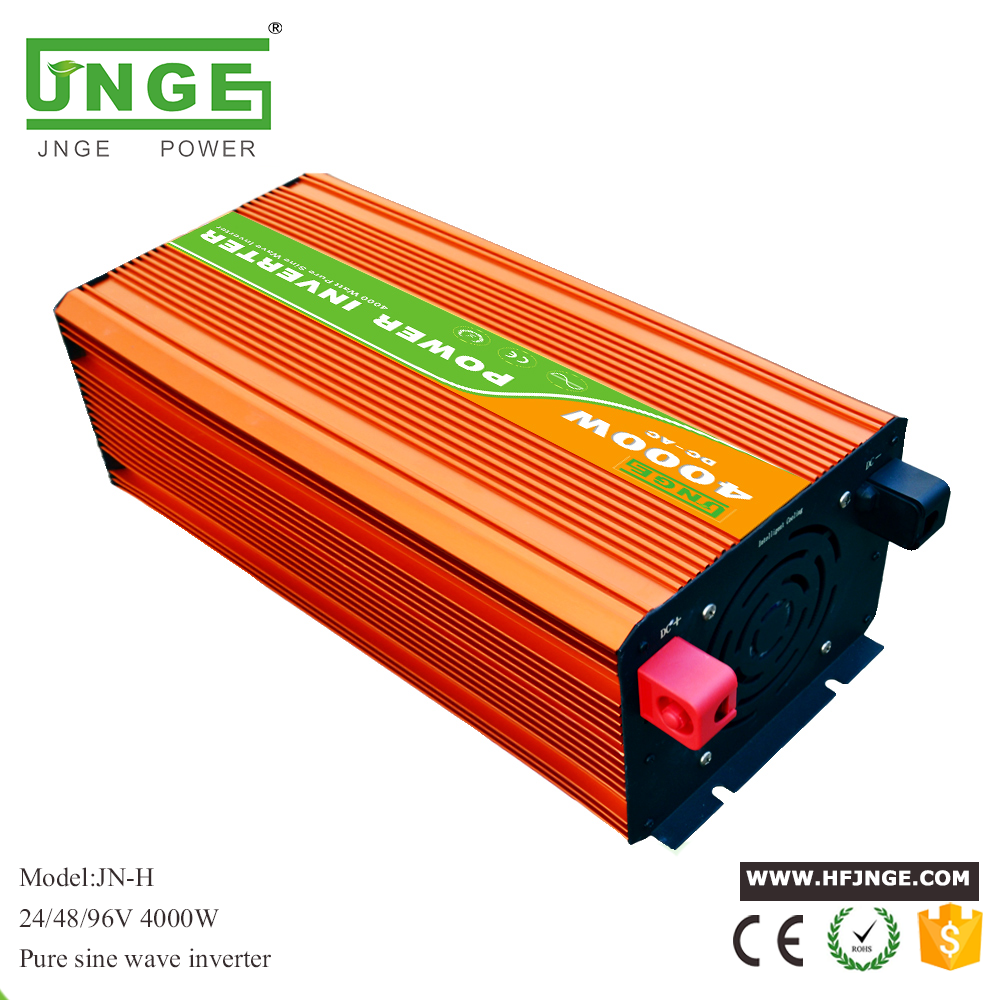

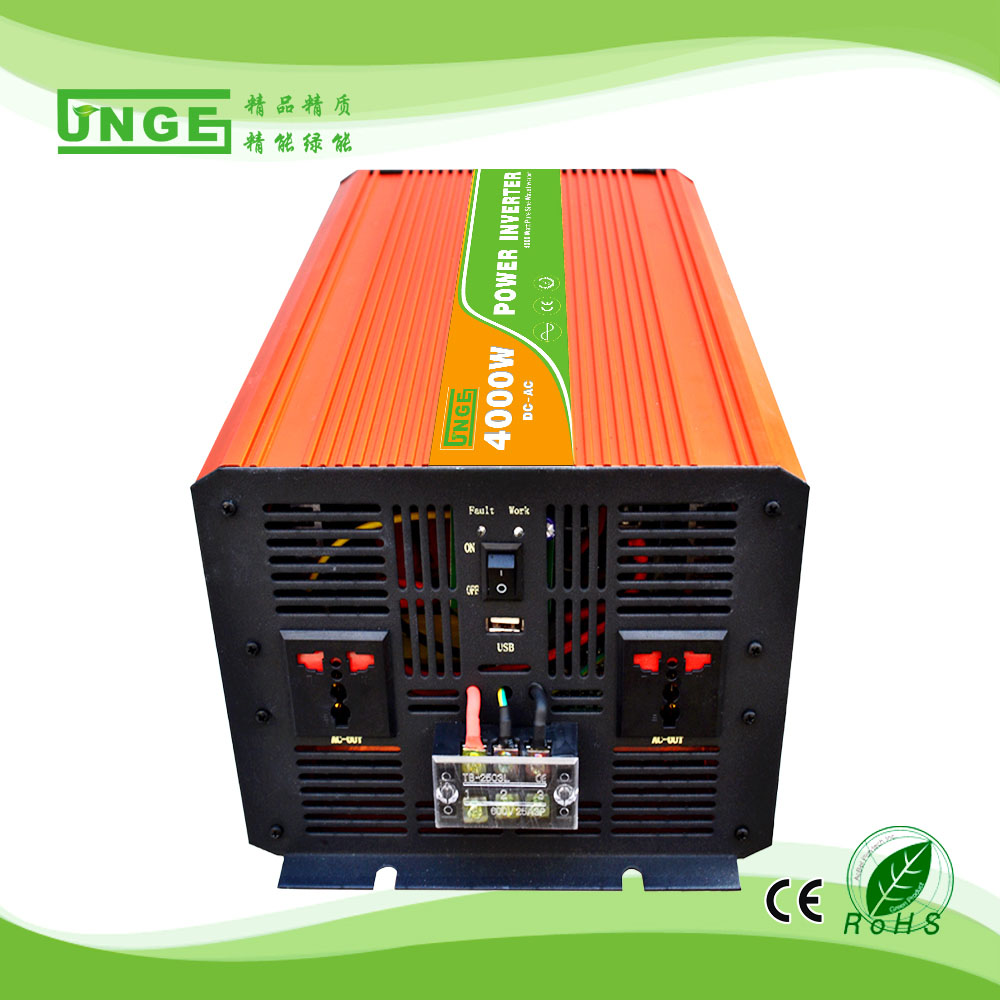

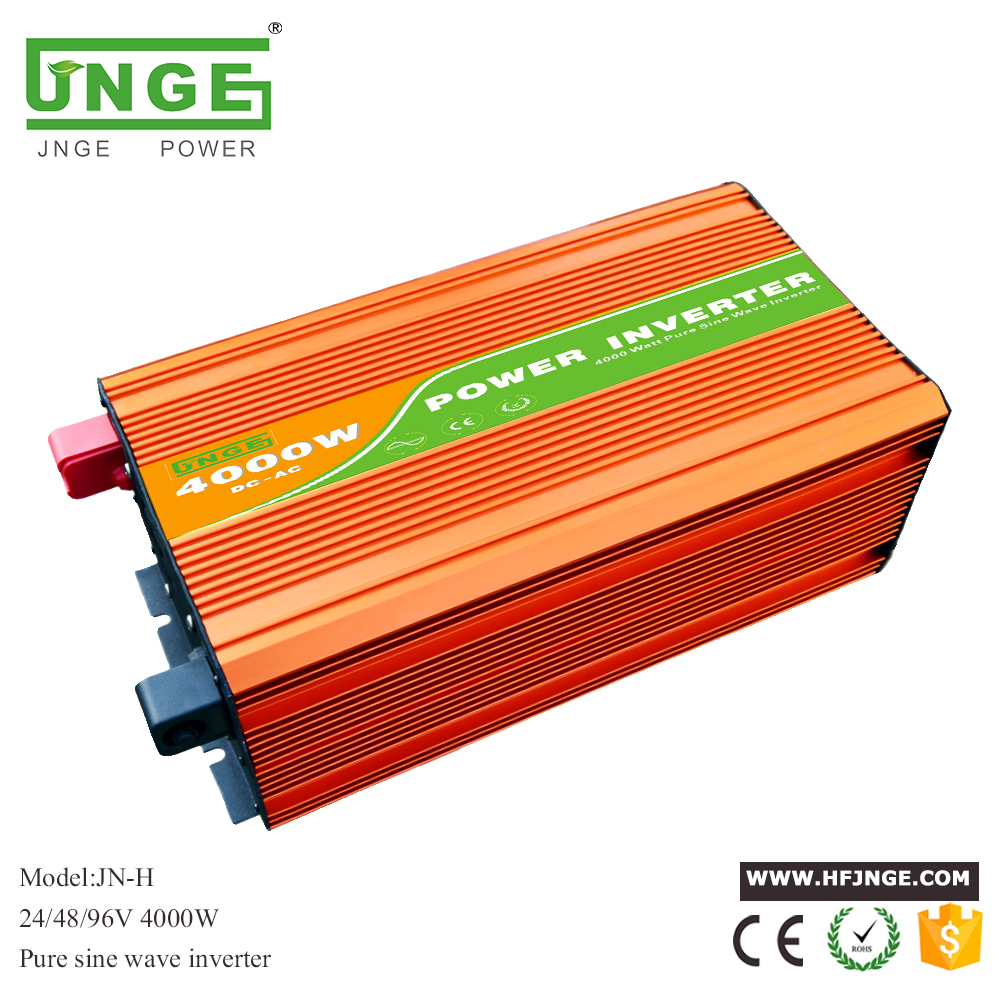

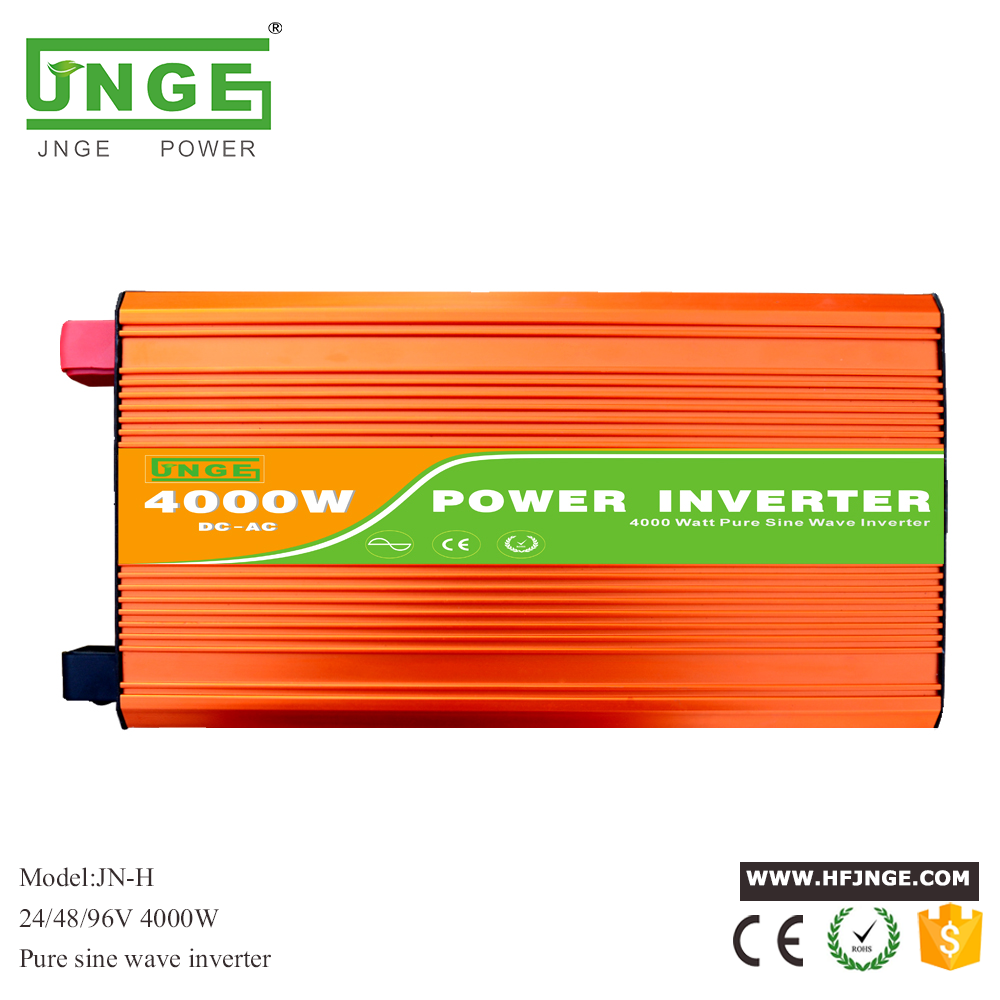

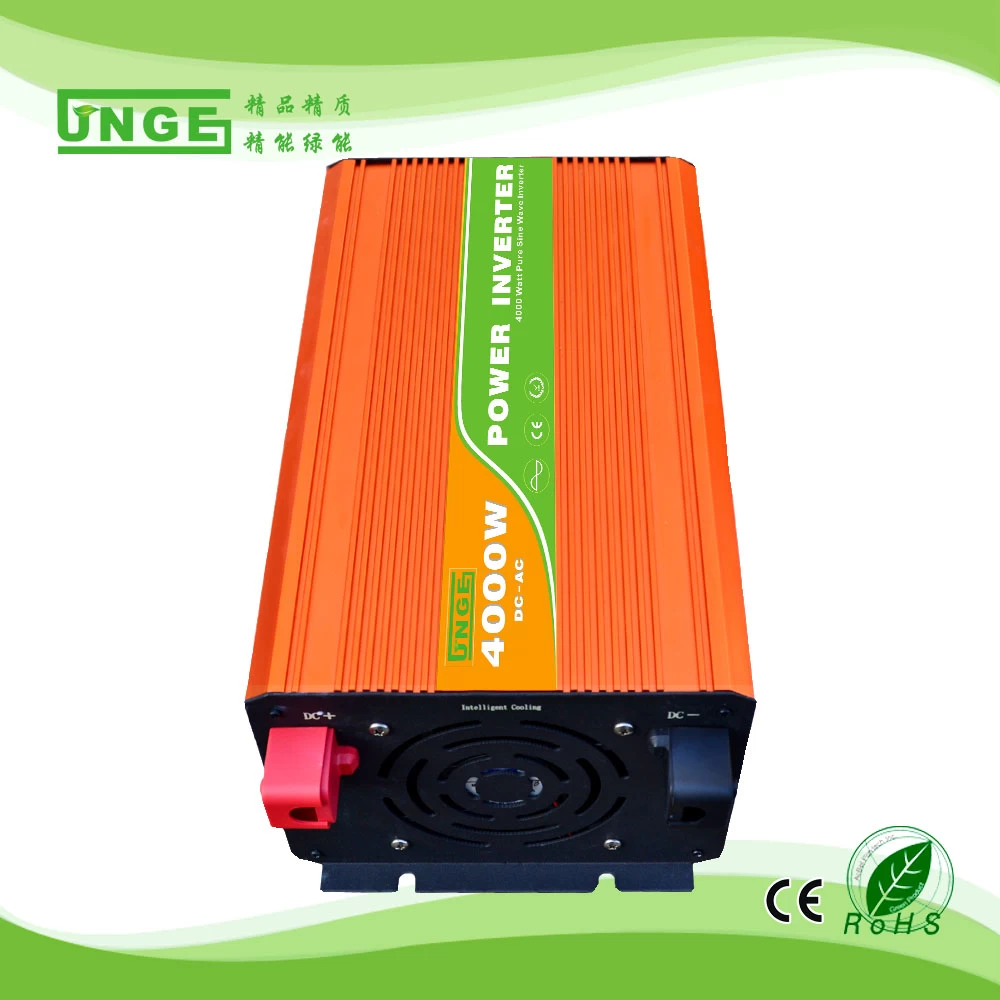

4000w high frequency inverter 24v 48v 96v DC to 110v -240v AC pure sine wave inverter

1. Unique front and back double soft start technology inverter

2. Core of CUP and the pulse width control technology of SPWM inverter.

3. Special constant power technology.

4. Technology Of prevent the reverse Diode

5. inverter With USB charge interface

6. Quarantine of front and back level

7. Perfect powerful fault protection function (including the overload protection, over current protection, high temperature protection, short circuit protection, the battery reverse connect protection, and it is also equipped with inbuilt fuse)

8.inverter Battery protective function (Battery over-voltage under-voltage protection, overvoltage, under voltage recovery and related function)

9. Shock-protect function

10. AC pure sine wave inverter output has no effect on the use lifetime of equipment

11.This inverter with Aluminum shell, surface of sandblasting anodic oxidation treatment, high hardness and prefect shape.



This is a 4000W 12V 24V 48V 96V (optional) pure sine wave power inverter which can generate 4000W of continuous power and up to 8000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).


This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:


It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters) It is more efficient compared to modified sine wave inverters.

This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.


The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads.


Product Parameters:

OUTPUT OUTPUT VOLT 100/110/120/220/230/240VAC
CONTINUOUS POWER 4000W
SURGE POWER 8000W
WAVEFORM PURE SINE WAVE
FREQUENCY 50Hz/60Hz
AC REGULATION LOW & HIGH 10%
Non-load  Consumption <26W
EFFICEINCY >90%
INPUT USB OUTPUT 5V
DC VOLTAGE LED DISPLAY POWER & FAIL STATUS
INPUT RANGE 21-30VDC          40-60VDC       80-120VDC
PROTECTION WORKING INPUT 24VDC               48VDC           96VDC
FUSE 20A                    10A              15A
Low battery alarm 21+0.5V              42+0.5V        84+0.5V
Low battery shut down 20+0.5V               40+0.5V        80+0.5V
Over voltage shut down 30.5+0.5V             60+0.5V        120+0.5V
Over load shut down 4800W over 10 seconds
Over heating shut down >75
Over Thermal  shut down the output
Working Temperature BETWEEN -10 and +50
soft start
OTHER DIMENSION(L*W*H)  485*218*155mm
INNER BOX DIMENSION  575*310*255mm
CARTON DIMENSION  580*315*260mm
NET WEIGHT 11±1KG
GROSS WEIGHT 13.2±1KG
PACKING 1PCS/CTN
