Features
1) Carry Bulk Cargo,
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification
|

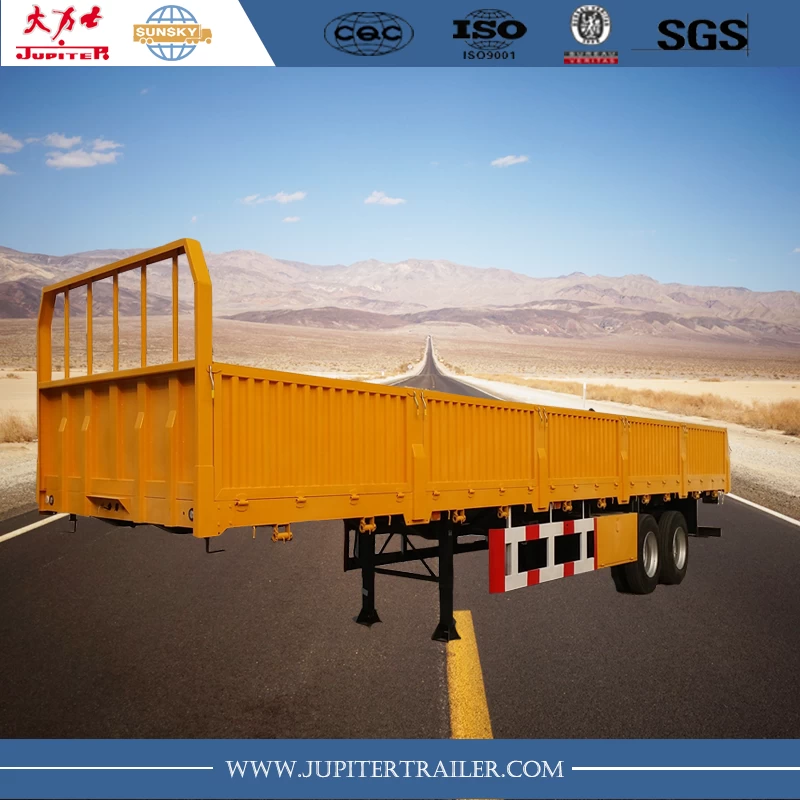

40FT 2-Axle Side Wall
semi trailer
|
|
Feature:
|
Carry Bulk cargo
|
|
Dimension(L*W*H):
|
12600*2500*2300mm
|
|
The Height of Wall
|
800mm
|
|
Main frame:
|
Heavy duty and extra
durability design; Opting for high tensible low carbon alloy Q345B steel; I
beam welded by automotive arc-submerge process
|
|
Model:
|
SS9400TJZX
|
|
No. of axle:
|
2
|
|
Payload(kgs):
|
40000
|
|
Tare weight(kgs):
|
8000
|
|
Kingpin:
|
The world-famous JOST brand bolt-in/welded
type 3.5”/2”
|
|
Landing gear:
|
JOST brand two-speed manual operation
19”
|
|
Tire size:
|
12R22.5、315/80R22.5、385/65R22.5
|
|
Rim size:
|
9.00*22.5、11.75*22.5
|
|
Axle:
|
Original BPW-12T/ FUWA-13T
|
|
Suspension
|
Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag
suspension
|
|
Brake system:
|
Dual line with WABCO brand Re-6
emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard
socket; with brake light, turn light, reverse light, side light, reflector,
fog light; one set of 6-pin standard cable
|
|
Container locks
|
12(for 1x20GP,2X20GP,1X40HQ)
|
|
Painting:
|
S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish
painting
|
|
Accessory:
|
One tool box; one set of standard tool
|
|
We can build the trailers according to
customer’s design and requirement
|

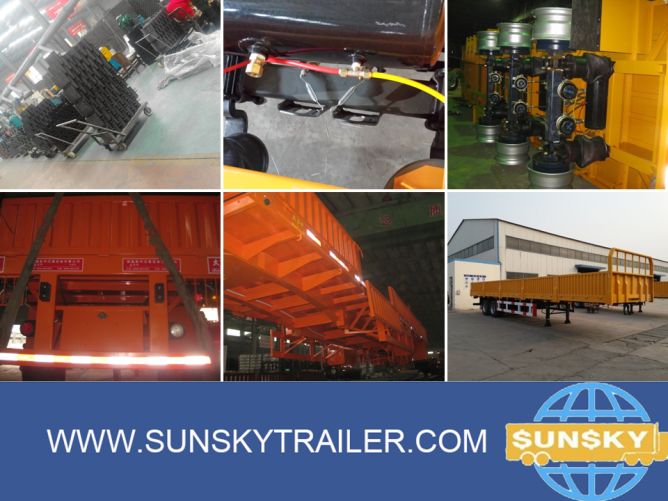

Product Detail

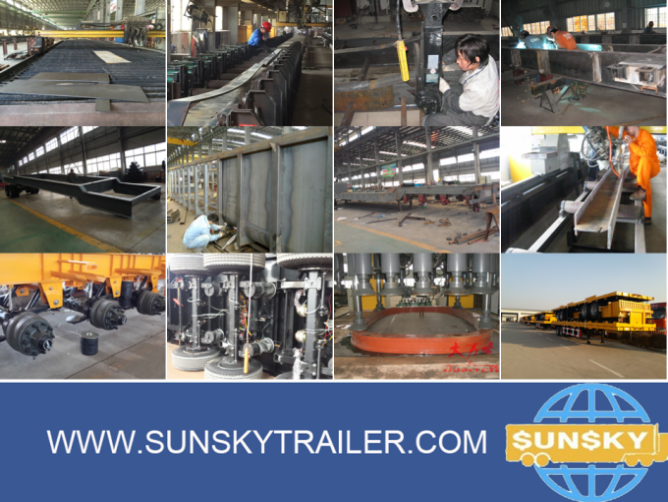

Producing Process

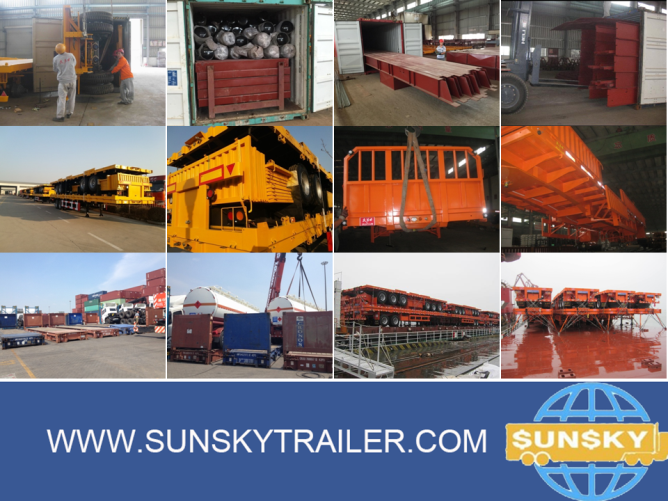

Loading and Packing
Certificate and Technology
Other Products
FAQ
1.Who are we?
We are a group company; Have three semi-trailer factories , one trading company in china and one company in Hong Kong. We are focus on semi-trailer, trucks and parts.
2. Why choose us ?
1) Have more than 30 years experience in the trailer manufacturing. The brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.
2) Have more than 20 engineers to design the kinds of trailers according to the requirement from you.
3) Had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.
4) One of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
