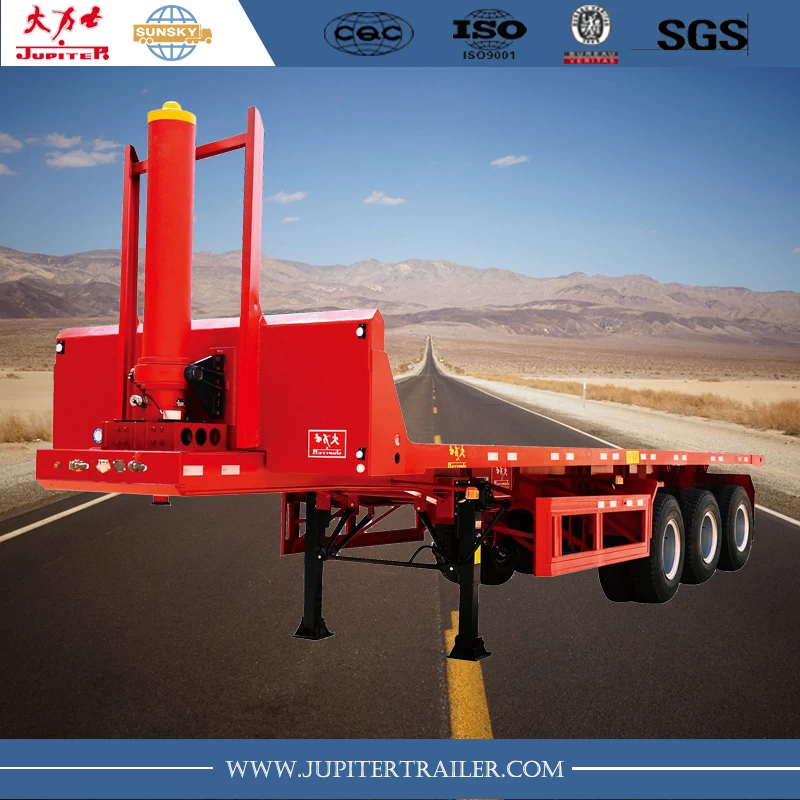

40ft 3-axle container tipper semi-trailer

40ft 3-axle container tipper semi-trailer,offer two years guarantee term provided freely.



Sunsky brand 40ft 3-axle container tipper semi-trailer


Features:

­­­‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1) container tipper semi-trailer Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.

3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.


Specification:


‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑


40ft 3-axle container tipper semi-trailer

Feature:

Carry 40ft container

Dimension(L*W*H):

12600*2480*2000mm

Main frame:

Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

Container lock

4

Model:

SS9700TJZT

Payload:

40,000KGS

Tare weight(kgs):

7,500kgs

Kingpin:

The world-famous JOST brand bolt-in/welded type 3.5”/2”

Landing gear:

JOST brand two-speed manual operation 19”

Tire size:

11.00R2011R22.512R22.5315/80R22.5385/65R22.5

Rim size:

8.25*22.59.00*22.511.75*22.5

Axle:

Original BPW-12T/ FUWA-13T

Suspension

Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension

Brake system:

Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Hydraulic system

Hyva brand

Painting:

S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

Accessory:

One tool box; one set of standard tool

We can build the trailers according to customer’s design and requirement



Producing process:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

container tipper semi-trailer



Loading and Packing:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

container tipper semi-trailer



Our advantage and ability:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

container tipper semi-trailer



What others we can supply:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

container tipper semi-trailer




FAQ:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1. Who are we?


Answer: We are a group company; we have three semi-trailer factories in china, one trading company in china and one company inHong Kong. We are focus on semi-trailer, trucks and parts.

2. Why choose us

Answer: 1) We have more than 30years experience in the trailer manufacturing. Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.

2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.

3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.

4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
