40ft 3-Axle Dropside Semi-Trailer For Carry Container

40ft 3-Axle Dropside Semi-Trailer

This trailer is suitable for carrying container, bulk cargo such as steel,bag cement,low consumption and high effiency



Description

Factory Supply 40ft 3-axle dropside semi-trailer for carry container

1SUNSKY 40ft 3-axle dropside semi-trailer is mainly suitable for the long distance transportation of large-scale bulk cargo, good adapt ability in cargo.

2.The main frame is made of 16Mn high-tensile steel,reasonable structure,light weight,superior carrying capacity and no permanent deformation.
3.The axle,tyre and other accessories are the well-known products which supplied by the domestic and foreign professional manufacturers.
4.The main frame can be made of foreign or domestic high-tensile steel to reduce tare weight.


Features:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.

3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.


Specification:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑


40FT Side Wall semi trailer

Feature:

 Carry 1X20FT1X40FTor 2X20FT container;

 Carry Bulk cargo

Dimension(L*W*H):

 12600*2500*2300mm

The Height of Wall

 800mm

Main frame:

 Heavy duty and extra durability design; Opting for high  tensible low carbon alloy Q345B steel; I beam welded by  automotive arc-submerge process

Model:

 SS9402TJZW

No. of axle:

 3

Payload(kgs):

 50000

Tare weight(kgs):

 8200

Kingpin:

 The world-famous JOST brand bolt-in/welded type 3.5”/2”

Landing gear:

 JOST brand two-speed manual operation 19”

Tire size:

 11.00R2011R22.512R22.5315/80R22.5385/65R22.5

Rim size:

 8.25*22.59.00*22.511.75*22.5

Axle:

 Original BPW-12T/ FUWA-13T

Suspension

 Germany type with 12pcs of leafs spring/ Fuwa brand with  8pcs of leafs spring/ Airbag suspension

Brake system:

 Dual line with WABCO brand Re-6 emergency relay valve,  MBA brand T30/30 air chamber, 46L air tank

Electric system:

 One unit of 24V 7-pin ISO standard socket; with brake light,  turn light, reverse light, side light, reflector, fog light; one set  of 6-pin standard cable

Container locks

 12(for 1x20GP,2X20GP,1X40HQ)

Painting:

 S.A.2.5standard sandblasting; Two coat of anti-corrosion  prime; one coat of finish painting

Accessory:

 One tool box; one set of standard tool

 We can build the trailers according to customer’s design and requirement

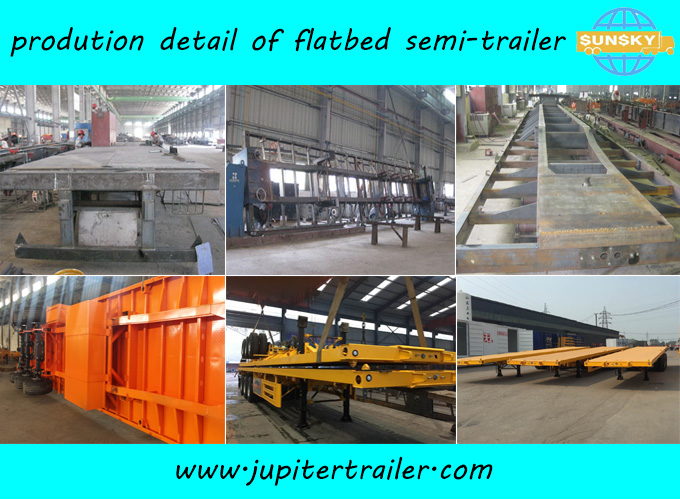

Production detail:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑






Producing process:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

40ft 3-axle dropside semi-trailer



Loading and Packing:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

40ft 3-axle dropside semi-trailer



Our advantage and ability:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

40ft 3-axle dropside semi-trailer



What others we can supply:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

40ft 3-axle dropside semi-trailer




FAQ:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1. Who are we?


Answer: We are a group company; we have three semi-trailer factories in china, one trading company in china and one company inHong Kong. We are focus on semi-trailer, trucks and parts.

2. Why choose us

Answer: 1) We have more than 30years experience in the trailer manufacturing. Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.

2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.

3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.

4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
