Item:40FT Skeleton Trailer For Warehouse
Introduction of skeleton trailer for sale
The SUNSKY range of Skeletal trailers has been specifically designed for rigorous wharf work throughout Africa and Southeast Asia. like Tanzania,Kenya,Philippines etc. We offer our customers many different options to suit their needs and our range varies from single container carrying combinations, to units that have the ability to carry containers in four different locations. Whatever your requirement SUNSKY can meet all your loading needs.
We also offer a large range of trailer specification options, from different types of suspension to axles sizes, aluminum to steel wheels, lengths and widths to bare bone main rail trailers, the options are endless.
Specification of 40 ft 3 axle skeleton trailer
|
Item
|
40FT 3 Axle Skeleton Trailer
|
|
Feature:
|
Carry 1X20FT,1X40FT,or 2X20FT container
|
|
Dimension(L*W*H):
|
12420*2480*1540mm
|
|
Main frame:
|
High tensible low carbon alloy Q345B steel
|
|
Model:
|
SS9370TJZG
|
|
No. of axle:
|
3
|
|
Payload(kgs):
|
50000
|
|
Tare weight(kgs):
|
5600
|
|
Kingpin:
|
JOST brand bolt-in 2”
|
|
Landing gear:
|
JOST brand two-speed manual operation 19”
|
|
Tire size:
|
12R22.5
|
|
Rim size:
|
9.00*22.5
|
|
Axle:
|
FUWA-13T
|
|

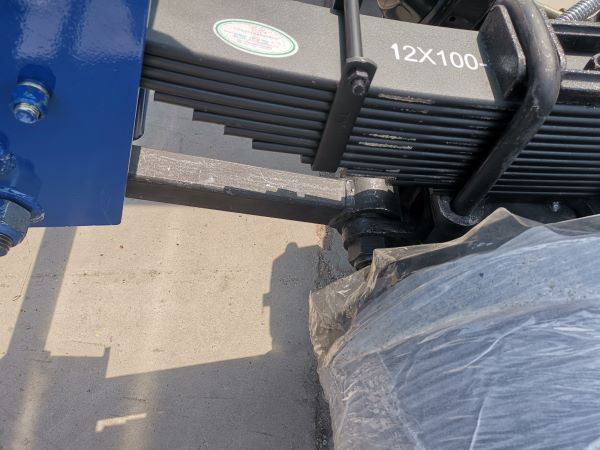

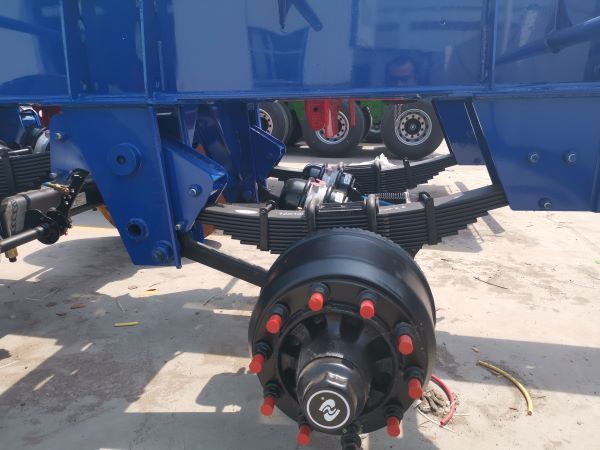

Suspension
|
Spring suspension with 8pcs of leafs spring
|
|

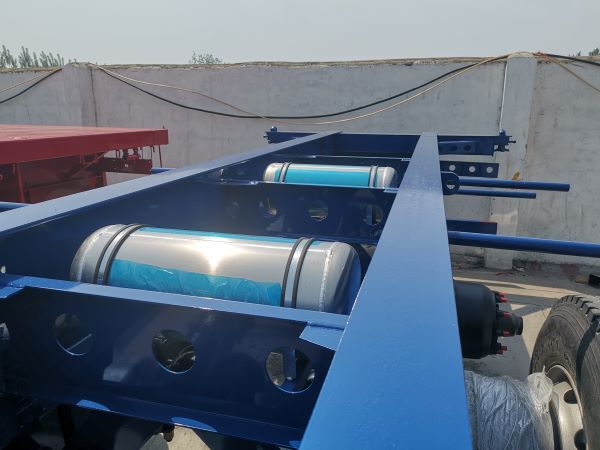

Brake system:
|
WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
|
|
Electric system:
|
ISO standard socket; with light and 6-pin standard cable
|
|
Container locks
|
12(for 1x20GP,2X20GP,1X40HQ)
|
|
Painting:
|
S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
|
|
Accessory:
|
One tool box; one set of standard tool
|

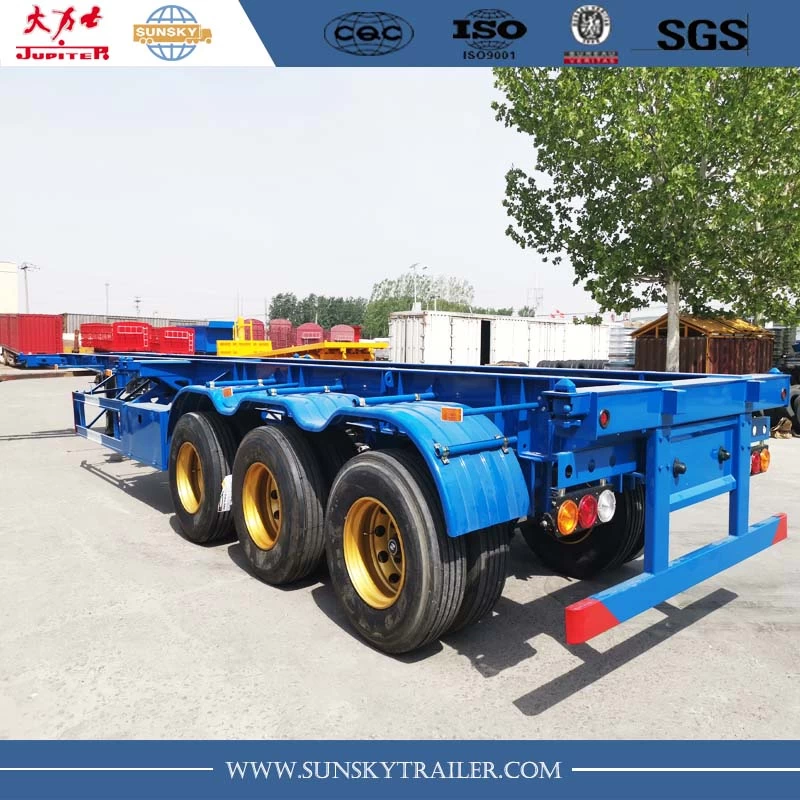

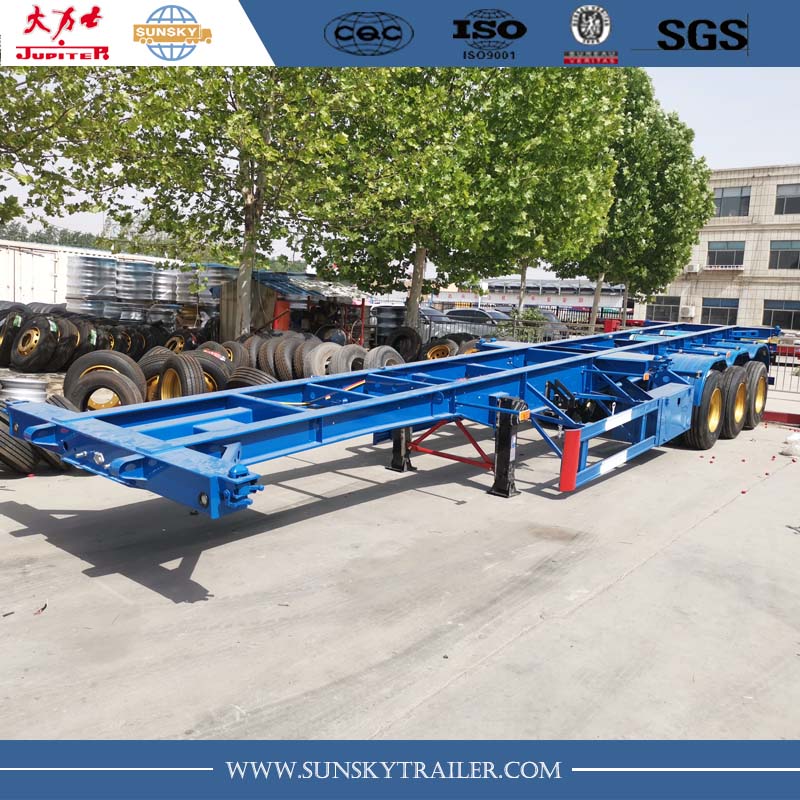

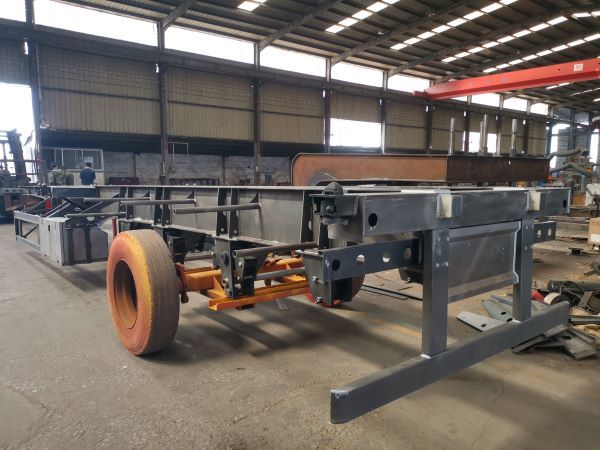

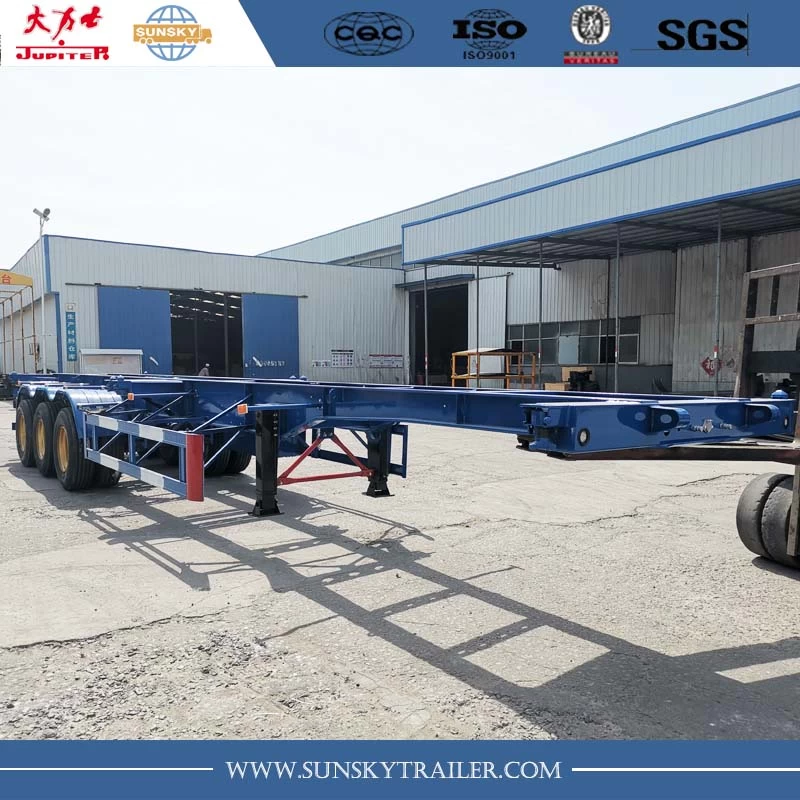

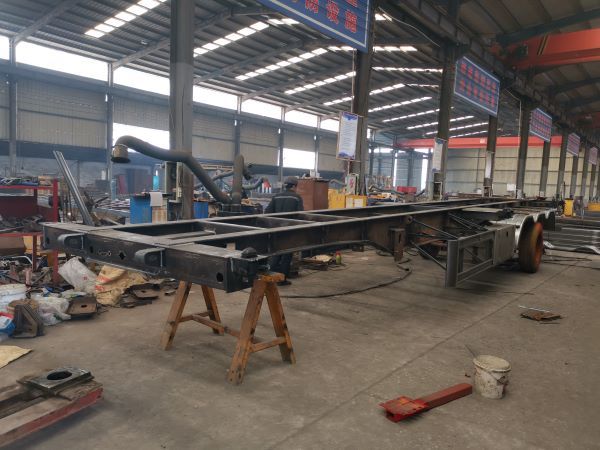

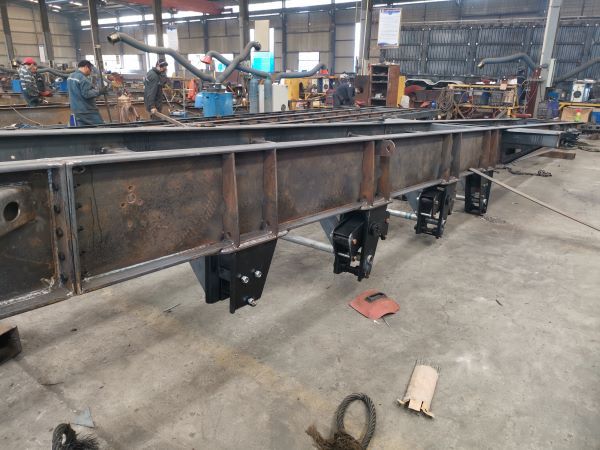

Detail Photo
