EQA4X-33CDxx

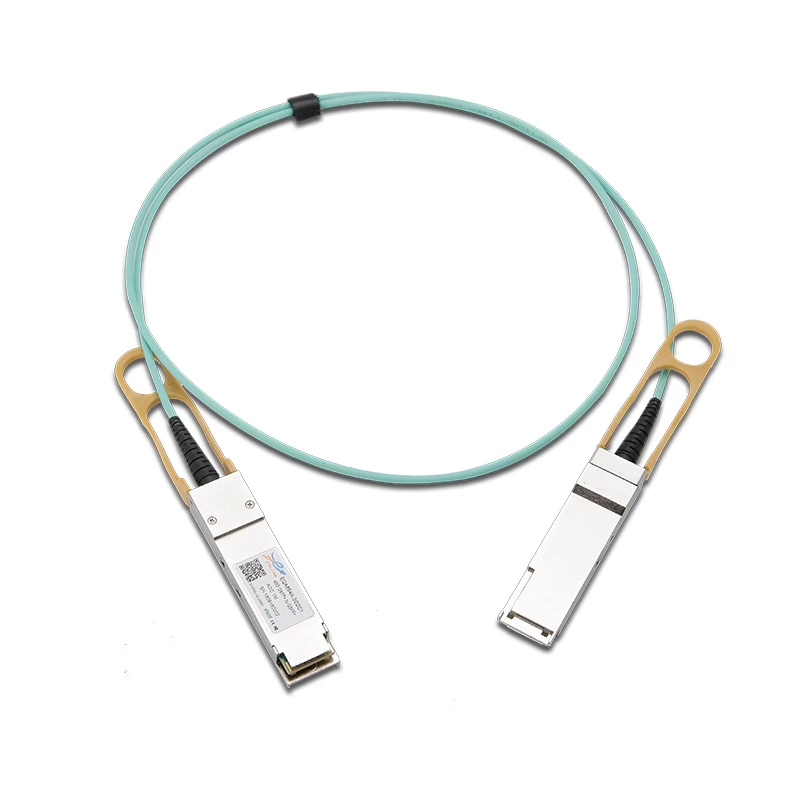

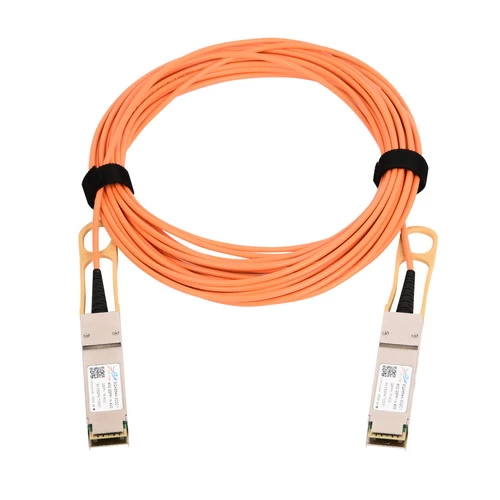

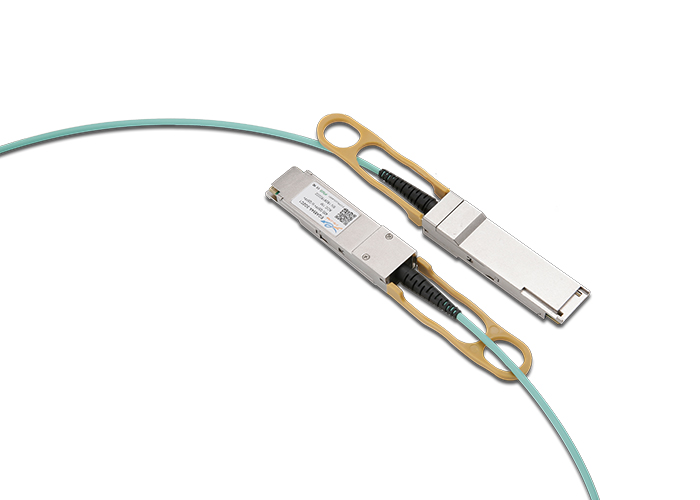

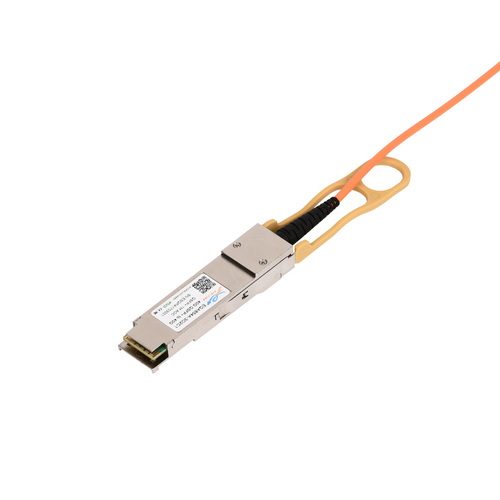

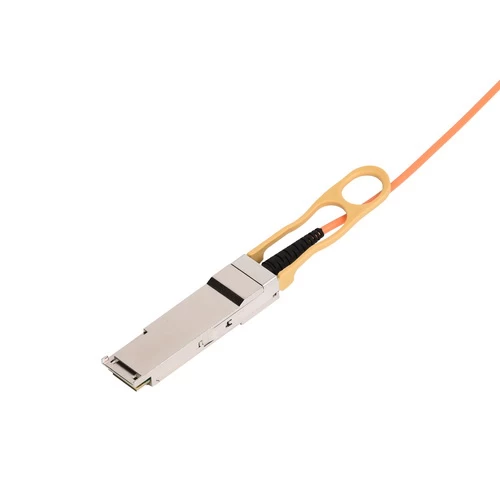

40G QSFP+ to 40G QSFP+ Active Optical Cables
Features
Four-channel full-duplex active optical cable
Transmission data rate up to 11.3Gbit/s per channel
Reliable VCSEL array technology using multimode fiber
Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
Applications
Infiniband QDR/DDR/SDR
Datacenter
40G Ethernet
4G/8G/10G Fibre Channel
Description
The ETU-Link QSFP+ active optic cables are a high performance, low power consumption,
long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G
fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE
P802.3ba.ETU-Link QSFP AOC is an assembly of 4 full-duplex lanes, where each lane
iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of
45.2Gb/s.ETU-Link QSFP+AOC is one kind of parallel transceiver which provides increased
port density and total system cost savings.
