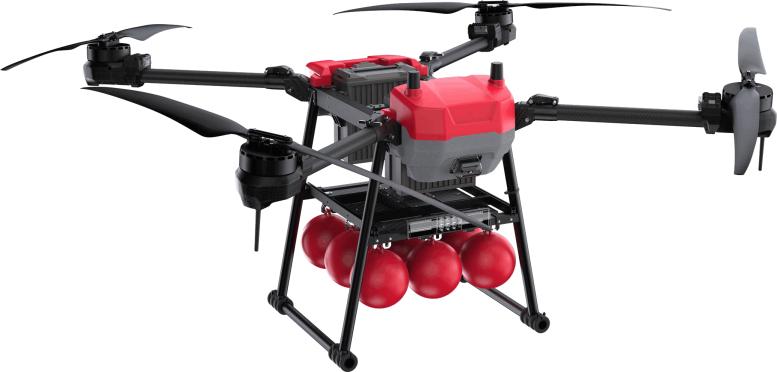

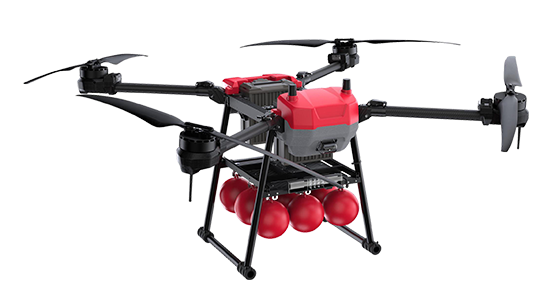

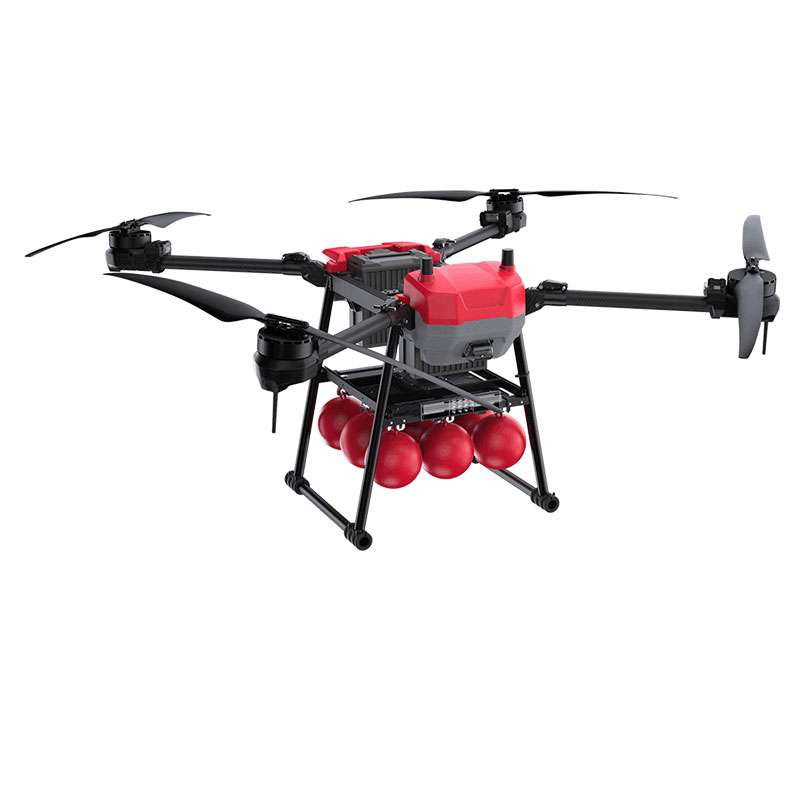

This fire-fighting drone features a body design suitable for complex environments, and is capable of carrying a sufficient amount of fire-fighting equipment. It adopts a convenient quick-release hook design, and supports the simultaneous deployment of single or multiple fire-fighting balls. It is suitable for scenarios such as open buildings, mountain forests and farms. The fire extinguishing ball can quickly take effect after being released, and cover a certain range of fire points to effectively extinguishing initial fires or suppressing the fire, to buy time for subsequent rescue operations, and significantly improve the efficiency of fire handling.
Product features
Airdropping fire extinguishing balls prevented firefighters from venturing into dangerous situations
The mounting and placement are flexible, and the quick-release hooks support single or multiple placements
It can break through terrain and traffic restrictions and reach the fire scene in a straight line
Improve fire extinguishing efficiency and reduce post-disaster losses
Product parameters
|
FR-40
|
|
Size
|
1725*1755*1100mm
|
|
Maximum takeoff weight
|
110kg
|
|
Maximum load
|
40kg
|
|
Maximum flight distance
|
10km
|
|
Maximum ascending speed
|
2.5m/s
|
|
Maximum flight altitude
|
≤120m
|
|
Fastest flight speed
|
13.5m/s
|
|
Full-load flight time
|
30min
|
|
Control distance
|
10km
|
|
Throw
|
|
Number of mount points
|
4/6/9pcs
|
|
Single mounting point payload
|
50kg
|
|
Throw mode
|
Single throw/Full throw
|
|
Hook method
|
Pull-out quick-release
|
|
Fire extinguishing ball
|
|
Single weight
|
4kg
|
|
Diameter
|
215mm
|
|
Fire extinguishing area
|
9m³
|
|
Qty that can be mounted one-time
|
4pcs
|
|
Fire extinguishing bomb
|
|
Size
|
Outer diameter: φ260mm, length: 620mm
|
|
Weight
|
24.8 kg
|
|
Types of fire extinguishing agents
|
Dry powder and water-based fire extinguishing agents
|
|
The controlled area of fire scene
|
≥125㎡
|
|
Drop height
|
30~150m
|
|
Explosion height
|
≥5m
|
|
Fire extinguishing tank
|
|
Weight
|
24kg
|
|
Jet distance
|
≥10m
|
|
Fire-extinguishing material
|
Ultra-fine dry powder
|
|
Fire extinguishing area
|
100m³
|
|
Tank pressure
|
0.8~1.2Mpa
|
|
Time
|
≤60s
|
|
Spray direction
|
Downward/Forward
|
|
Fire extinguishing level
|
02.5A/13B/E/5F
|
|
Horizontal fire extinguishing bomb
|
|
Maximum range jet
|
≤50m
|
|
Initial velocity at launch
|
≤30m/s
|
|
Coverage area
|
10m³
|
|
Glass-breaking ability
|
It can penetrate 16mm thick tempered glass within 18 meters
|
|
Structural principle
|
Dry powder is slowly released and sprayed without explosion
|
|
Types of fire extinguishing agents
|
ABC Ultra-fine Dry powder
|
|
The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
|
