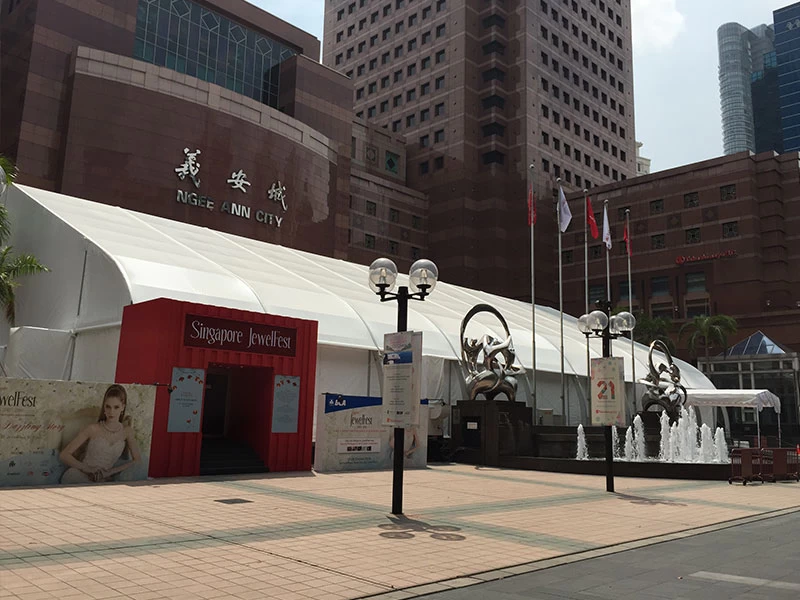

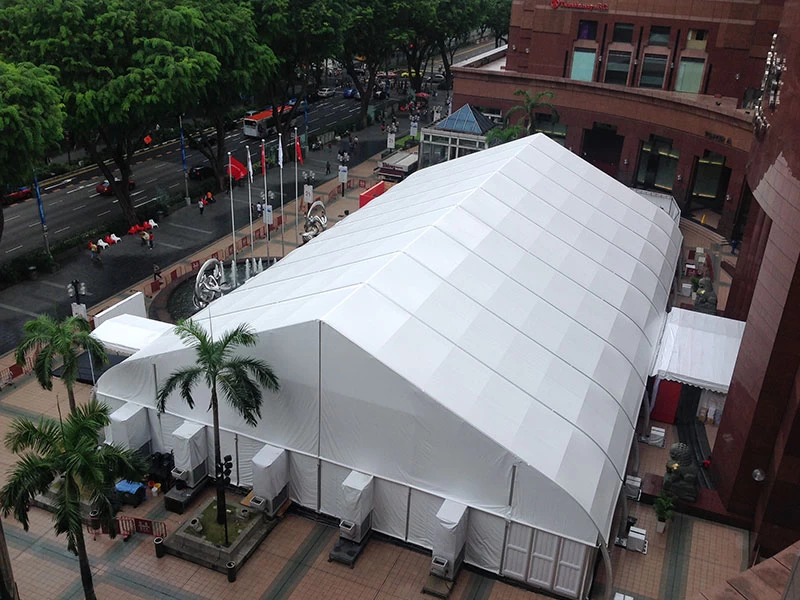

40M-60M Big Exhibition Tent
If you need a large space, and the normal span cannot satisfy the requirement of your what should I do?
Don't worry about it.
Our biggest can do 60 meters span.
Configuration can be the length of the infinity, absolute can satisfy all of your huge temporary space reverie. Whether you want to open what kind of exhibition, as long as there is so much space, any kind of exhibition can function!

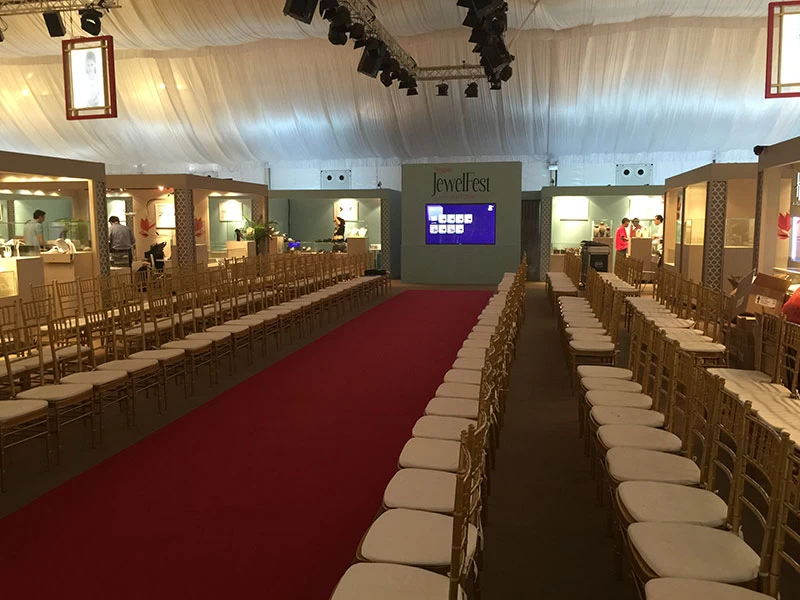

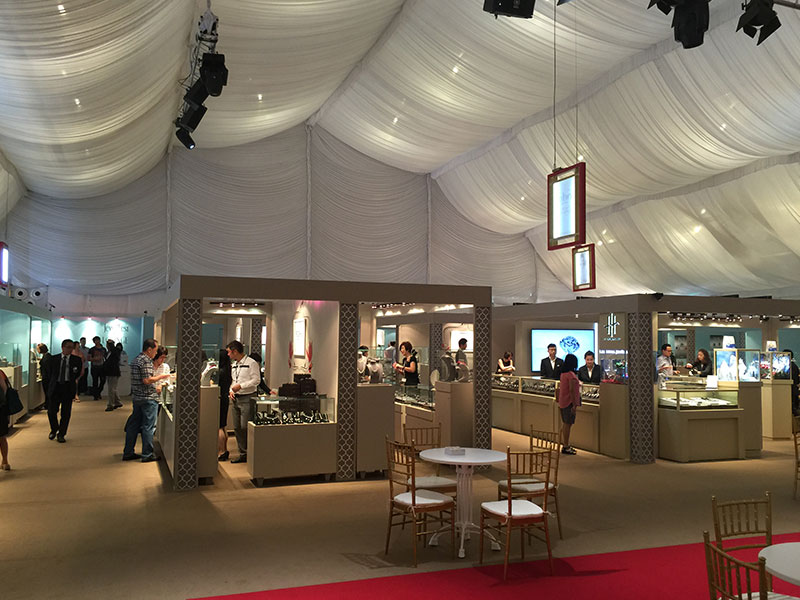

And inside, it is completely free space.
The Specification of 40M-60M Big Exhibition Tent:
|
Type
|
Span (m)
|
Side height
(m)
|
Ridge height
(m)
|
Bay Distance
(m)
|
Roof Pitch
|
Longest
Component (m)
|
Wind Load
(km/h)
|
|
XLS20/4-5CT
|
20
|
3.9
|
8.8
|
5
|
25°
|
8
|
100
|
|
XLS25/4-5CT
|
25
|
3.9
|
9.9
|
5
|
25°
|
9.1
|
100
|
|
XLS30/4-5CT
|
30
|
3.9
|
11.2
|
5
|
25°
|
11.8
|
100
|
|
XLS40/4-5CT
|
40
|
3.9
|
13.5
|
5
|
25°
|
11.8
|
100
|
|
Main frame
Profile
|
300x120x5mm （4-Channel)
|
|
Eave
Connection
|
Hot-dip
Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame
Material
|
Hard Pressed
Extruded Aluminum 6061/T6
|
|
Cover
Material
|
Double PVC
coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
|
