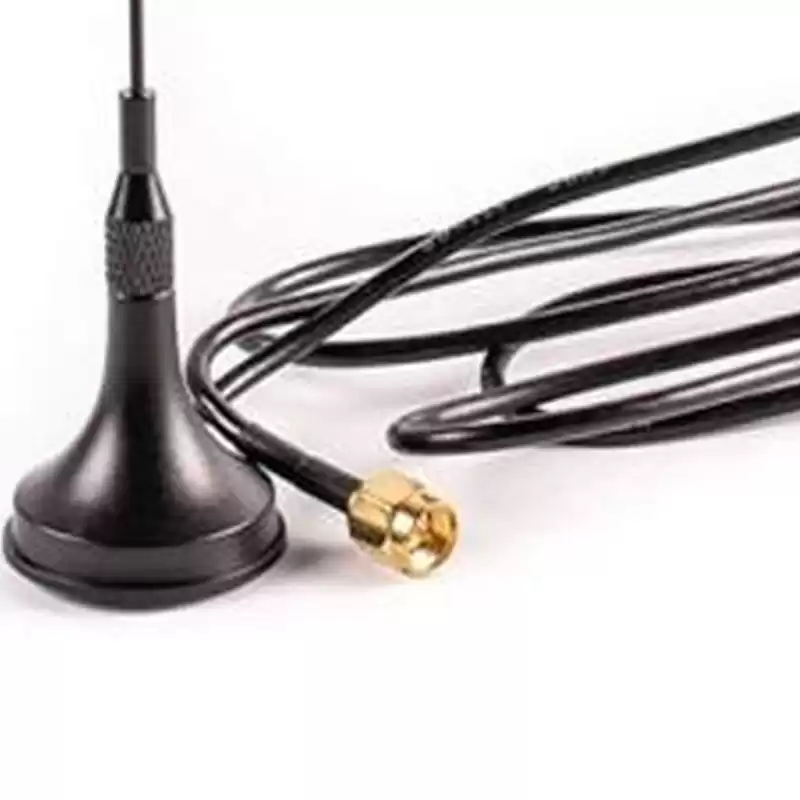

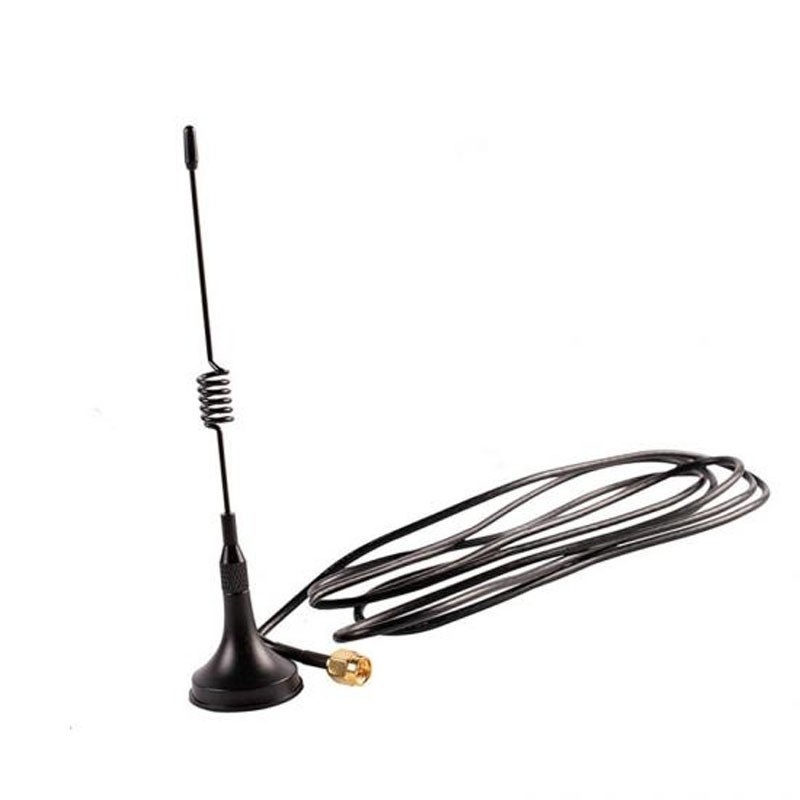

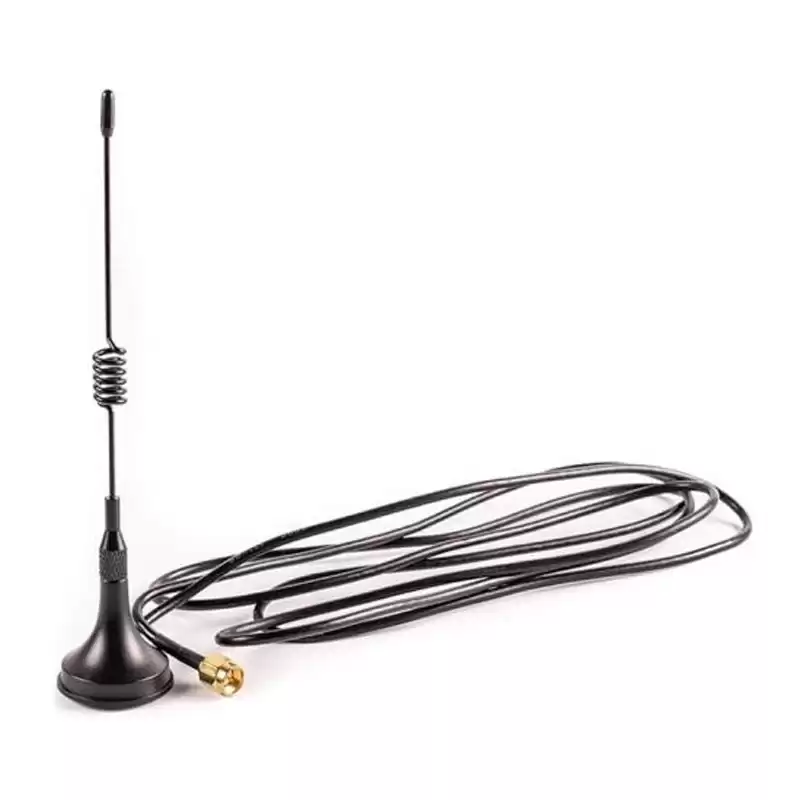

433MHz Electrodepot Unity Gain Omni Antenna with Magnetic Base and Male SMA Connector Impedance 50ohm

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



433 MHz Electrodepot Unity Gain Omni Antenna with Magnetic Base and Male SMA Connector  Impedance 50ohm

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(MHz)  315/433/868/900/1800/1900/2100/2600/3600/2.4G/3G/5.8G
VSWR  ≤1.5
Gain(dBi)   3dBi
Input Impedance(Ω)  50
Cable Type RG174
Connector Type  SMA Male
Mounting  Magnetic
Housing Black/White
Storage Temperature  -45 to +75
Operating Temperature  -45  to +75



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram




Product Tags 50 ohm SMA Male Antenna          SMA Male Gain Omni Antenna          433MHz Omni Antenna          SMA Male Connector          433MHz Gain Omni Antenna          433MHz SMA Connector Antenna
