Control Cables are primarily used in all types of electric utilities, industrial and commercial markets. These products are mainly used in machinery, machine tools and appliances, measuring, control, heating and air conditioning technologies for permanent connections in cable chains, etc. The halogen-free cables and wires are internationally certified and you can choose from our comprehensive range of standard products or can ask for cables /wires with special properties to meeting your requirement.

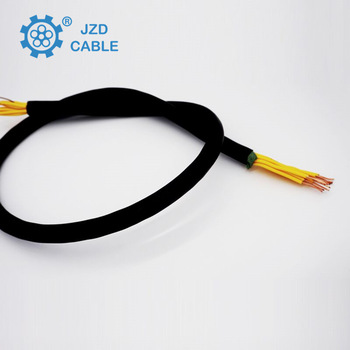

450/750v PVC Sheath Braided Shielded Control Flexible Cable
Product Description
1.Standard
The control cable can be produced according to the standard GB9330-1988, IEC, DIN, BS, and the factory can also manufacture the cables in accordance with other standards.
2.Scope of Application
The control cable are suitable for the wiring of electrical controlling equipment and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3.Type& Specification
(1)The long-time working temperature of conductor of PVC insulated cable is 70℃
The long-time working temperature of conductor of XLPE insulated cable is 90℃
(1) The temperature for laying the cables can not be lower than 0℃. Permissible bending radius(r): unarmored cable:r≥6D;(D: outer diameter of the cable); armored or copper-tape screened cable:r≥12D; shielded flexible cable:r≥6D
