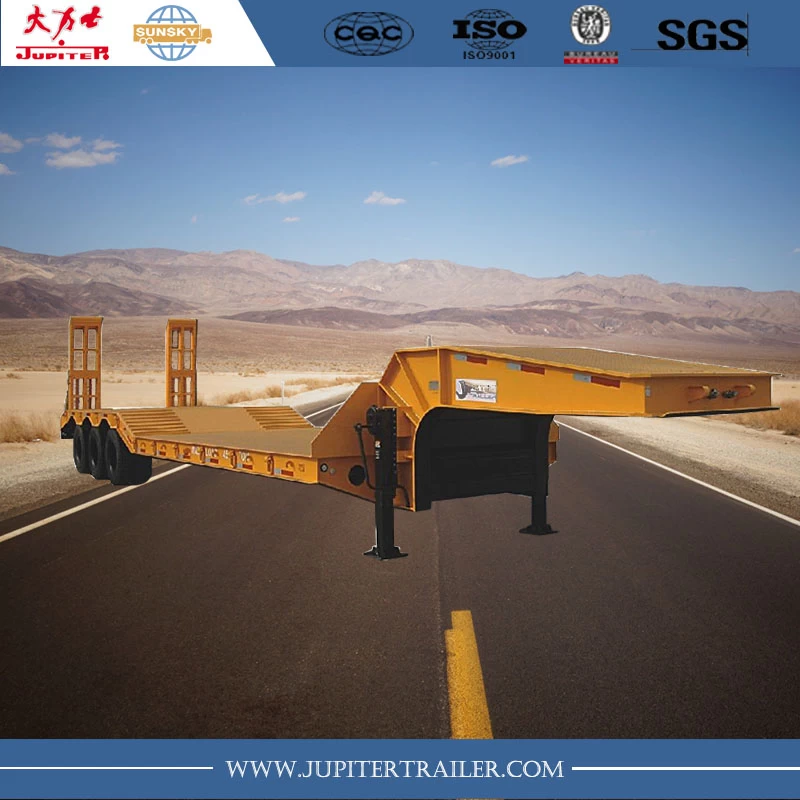

45ton 3 axle lowbed semitrailer


Features:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.

3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.


Specification:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑


45ton 3 axle lowbed semitrailer

Feature:

 Carry containers, bulk cargo, equipments

Dimension(L*W*H):

 13000*3000*2500mm

Main frame:

 Heavy duty and extra durability design; Opting for high  tensible low carbon alloy Q345B steel; I beam welded by  automotive arc-submerge process

Model:

 SS9450TDP

No. of axle:

 3

Payload:

 45,000kgs

Kingpin:

 The world-famous JOST brand bolt-in/welded type 3.5”/2”

Landing gear:

 JOST brand two-speed manual operation 19”

Tire size:

 11.00R2011R22.512R22.5315/80R22.5385/65R22.5

Rim size:

 8.25*22.59.00*22.511.75*22.5

Axle:

 Original BPW-12T/ FUWA-13T

Suspension

 Germany type with 12pcs of leafs spring/ Fuwa brand with  8pcs of leafs spring/ Airbag suspension

Brake system:

 Dual line with WABCO brand Re-6 emergency relay valve,  MBA brand T30/30 air chamber, 46L air tank

Electric system:

 One unit of 24V 7-pin ISO standard socket; with brake light,  turn light, reverse light, side light, reflector, fog light; one set  of 6-pin standard cable

Painting:

 S.A.2.5standard sandblasting; Two coat of anti-corrosion  prime; one coat of finish painting

Accessory:

 One tool box; one set of standard tool

 We can build the trailers according to customer’s design and requirement




Production detail:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑






Producing process:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑




Loading and Packing:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑




Our advantage and ability:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑




What others we can supply:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑





FAQ:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1. Who are we?


Answer: We are a group company; we have three semi-trailer factories in china, one trading company in china and one company inHong Kong. We are focus on semi-trailer, trucks and parts.

2. Why choose us

Answer: 1) We have more than 30years experience in the trailer manufacturing. Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.

2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.

3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.

4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
