Overview
Wireless Base Station Equipment for Nokia Flexi MCPA FHDA Wireless Remote Module
Brand: Nokia

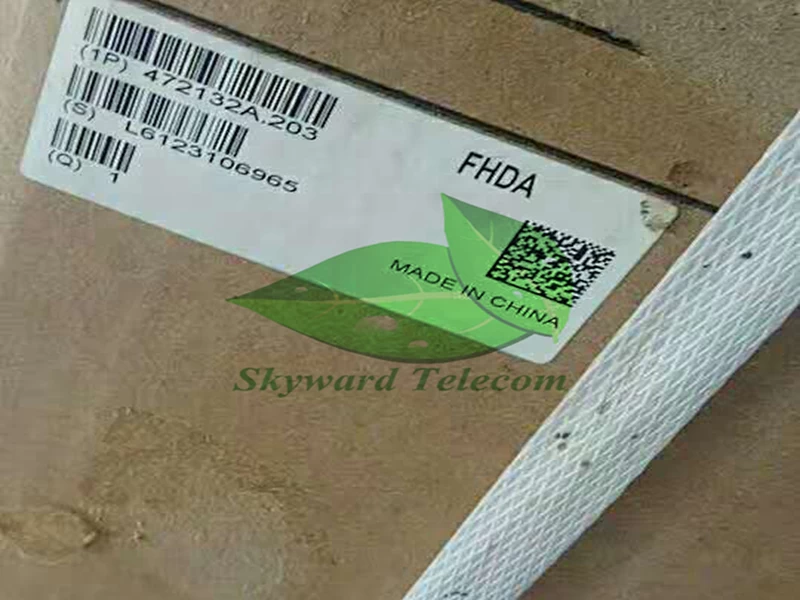

Product Code: 472132A
MPN: FHDA
Discription: Flexi RRH 2-pipe 900 80W (FHDA)
FHDA - RF module RRH
The wireless remote module is a multi carrier power amplifier two branch, through the use of a dual channel optimization of single sector. It consists of two separate branches, for multi carrier signal to send and receive multiple wireless technology. Each branch consists of a transmitter and a receiver front-end filter chain. The wireless remote module and each branch consists of a chain of sinks. The front-end filter to cover the entire frequency band. FHxA also includes integrated antenna monitoring.
For example, the 3 sector of the RF module, remote wireless module includes such as the digital control circuit, OBSAI interface and other necessary functions of DC converter. Convection cooling fan using a remote, because it does not. In the module of the system is a common transceiver baseband part.
FHDA functional specification
|
Property
|
Value
|
|
Output power
|
2x40 W
|
|
MIMO
|
yes, 2TX
|
|
Outdoor installation
|
Yes
|
|
SW supported technologies
|
GSM, WCDMA
|
|
TX frequency range
|
925-960 MHz
|
|
RX frequency range
|
880-915 MHz
|
|
DL instantaneous bandwidth
|
A.10x version: 25 MHz
A.20x version: 30.2 MHz
|
|
UL instantaneous bandwidth
|
35 MHz
|
|
DL filter bandwidth
|
35 MHz
|
|
UL filter bandwidth
|
35 MHz
|
FHDA ALD support
|
ALD support via antenna ports
|
Value
|
|
AISG
|
2.0 Main+Div
|
|
Legacy Siemens equipment
|
No
|
|
CWA (for non-AISG installations)
|
No
|
|
Voltage
|
14.5 V
|
|
Power per port
|
30 W
|
FHDA electrical specifications
|
Property
|
Value
|
|
Nominal supply voltage
|
-48.0 V DC
|
|
Nominal input voltage range
|
-40.5 V DC to -57.0 V DC
|
|
Extended input voltage range
|
-36.0 V DC to -40.5 V DC
-57.0 V DC to -60.0 V DC
|
FHDA dimensions and weight
|
Property
|
Value
|
|
Height
|
As delivered, cable tie point
recessed: 579 mm (22.7 in.)
As installed, cable tie point
released due to brackets and
solar shields: 733 mm (28.8 in.)
|
|
Depth
|
215 mm (8.4 in.)
|
|
Width
|
358 mm (14.1 in.)
|
FHDA environmental specifications
|
Property
|
Value
|
|
Maximum operational outdoor temperature in
the shade (at constant high ambient
temperature maximum output power might be limited
|
+55°C (131°F)
|
|
Maximum operational outdoor temperature in the sun (according to GR-487-Core
specification)
|
+50°C (122°F)
|
|
Maximum indoor temperature (this is valid for
fanless products)
|
+45°C (129.2°F)
|
|
Minimum operational temperature (including
cold start)
|
-40°C (-40°F)
|
