Overview

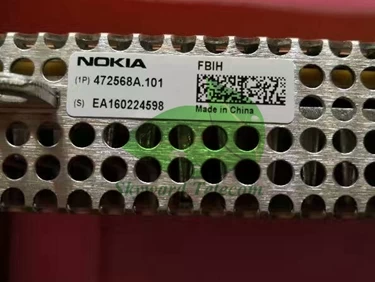

Nokia 472568A.101 FBIH Modules； capacity extension sub-module (FBIH)；Nokia Flexi Multiradio 10 Base Station
Brand: Nokia
Model:Flexi Multiradio 10 Base Station
Part Number: 472568A
Specification
Interfaces of the capacity extension sub-module(FBIH)
Connector
|
Type
|
Description
|
|
SRIO1
SRIO2
|
SFP
|
Interface for an external baseband extension,for example additional System Module.
|
|
RFEXT2
RFEXT4
RFEXT6
|
SFP
|
Optical interfaces provide RP3-01/CPRI 6.144Ginterfacing towards RF units.
|
|
RFEXT1/10G
RFEXT3/10G
RFEXT5/10G
|
QSFP
|
Optical interfaces provide RP3-01/CPRI 6.144Gand CPRI 9.8G interfacing towards RF units.
|
LEDs of the capacity extension sub-module (FBIH)
LED
|
Color
|
Operational status
|
• Red:Module self-test or reset (LED red for < 5 seconds) or major alarm or criticalalarm
• Red, blinking: Minor alarm
• Yellow:Stand-by or blocked
• Yellow, blinking: SW download or configuration ongoing, module non-operational
• Green: Module operational
• Green, blinking: Module is loading softwareor parameters or local maintenance accesswhen modules are operational
|
|
RF/EXT1
RF/EXT2
RF/EXT3RF/EXT4
RF/EXT5
RF/EXT6
RF1-6 link status
|
• Red: no connection
• Green: connection OK
• Yellow: not in use
|
|
SRIO1
SRIO2
SRIO1-2 connection status
|
• Red: no connection
• Green: connection OK
• Yellow: not in use
|
