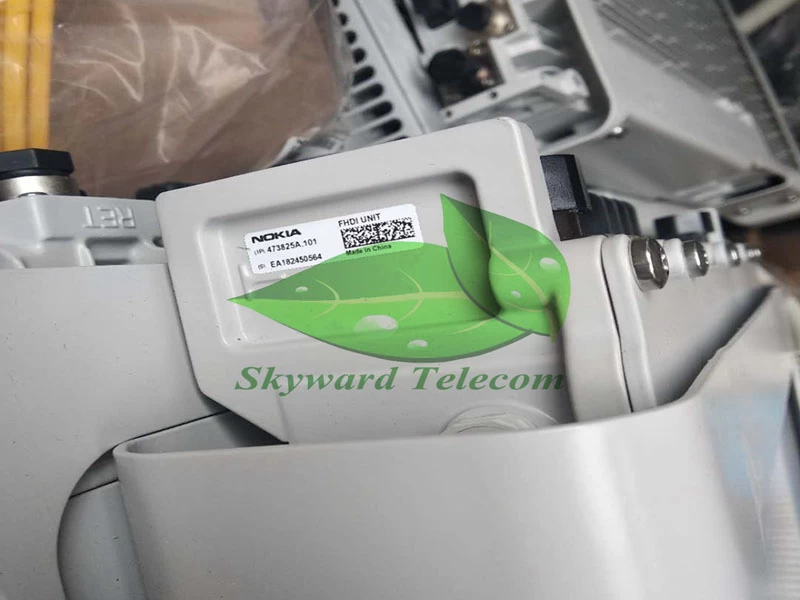

Nokia AirScale RRH 2T2R 900J 120 W FHDI
Specification
|
Property
|
Value
|
|
Output power
|
2x60 W
|
|
QAM modulation
|
256 QAM (DL)64
QAM (UL)
|
|
Number of TXRX
|
2T2R
|
|
Outdoor installation
|
Yes
|
|
Beamforming
|
No
|
|
SW supported technology
|
GSM, WCDMA, FDD-LTE
|
|
TX frequency range
|
935 - 960 MHz
|
|
RX frequency range
|
890 - 915 MHz
|
|
DL instantaneous bandwidth
|
25 MHz
|
|
UL instantaneous bandwidth
|
25 MHz
|
|
DL filter bandwidth
|
25 MHz
|
|
UL filter bandwidth
|
25 MHz
|
|
Number of carriers per pipe
|
Up to 5
|
|
Supported bandwidths
|
1.4, 3, 5, 10, 15, 20 MHz
|
|
Nominal supply voltage
|
-48.0 V DC
|
|
Nominal input voltage range
|
-40.5 V DC to -57.0 V DC
|
|
Extended input voltage range
|
-36.0 V DC to -40.5 V DC-57.0 V DC to
-60.0 V DC
|
|
Installation options
|
• Pole installation
• Wall installation
• Flat mount without fans on
wall or pole
• Vertical book mount without fans
• Horizontal book mount with fans
• Inside the Radio Antenna System (RAS)without fans
|
|
IP rating
|
IP65
|
|
Related optional items
|
• Pole Mounting
Kit 30-120 mm (AMPA)
• AirScale 1.0 Small Fan Kit (FMND)
• AirScale 1.0 Small
Book Mount Kit (FMNG)
• Flexi Power AC/DC Submodule 230
V(FPAD/E)
• EAC Cable USB3 Type-A (AT
•
Flat Mount Adapter Bracket (AMLA)
• AirScale RAS2 kit for RRH
600 (AMFQ)
|
|
Maximum operational outdoor temperature inthe shade, assuming wind
speed is 3 m/s (at aconstant high ambient temperature, maximumoutput power
might be limited)
|
55°C (131°F)
|
|
Maximum operational outdoor temperature inthe sun, assuming wind
speed is 3 m/s (at aconstant high ambient temperature, maximumoutput power
might be limited)
|
50°C (122°F)
|
|
Maximum indoor temperature,assuming wind speed is 0 m/s, valid for
fanlessproducts (at a constant high ambienttemperature, maximum output power
might belimited)
|
40°C (104°F)
|
|
Minimum operational temperature (includingcold start)
|
-40°C (-40°F)
|
FHDI interfaces
|
Interface
|
Label on the HW
|
Number of interfaces
|
Connector type
|
Additional info
|
|
Power Connector
|
DC IN
|
1
|
3-pole screwterminal
|
|
|
Antennaconnector
|
ANT
|
2
|
4.3-10
|
|
|
Remote ElectricalTilt
|
RET
|
1
|
8-pin circular
|
RS-485
|
|
External AlarmConnection
|
EAC
|
1
|
USB 3.0 Type A
|
|
|
Optical interface
|
OPT
|
2
|
SFP+
|
6 Gbps, OBSAI
|
|
Grounding
|
|
1
|
M8 or dual M5screws
|
|
|
Fan
|
Fan
|
1
|
2-pin Micro-Fit
|
|
