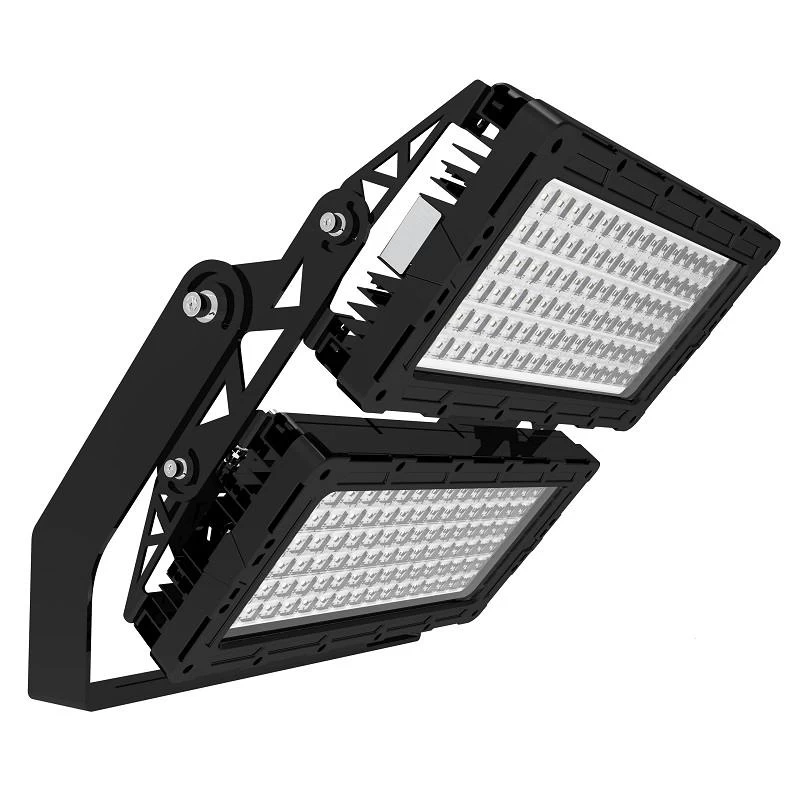

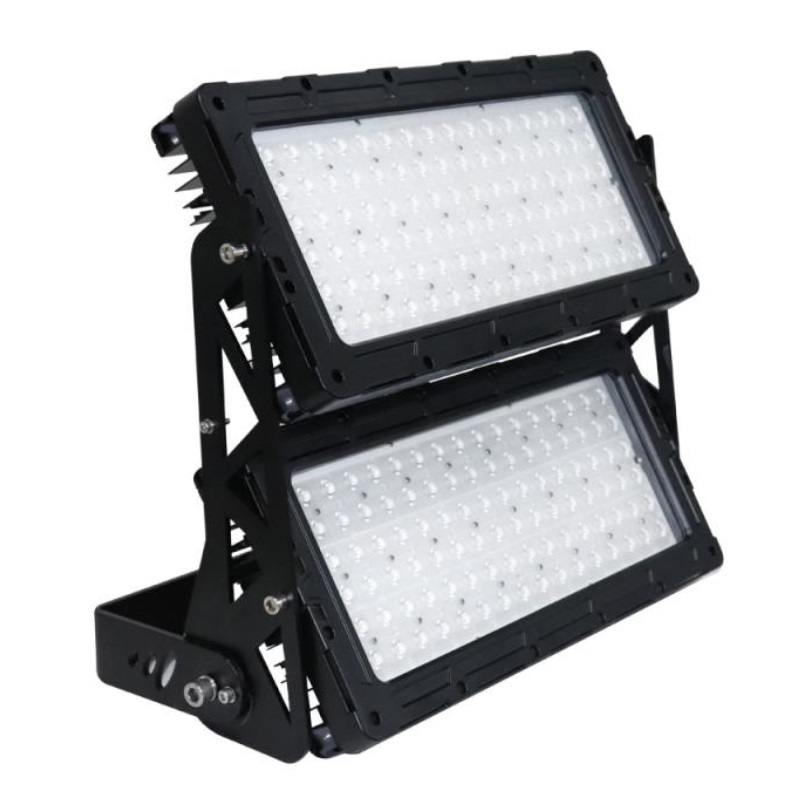

Product Item: 480W Outdoor High Mast Lighting Tower Floodlights For Sports Lighting
Overview:
This range of high mast LED floodlighting luminaires combine optical performance, energy efficiency, and outstanding versatility to meet the requirements of medium to large outdoor lighting projects. With single die-cast aluminum module power at 240W to 320W, this model power ranges from 240W to 2000W. The rotatable modules make the lamp flexible in focusing light on different areas to be illuminated with higher lighting uniformity.
The high lumen output SMD LED technology combined with narrow beam angle lenses in 30°x30°, 60°x60°, 90°x90° Symmetric or TYPE Ⅱ, TYPE Ⅲ Asymmetric distribution options, make the LED high mast tower flood lights suitable for high level lighting for marine ports, industrial sides, chemical plants, sports facilities, airports, etc.
Specifications:
|
Model
|
SR-HMAS-480W
|
Power
|
480W
|
Lumen Output
|
67,500lm
|
Light Source
|
LUMILEDS/OSRAM/CREE, etc.
|
Beam Angle
|
30°/60°/90°/TYPE Ⅱ/TYPE Ⅲ(25°/40° available)
|
LED Driver
|
MEAN WELL/SOSEN, etc.
|
Input Voltage
|
AC 100-305V, 50/60Hz
|
Power Factor
|
>0.95
|
CRI
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
|
IK Rating
|
IK08
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminum, Tempered Glass
|

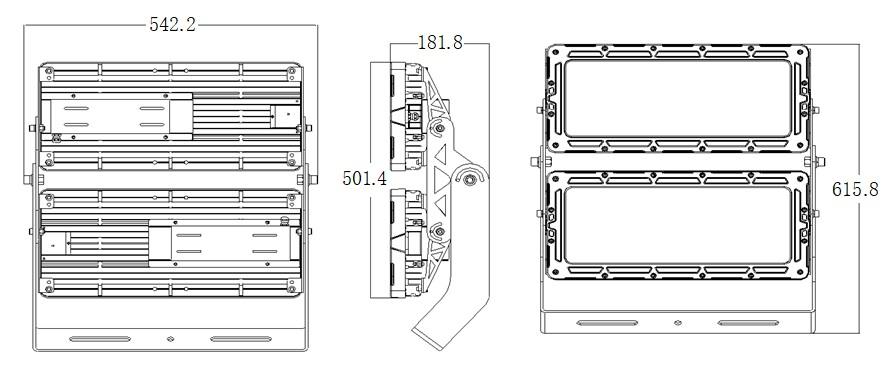

Dimension
|
615.8x542.2x181.8mm
|
Weight
|
17.5KG
|
Warranty
|
5 years
|
Features:
-
Power: 240W/300W/480W/600W/720W/900W/960W/1200W/1440W/1800W
-

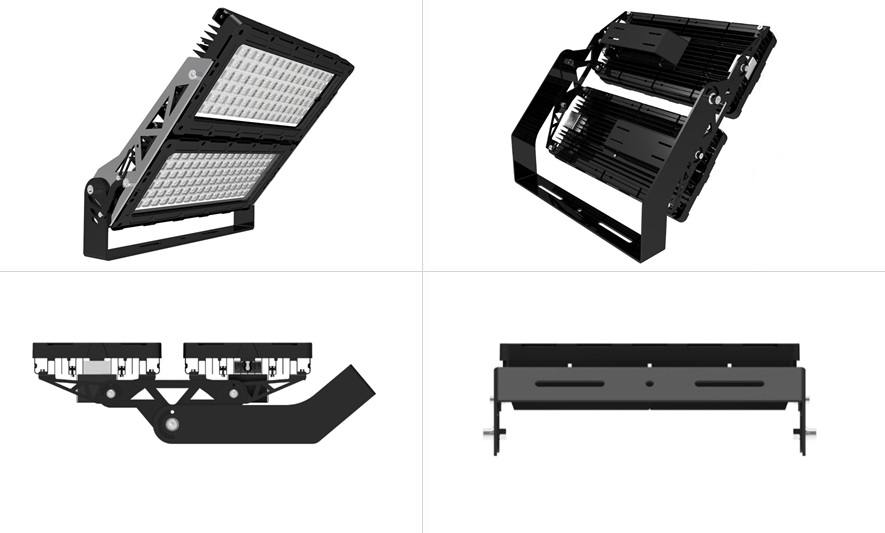

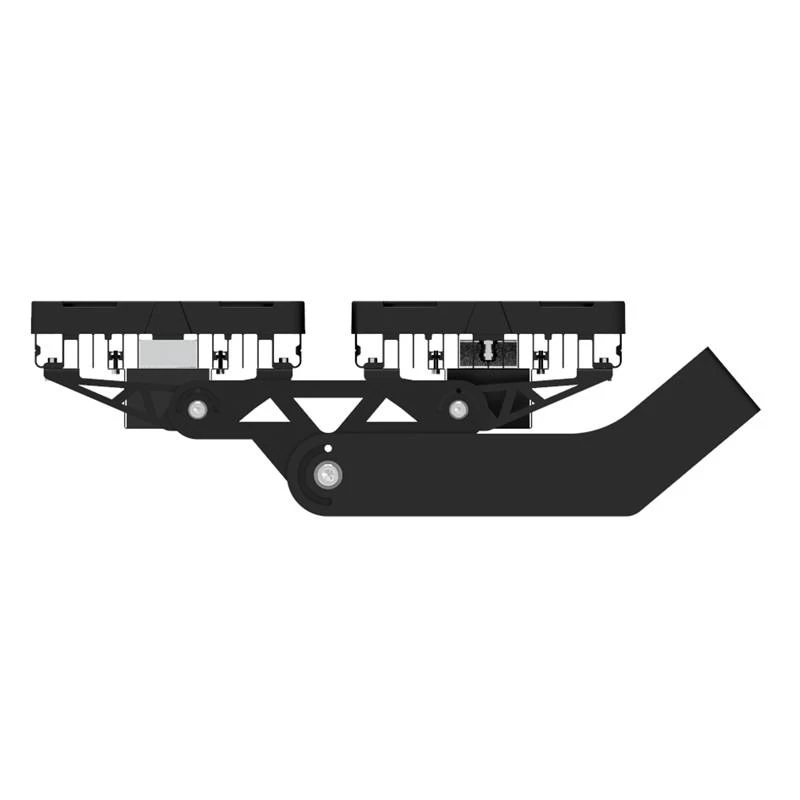

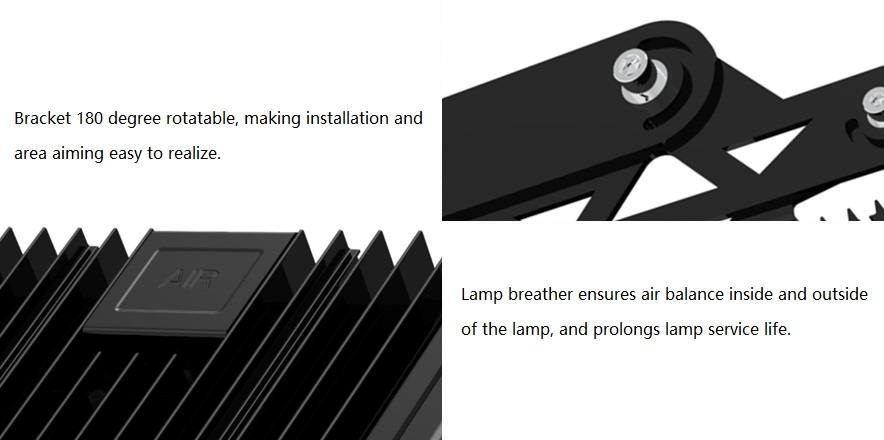

The high mast floodlight has rotatable modules offering maximum customization to achieve different direction illumination.
-

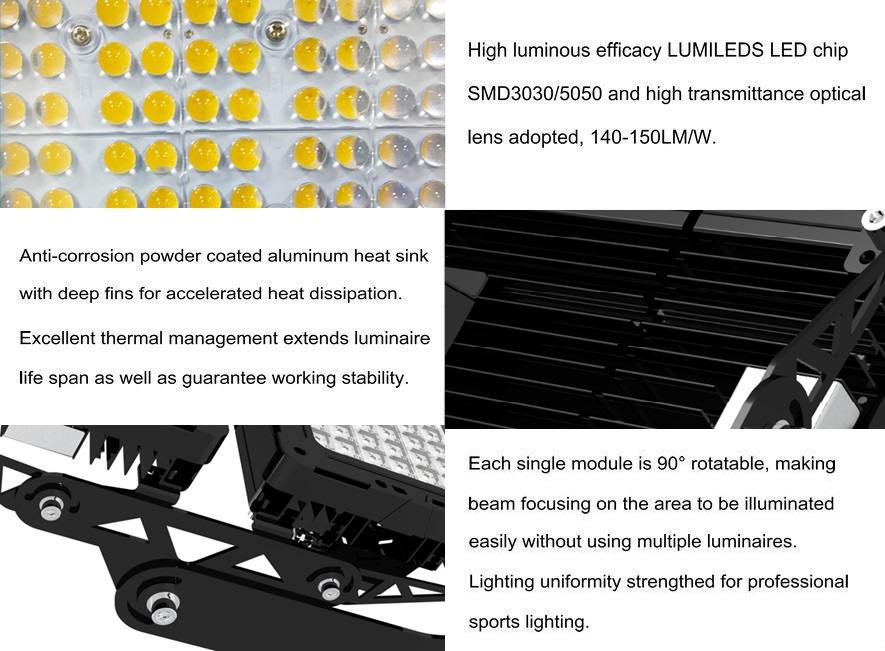

High performance LUMILEDS/OSRAM/CREE luminous source with multiple photometric distributions, providing excellent lumen output, long-lasting stability and splendid sight.
-
Multiple optics available: SMD3030 for 30°, 60°, 90°, Type II, Type III; Lumileds SMD5050 for 25°, 40°, 60°, 90° for various lighting projects application. Both asymmetric and symmetric lighting distribution included.
-

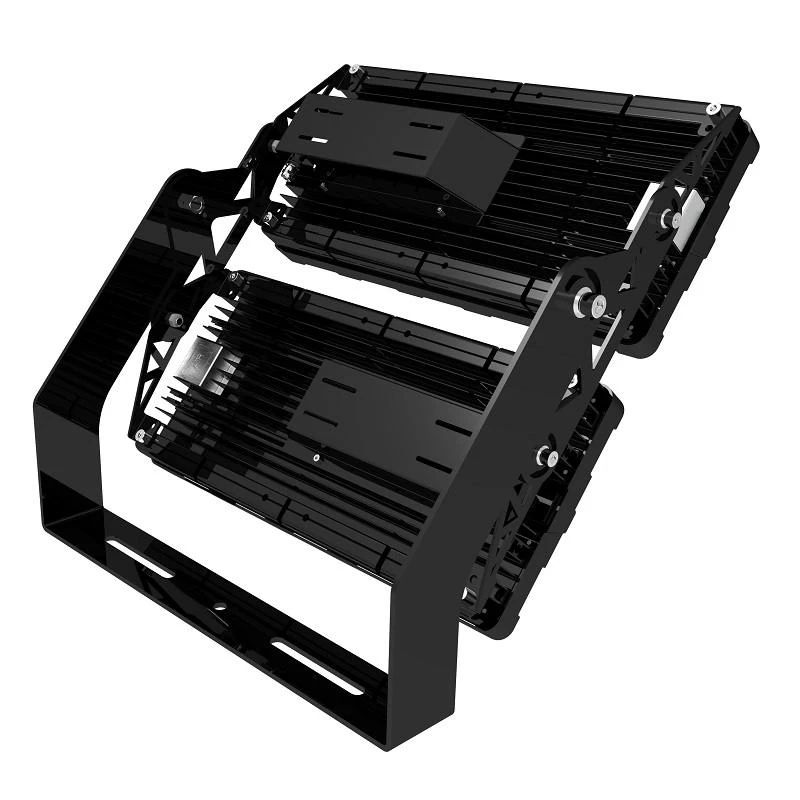

LED power supply mounted at the back of the fixture for better ventilation and heat radiation to ensure system working stability.
-
Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.
-
Lamp body of high pressure die-cast aluminum, finished in black powder coating. (other colors available)
-
Control Options: DALI dimming control, 1-10V dimming control, Zigbee wireless control, etc.
-
Ideal replacement of metal halide lamps for environmental protection.
-
IP65 and IK08 rated, perfect sealing with silicone gasket, electrophoretic coating for anti-corrosion, and salt-tested for up to 200hours.
-
This range of efficient and green sports high mast lamps are widely used for sports stadium lighting, ports lighting, dockyards lighting, railways and marshalling yards lighting, retail parks lighting, steel works lighting, petro-chemical plants lighting, water treatment plants lighting, etc.
|
|
|
Lighting Distribution:
Lumileds SMD3030(recommended): 30°, 60°, 90°, 90x150°.
Lumileds SMD5050: 25°, 40°, 60°, 90°.

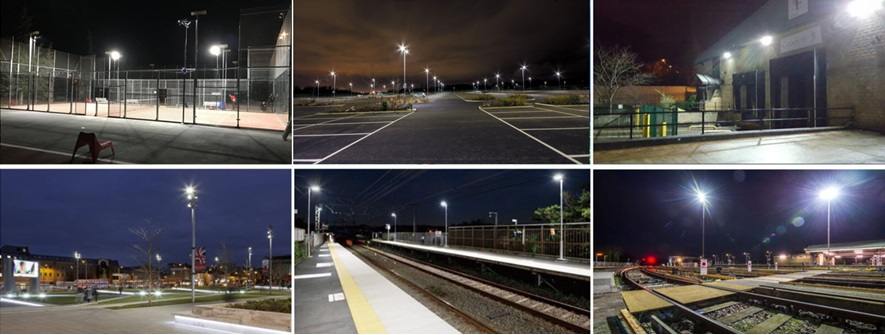

Application:
Sports stadium indoor illumination, basketball court illumination, container terminal illumination, harbor dockyards illumination, railway illumination, chemical factory illumination, plaza illumination, etc.
