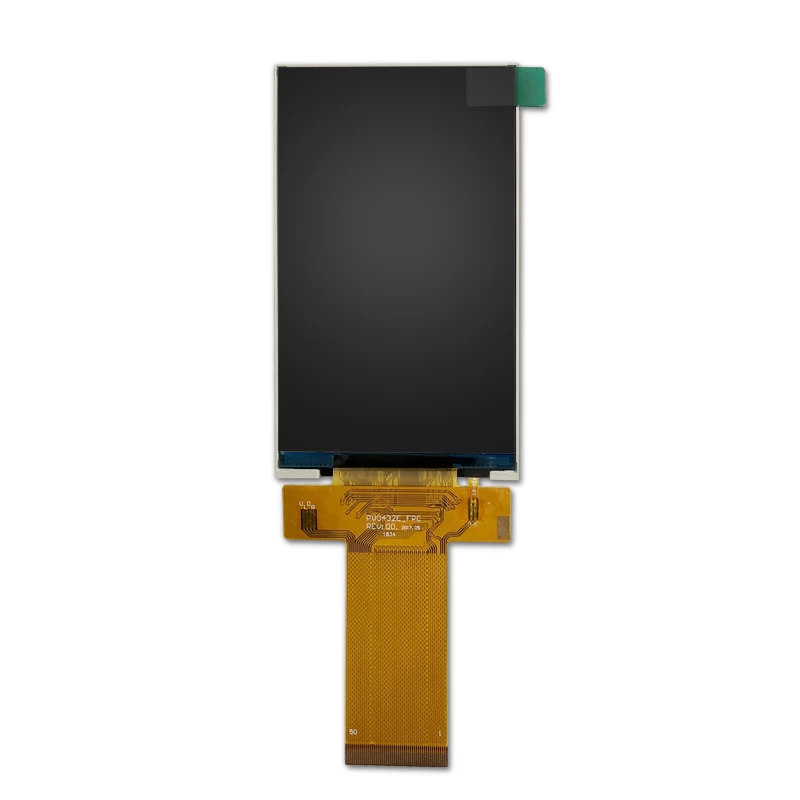

480x800 resolution 4.3 inch ips tft lcd module with RGB interface
|
Specification
|
|
Part No.
|
TST043WVBI-57
|
|
Outline Dimension(mm)
|
60.9x104.5x1.9
|
|
Active Area(mm)
|
56.16x93.6
|
|
Resolution(dots)
|
480*RGB*800
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
480RGB(H)xRGBx800(V)
|
|
Touch panel
|
Available to custom
|
|
Driver
|
ILI9806E
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
4.3 inch IPS TFT
|
|
Brightness
|
200 nits
|
|
View direction
|
ALL
|
|
Weight(g)
|
TBD
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
RGB
|
|
Module lifetime(Hours)
|
50,000-100,000
|
