48V 100Ah 200Ah Lifepo4 Lithium Battery Module Pack Solar System

Our lithium battery module adopts module design, and each module is equipped with an intelligent BMS management system. In terms of energy, we mainly produce 48V 5kwh 10kwh 15kwh 20kwh 30kwh lithium battery pack, which supports wholesale and customization. It is widely used, such as household energy storage, UPS energy storage, photovoltaic energy storage system, etc

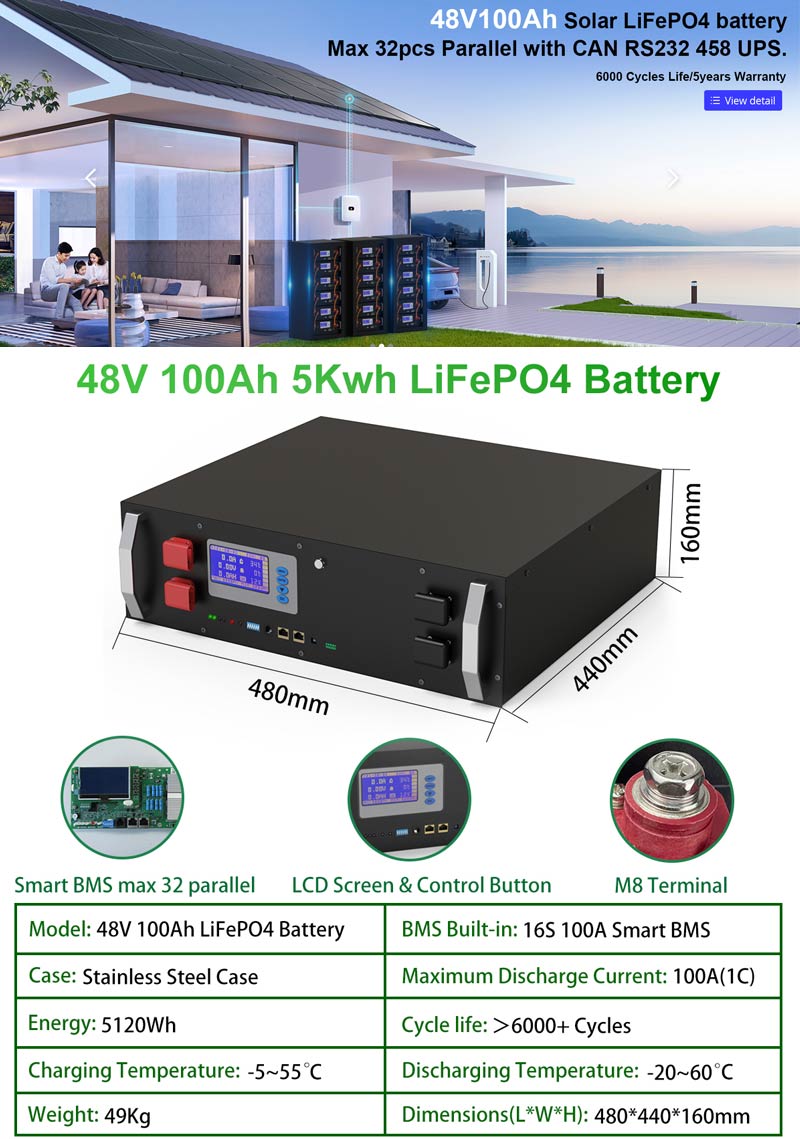

Specifications:

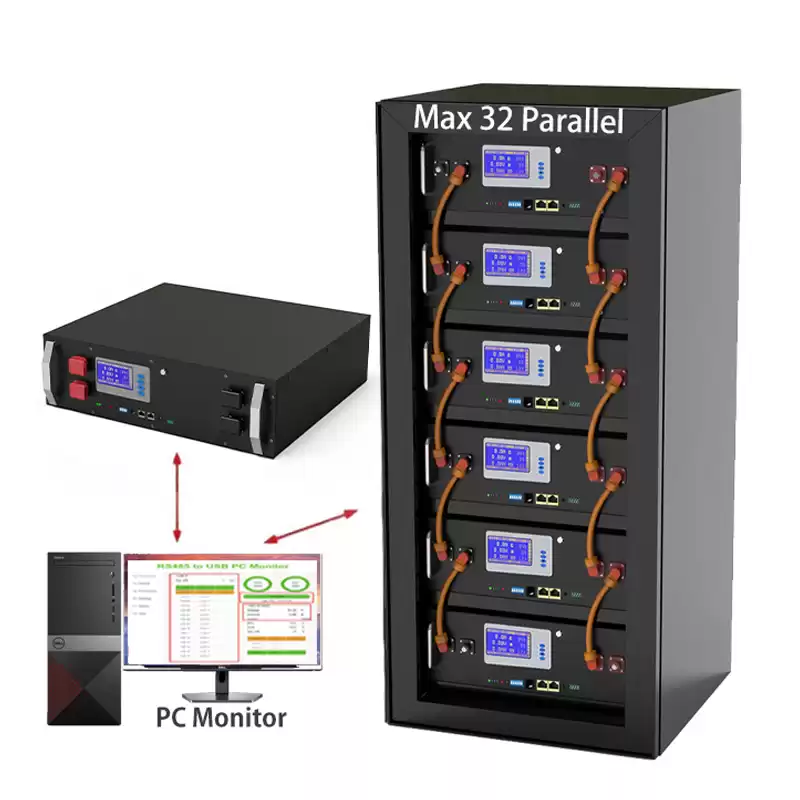

Parallel : Max 32 Parallel
Cycle Life : 6000+ Cycles
Communication Protocol: CAN RS485
Nominal Voltage : 51.2V
Rate Capacity : 100Ah
Energy Power : 5120Wh
Max Charge Voltage : 58.4V
Maximum Charging Current : 100A (1C)
Maximum Dicharge Current : 100A (1C)
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C

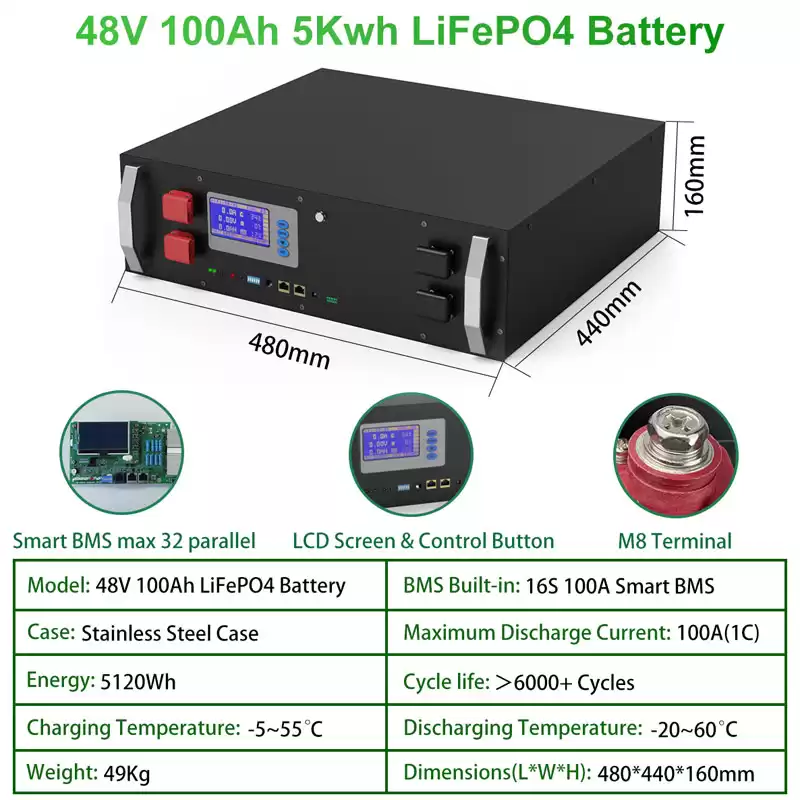

Dimensions(L*W*H) : 480*440*160mm

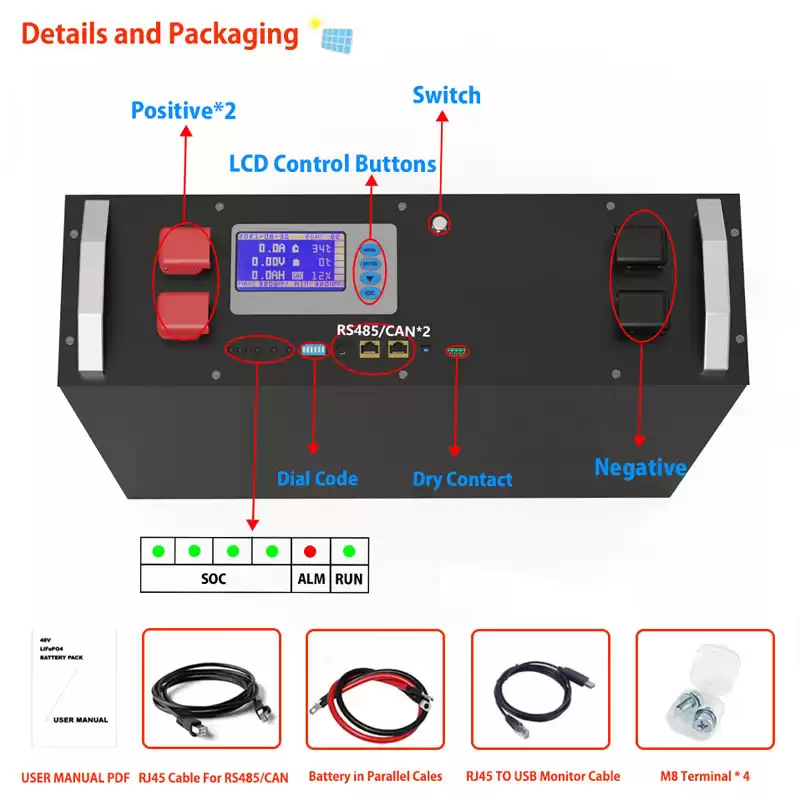

Studs : M8 Terminal
Weight : 49KG

Lithium Battery Module Pack Advantages:

1. Safer Triple protection designs to prevent short-circuit inside the cell.

2. Real and high capacity, Low self-discharging, no memory effect.

3. Longer cycle life more than 3000 times @80% capacity retain.

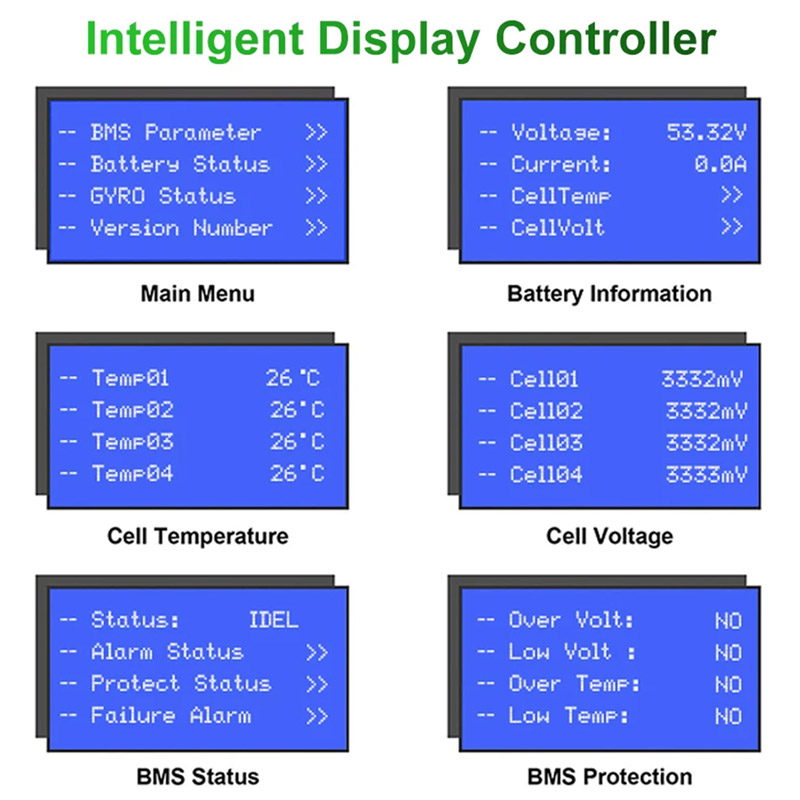

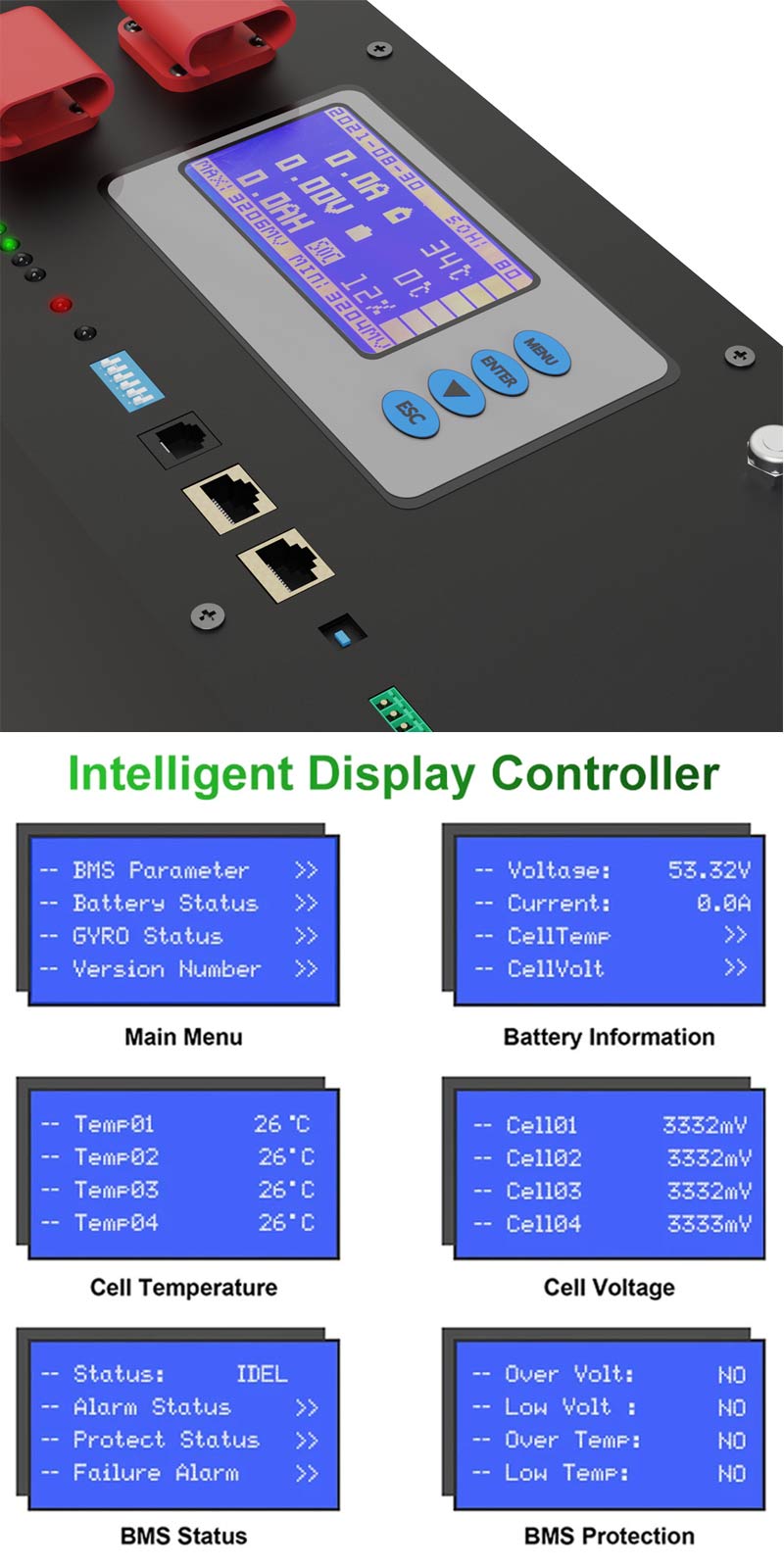

4. Bulit-in smart BMS with multiple protection and communication functions.

5 Wide working temperature range and high reliability.

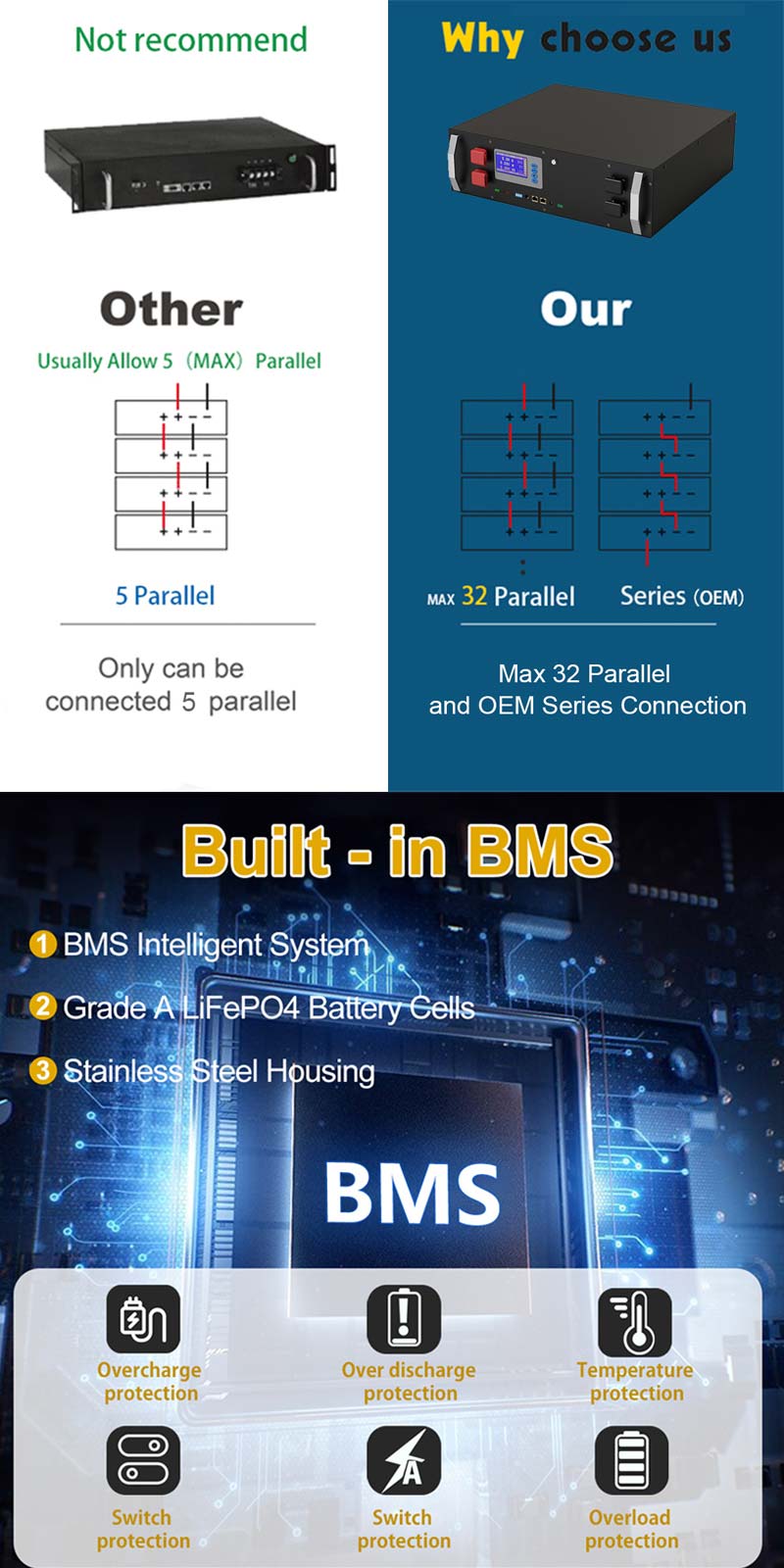

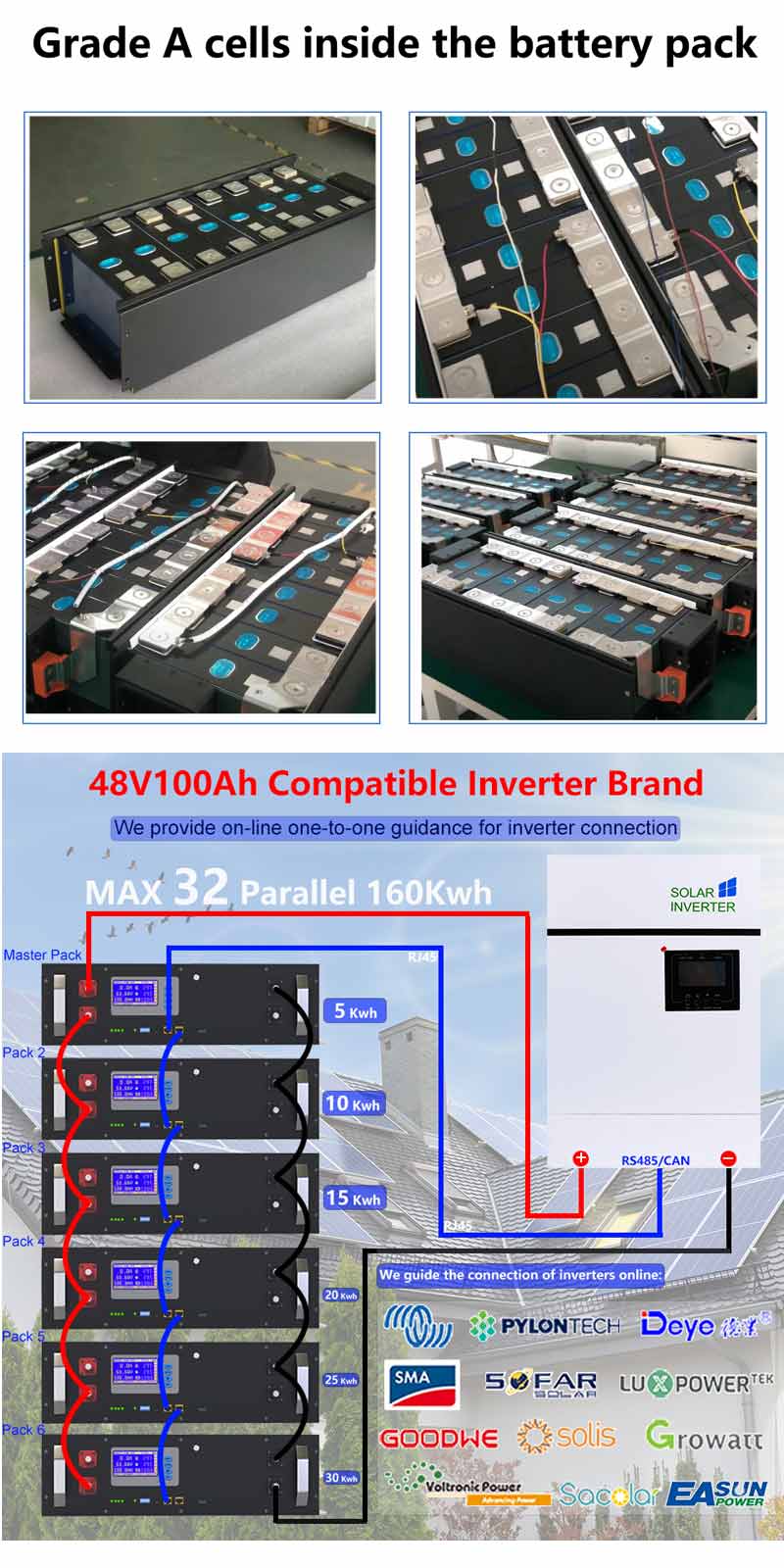

6. Multiple battery units can be connected in parallel,suitable for high energy storage applications.

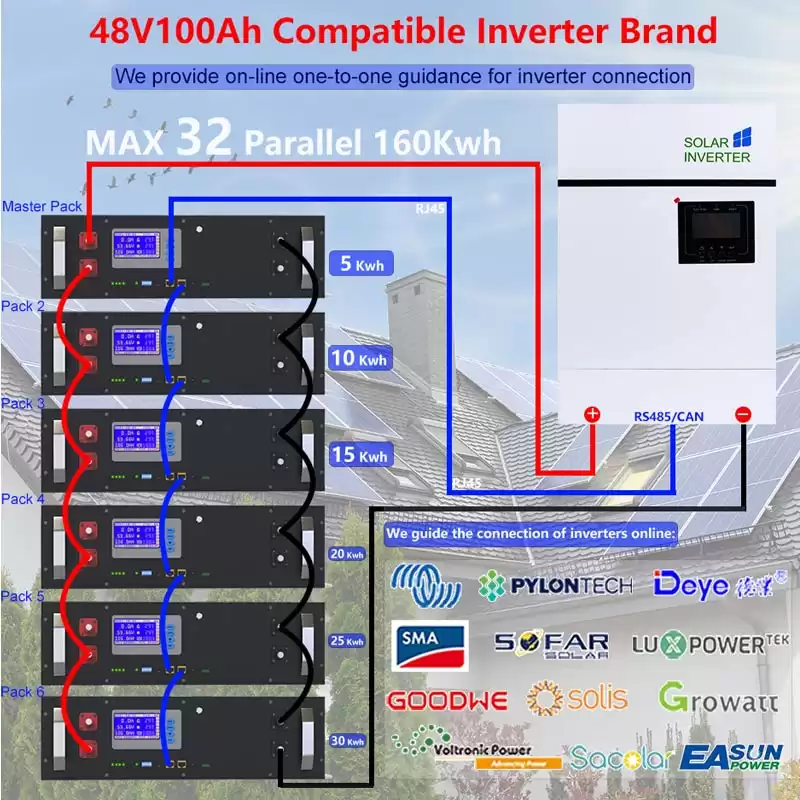

7. Compatible with various charge controllers and inverters.

8. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.

CAUTIONS IN USE

Please read this manual carefully before using the 48V Lifepo4 battery pack to ensure correct use.

1 Do not make the battery exposure or thrown into fire.

2 Never reverse charge the battery.

3 Never short circuit the battery.

4 Avoid excessive physical shock or vibration.

5 Do not disassemble or deform the battery.

6 Never allow the battery to get wet or be immersed in water.

7 Do not use different types together.

8 Keep away from children.

9 Charge at the appropriate conditions.

10 Never use the faulty charger to charging.

11 Never keep charging more than 24 hours.

FAQ:

1): Are you a manufacturer or a trading company?

Reply: We are the manufacturer, the company is located in Qingxi Town, Dongguan City, we sincerely welcome you to visit our factory!

2): Can I get a lower price if I order a large quantity?

Re: Yes, the price is cheaper for large quantity orders.

3): Can you customize products?

Reply: Yes, we have a professional design team, which can design the products you need according to the needs of customers.

4): How is your company's intelligence?

Re: ISO9001 certification, Chinese high-tech enterprise, 10 million battery guarantee, 8 patents, almost all products have passed MSDS, UN38.3, IEC62133, CB and other certifications.

5): When will you ship my order?

Reply: Usually 10-14 days after receiving your payment, but can be negotiated according to the order quantity and production plan.

6): How long is the product warranty period?

Re: 3 years!
