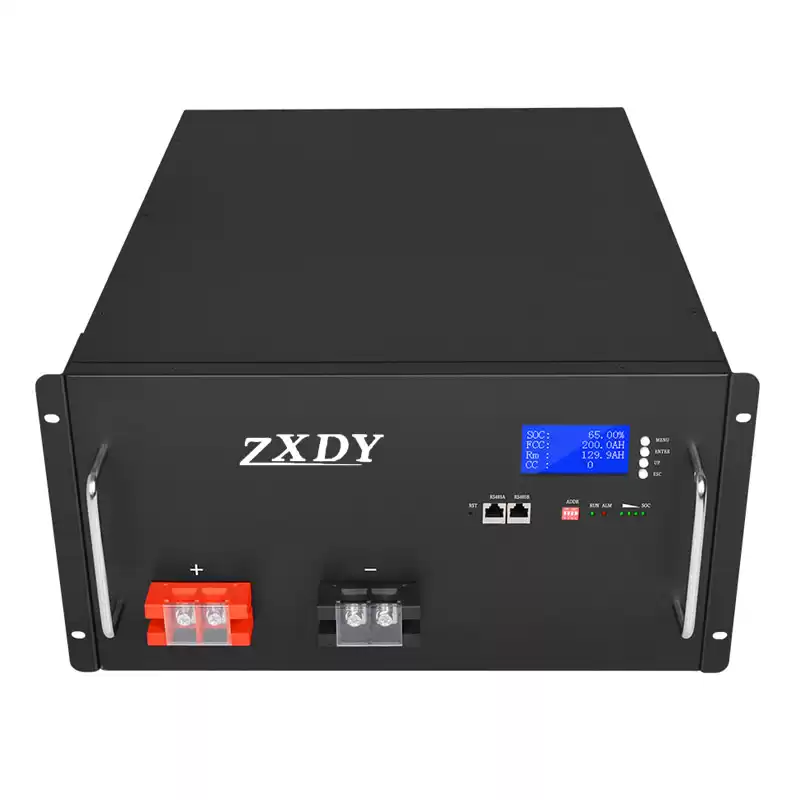

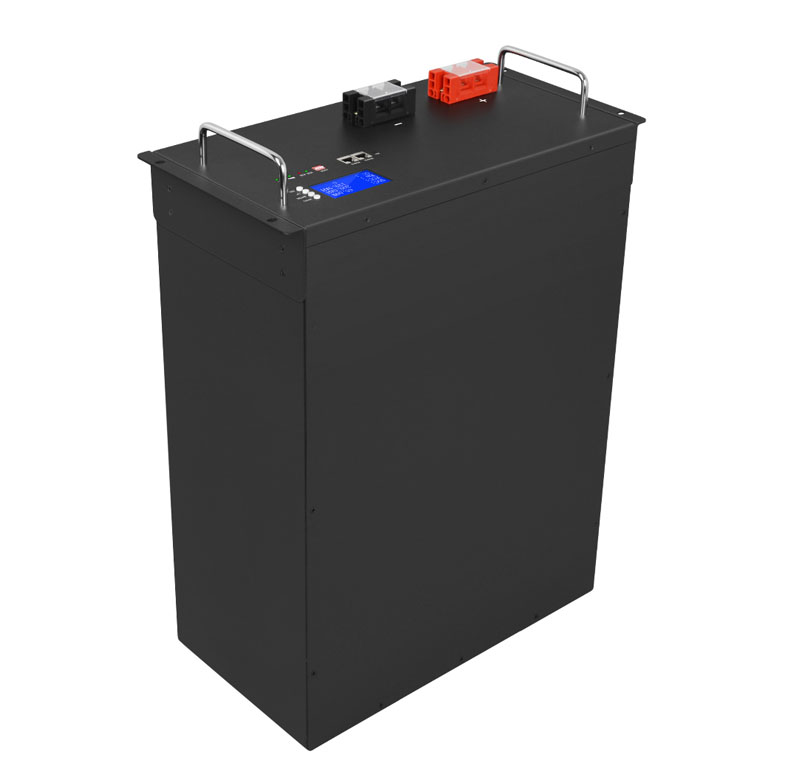

48v 200Ah Lifepo4 Lithium Ion Battery Pack For Communication Base Station Battery
Product advantages
1.Support RS485, CAN and other communication protocols
2.Compared with the traditional lead acid battery, LiFePO4 battery pack has higher genetic performance, safety, aging and cycle life, and has good environmental protection and pollution-free performance
3.Offer over-charge protecton, over-discharge protection, over-current protection, high temperature protection and more to 15 items' protections
4.During the ultimate performance tests , battery wontbe on fire and boom
5.Support products electronic welcome for customers' OEM ODM inquiry
Lifepo4 battery module product parameters
Battery type :lithium iron phosphate battery
Product model: 48v200ah-a2
Nominal voltage: 48V
Nominal capacity: 200ah
Maximum voltage: 58.4v
Minimum voltage: 40V
Charging current ≤ 100A
Discharge current ≤ 100A
Communication mode: RS485, RS232
Power display:yes
Battery case :metal case, black
Temperature range :0 ~ 50 ° C (charging), - 10 ~ 60 ° C (discharging)

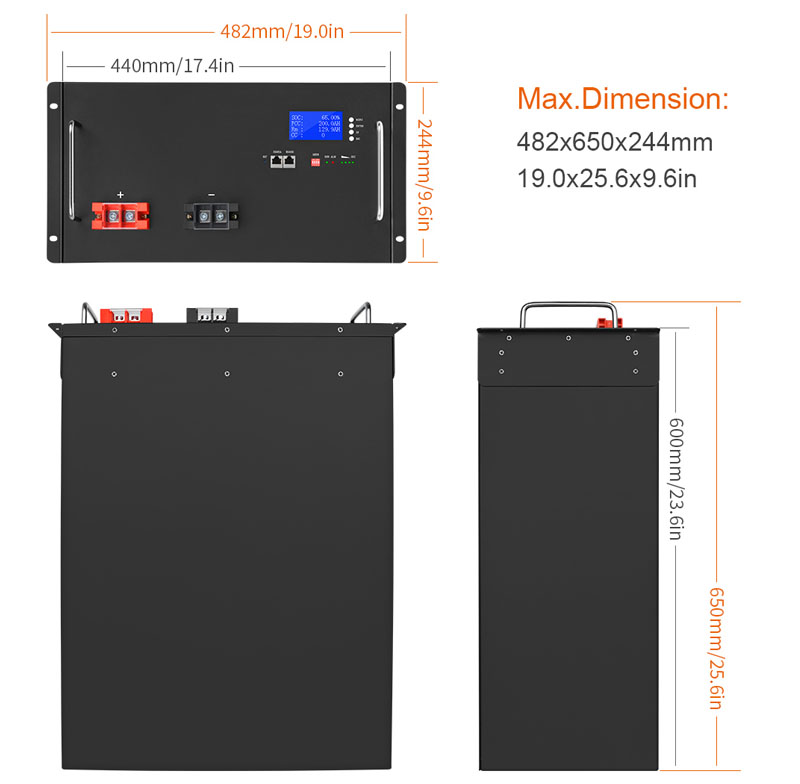

Battery size :650 * 482 * 244mm (standard 7U chassis)
Battery weight 85kg (about)
Charger:no
Remarks: it can be customized according to the needs The size, shell, socket, etc. can be adjusted according to the needs
Installation method :cabinet type
Battery pack 48V is widely used in solar projects, UPS, 5g power stations, military projects, solar hybrid power systems and household energy storage systems.

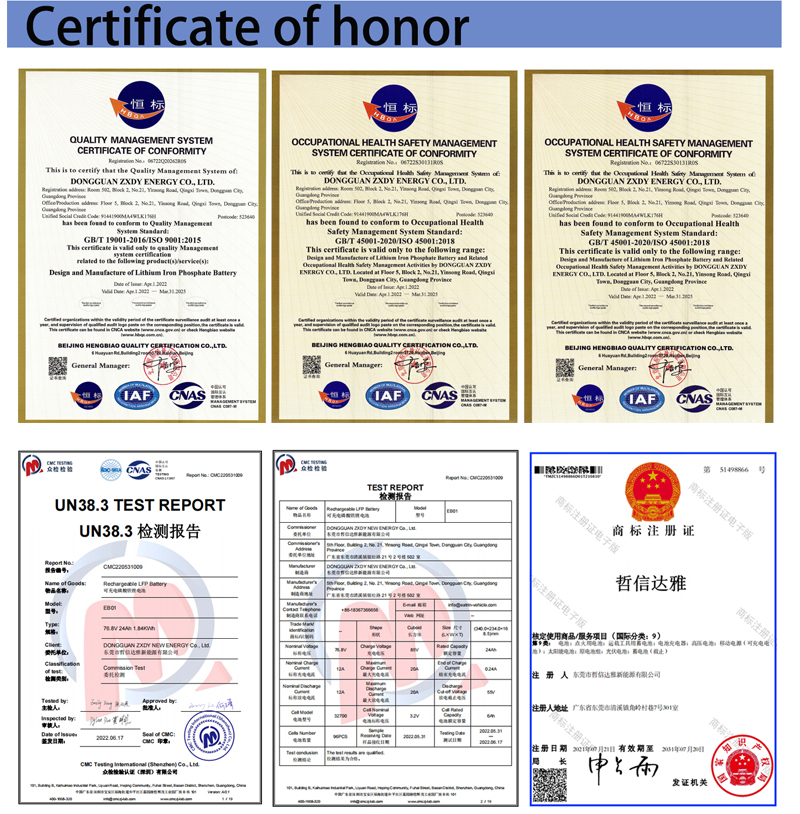

In order to provide more efficient and cost-effective solar energy storage battery products to meet customers' growing power demand and high quality requirements, we have passed the following certification:
1. GB / T 45001-2020 / ISO 45001 06722s30131r0s 2018 occupational health and safety management system.
2. GB / T 24001-2016 / ISO 14001r 2015 environmental management system 06722e20137r0s.
3. GB / T 19001-2016 / ISO 90012015 quality management system 06722q20262r0s.
4. UN38.3 rechargeable lithium iron phosphate battery cmc220531009.
5. MSDS rechargeable lithium iron phosphate battery cmc220531009m01.
6. Dangerous goods transportation certificate: rechargeable lithium iron phosphate battery seksz202206265622wx83001.
