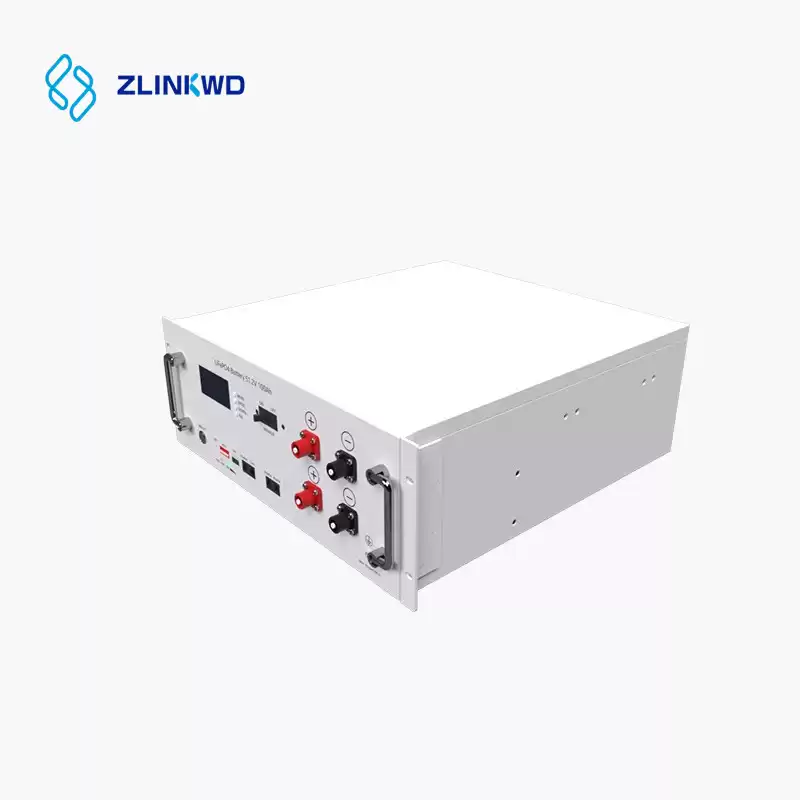

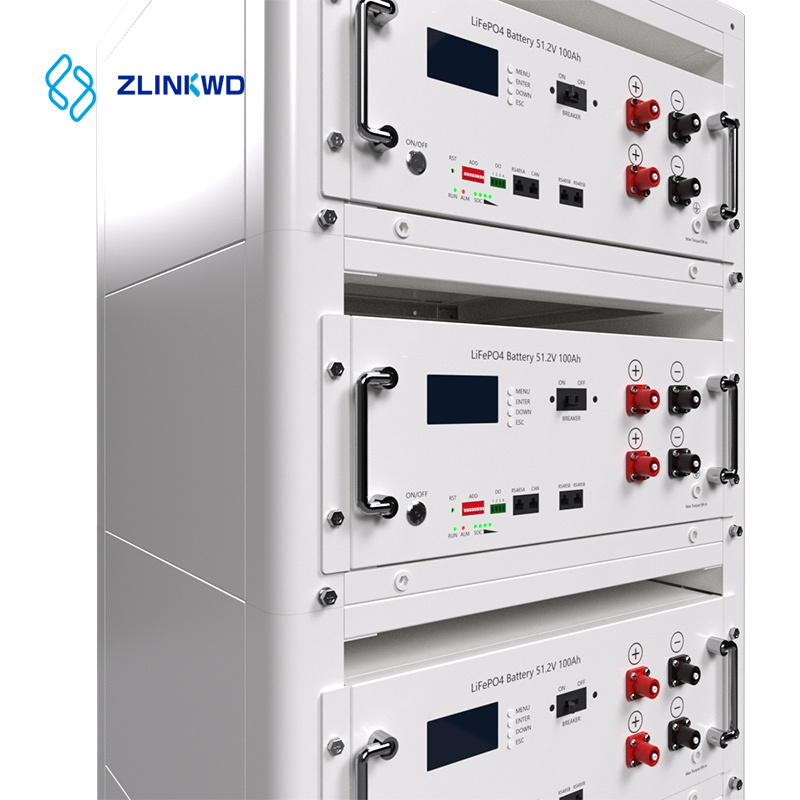

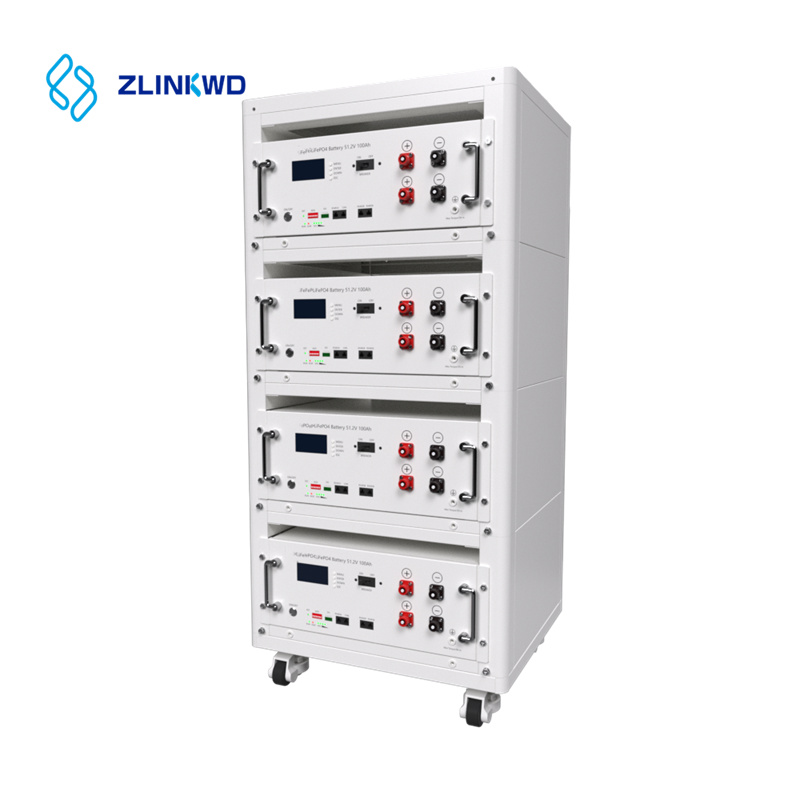

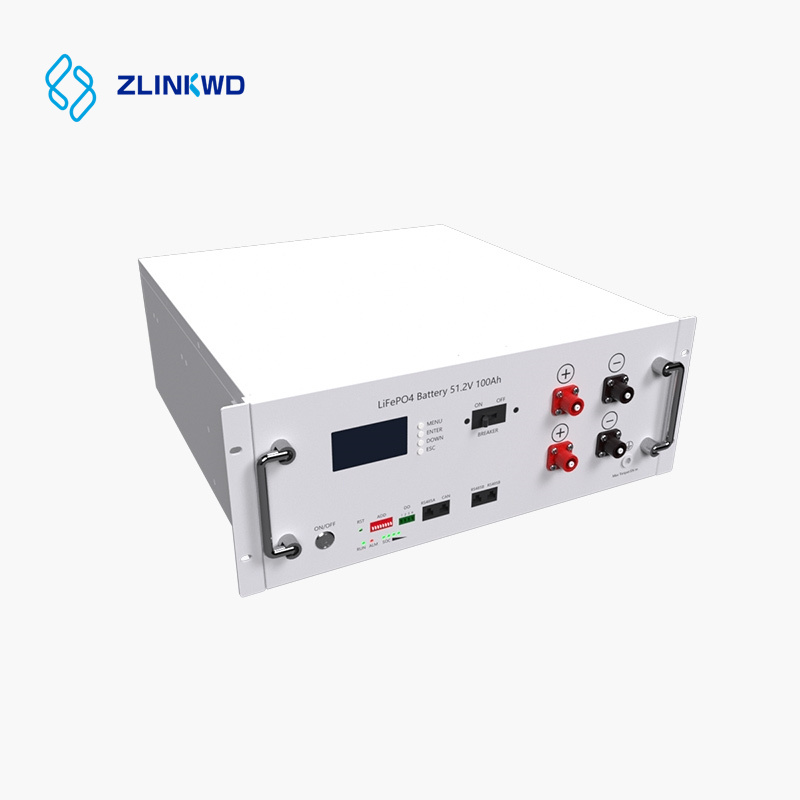

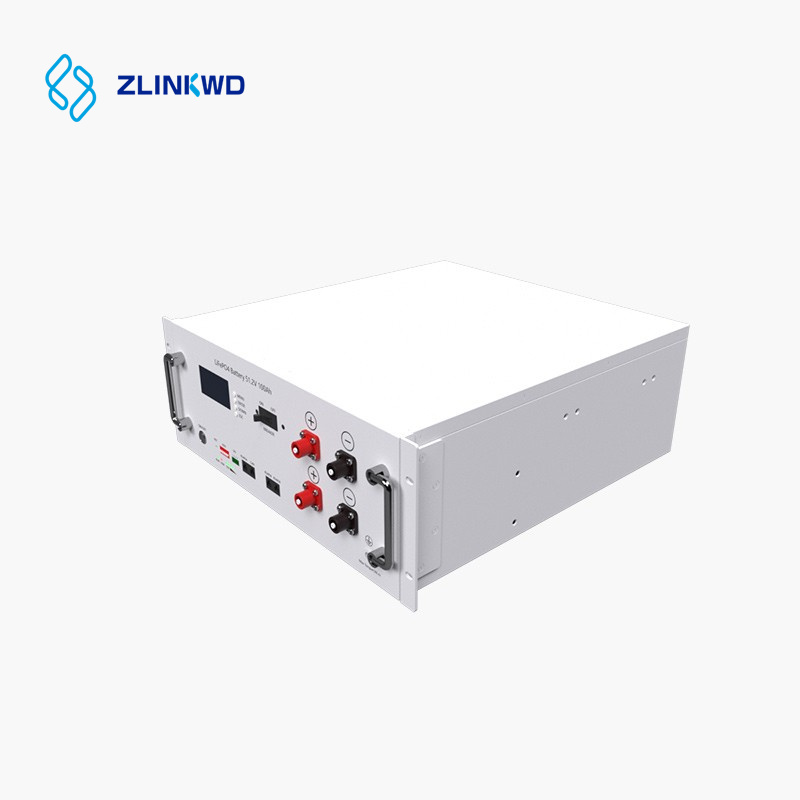

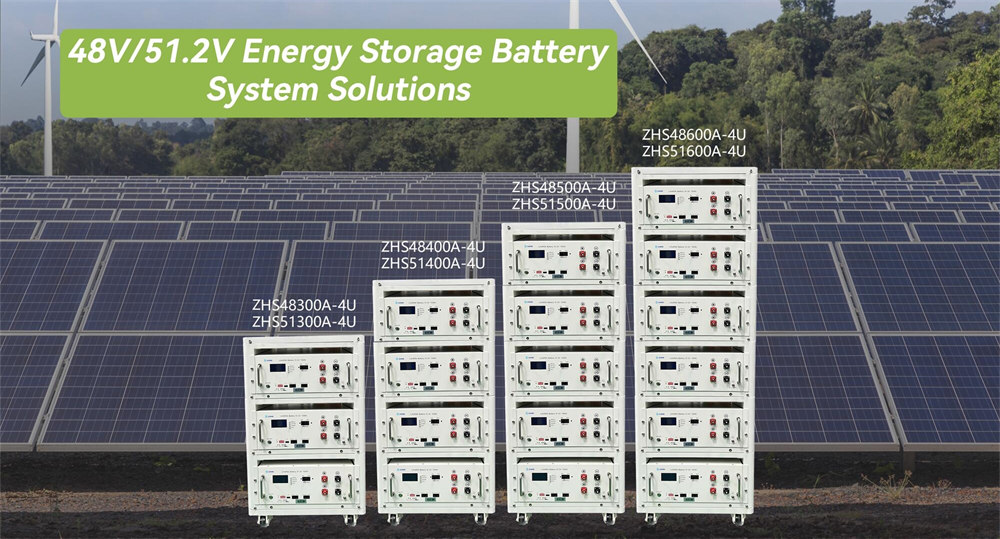

48V/51.2V Energy Storage Battery System Solutions ZHS48300A-4U

ZES4U series energy storage battery system, LiFePO4 48V/51.2V battery storage with 15kwh-30kwh energy optional. it is a one-stop service system can manage your solar home battery storage system more conveniently. Flexible modular system can be designed based on house daily consumption. The perfect emergency energy solution for villas, apartments, hotels, shopping centers.



  Product Features

Industrial Energy Storage Systems

A-grade battery cell

Choose the domestic first-line lithium battery core andBMS protection board



High security

Built-in BMS multiple protection, communication function to monitor data in real time



Standard Design

Maintenance-free design to meet the use of communication cabinets

high capacity

Up to 16 units can be connected in parallel to meet the needs of large-capacity applications



High Consistency

Ultra-low internal resistance, excellent battery pack consistency



Long life span

80% DOD depth of discharge, battery cycle life >4000 times

Industrial Energy Storage Systems Energy Storage Battery System Solution
Renewable Solar Power Storage Battery Home Solar Power Station System

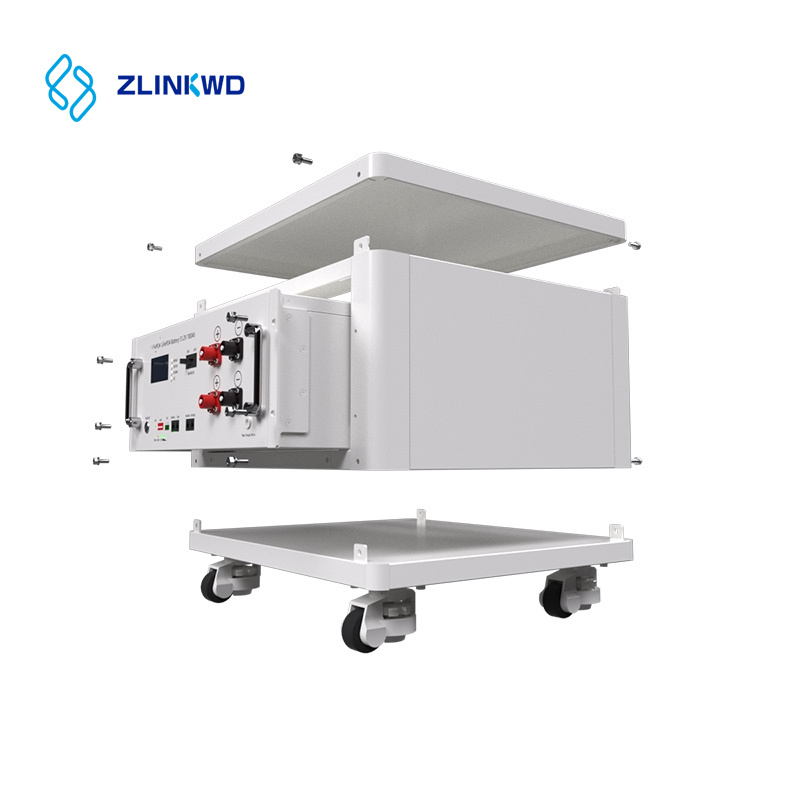

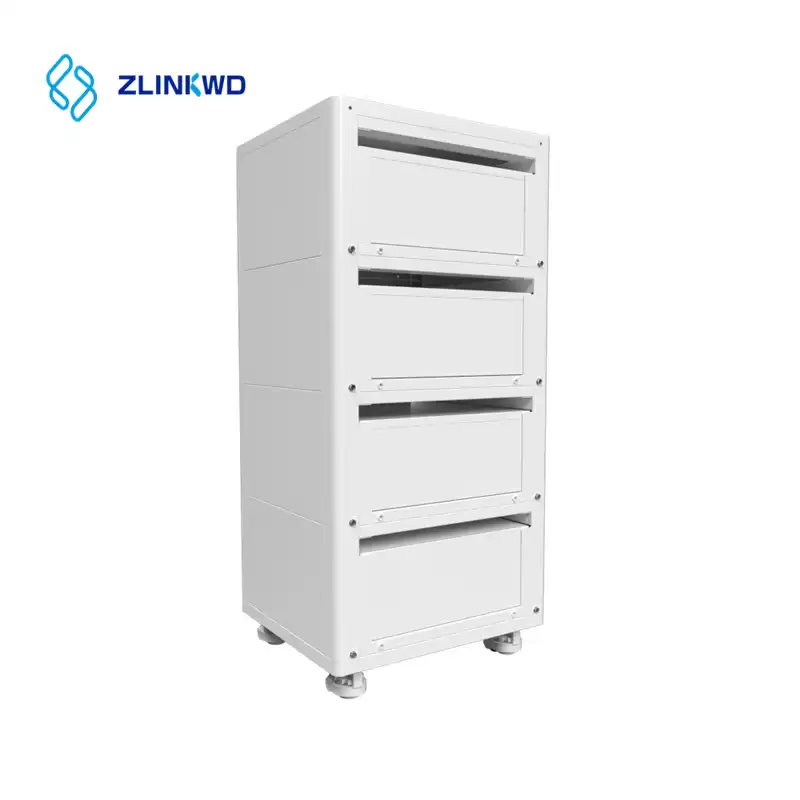

The battery case appearance customization, high voltage and function customization service can be provided according to customer requirements.

  Application Scenarios

1. Off-grid residential homes
2. Emergency backup power
3. Electric vehicle charging
4. Smart home automation
5. Commercial and industrial applications

  •  Home Energy Storage Battery System
    Household Daily Use

  •  Home Energy Storage Battery System Parameters
    Farm Facilities

  •  Home Energy Storage Battery System Parameters
    Solar Energy Storage

  • Household New Energy Vehicles
    Household New Energy Vehicles



   Technical Parameter Table

Model ZHS48300A-4U
ZHS51300A-4U
ZHS48400A-4U
ZHS51400A-4U
ZHS48500A-4U
ZHS51500A-4U
ZHS48600A-4U
ZHS51600A-4U
Rated  voltage 48V/51.2V
Rated  capacity 300Ah 400Ah 500Ah 600Ah
Rated   power 15KWH 20KWH 25KWH 30KWH
Battery internal resistance ≤100mΩ
Cycle  times ≥4000   cycles   @80%   DOD,25°C,0.5C
Design life ≥10  years
Charging  voltage 53V±0.5V(15 series);56.0V±0.5V(16 series)
Maximum  operating  current 200A 300A 400A 400A
Discharge cut-off voltage 45V±1.0V(15 series);48V±1.0V(16 series)
Charging temperature range 0℃~60℃(working below 0℃ will affect the performance of battery capacity)
Discharge temperature range -20℃~60℃(working below 0℃ will affect the performance of battery capacity)
Storage   environment 40℃~55℃@60%±25%         humidity
Dimension(mm) 550*480*875 550*480*1135 550*480*1395 550*480*1655
Communication RS232-PC,   RS485(B)-PC   RS485(A)-Inverter,   CANBus-Inverter
Certification UN38.3,MSDS,UL1973(CeIl),IEC62619(Cell)



     FAQ

Q. What's price?

A: We provide reasonable price and recommend suitable batteries to our customers.



Q. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.



Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed



Q. Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.



Q.Which certificates do you have?

A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.



Q. Can your battery be wired in series or parallel?

A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.



Q. What is your Shipping way?

A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea .
