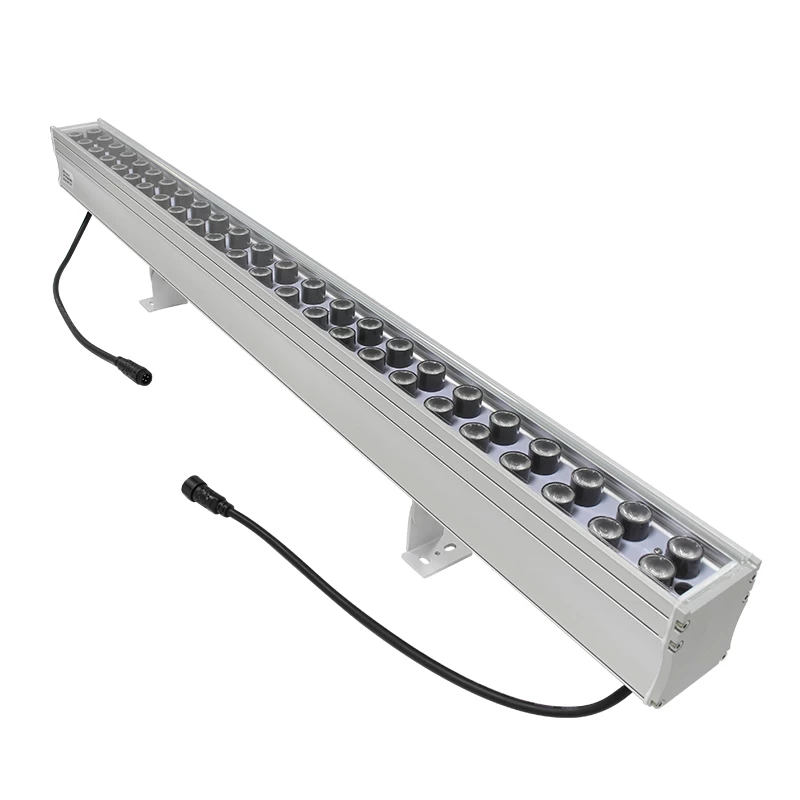

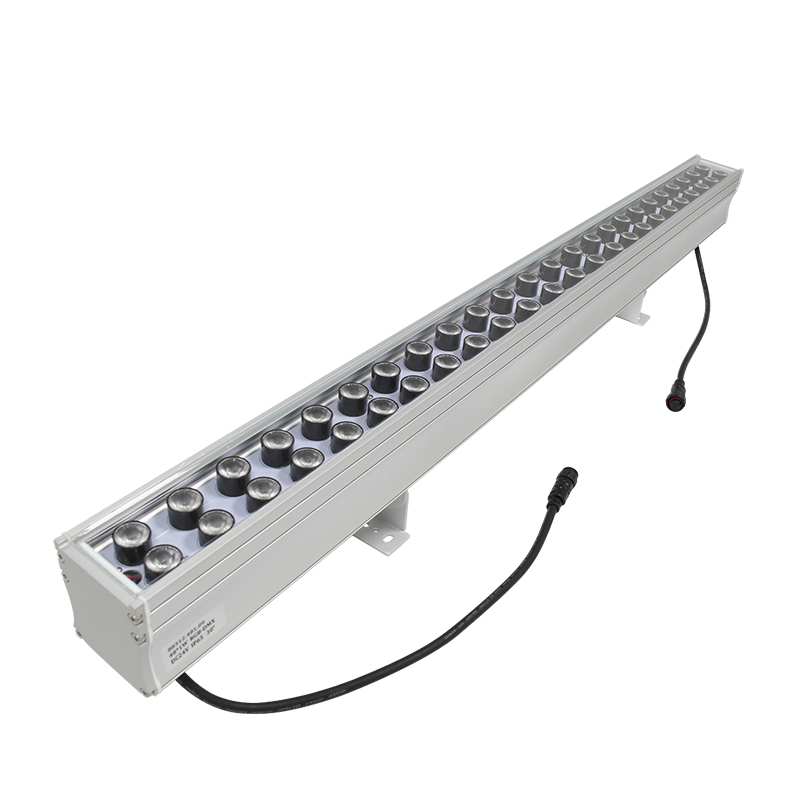

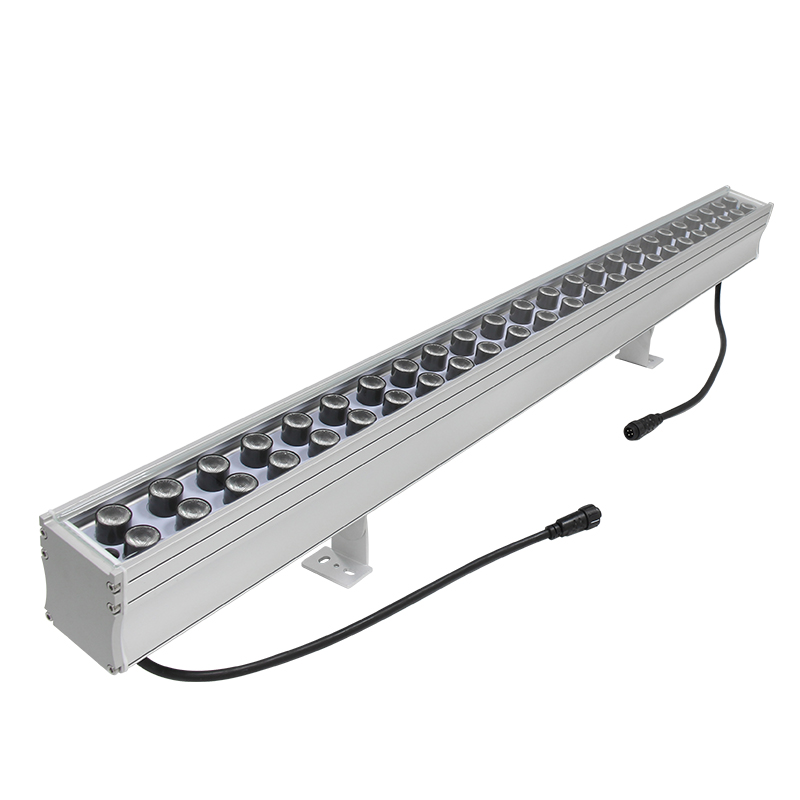

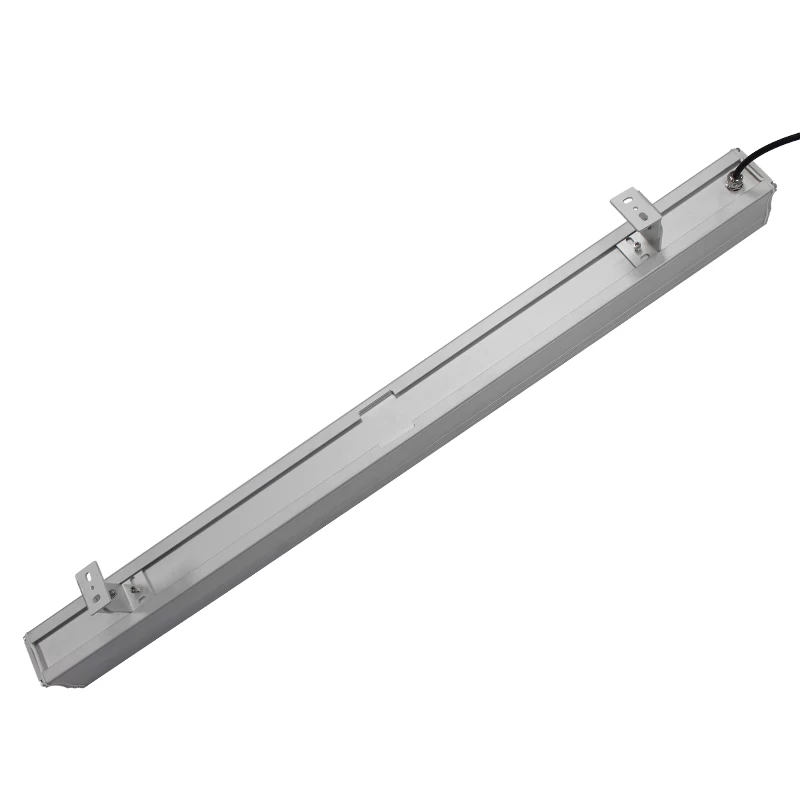

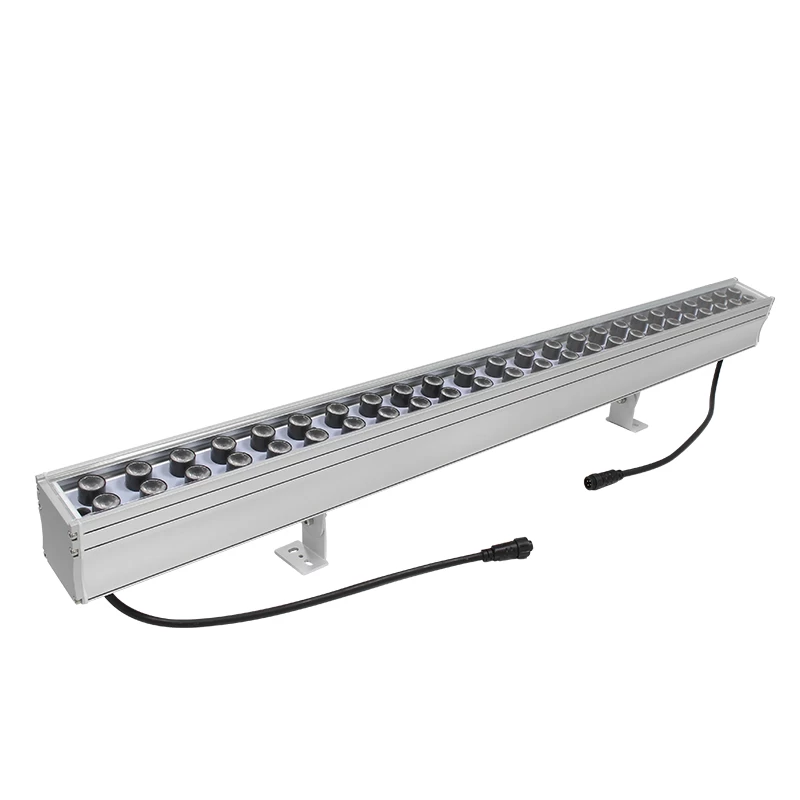

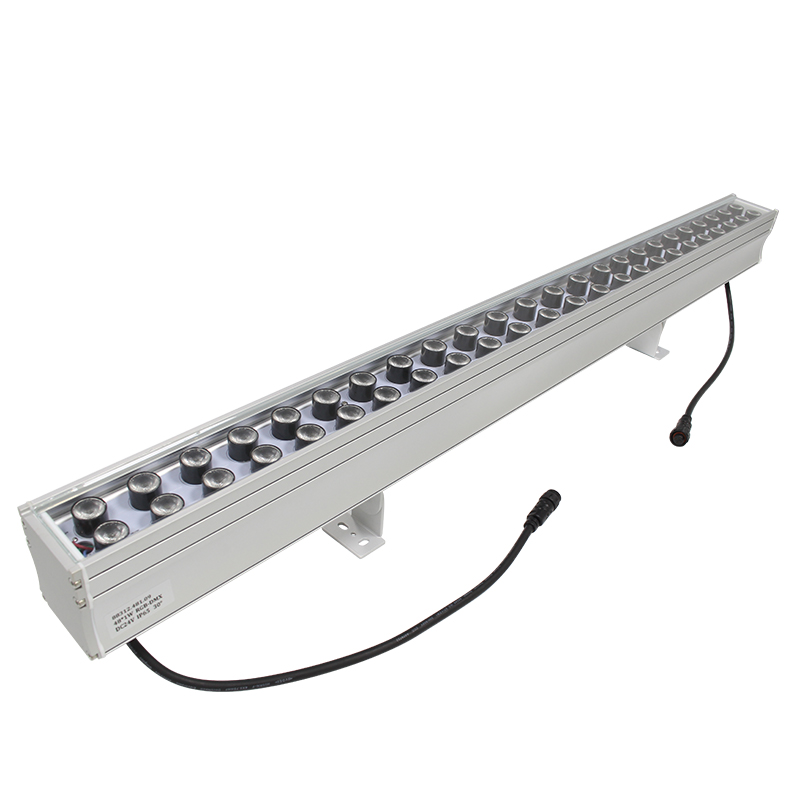

48x1W IP65 LED Wall Washer With DMX Controller

LED wall washer is also called Outdoor LED Wall Washer, LED Wall washer light, led city color, led wall washer light ,etc. All of them with with Cree & Edison high power led. The led wall wash light Working Voltage:



LED wall washer is also called Outdoor LED Wall Washer, LED Wall washer light, led city color, led wall washer light ,etc. All of them with Epistar & Edison high power led. The led wall wash light Working Voltage: DC36V, AC90V or 230V, Constant current driver, No flash, fast response to achieve over-current,use of safty. RGB DMX512(1990 standard) and RDM system. No waterproof glue to seal the light, IP65 waterproof structure. Easy maintain and replace freely.


DMX decoder built inside, can be made with plug to plug connection.To make sure of high quality for the internal control LED Wall Washer Light, we use rubble cable.

Specifications of 54W IP65 LED Wall Washer RGB DMX512 Control:

Item Number

RS-WW48W-D

Input Voltage

DC36V or AC90-230V, 50/60Hz

Input Current

350--700mA

Driver place

Internal driver and DMX decoder

Output Power

48W

Luminous Flux Output

80LM/W

Rendering Index

>80Ra

Body size

L1000 x W68 x H80mm (H152mm with bracket)

Beam angle

10° 30° 45° 60° 90° 20*40° 10*60° 10*80° for optional

Light source

High power 1W Epistar LED/Edison LED

Operating temperature

-30~ +45 Degrees Celsius

Color optional

White(2700-6500K), Red, Yellow, Green, Blue, RGB

Housing material

3800-4320Aluminum

LED’s Operating Life

≥45,000Hours

IP rate

IP65

Cable wire

1 meter 4core/5 female-male cable

RGB Control way

Auto change color /DMX512 controllable

Features of 48W IP65 LED Wall Washer RGB DMX512 Control

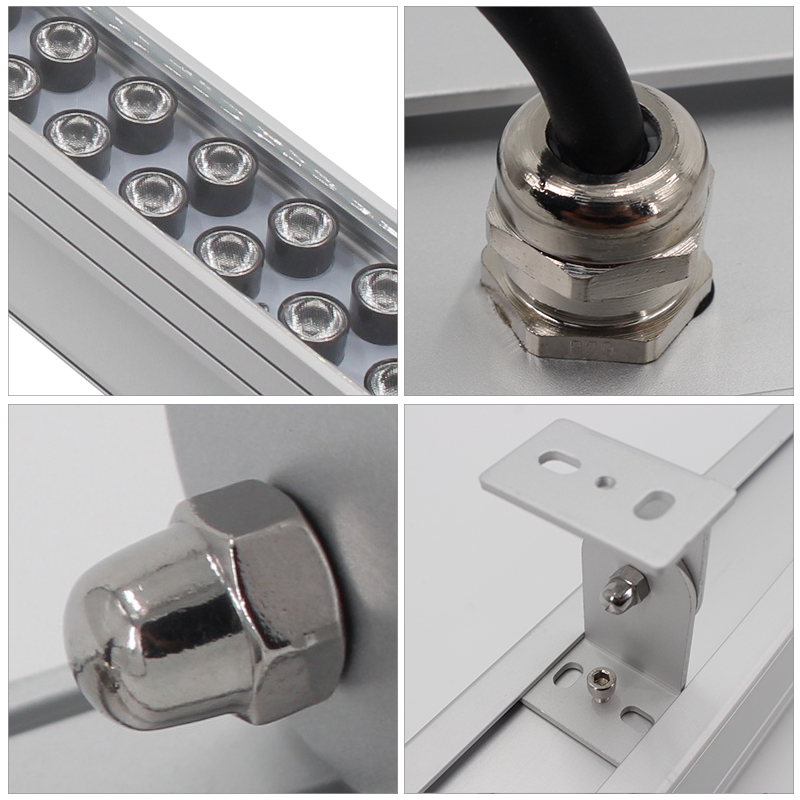

1. High quality die-casting Aluminum light body, be oxidized beauty and good heat dispersing performance. Private mold for all lamp housing.

2. Sealing up the tempered glass with silicone gaskets to reach IP65 waterproof rate. No waterproof glue inside of lamp. You can replace PCB with led freely once problem happened.

3. Using super-brightness and high power led chips. Built-in constant voltage power supply driver .

4. PMMA optical lens. with beam angle 8 -90 degrees. Achieve different floor requests.

5. Working voltage is: DC 36V,or AC90V-230V.

6. Single color with steady-on; Auto-control color change synchronously .DMX512 controllable system.

7. Long life, up to 45,000 hours.


Applications for 48W IP65 LED Wall Washer RGB DMX512 Control

Apply to Building, indoor or outdoor lights, Flooding for the landscape structure to outstanding building character. Hotels, airport, Metro. etc
