Parameter
|
|
Bus Model No.
|
BJ6122UCTK01
|
|
Seat No.
|
49+1+1
|
|
Driver hand
|
Left hand driver
|
|
Overall dimension(mm)
|
12000X2550X3790
|
|
Specification
|
|
Engine
|
WP10.375 Euro 3 Speed limited:130KM/H
Rated power (KW(PS)/RPM):276 (375)/2200
|
|
Cooling system
|
Mechanical cooling system
|
|
Transmission
|
Fast 6DS180T gear box
|
|
Front axle
|
6.5T front alxe ,disk break
|
|
Rear axle
|
13T rear alxe ,drum break
|
|
Suspension
|
6 air bag suspension,import shock absorb,front suspension stabilizer bar
|
|
Tyre
|
Double coin brand 295/80R22. 5(one spare tyre）
|
|
Steering
|
Integral Power Steering
|
|
ECAS
|
With
|
|
Brake
|
Front disk and rear drum break
|
|
ABS
|
WABCO ABS
|
|
Clearance Adjuster
|
With
|
|
Fuel System
|
600L
|
|
Floor structure
|
Grooves floor
|
|
Door
|
Single closed front door with sliding window
|
|
Window
|
Front window shield: Up-- laminated glass, black color,
Down--- laminated glass, colourless.
|
|
|
Rear window：Closed colourless glass
|
|
|
Side window: left and right side totally closed, the last window sliding.black color
|
|
Emergency exit
|
With
|
|
Emergency Roof Door
|
Ventilator emergency
|
|

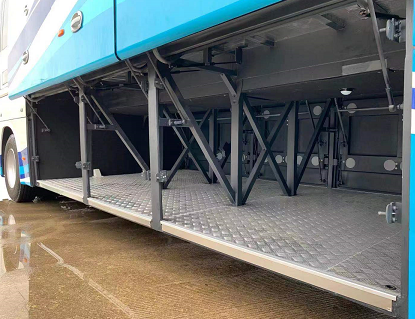

Luggage compartment door
|
Aluminium through type manual up-sliding luggage compartment door
|
|
Luggage compartment
|
Aluminium alloy floor cove for the luggage compartment.
Luggage compartment with PVC floor
|
|

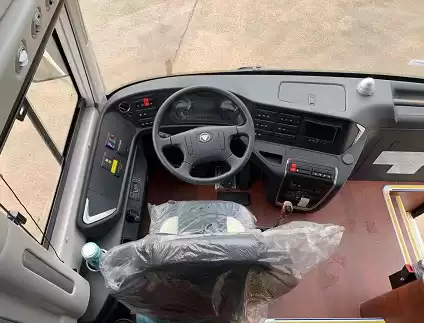

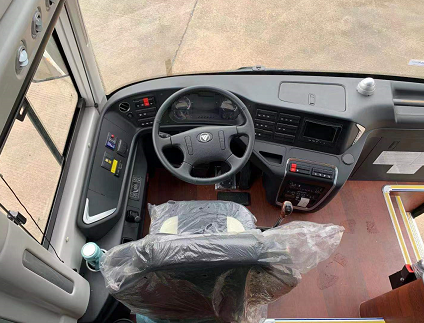

Driver Seat
|
High back, adjustable,damping, driver seat
|
|

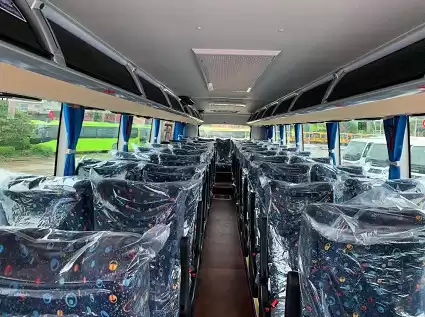

Passenger Seat
|
49 Units,JYSW-2-07 type passenger,(USB charger, foot rest,book net,sliding,fabric cover,table board )49个JYSW-2-07
Safety belt: Two-point seat belt(last row passenger seats with three point safety belts)
|
|
Visual and Audio System
|
DVD player(single disc), Front: 19’s fix LCD TV ,rear 22S manual reverse LCD TV
1 Microphone（1 wireless)
|
|
Reverse monitor system
|
6 monitors
No.1 monitor: on the instrument for monitoring the front
No.2 monitor: one the rear ,for reversing monitor .
No.3 monitor: Installed above the left rear-view mirror to shoot the left rear side
No.4 monitor: Installed above the right rear-view mirror to shoot shoot the right side
NO.5 Front door for driver area and passenger area
NO.6 Rear passenger area for the rear to front
All cameras have night vision and waterproof functions
|
|
Air-Conditioner
|
32680 Cal/h, roof mounting Non- independent
|
|
Refrigerator
|
With
|
|
Heater
|
Front windshield defroster
|
|
Rear-view mirror
|
Rabbit ears electric exterior rear-view mirror with defroster
|
|
Inner lighting
|
Driver roof lamp, Long roof LED lamp, Step lamp, reading lamp
|
|
Curtain
|
With
|
|
Floor and floor covering
|
PVC floor and anti-grinding floor leather
|
|
Inner luggage rack
|
Luggage rack on both side with cover
|
|
Others
|
Electronic Clock, Vehicle Flow Tank, Stainless Steel Wheel Cover
Automatic fire extinguishing device in engine compartment
1unit 5 kg dry powder fire extinguisher
Six safety hammers
Installation of Vehicle Speed Display by Electronic Clock in Vehicle
Painting: FOTON stand
LED light on the side window
Double manual shade curtain
|
|
If any specification is not specified above, please refer to Foton’s standard specs
|
