4C Printing 125KHZ LF RFID Cards With 5577 Chip
LF Card, the operating frequency range of 30kHz ~ 300kHz. Typical operating frequencies are: 125KHz, 133KHz. The advantages of low-frequency card is mainly reflected in: card chip generally use ordinary CMOS technology, with power, cheap features; operating frequency from radio frequency control constraints; can penetrate water, organic organization, wood, etc .; very suitable for close , Low speed, the amount of data required less application.
Features
Materials: PVC, PET, ABS, PET-G, etc.
Size: CR80 (85.5*54*0.84mm) or Customized
Chip Available: TK4100, EM4200, T5577, Hitag 1, Hitag 2, Hitag S 2048, etc
Protocal: ISO11784/ ISO14443A/ ISO15693/ IS18000-6B/ EPC C1 GEN2
Frequency: LF
Crafts: Barcode, Scratch off panel, Signature panel, Spray number, Laser number, Embossing, etc.
Encode: Available
ID Number Printing: Jet dot printing/ Thermo transfer/ Laser engrave
Surface: Frosted/Glossy/Matte Finishing
Printing Options: Full color offset printing, Silk-screen printing, etc.
Application

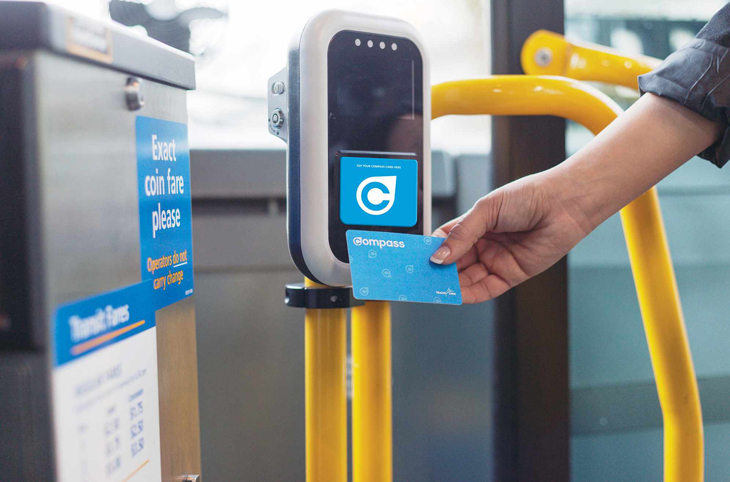

Access Control, Hotel Lock, Transportation, etc.
Available 125KHz Chip Technologies
Chip Type Protocal Capacity Anti Collision Function
TK4100 / 64bit No Read Only
EM4200 / 128bit No Read Only
T5577 / 330bit No Read/Write
Hitag 1 ISO 11784/5 2kbit No Read/Write
Hitag 2 ISO 11784/5 256bit No Read/Write
Hitag S 2048 ISO 11784/5 2kbit No Read/Write
Other ICs are available upon request.
