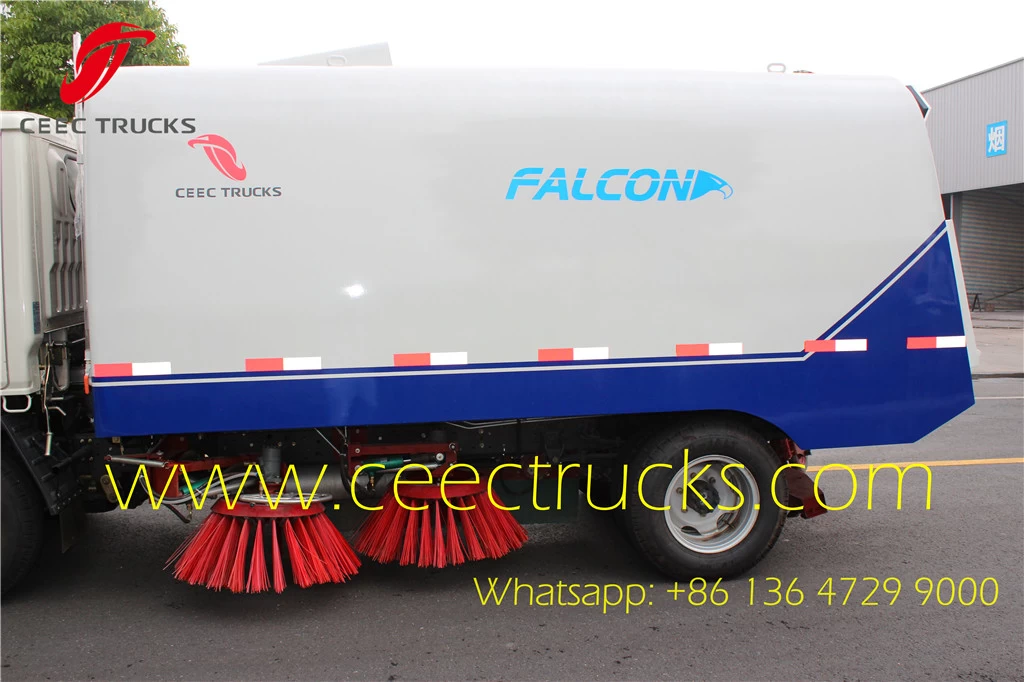

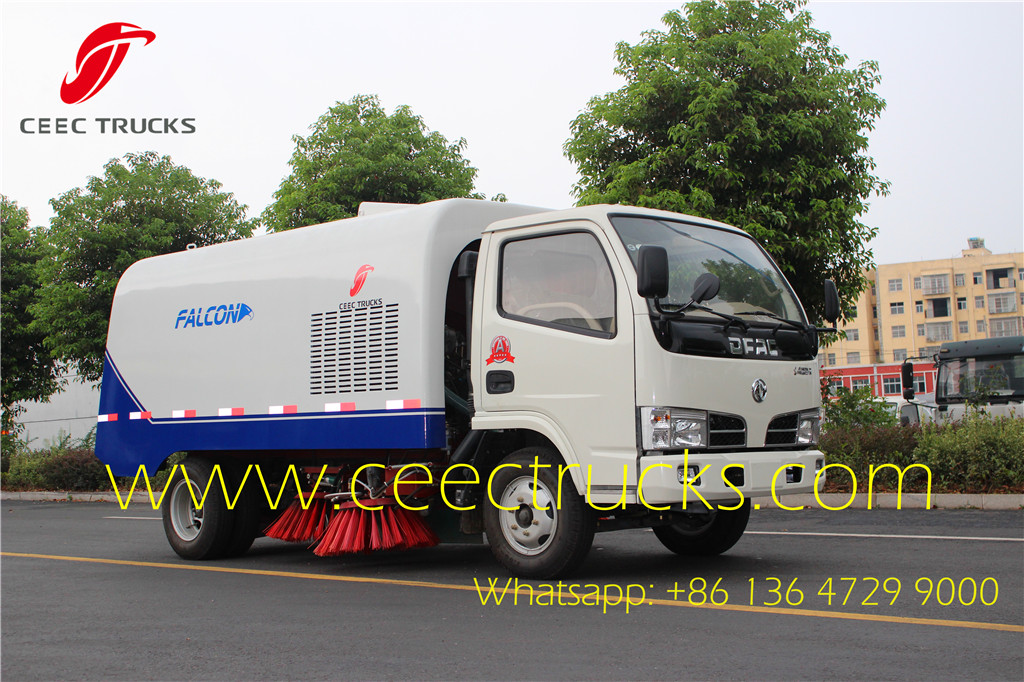

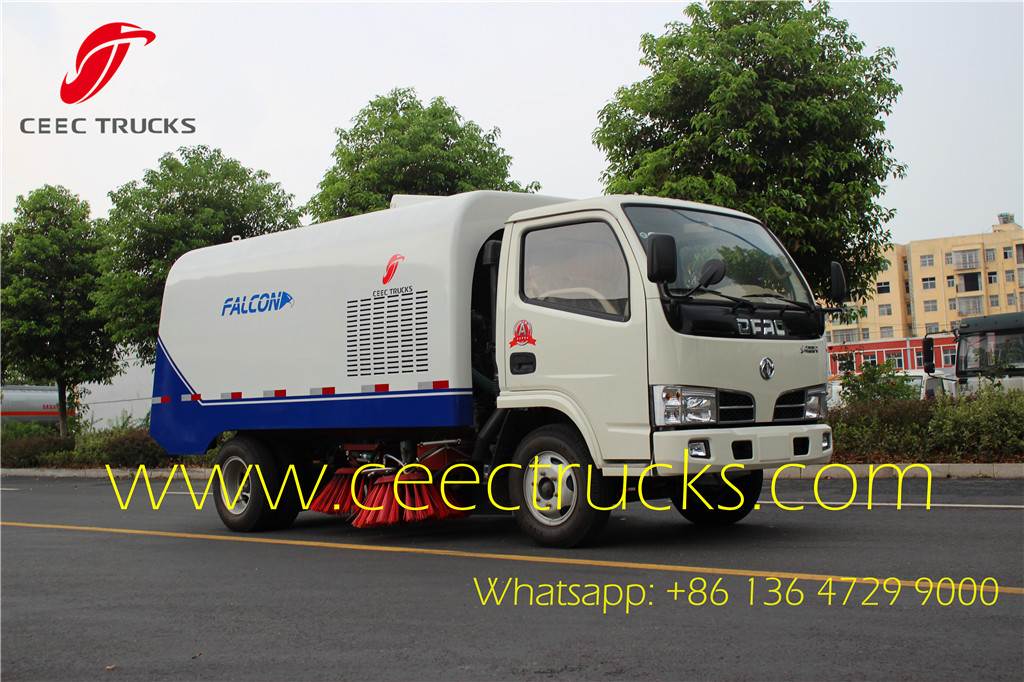

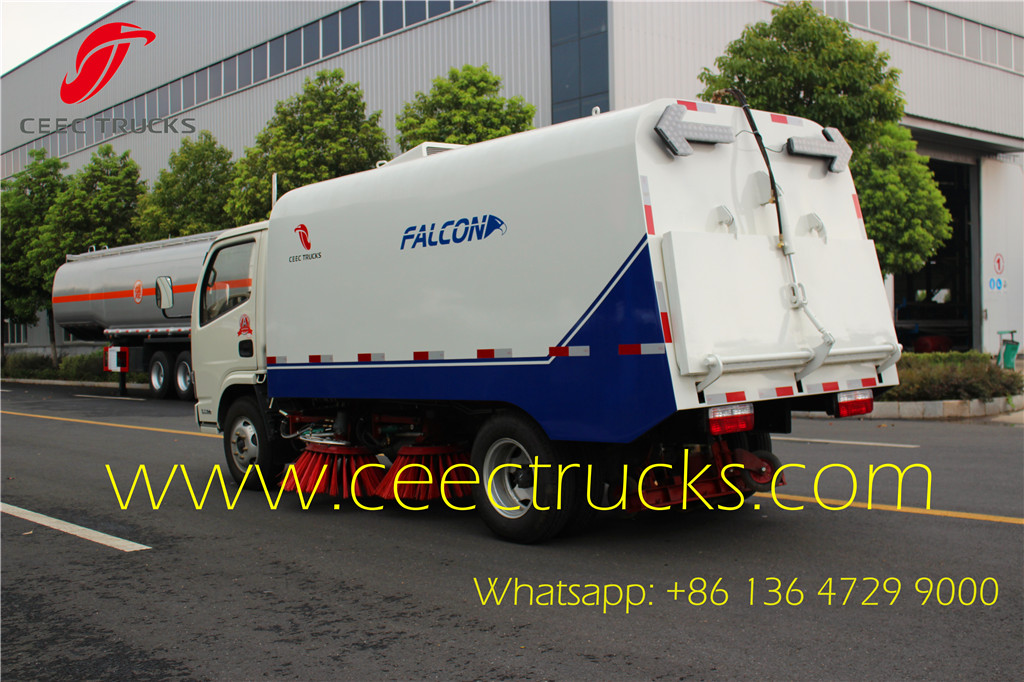

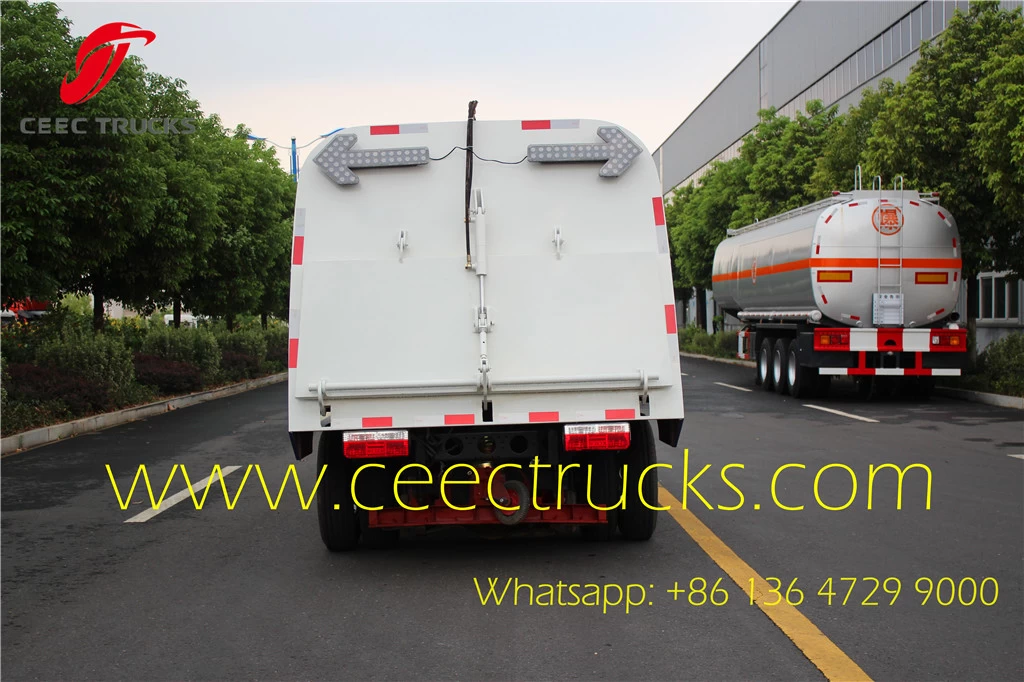

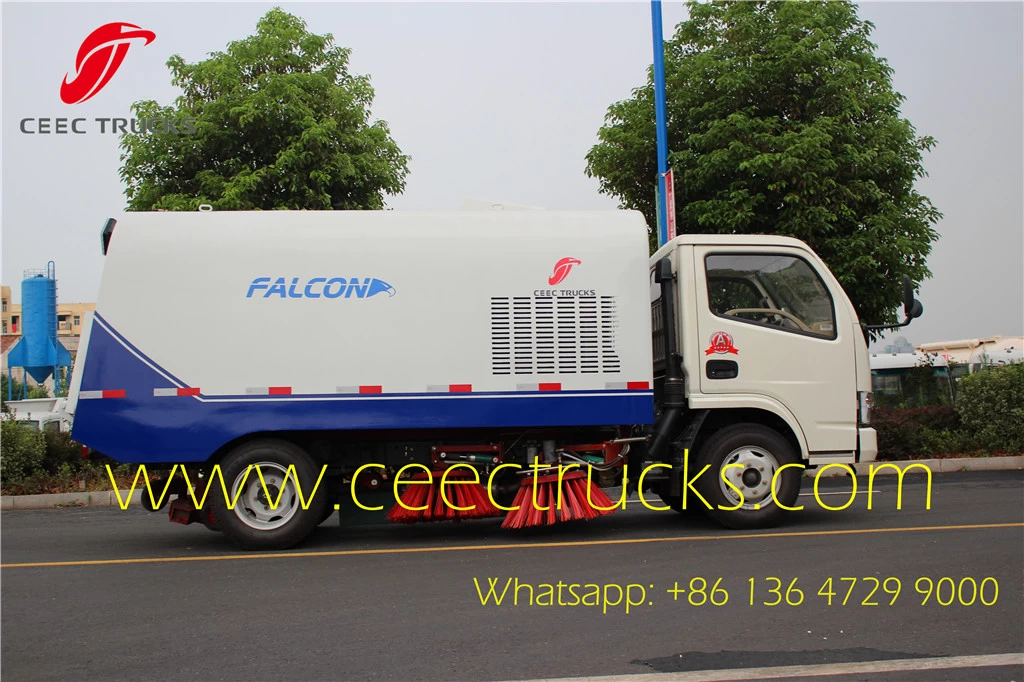

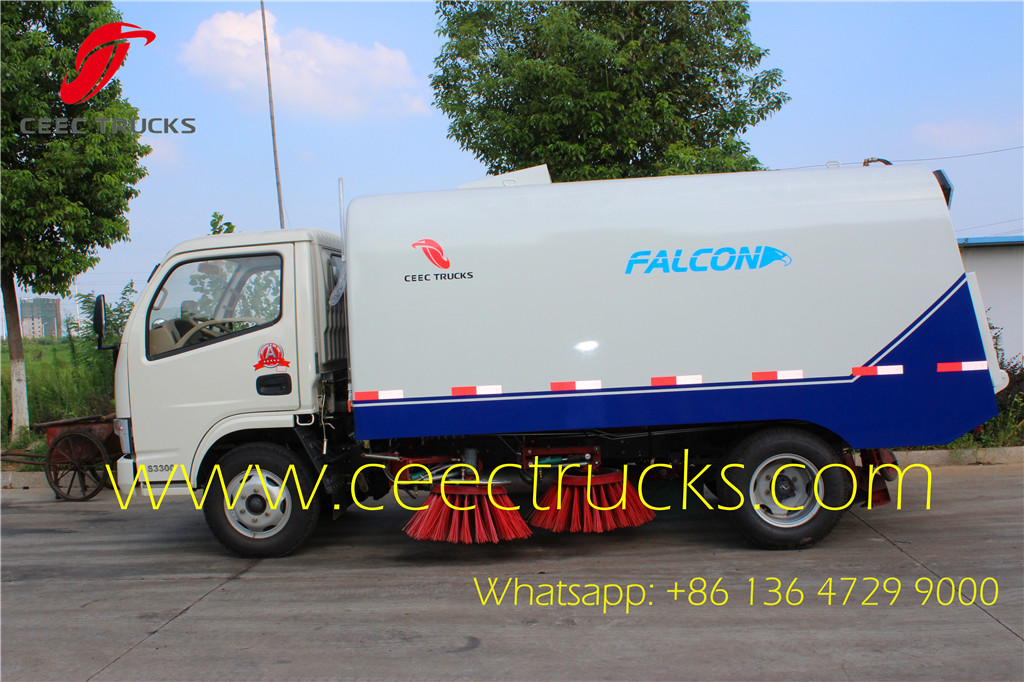

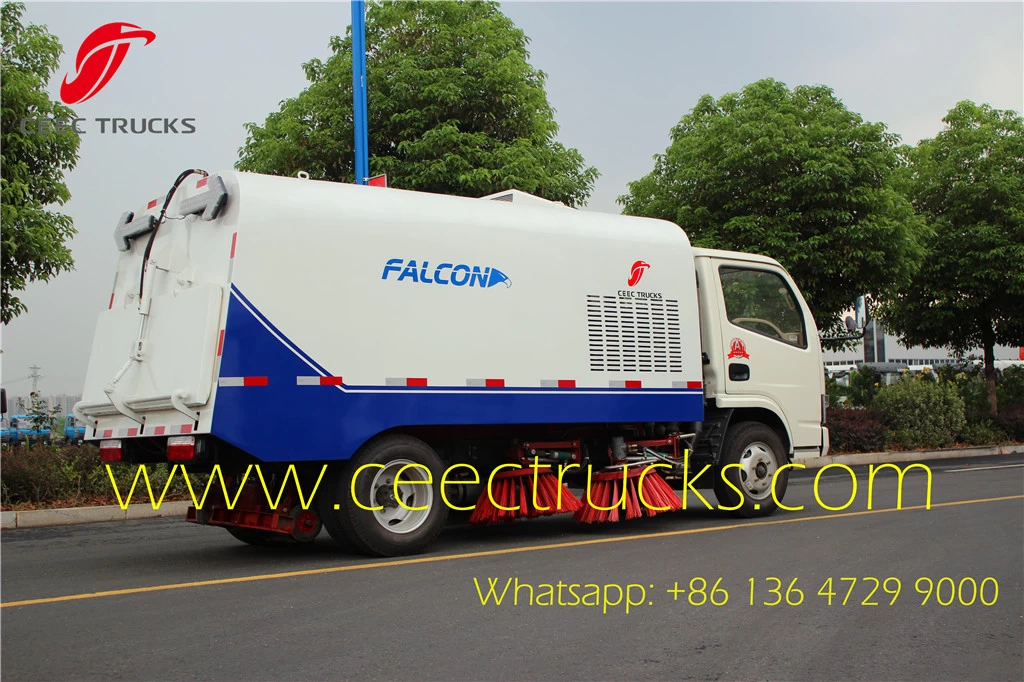

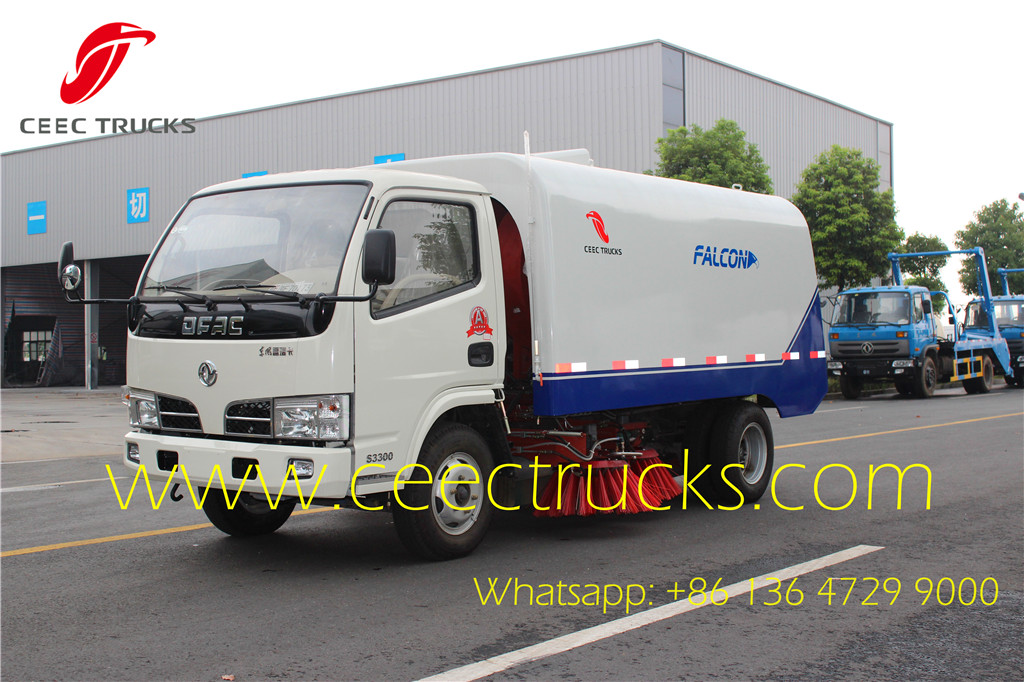

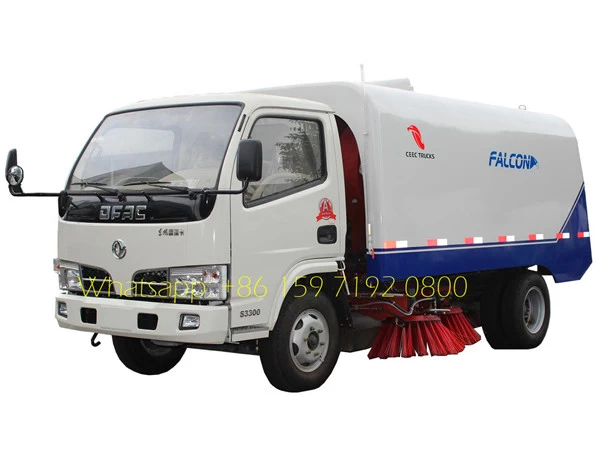

Road Sweeper with 4CBM Dust Tank & 1CBM water Tank DongFeng
Road sweeper (also called street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

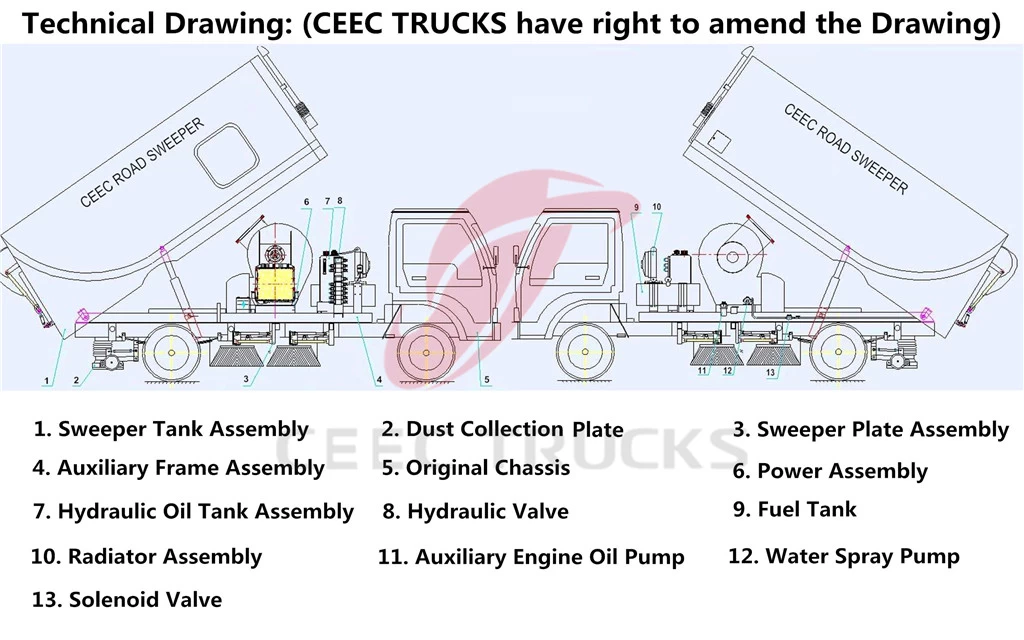

The CEEC TRUCKS produced dongfeng 4CBM road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.
Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
Also for some snowing country, our road sweepers can also adding a device of snowplow, this road sweeper could also be used to clean snow on the road.
CEEC TRUCKS 2016 produced road sweeper trucks, including beiben heavy type road sweeper trucks,dongfeng vacuum sweeping trucks, ISUZU road Sweeper with lowest price are widely export Myanmar, Phillippine, Nigeria, Ecuador, Kenya and Zambia, etc.
The Road sweeper heart Auxiliary use Japanese technology ISUZU 57KW engine with top performance; Whole tank including 6CBM dust bin tank and 2CBM cleaning water tank, all use stainless steel as material, longly extend the service life. Standard 4-brush sweeping system, each side has two, with sweeping width can be up to 3.2m.
CEEC produced 5CBM road sweeper & 8CBM street cleaning trucks are widely export Asia Myanmar, Laos, Phillippine, Pakistan; Africa Kenya, Algeria, Togo, Ecuador, Cameroon, Ghana, Angola, etc
Similar KeyWords: Dongfeng 4CBM road sweeper, DFAC 4CBM runway road cleaning truck, Mechanical road sweepermulti-function road sweeper, street cleaner, road sweeper, sweeper truck, Ecuador dongfeng mini street sweeping vehicle
| Road Sweeper 4CBM Dongfeng
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
Dongfeng
|
| Overall Dimension
|
5995 * 2000 * 2400 mm
|
| GVW / Kerb Weight
|
6,895kg / 4,565kg
|
| Cab
|
Cab Capacity
|
2 persons allowed
|
| Air Conditioner
|
Air conditioner is optional
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
Dongfeng
|
| Power
|
95 Ps (70 KW)
|
| Displacement
|
3856 ml
|
| Emission Standard
|
Euro III
|
| Chassis
|
Drive Type
|
4X2, left hand drive
|
| Transmission
|
5-speed front, 1 reverse
|
| Wheelbase/No. of axle
|
3300 mm / 2
|
| Tyre Specification
|
7.00-16
|
| Tyre Number
|
6 tyres and 1 spare tyre
|
| Max Speed
|
95 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Water Tank
|
Stainless Steel
|
| Dustbin Capacity
|
4 CBM
|
| Dustbin Material
|
Stainless Steel
|
| Water Tank Capacity
|
2,000 Litres (About 500 gallons)
|
| Sweeping Capacity
|
42,000 m³/h
|
| Sweeping Speed
|
3-15 km/h
|
| Max Sweeping Width
|
2800mm
|
| Brooms
|
2 sets at each side, at diameter 900 mm
|
| Auxiliary Engine
|
JMC engine (ISUZU technology)
77 HP (57 KW), super powerful
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
| Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.
|
