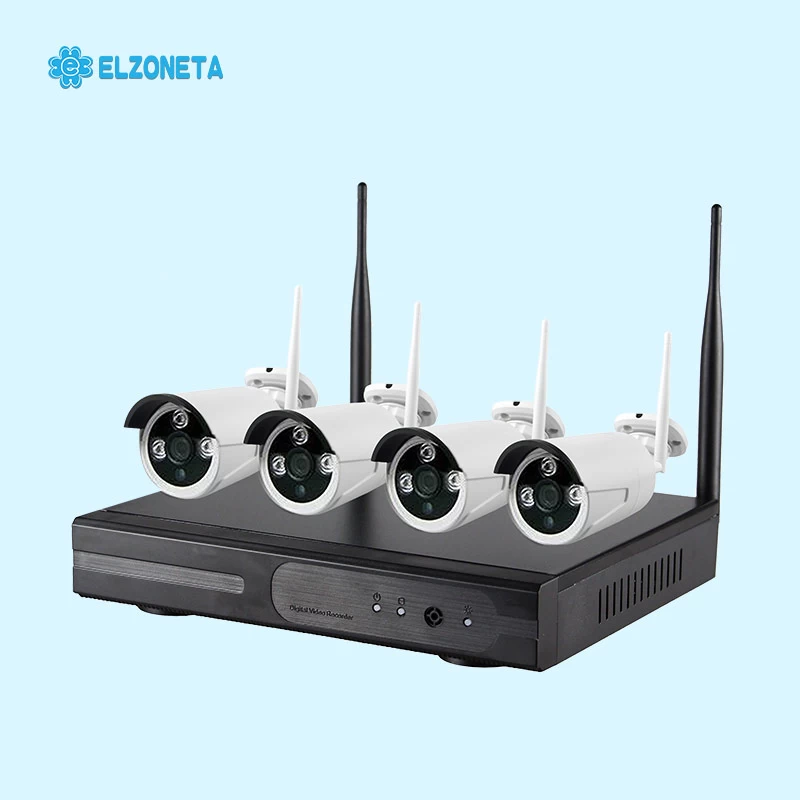

EC-NK403 4CH 720P Wireless NVR Kits
Features:
1. 720P Wireless Network video Recorder,
2. Built-in WiFi module,with stable signal and strong anti-jamming capability,
3. No need wireless matching,plug and play,
4. Wired or Wireless optional,suitable for any scene,
5. P2P,remote connection in seconds,with influence and stable image,
6. Multiple alarm trigger(video loss/motion detection and so on),multiple alarm output(sound/E-Mail/FTP and so on),
7. Remote view or control(LAN or Web) by Android/Apple mobile phone or pad.
8. Product Guarantee for 2 years
Specifications:
Wireless NVR
|
Model
|
EC-NK403
|
|
Processor
|
Hi3520D
|
|
Operating
system
|
Embedded LINUX
|
|
video/audio input
|
Network
video/audio input
|
4
channel D1/960H720P/960P/1080P
|
|
video/audio
output
|
HDMI output
|
1channel,resolution:1024x768,
1366x768, 1440x900, 1920x1080
|
|
VGA
output
|
1channel,resolution:1024x768,
1366x768, 1440x900, 1920x1080
|
|
audio
encoding and decoding
|
Video
resolution
|
D1/960H/720P/960P/1080P
|
|
synchronization
display
|
4channel
|
|
Video
management
|
Video/capture mode
|
Manual
record,timing record,motion detection record,alarm record
|
|
Playback
Mode
|
Real
time Playback,common Playback,Evens playback
|
|
Back-up
Mode
|
common
back-up
|
|
HDD
|
Storage
type
|
1SATA interface
|
|
Store
capacity
|
1SATA
HDD,up to 4TB
|
|
External
interface
|
Network
interface
|
1pcs RJ45
10M/100M self-adaption Ethernet port,2pcs WIFI antenna interface
|
|
USB
interface
|
1pcs USB2.0
|
|
Audio
interface
|
RCA
interface (3.5mm DC Jack) (optional)
|
|
Network
management
|
Network
protocol
|
UPnP（plug and play）
|
|
SMTP（simple message transfer protocol)
|
|
PPPoE（point-to point protocol over
Ethernet）
|
|
DHCP（Dynamic host configuration protocol）
|
|
Others
|
Power
supply
|
DC 12V
2A
|
|
Power
consumption（not
include HDD）
|
≤5W
|
|
Working
temperature
|
-10℃ - 55℃
|
|
Working
humidity
|
10%-90%
RH
|
|
Dimension
|
258×210×42mm
|
Wireless IP Camera
|
Processor
|
Hi3518E
V200
|
|
Operating
system
|
Embedded LINUX
|
|
sensor
|
1/4” progressive
scanning image sensor
|
|
Signal
system
|
PAL/NTSC
|
|
S/N
Ratio
|
>
39.1 dB
|
|
resolution
|
1280 x
720 16 : 9
|
|
Minimum
illumination
|
Color:
0.1 Lux； B/W:
0.01 Lux
|
|
shutter
|
1/25s - 1/25,000s
|
|
Lens
|
4mm
|
|
OSD
|
Date
Time & Title
|
|
White
balance
|
Automatic
|
|
Day
& Night
|
Auto /
Color / BW
|
|
3D-DNR
|
Automatic
|
|
Mirror/Flip
|
On / Off
|
|
Privacy masking
|
4 sections
optional
|
|
Code stream
|
Dual-stream
1280x720@15fps； 640x360@15fps
|
|
Lightning
protection grade
|
standard
IEC61000-4-5
|
|
Power
input
|
DC12V-1A
|
|
Power
dissipation
|
≤6W
|
|
Port
|
RJ45 /
WIFI 802.11b/g/n
|
|
Working
temperature/humidity
|
-10℃ to
+50℃ / 30% to 80% RH
|
|
Storage
temperature/humidity
|
-20℃ to
+60℃ / 20% to 90% RH
|
|
dimension
|
205(L)×70(W)×55
(H)mm
|
|
weight
|
500g
|
|
Protection
grade
|
IP66
|

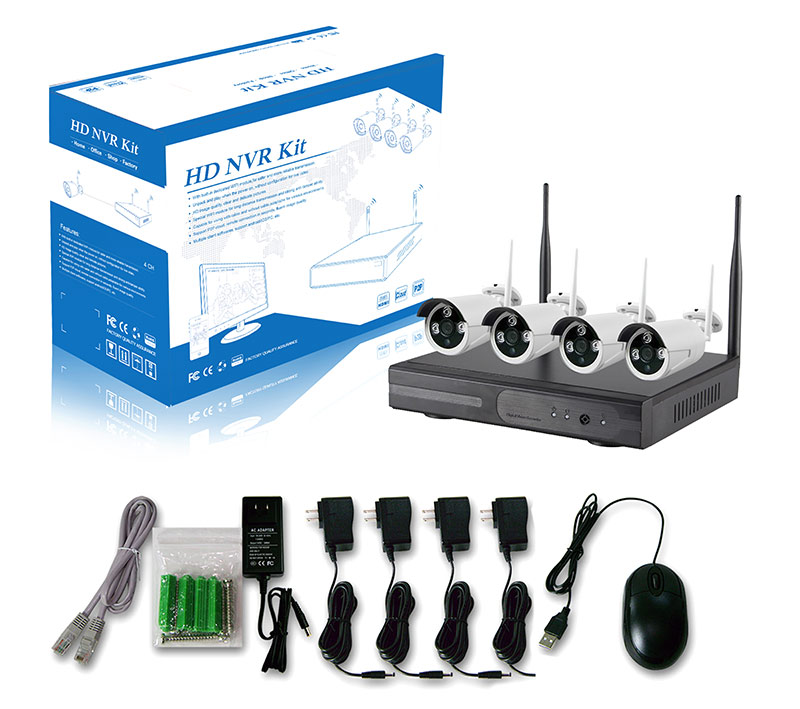

Package
|
NO.
|
Description
|
Quantity
|
Unit
|
|
1
|
NVR host
|
1
|
pcs
|
|
2
|
Screw kit（4pcs screws for HDD fixation）
|
1
|
bag
|
|
3
|
USB mouse
|
1
|
pcs
|
|
4
|
1 meter cable for IPC code
match
|
1
|
pcs
|
|
5
|
DC 12V3A power supply for
NVR
|
1
|
pcs
|
|
6
|
User manual
|
1
|
pcs
|
|
7
|
Wireless IP camera
|
4
|
pcs
|
|
8
|
DC 12V2A power supply for IPC
|
4
|
pcs
|
|
9
|
Screw kit for IPC
installation
|
4
|
bag
|
