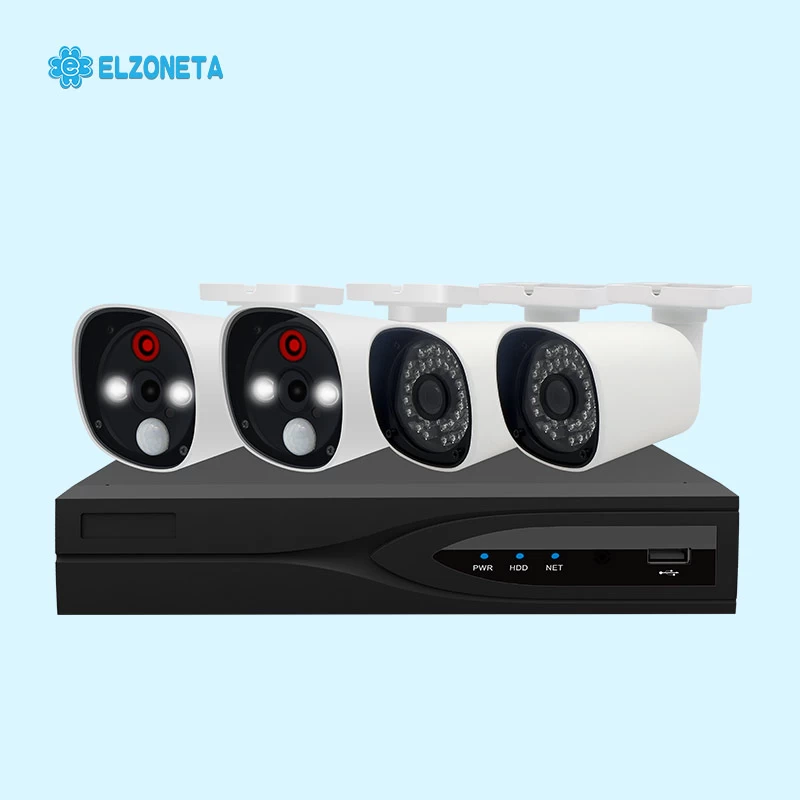

EC-NPK405S 4CH IP Smart Alarm POE NVR Kit
Features:
1.) Integrated Alarm systemand CCTV system
2.) Alarm Type: PIR(Passive Infrared Detector)
3.) Get clearly color video at night with PIR sensor
4.) Frighten intruder with strong white leds at night
5.) Real time Alarm push to mobile app
6.) 1CH face detection or 4CH perimeter function
7.) Dual stream
8.) Offer CMS and Mobile APP
9.) DC12&POE
10.) H.264/H.265 video encoding
11.) Support ONVIF protocol
12.) Plug and play tech(P2P)
13.) 3-axis adjustment
14.) Product Guarantee for 2 years
Specifications:
|
4CH Smart
Alarm CCTV KIT
|
|
Camera
|
|
Type
|
PIR Alarm Camera
|
IP Bullet Camera
|
|
Resolution
|
2.0Megapixel
|
2.0Megapixel
|
|
Signal
System
|
PAL /
NTSC
|
|
Mini
Illumination
|
0.01lux(IR
off), 0.00lux(IR on)
|
|
Lens
|
3.6mm HD fixed
lensoptional
|
|
Angle
of View: 74.6°(3.6mm), 92.6°(2.8mm), 49°(6mm)
|
|
Alarm
type
|
Passive
Infrared Detector
|
NO
|
|
PIR
distance
|
5-8 Meter
range
|
NO
|
|
Alarm
Control
|
PIR IC mainboard
|
NO
|
|
Leds
|
2pcs
white array leds/1pcs IR array leds
|
36pcs IR
leds
|
|
Siren
function
|
DC12V
output Siren is optional
|
NO
|
|
Interface
|
1ch
BNC/1ch power/1ch Alarm/1ch siren
|
1ch
BNC/1ch power
|
|
Network
|
|
LAN
|
RJ45
10M/100M adaptive ethernet
|
|
POE
function
|
Optional
|
|
Dual
stream
|
Support
|
|
Access
protocol
|
ONVIF/CGI/GB28181
|
|
Mobile
APP
|
IOS/Android
|
|
Support
protocol
|
TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP
|
|
Mobile
App
|
IOS/Android
|
|
ROL Codec
|
Support
|
|
Corridor
Type
|
Support
|
|
Regional
Block
|
Support 3
regional block
|
|
Intelligent
functions
|
Support
face detection, Perimeter intrusion detection, Objects left&missing
detection, Crossing the fence, Retrograde motion detection, Wandering
detection, Desity detection intelligent functions
|
|
4CH POE NVR
|
|
Chipset
|
HI3798
|
|
Smart
function
|
1CH face detection
or 2ch perimeter function
|
|
HDD
|
Support 1
HDD
|
|
Alarm
|
4in/1out
|
|
Audio
|
1in/1out
|
|
Output
|
HDMI/TVI/VGA
|
|
Network
|
1RJ45
Fast Ethernet
|
|
Others
|
Support
digital zoom, cloud, P2P, Onvfi, App alarm push
|
Packing List:
4CH Face detection POE NVR 1pcs
IP POE Alarm Camera(Sony2.0MP) 2pcs
IP POE Bullet Camera(Sony2.0MP) 2pcs
18.3meter network cable 4pcs
