4ft Indoor Linear Strip Light Fixture

Morstar's 4ft ceiling light bar has been continuously updated and iterated to enhance the artistic beauty and its own characteristics. Using more powerful raw material methods, better technology, stand out from the old traditional cabinets, and continue to develop advantages in the field of lighting.



40W Low Bay Light Fixture

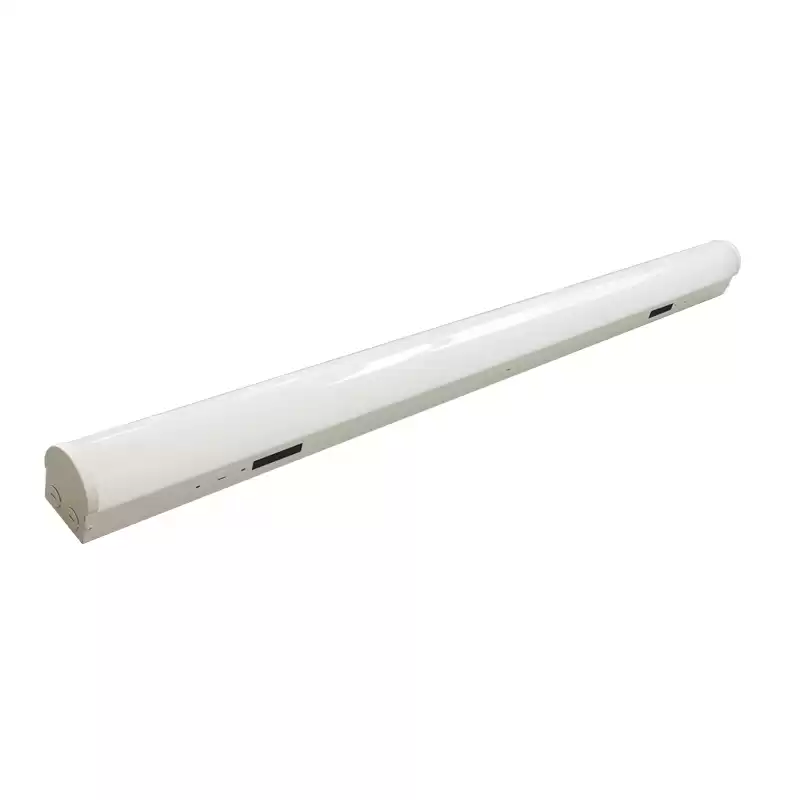

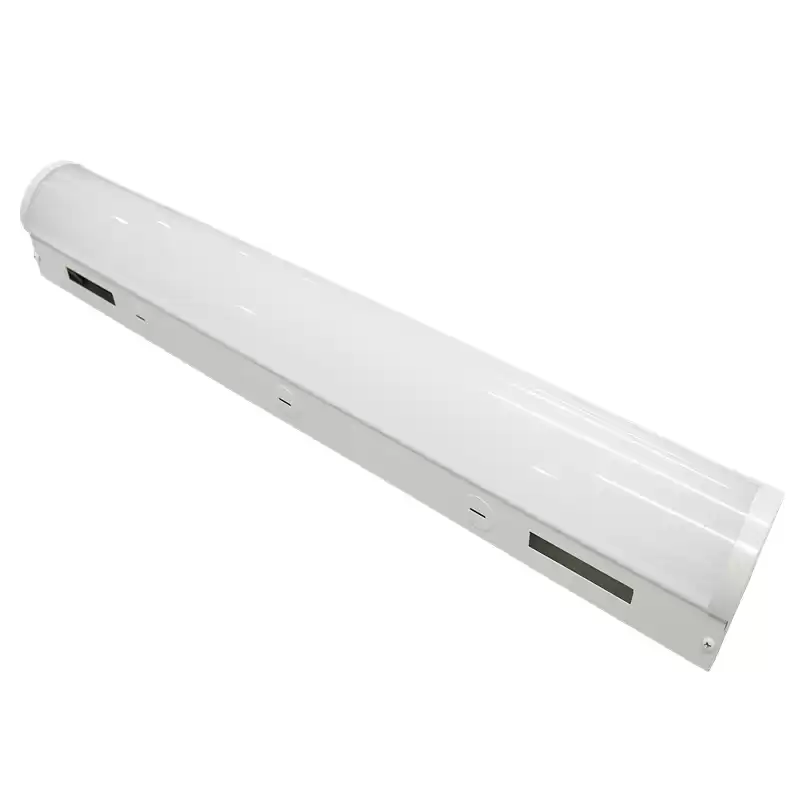

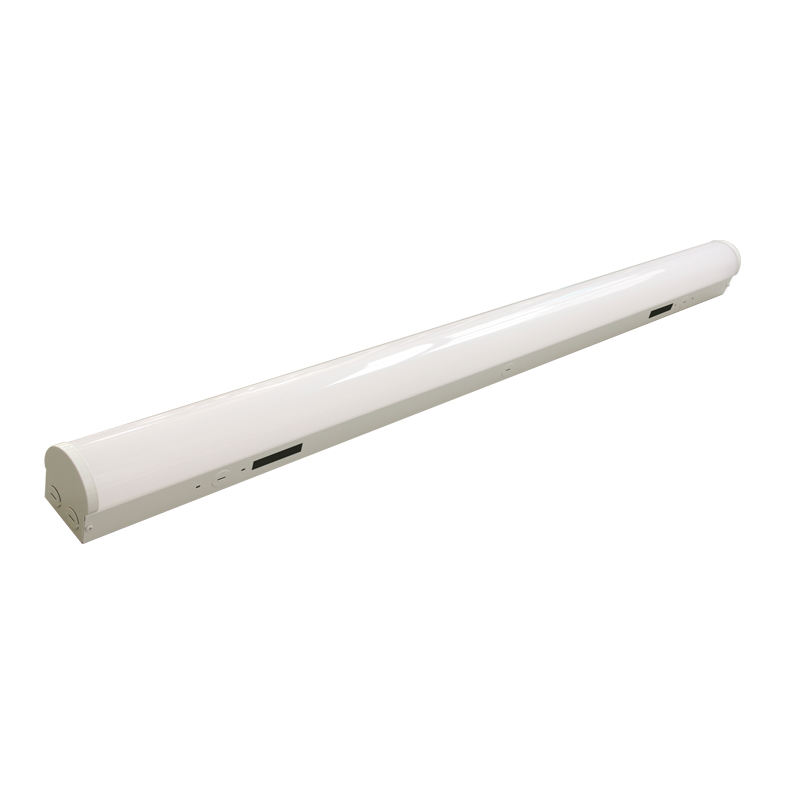

the appearance of linear strip light



    The 40W smart low bay lighting can provide a variety of installation options and dimming functions to adapt to residential or commercial spaces. It can be surface or wall-mounted, suspended lighting or ceiling plane installation slots, to meet the different design needs of customers. Its fixtures reduce expensive maintenance, disposal costs and replacement requirements, all of which have a life expectancy that is 5 times that of traditional equivalent equipment. Equipped with 0-10V dimmable driver, high luminous efficiency 130lm/W, 4ft LED indoor light strip has the characteristics of strong tolerance, low energy consumption and high luminous efficiency, reducing energy consumption by up to 60%. It is suitable for humid places. LED technology can easily replace T8 fluorescent light strips. 40W LED light strip sconce not only provides uniform light distribution, high color fidelity and color gamut, but also presents the most realistic colors in the design. It can be used in conjunction with Tuya Technology's control system to control lamps, creating more comfortable lighting for garages, offices, school lighting areas, etc.

PRODUCT SPECIFICATION


Size

Power

Input

Voltage

Input

Current

CCT

Light

Efficacy

Luminous

Flux

Viewing

Angle

Ra

PF

Warranty

4ft

40W

AC100-277V

0.4A

4000K

5000K

130lm/W

5200LM

120°

>80

>0.9

 5 Years



Features:


  • High luminous efficiency 130lm/W, Ra>80
  • 0-10V dimmable driver, AC100-277V
  • Reduce energy consumption by up to 60%
  • No glass
  • Suitable for wet places
  • Surface mount installation
  • 5-year warranty

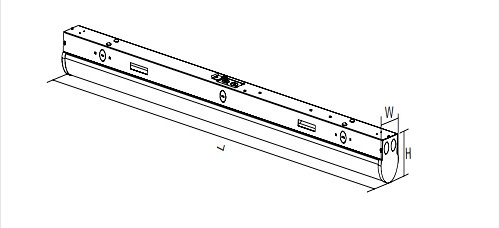

PRODUCT DIMENSION


the dimension of linear strip light

Model

L×W×H(inch)

MA-HLHB410D-40W

96” x 3.14” x 3.43”


PRODUCT  REPORT

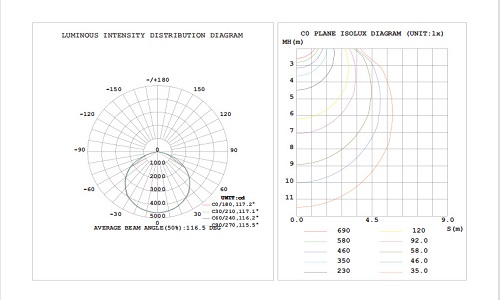

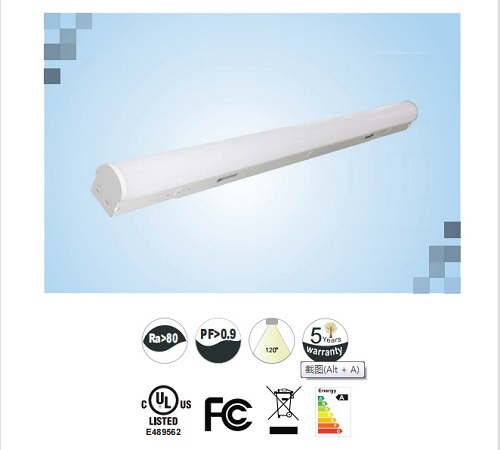

the product report of linear strip light

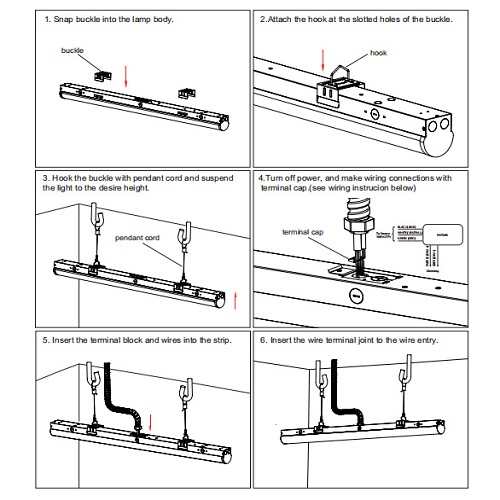

CHAIN INSTALLATION


CHAIN INSTALLATION OF STRIP LIGHT

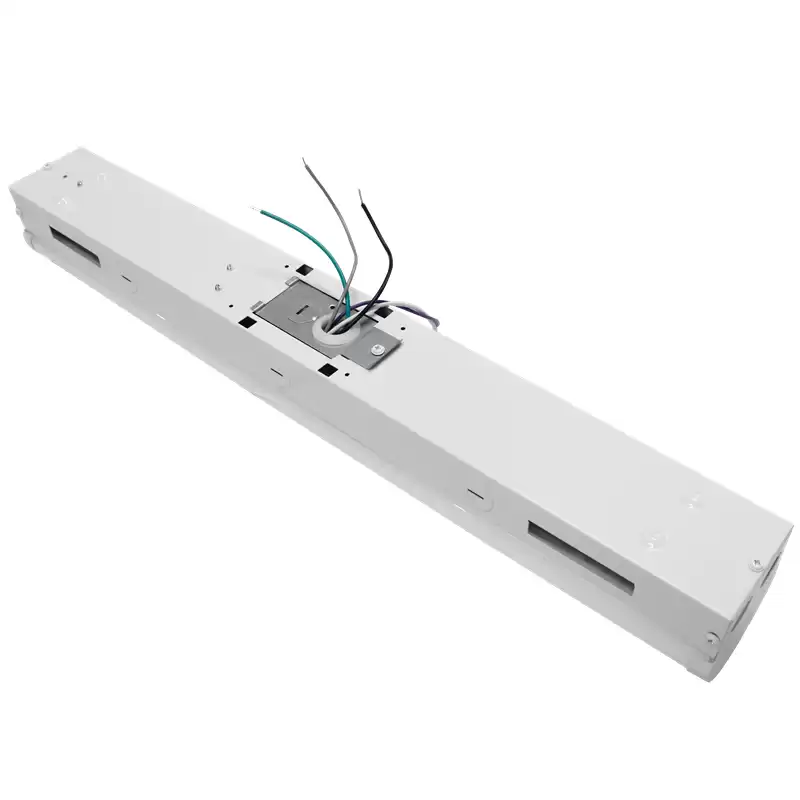

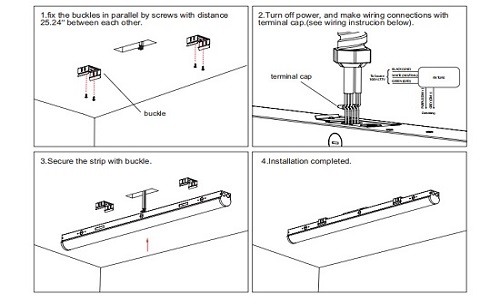

SURFACE MOUNT INSTALLATION


SURFACE MOUNT INSTALLATION OF STRIP LIGHT

PACKING/WEIGHT


Size

Inner box (L*W*H)



Outer box

(L*W*H)



Qty/Ctn (pcs)



N.W/pcs (lbs)



G.W/Ctn(lbs)



4ft



51.2’’*3.86’’*4.41’’

1300*98*112mm



52’’*12.8’’*10.4’’ 1320*325*265mm



6

4.81

40.8



APPLICATION

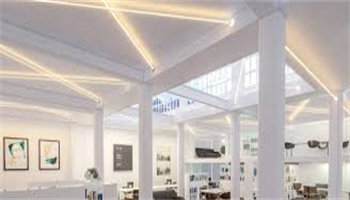

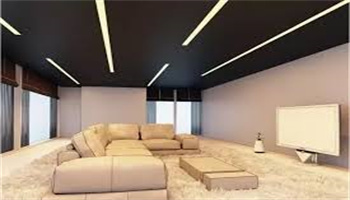

THE APPLICATION OF STRIP LIGHTTHE APPLICATION OF STRIP LIGHT


FAQ


1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in  California,Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
