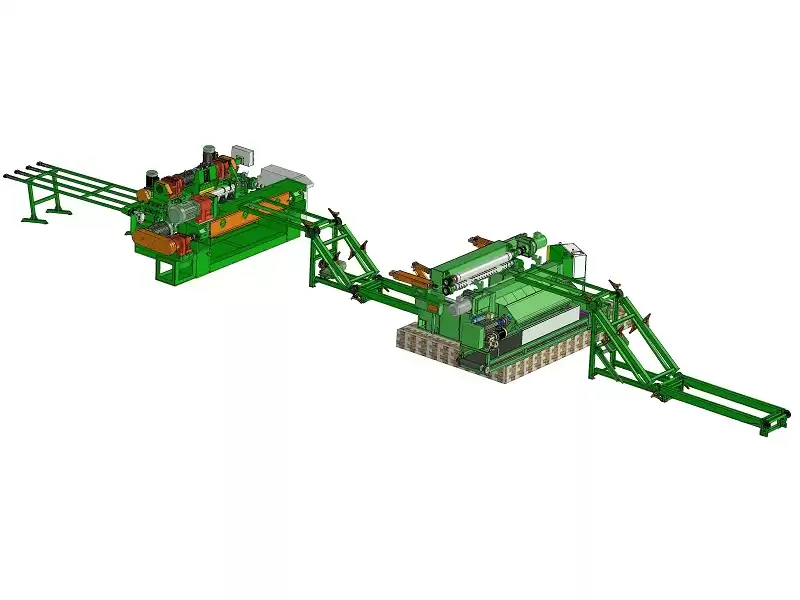

4ft Spindleless Veneer Peeling Line without Stack Machine

Log 600mm 4ft Spindleless Veneer Peeling Line is a normal line to Peel and stick wood veneer. It is used to peel small log then make wood veneer. The Spindleless veneer peeling lineis a part of 4x8 Plywood board machine.We could manufacture 4ft,6ft ,8ft CNC spindleless veneer peeling machine or customized ones.



Product Name: Log 600mm 4ft Spindleless Veneer Peeling Line without stacker machine

4ft Spindleless veneer making line for plywood manufacture includes:

1. Log lifting conveyor

2. Hydraulic barking machine

3. Round log lifting conveyor

4.4ft Spindleless peeling machine for veneer plywood manufacture

5.Veneer stack machine

Major technical parameter

Length of Veneer Log: 900-1400m

Diameter of Veneer Log: Φ45-Φ600m

Length of Peeling Knife: 1500mm

Thickness of Veneer: 0.8-4.5mm

Width of Veneer: 300-3000

Linear Speed of Veneer Peeling Line:  54/65/80m/min

1.Working steady:The moving blade base and fixed double roller and guide rail make the veneer working machine stable and good quality veneer.

2.Heavy bearing:use strong and heavy bearing to increase the service life of bearing and reduce maintenance cost

3.Key technology:


Packing details:

Wrapped with PE film and plywood wooden case for the spare parts


Features:

1) 4ft and 8ft Spindleless plywood veneer peeling and veneer cutting machine with conveyor.
2) Heavy duty iron steel structure veneer machine body.
3) High quality spare parts and electric components.

Wood Veneer Peeling and Veneer Cutting Machine for 4x8 plywood manufacture

Peeling log uniformly with CNC control.

Peeling range for log diameter: 600mm-45mm

Veneer Peeling machine with built-in clipper

Spindleless wood veneer peeling and veneer cutting machine

small blades for clipper.

High working efficiency.

Plywood Spindleless Veneer Peeling Machine and Price

High alloy material of veneer peeling blade

Professional installation position of veneer peeling blade

Ensure the best working performance of veneer machine
