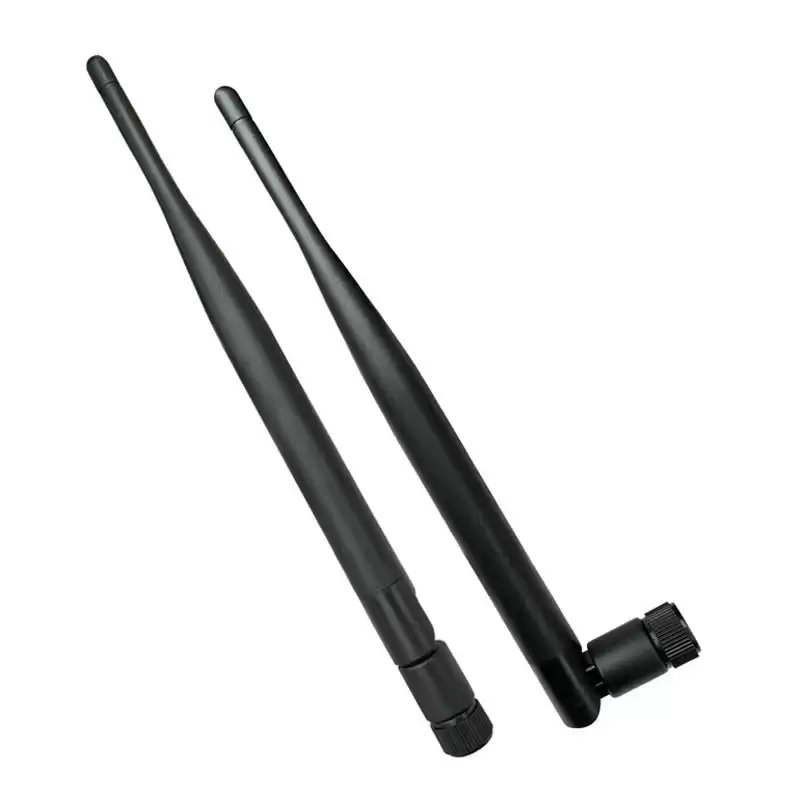

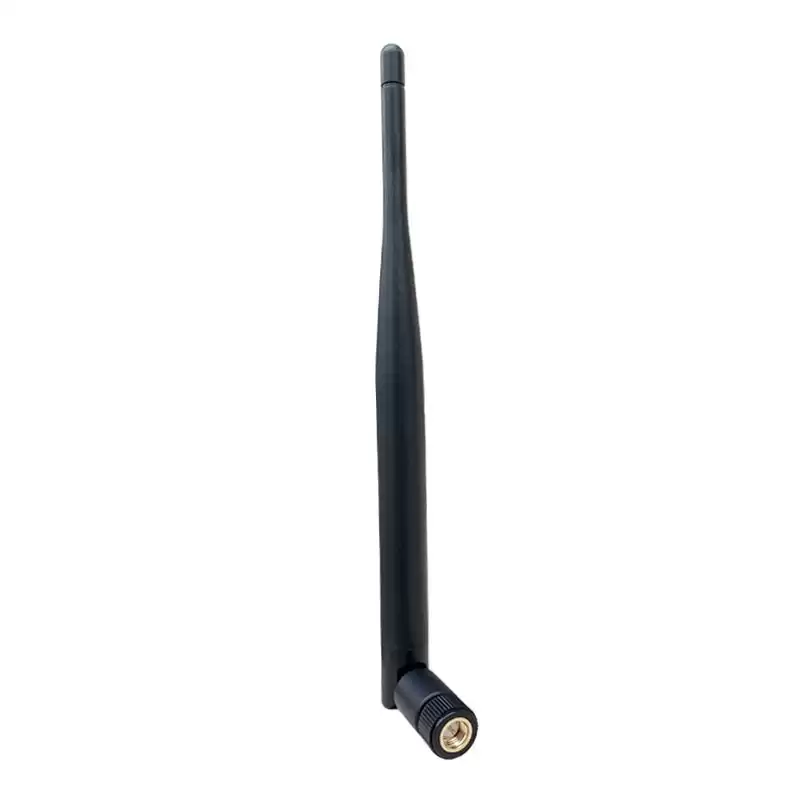

4G LTE 5G WiFi Antennalte Signal Booster Indoor Antenna 698-960MHz 1710-2700MHz Omni Direction Collapsible Rotatable with SMA Male Connector

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



4G LTE 5G WiFi Antennalte Signal Booster Indoor Antenna 698-960MHz 1710-2700MHz Omni Direction Collapsible Rotatable with SMA Male Connector

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(MHz)  698-960MHz/1710-2700 MHz
VSWR  ≤1.5
Gain(dBi)   3dBi
Input Impedance(Ω)  50
Cable Type /
Connector Type  SMA or RP SMA Male
Mounting  /
Housing Black/White
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram
