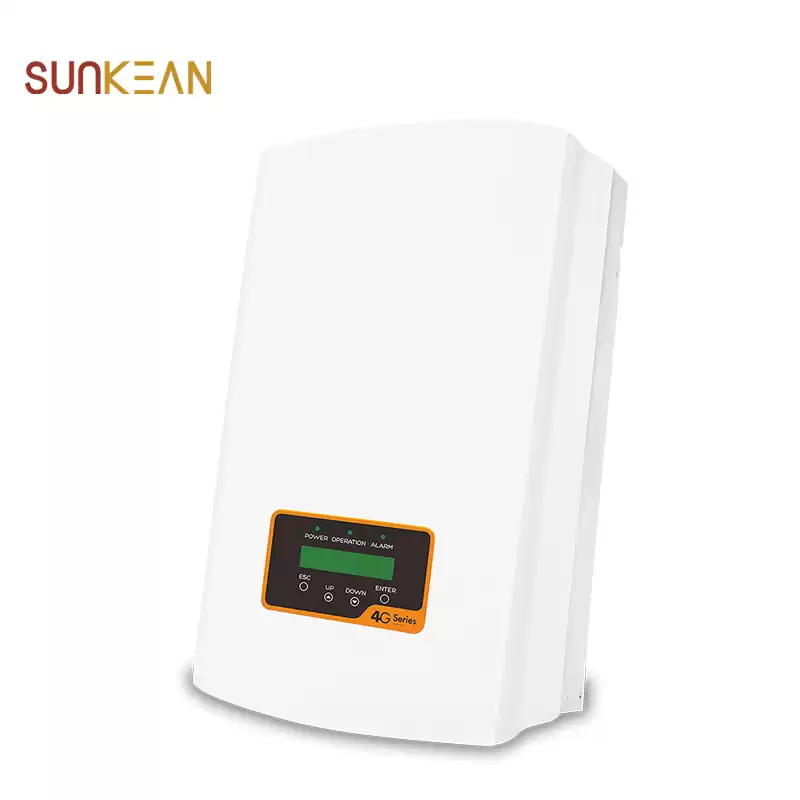

4G Single Phase 6kw PV Grid Tie Inverter
6kW Single phase series string inverter's efficiency of has improved dramatically. SKE-1P（6kW）-4G is suitable for the installation of single-phase input pv system of residential and adopt ultra-high switching frequency, ultra-thin single four-layer board design can greatly reduce the risk caused by the connector.
Product Information:
|
Datasheet
|
|
Model Name
|
SKE-1P2.5K-4G
|
SKE-1P3K-4G
|
SKE-1P4K-3.6G
|
SKE-1P4K-4G
|
SKE-1P4.6K-4G
|
SKE-1P5K-4G
|
SKE-1P6K-4G
|
|
Input DC
|
|
Recommended max. PV power
|
3kW
|
3.5kW
|
4.2kW
|
4.6kW
|
5.3kW
|
5.8kW
|
6.6kW
|
|
Max. input voltage
|
550V
|
600V
|
|
Rated voltage
|
250V
|
330V
|
|
Start-up voltage
|
60V
|
120V
|
|
MPPT voltage range
|
50-450V
|
90-520V
|
|
Max. Input current
|
11A/11A
|
|
Max. short circuit current
|
17.2A/17.2A
|
|
MPPT number/Max. input strings number
|
2/2
|
|
Output AC
|
|
Rated output power
|
2.5kW
|
3kW
|
3.6kW
|
4kW
|
4.6kW
|
5kW
|
6kW
|
|
Max. apparent output power
|
2.8kVA
|
3.3kVA
|
4kVA
|
4.4kVA
|
5kVA
|
5kVA
|
6kVA
|
|
Max. output power
|
2.8kW
|
3.3kW
|
4kW
|
4.4kW
|
5kW
|
5kW
|
6kW
|
|
Rated grid voltage
|
1/N/PE,220/230V
|
|
Rated grid frequency
|
50/60HZ
|
|
Rated grid output current
|
11.4A/10.9A
|
13.6A/13.0A
|
16A/15.7A
|
18.2A/17.4A
|
20.9A/20.0A
|
22.7A/21.7A
|
27.3A
|
|
Max. output current
|
13.3A
|
15.7A
|
16.0A
|
21.0A
|
23.8A
|
25.0A
|
27.3A
|
|
Power Factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|
THDi
|
<3%
|
|
Efficiency
|
|
Max. efficiency
|
97.8%
|
98.1%
|
|
EU efficiency
|
97.1%
|
97.3%
|
|
Protection
|
|
DC reverse-polarity protection
|
Yes
|
|
Short circuit protection
|
Yes
|
|
Output over current protection
|
Yes
|
|
Surge protection
|
Yes
|
|
Grid monitoring
|
Yes
|
|
Anti-islanding protection
|
Yes
|
|
Temperature protection
|
Yes
|
|
Integrated DC switch
|
Optional
|
|
General Data
|
|
Dimensions(W*H*D)
|
310*543*160 mm
|
|
Weight
|
11.5kg
|
|
Topology
|
Transformerless
|
|
Self consumption
|
<1W (night)
|
|
Operating ambient temperature range
|
-25~ +60°C
|
|
Relative humidity
|
0-100%
|
|
Ingress protection
|
IP65
|
|

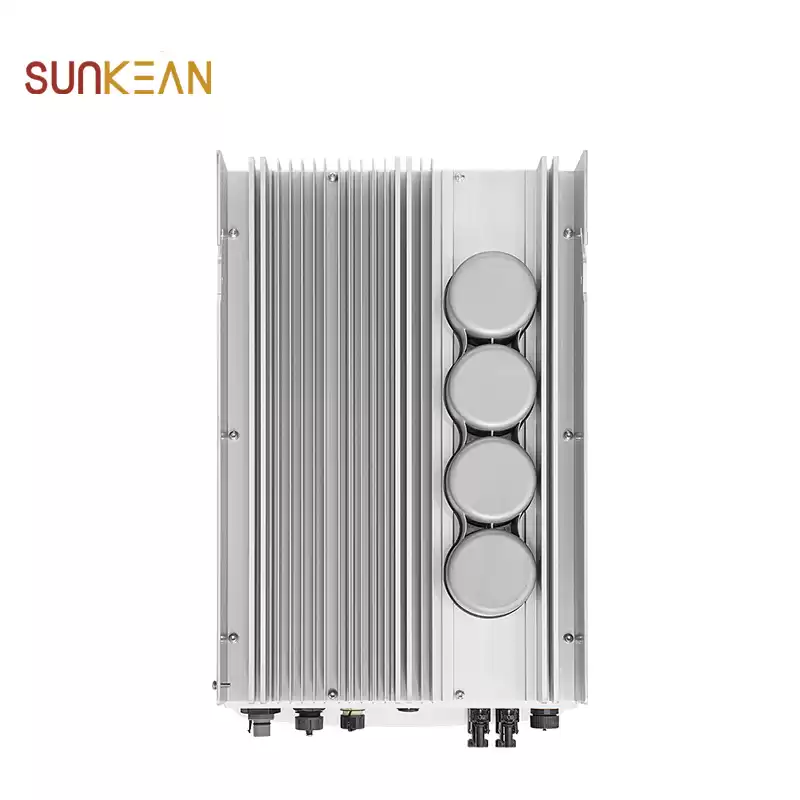

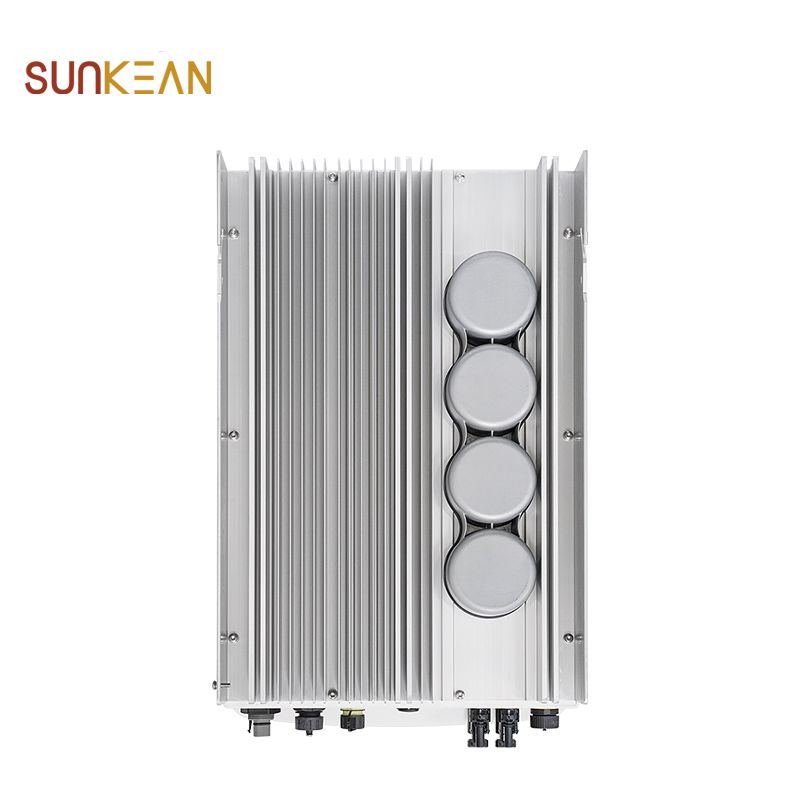

Cooling concept
|
Natural convection
|
|
Max. operation altitude
|
4000m
|
|
Grid connection standard
|
VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99,
EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727
|
|
Safety/EMC standard
|
IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-3
|
|
Features
|
|

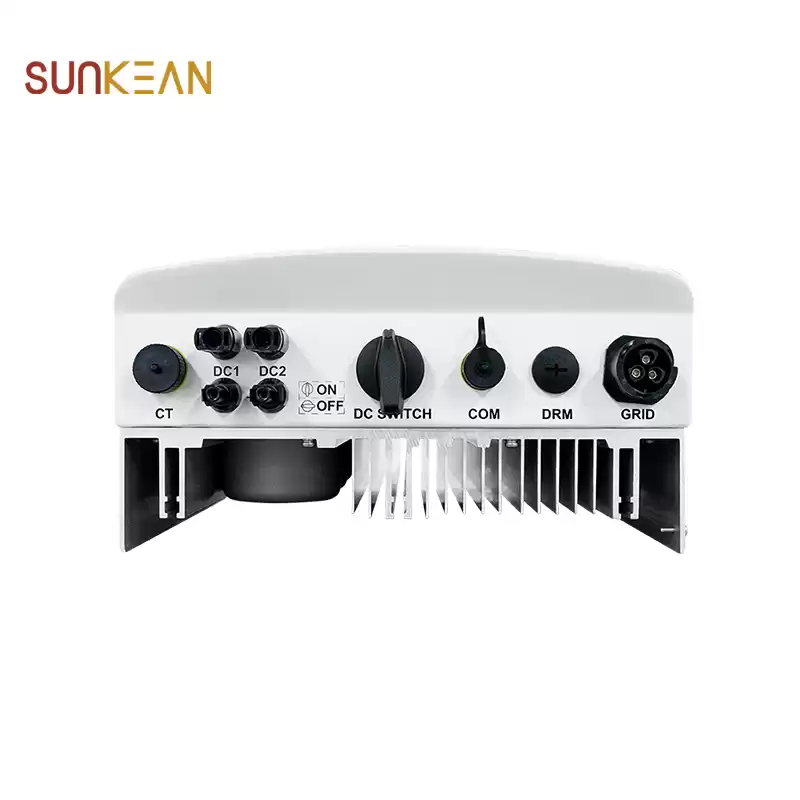

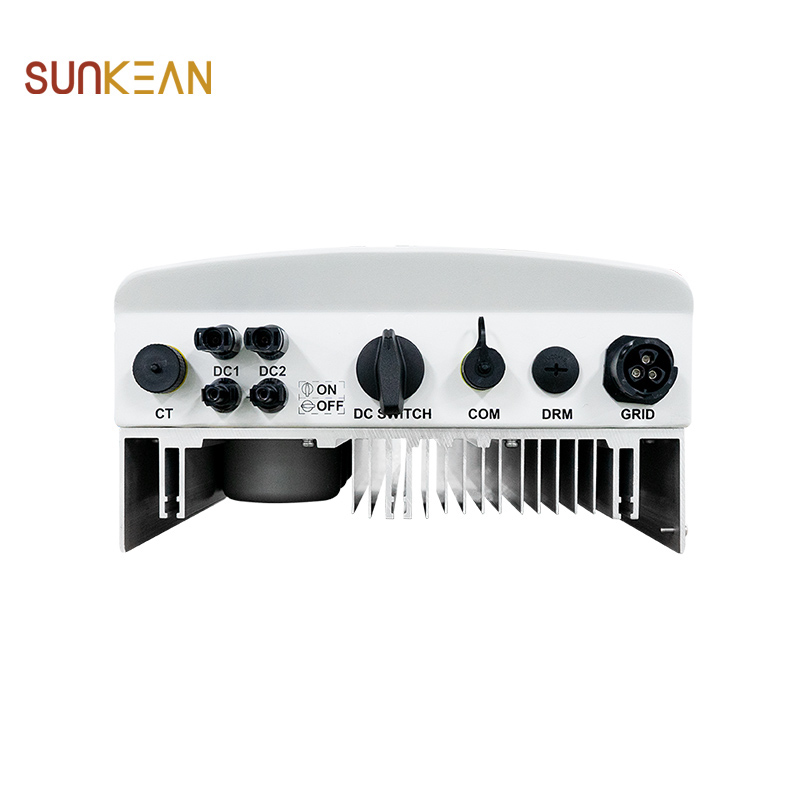

DC connection
|
MC4 connector
|
|
AC connection
|
Quick connection plug
|
|

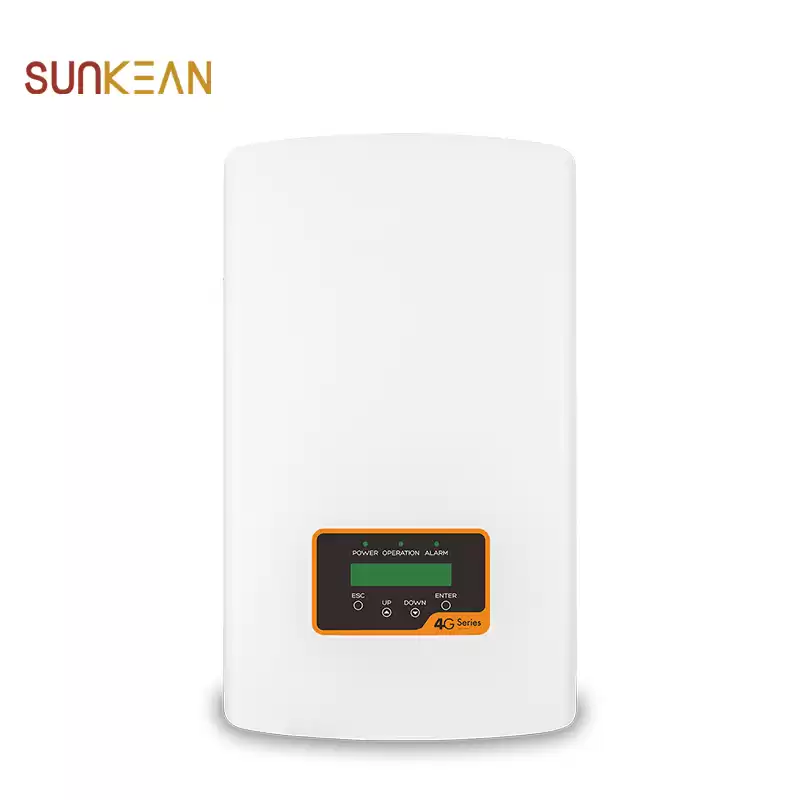

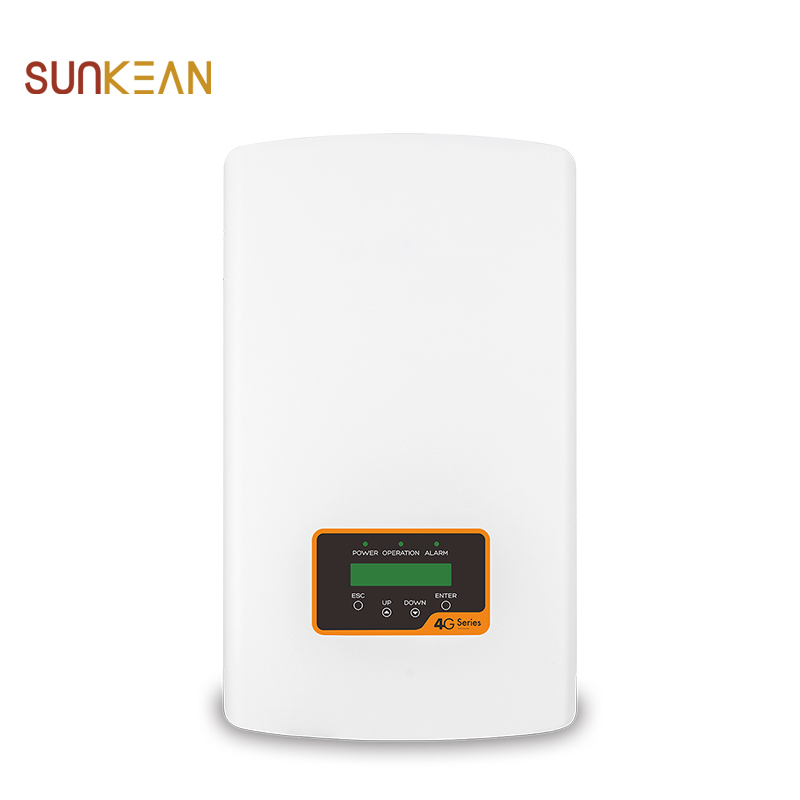

Display
|
LCD
|
|
Communication
|
RS485, Optional: Wi-Fi, GPRS
|
Product Features:
------Max. efficiency 98.1%;
------Super high frequency switching technology;
------Wide voltage range and low startup voltage;
------2 MPPT design with precise MPPT algorithm;
------Intergrated Export Power Manager (EPM);
------Compact and lightweight;
------Friendly and adaptable connection to the grid.
