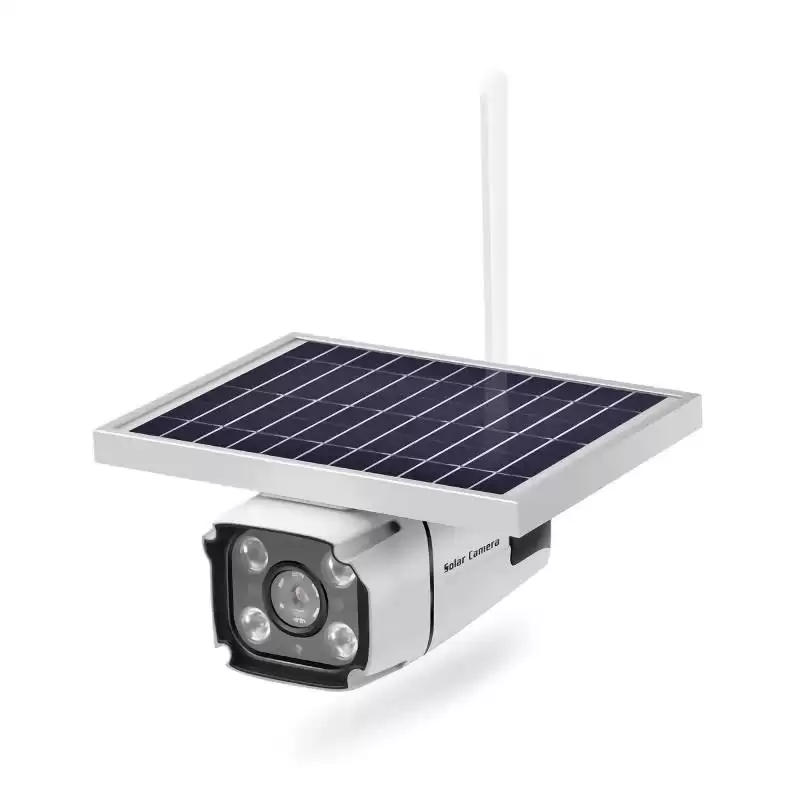

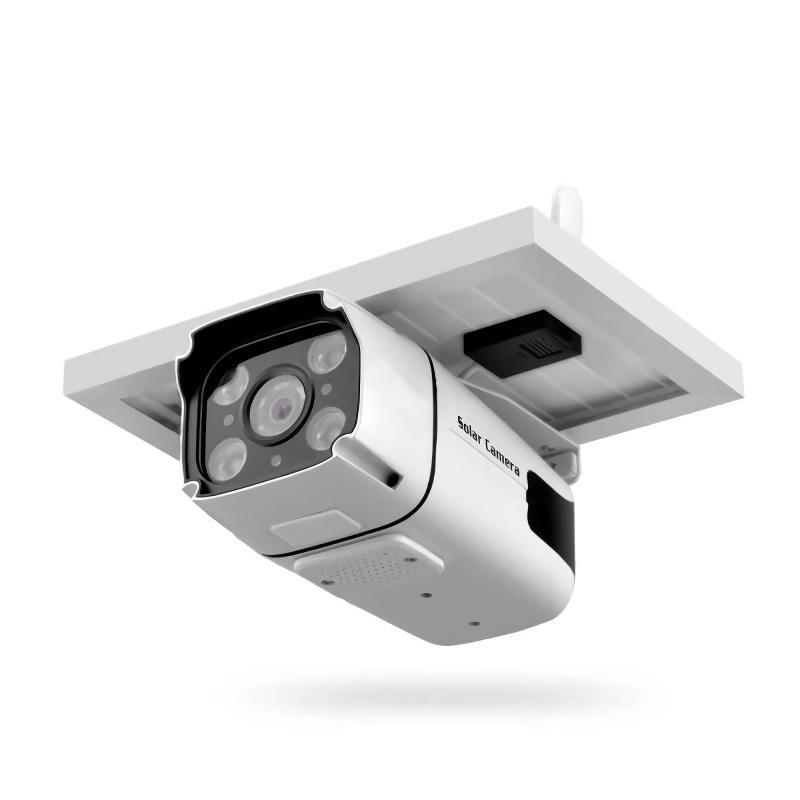

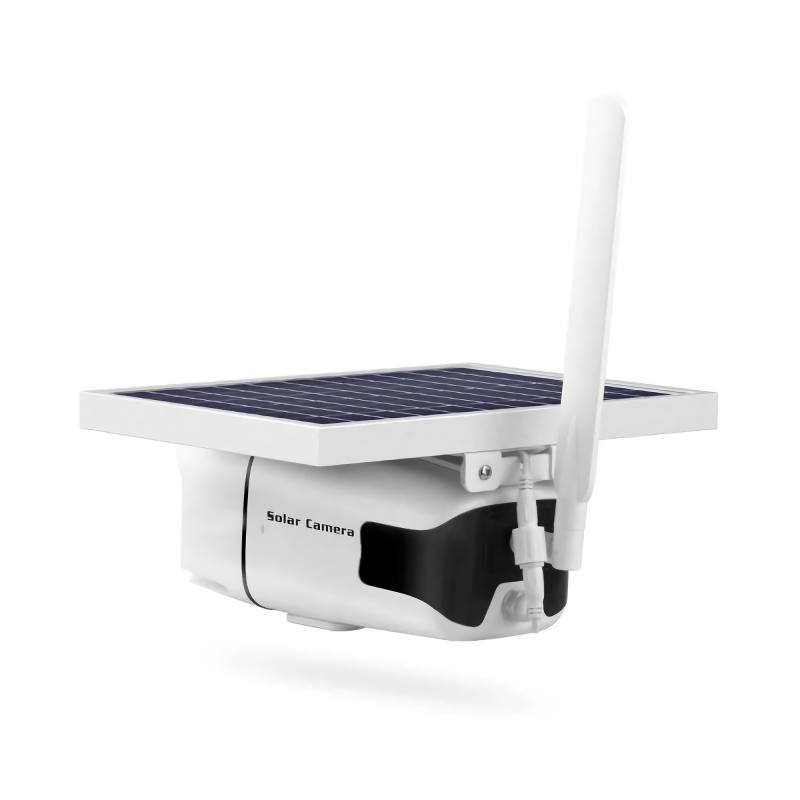

Product Name:4G Solar WIFI IP Camera 2 Way Intercom 5.5w Solar Panel Motion Detection
Feature
●4G remote viewing, support 4G SIM card, no WiFi monitoring.
● Powered by 10400 mAh polymer lithium battery, ultra-low power consumption, ultra-long standby time, intelligent energy-saving function, standby time more than 360 days.
● Motion detection, alarm snapshot, APP push, alarm record.
●IP67 waterproof. Suitable for indoor and outdoor, all weather environment applications.
●The removable 5.5W solar panel can continuously charge the battery and provide uninterrupted power for the camera.
●Night vision, 2 infrared LED, 15m distance; 2 white LED, 15m distance.
●TF card storage, built-in TF card slot, maximum support 64GB.
Specification
|
Model
|
ANSDEN YAB-QF460
|
|
Camera Parameter
|
|
Induction principle
|
HMD（Human Motion Detection-microwave）
|
|
Master chip
|
Hi3518EV200 ARM926@540MHz，32KB I-Cache，32KB D-Cache
|
|
Sensor type
|
PS5230 2.0MP 1/2.7" CMOS
|
|
4G module
|
Qualcomm MDM9x07
|
|
4G frequency
|
Support China, America, Europe, Southeast Asia, Middle East and Africa 4G (4G module specifications are different)
|
|
Network
|
TCP/IP，HTTP，TCP，UDP，SMTP，DHCP，DNS，P2P
|
|
SIM card
|
Nano SIM
|
|
Effective pixels
|
2.0MP
|
|
Image size
|
1920*1080
|
|
Video compressed format
|
4mm（2.8mm/6mm/8mm/12mm optional ）
|
|
Focal length
|
H.264
|
|
Photographic distances
|
0-15m
|
|
Shooting angle
|
70º
|
|
Response time
|
0.6s
|
|
Battery capacity
|
10400mAh
|
|
Solar panel power
|
5.5W（5.5V/1000mA）
|
|
Max Charge Current
|
1000mA
|
|
Night mode
|
White lights +infrared
|
|
White light power
|
1.5W LED 0.75W*2
|
|
Infrared power
|
1W LED 0.5W*2
|
|
Storage
|
Support TF Card 4GB-64GB
|
|
Storage capacity
|
The 32G card can be stored for about 60days (Storing about 6000videos.According to each shooting 30 seconds, start up 100 times a day calculation), if there's no space,the earliest video would be replaced by the latest one.
|
|
Induction range
|
0-10m
|
|
Detection angle
|
110º
|
|
Working temperature
|
-10℃ to 60℃
|
|
Working humidity
|
0%-90%RH
|
|
Power supply
|
Solar + Battery
|
|
Stand-by power consumption
|
~0.05W
|
|
Work power consumption
|
Daytime≤2W, Night version ≤2.75W
|
|
IP rating
|
IP67
|
|
Accessories
|
Camera*1、Bracket*1、Screw pack*1、Manual*1、USB cable
|
|
Optional accessory
|
External solar panel, Extension cable
|
|
Product size
|
235*240*115mm
|
|
Product weight
|
1.4kg
|
|
Packing size
|
274*259*134mm
|
|
Packing weight
|
1.9kg
|
|
Carton size
|
695*535*295mm
|
|
Gross weight
|
21kg
|
|
Case qty
|
10pcs /case
|

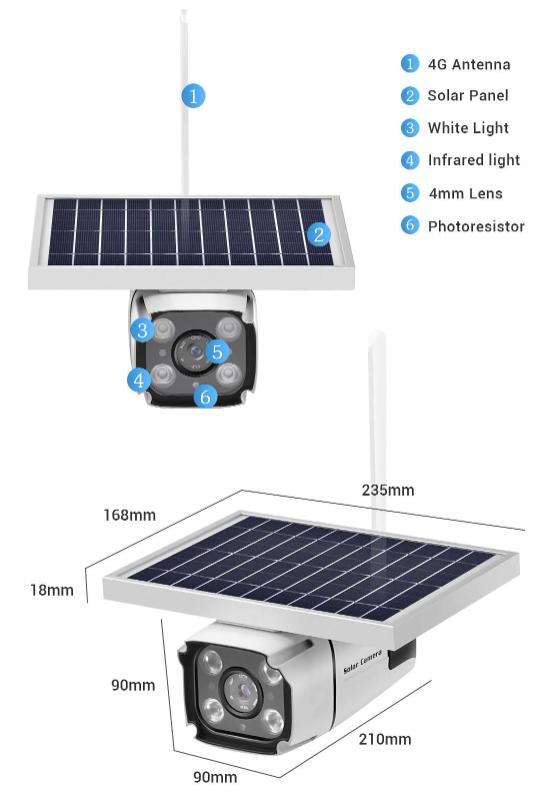

Dimension
This product is an outdoor surveillance camera without power connection,no wiring, simple installation and ready-to-use installation.
Application
Application scenarios: the door of the house, the door of the yard, the fish pond, the orchard, the breeding farm, the mine, the construction site and all the places without electricity and network.
