4HK1-TCG40 Isuzu brand road washer

Isuzu road washer street sweeping vehicle,4HK1-TCG40 Isuzu brand road washer,road sweeper truck sweeper-washer vehicle road washer truck

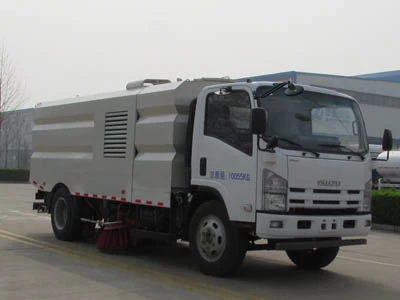

Isuzu road washer street sweeping vehicle

Isuzu road washer street sweeping vehicle

• The sweeper is equipped with a patented sweep disc and brush technology that is capable of cleaning road pavement, and curbs simultaneously.
• The two ultra-wide suction nozzles in the middle features internal long-stem spray bars with little ground clearance and high flow impact that can directly deliver sewage to the nozzle, reducing splashes and increasing suction efficiency.
• The V-shaped high pressure spray bars on the left and right are extended and retracted using hydraulic controls. The angle of the V-shaped design and the spray angle can be adjusted to increase efficiency.
• High pressure spray system is equipped at the tail end of the dustbin to prevent dust formation or lower road temperature during summer.

• The dustbin can be inclined for dumping operations and the sand and refuses inside the sewage will be automatically unloaded.







PT5070TXSE3

PT5070TXSE

Chassis



ISUZU (Euro Ⅲ)

ISUZU (Euro Ⅲ)

Aux. Engine Power

kW/
r/min

≥67/3600

≥67/3600

Max Travel Speed(Full)

km/h

100

100

Max Cleaning Width

m

3.1

3.1

Max Sweeping Width

m

3.1

3.1

Operating Speed

km/h

3-20

3-20

Dustbin Capacity

m3

2.8

2.8

Water Container Volume

m3

4.5

4.5

Suction Nozzle Width

mm

1600

730

Max Total Mass

kg

7300

7300
