4K Outdoor Ultra HD Large Advertising LED Screen Display

Digital advertising uses different standard-sized outdoor LED displays to bring bright colors and vivid images to the audience, and accurately conveys the advertiser's massive information to the target audience, thus helping to improve sales performance.

Features of Billboard applications:

1. High brightness, clearly visible in direct sunlight

2. Auto adjustment of brightness with the ambient light

3. Wide viewing angle, wide color gamut, rich color

4. High protection level for all weathers

5. Environment-friendly and energy efficient for 7/24/365 work

6. Low battery consumption and long service life

Facebook Twitter Pinterest LinkedIn 分享

Advantages:

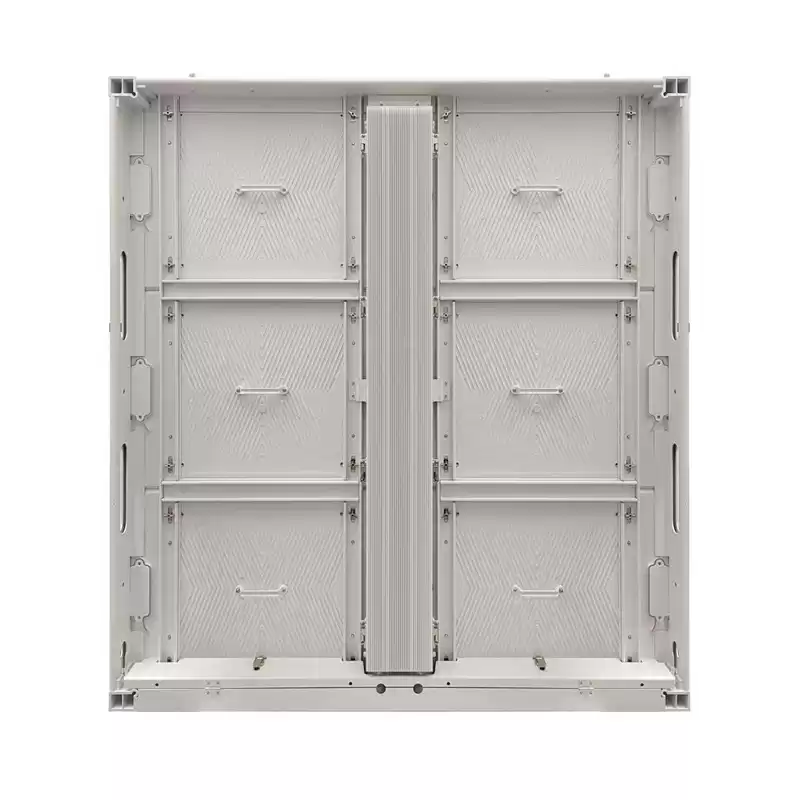

1 Aluminum module chassis and panel frame accelerates heat dissipation;



2 Heat sink design for module chassis and power supply unit improves heat dissipation considerably;



3 White color frame can reflect the sunlight to reduce the heat generated in the panel;



4 Two heat dissipation hole at each flank of PSU can maintain the air pressure balance in the PSU,reducing water liquefied from steaminside when ambient temperature drops.



5 Command Center Evaluation System is abbreviate for Common Cathode Energy Saving technology





Benefits below:



1. Accurate electricity distribution for RGB LED chips  to save energy and lower the power consumption by more than 30%.

2.  Less heat generated from electrical components prolongs the lifespan of the panel

3.  With a lower temperature inside the panel, electrical components can work more stably to provide better video quality



led advertising board



led display

10000nits Long-Lasting High Brightness



Up to 10000nits high brightness brings clear images under strong sunlight; Ultra-low attenuation ensures sharp & vibrant images even after year-by-year running, generating great implicit commercial value for your investment.







led display screen

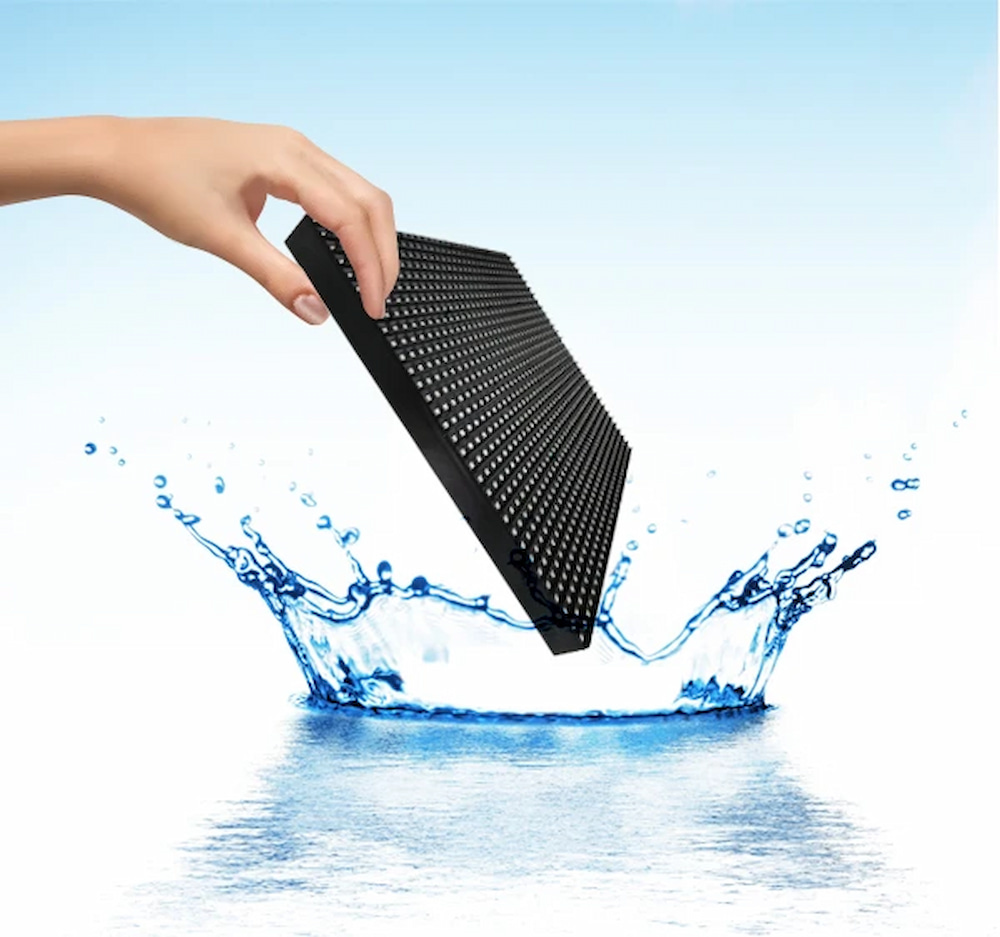

All-Weather Stability



IP66 high waterproof protection from the front and back and a 5VB-flame-retardant aluminum cabinet with good heat dissipation results in more secure and steady performance all the time.



led display screen

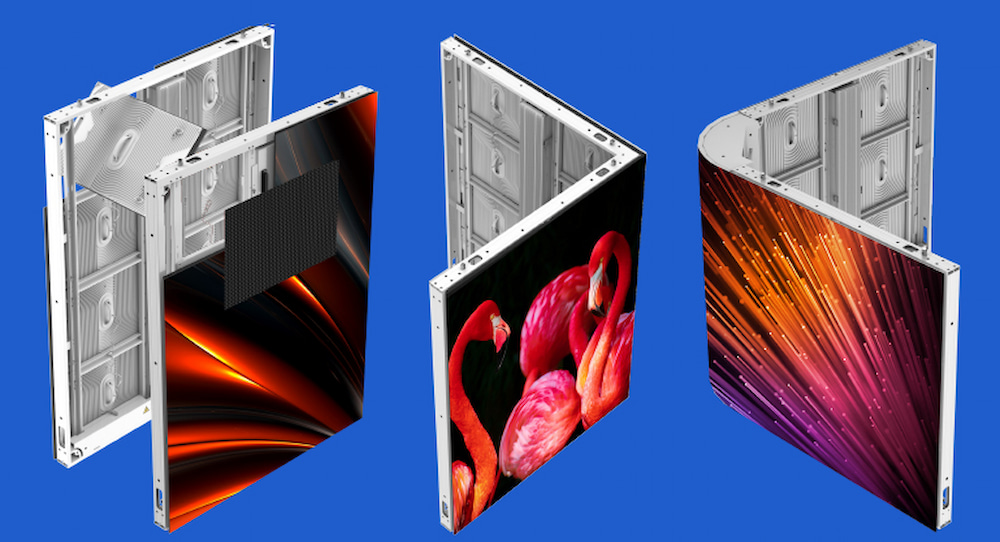

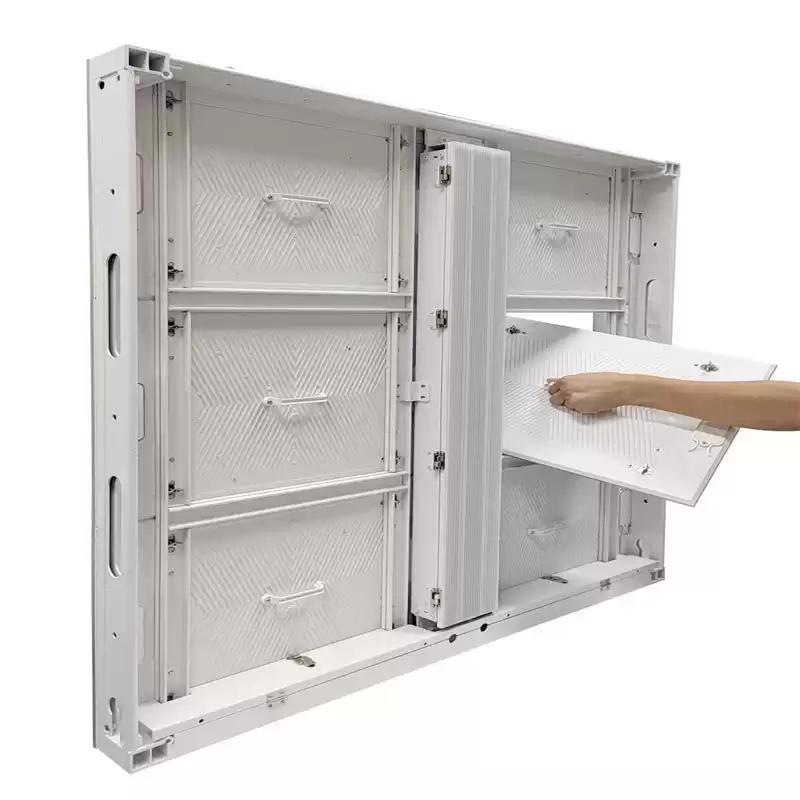

Install & Maintain with Higher Flexibility



It supports both front & rear installation and maintenance with universal modules and allows unique L-shaped and curved splicing in creative display

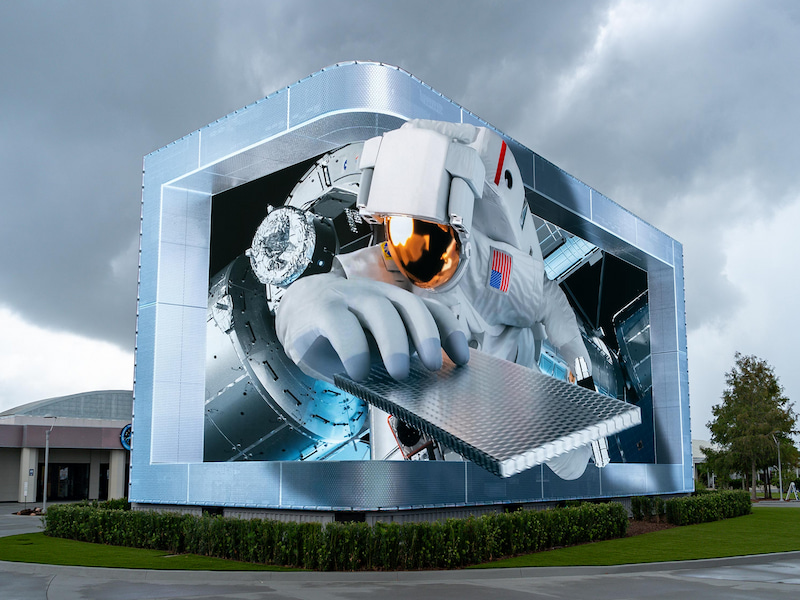

like naked-eye 3D solutions for more flexible application.





Specifications:

Pixel Pitch 5.7mm 6.67mm 8mm 10mm
LED Arrangement SMD2727 SMD2727 SMD3535 SMD3535
Module Resolution 84x56pixels 72x48pixels 60x40pixels 48x32pixels
Panel Resolution 168x168pixels(960x960) 144x144pixels 120x120pixels 96x96pixels
Module Dimension 480x320mm
Panel Dimension 960x960mm,960x640mm,1440x960mm,1440x640mm
Panel Weight 28kg/m
Brightness Level 5000-6500nits/7500- 1,2000nits
Max Power Consumption 650W/m
Ave Power Consumption 150W/m
Visual View Angle 140°/140°
Operating Power Source 90-264V/ AC 50-60Hz
Operating Temperature -30~ +70°C
Refresh Rate 3840Hz(Configurable)
Protecting Rating IP68/IP67
Signal Input Source S-VIDIO,VGA,DVI,HDMI,SDI



FAQ:



Q1. Can I have a sample order?

A: A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: Sample needs 5-7 days, mass production time needs 12-25 days.



Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ,1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by express (DHL, UPS, FedEx ). lt usually takes 3-5 days to arrive.

Airline and sea shipping also optional.



Q5. How to proceed an order for led display?

A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the order and places deposit for formal order.

Fourthly We arrange the finished display cabinet.



Q6. Do you offer guarantee for the products?

A: Yes, we offer 2 -5 years warranty to our products



lf you have more questions, pls write mail to us or call us, we will reply you ASAP
