4mm2 Flame Retardant PV DC Solar Power Cable

The 4mm2 DC cable is specialized in PV stations with the maximum ambient temperature of 90 ℃ while operating. According to 2PfG 1169/08. 2007, the cable is suitable for the maximum allowable DC voltage of 1.8 KV (in non-grounded system, core-to-core).





   Application Scope


According to 2PfG 1169/08. 2007, the 4mm2 DC cable is suitable for single-core flexible cables (wires) with a maximum allowable DC voltage of 1.8 KV (core-to-core, non-grounded system) and used on the DC side in photovoltaic systems. This product is suitable for use under Class II safety level. The ambient temperature of cable operation is as high as 90 ℃, and multiple cables can be used in parallel.


   Type

FX-PV1-4


   Operating Characteristics


Voltage level:

AC:U0/U 0.6/1KV,DC:1.8KV

Maximum allowable operating voltage(AC):0.7/1.2KV

Maximum allowable operating voltage(DC):0.9/1.8KV


Test voltage:

AC:6.5KV,DC15KV

Time:5 minutes


Temperature range:

Ambient temperature:-40˚C ~ +120˚C (moving or fixed)


The maximum temperature in case of short circuit (within 5 seconds) is no more than 200˚C.


The bending radius of the cable shall not be less than 4 times the outer diameter of the cable.

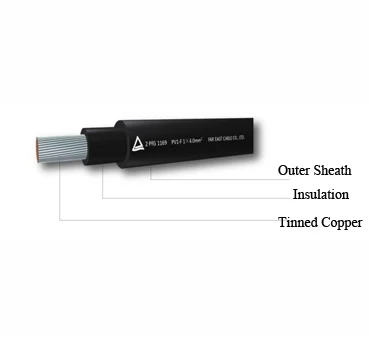

The insulation and sheaths are made from cross-linked polyolefin material.


The cable' thermal service life, as is assessed, shall meet the requirement of being no less than 25 years.


The cable is halogen-free and flame retardant, and its performance conforms to 2PfG 1169/08. 2007.


The cable not only has excellent weather resistance, ultraviolet and ozone resistance, but also can withstand a wider range of temperature changes (e.g. -40˚C ~ 120˚C).


The cable has excellent penetration resistance and its performance conforms to 2PfG 1169/08. 2007.


   Current Carrying Capacity


Ambient temperature60      Operating temperature120

Conductor section

mm²

Laying method

Single core in air

A

Single-core cable laying on equipment surface

A

Laying next to equipment surface

A

4

55

52

44



The deviation of ambient temperature is conversion factor of the carrying capacity

Ambient temperature

Conversion factor

Up to 60

1.00

70

0.91

80

0.82

90

0.71

100

0.58

110

0.41




   Structural Dimensions and Main Technical Parameters


Nominal cross-sectional area of conductor

mm²

Conductor Structure

n×mm

DC resistance of conductor

Ω/km

Reference outer diameter of conductor

mm

Reference outer diameter of cable

mm

Reference weight of cable

kg/km

4.0

56/0.290

5.09

2.55

6.5

70.6


Note: The outer diameter of the cable is the reference value which can be negotiated if customers require.
