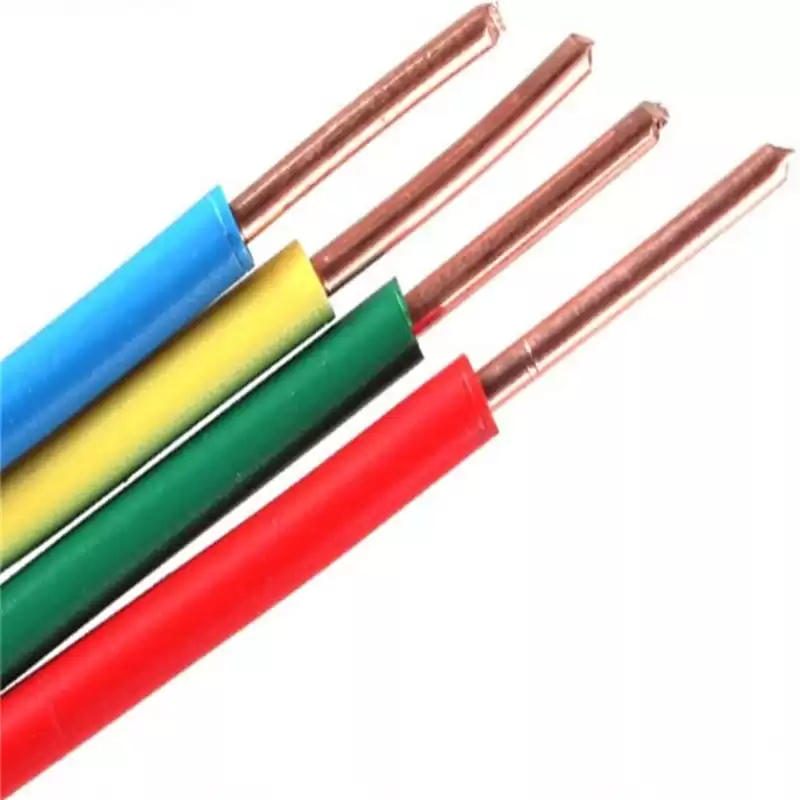

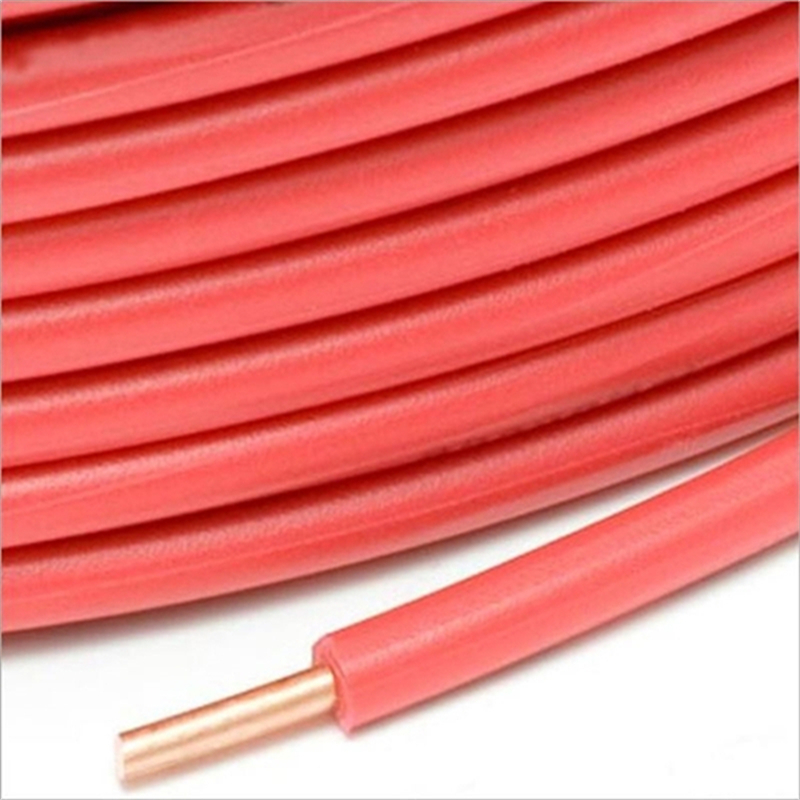

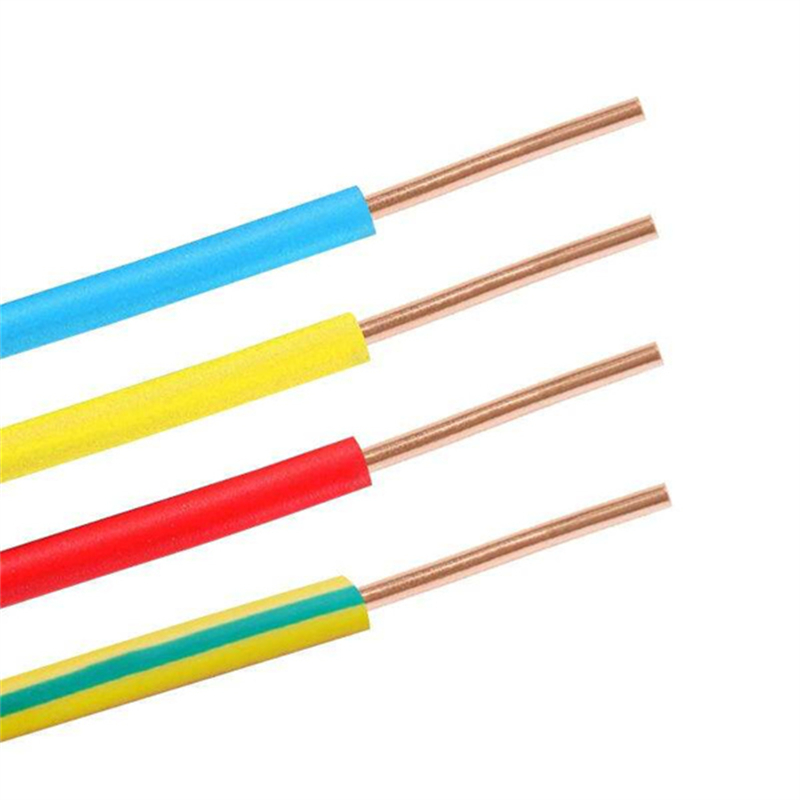

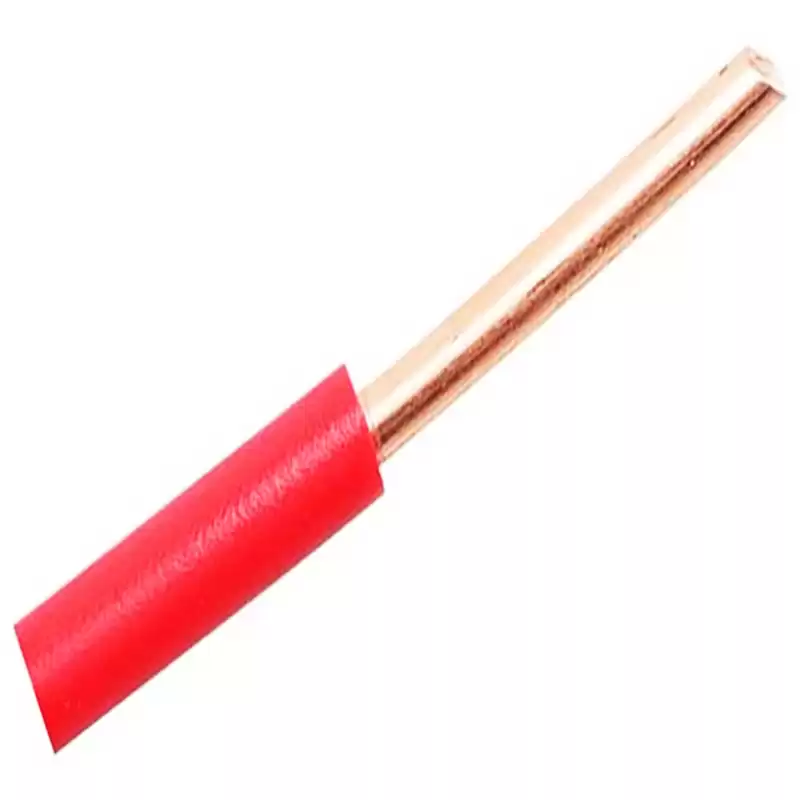

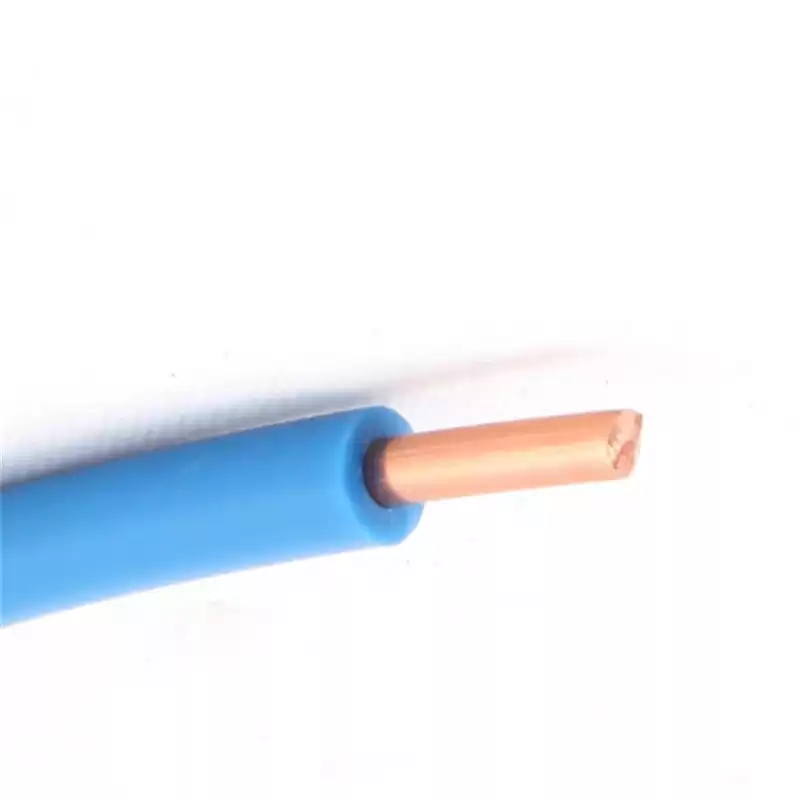

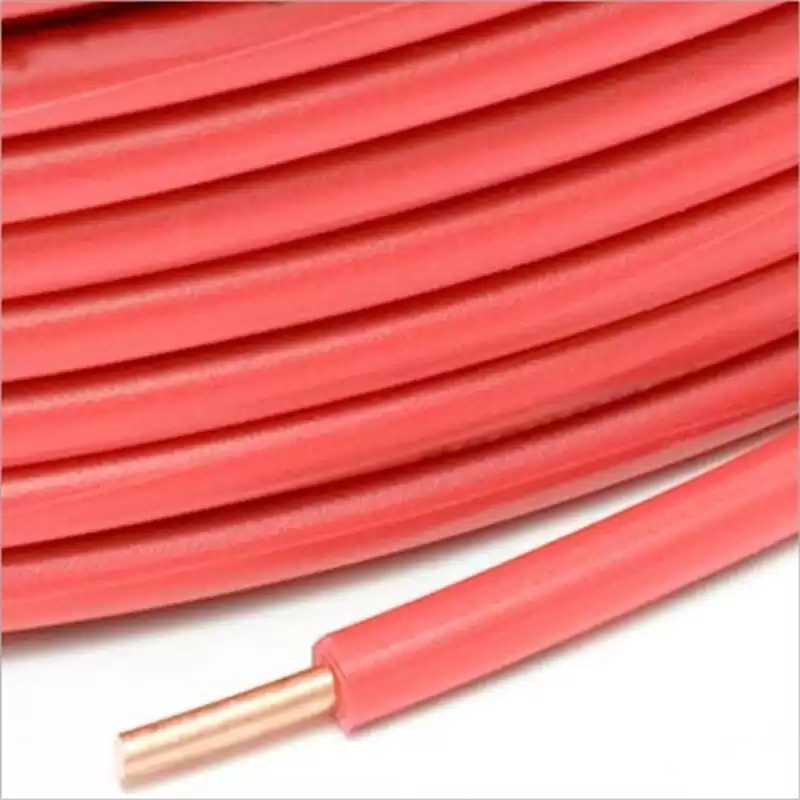

4mm2 H07V-U Solid Copper Wire PVC Insulated Electrical Wire

4mm2 H07V-U Solid Copper Wire PVC Insulated Electrical Wire, 6491X Cable H07V-U is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.



4mm2 H07V-U Solid Copper Wire PVC Insulated Electrical Wire



PRODUCTS NAME

4mm2 H07V-U Solid Copper Wire PVC Insulated Electrical Wire.

PRODUCTS KEYWORDS

H07V-U, 6491X, NYA, BV, solid copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables, China factory.

PRODUCTS APPLICATION

4mm2 H07V-U Solid Copper Wire PVC Insulated Electrical Wire, are suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

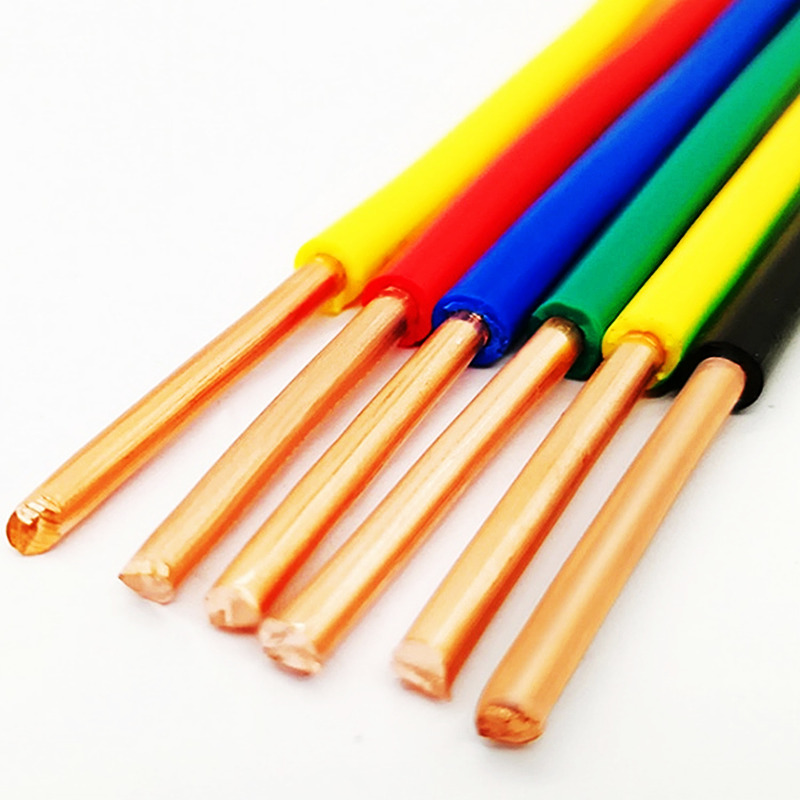

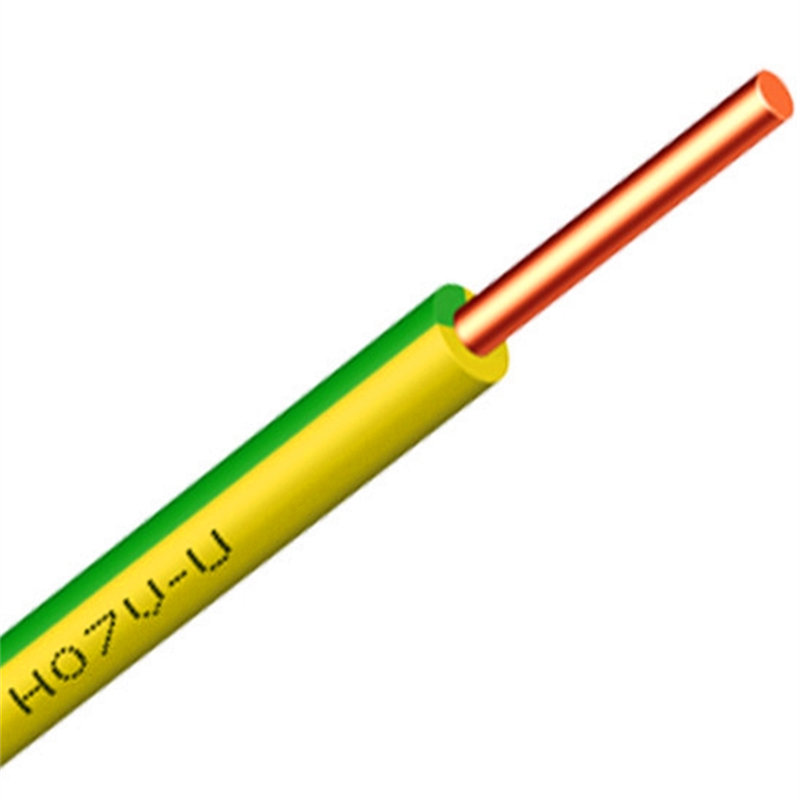

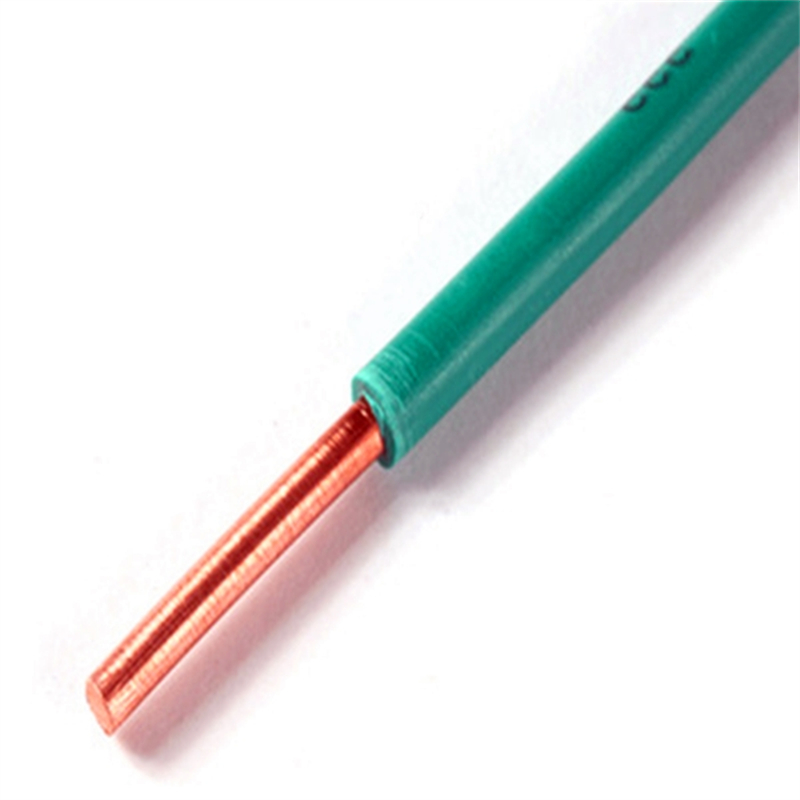

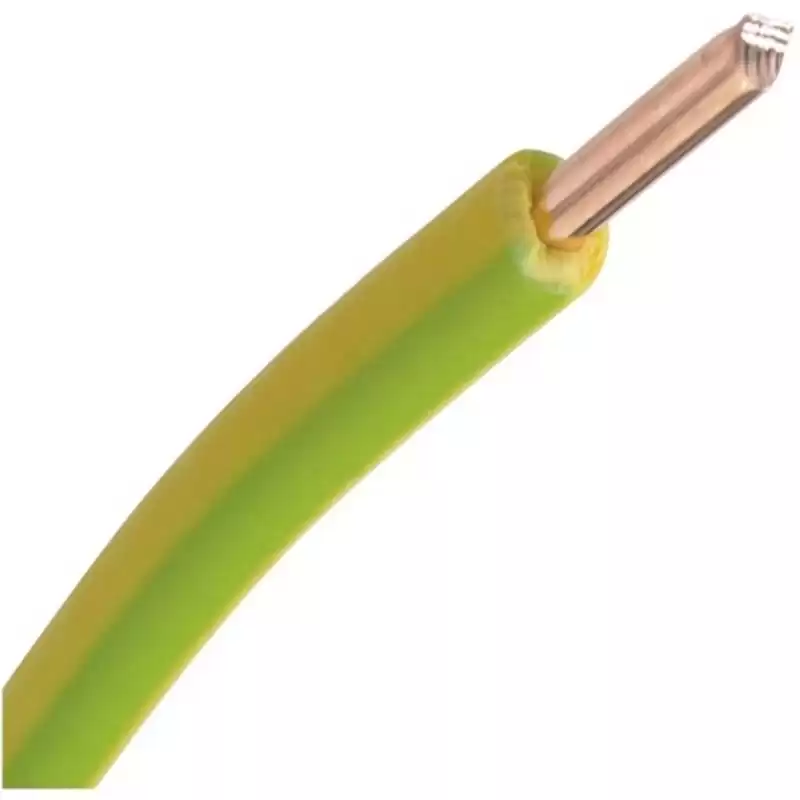

H07V-U solid copper wire and cable

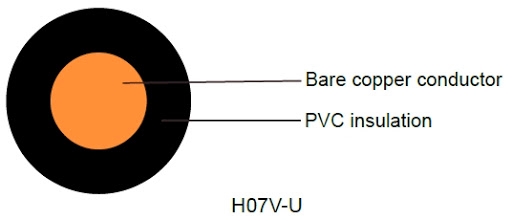

PRODUCTS STRUCTURE

4mm2 H07V-U Solid Copper Wire PVC Insulated Electrical Wire, the structure as below:

---Conductor Material

Plain annealed copper wire, solid Class 1.

---Insulation Material

PVC (polyvinyl chloride).

---Sheath Material

Non-Sheath.

a

PRODUCTS DESCRIPTION

 Description of Cable   Products Main Technical Sheet
 Products Name

 4mm2 H07V-U Solid Copper Wire PVC Insulated Electrical Wire.

 Conductor Material  Plain annealed copper wires, solid Class 1.
 Conductor Structure  1/2.25 mm.
 Insulation Material  PVC (Polyvinyl Chloride).
 Insulation Thickness  0.8 mm.

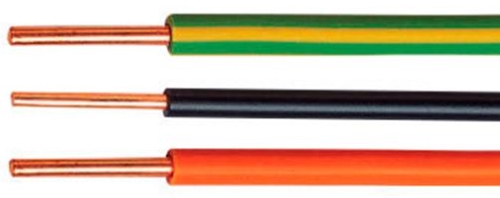

 Insulation Colour  Red, yellow, blue, green, black, grey, white, yellow/green, or others.
Sheath Material  Non-sheath.
 Conductor Cross-section  1 x 4 mm2.
 Core Number  Single core, 1 core, 1C.
 Out Diameter  3.8 mm.
 Voltage Rate  450/750V (U0/U).
 About Net Weight  45 kg/km.

 Max. Conductor DC

 Resistance at 20℃ in Air

 4.61 Ω/km.

 Min. Insulated

 Resistance at 70

 0.0085 MΩ.km.

 Max. Ampacity

 at 40 ℃ in air

 38A.
 Production Standard  JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525-2-31.
