Applications:

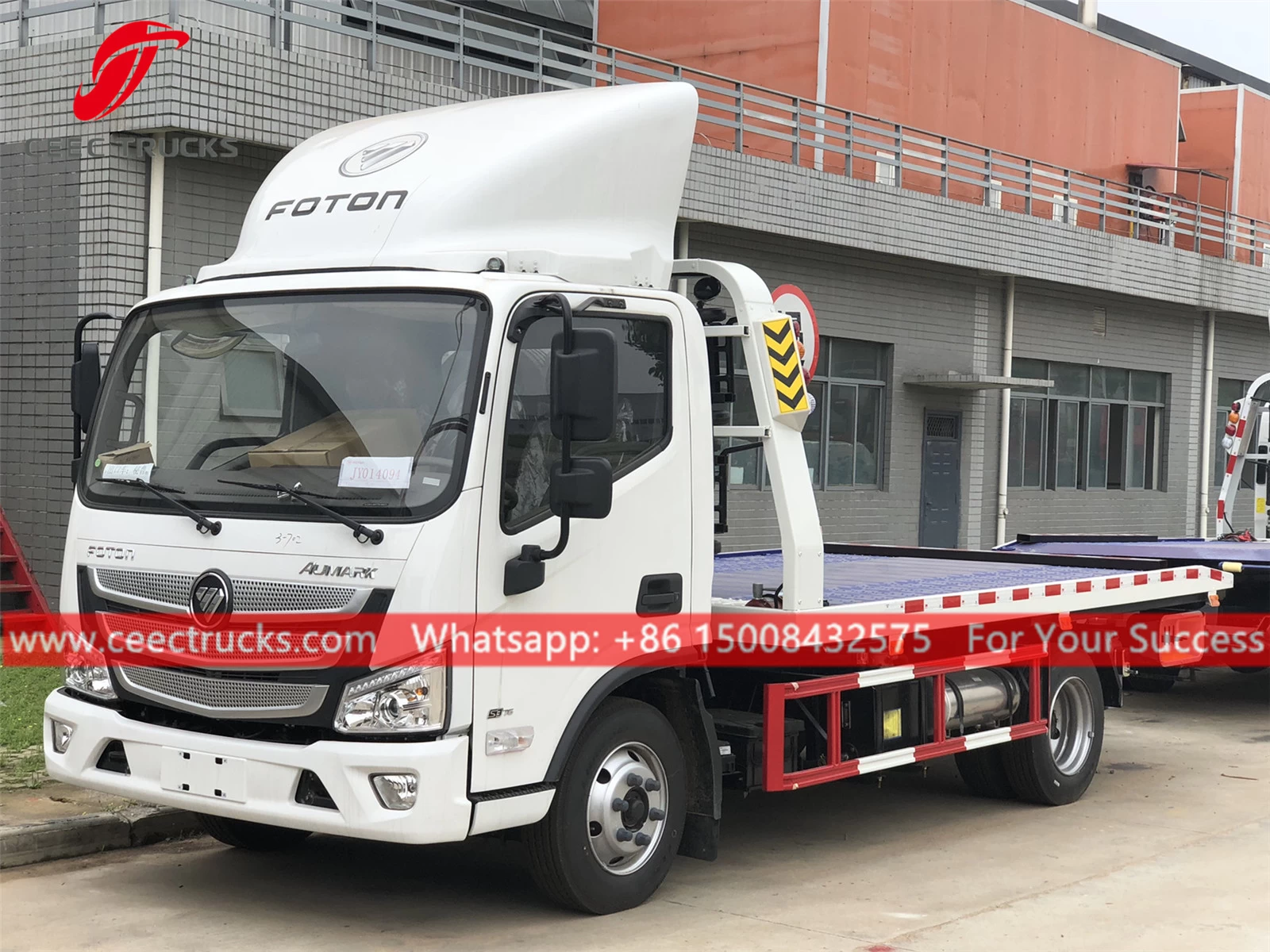

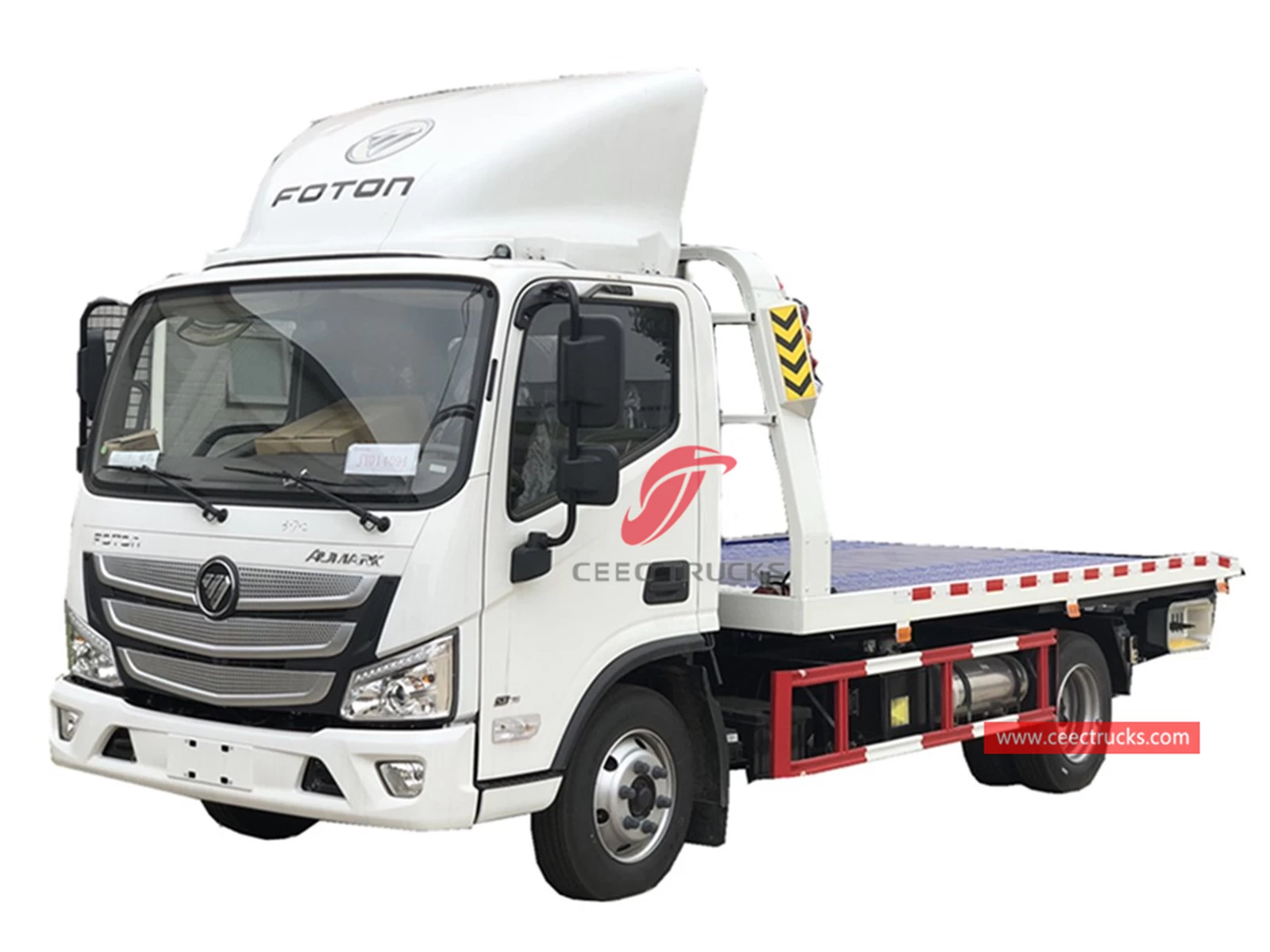

4Tons Road wrecker FOTON (also called Wrecker tow truck, Recovery tow vehicle, Road towing truck, Rotator wrecker trucks, Sliding platform recovery truck) is
a high efficiency vehicle mainly used in high ways, airports, seaports,
automobile repair plants and traffic police stations. It can quickly
move away vehicles.
CEEC Trucks can supply recovery trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton,
6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons.Towing capacity is
optional.
Key Features:
---- FOTON chassis, perfect performance
---- CUMMINS engine & gearbox, super powerful, no overhaul within 100,000 km.
---- Telescopic boom crane or Knuckle boom crane can be optional.
----
Safety Devices are available, such as relief valves, balance valves,
double-way hydraulic locks, motor emergency system etc.
Specifications:
|

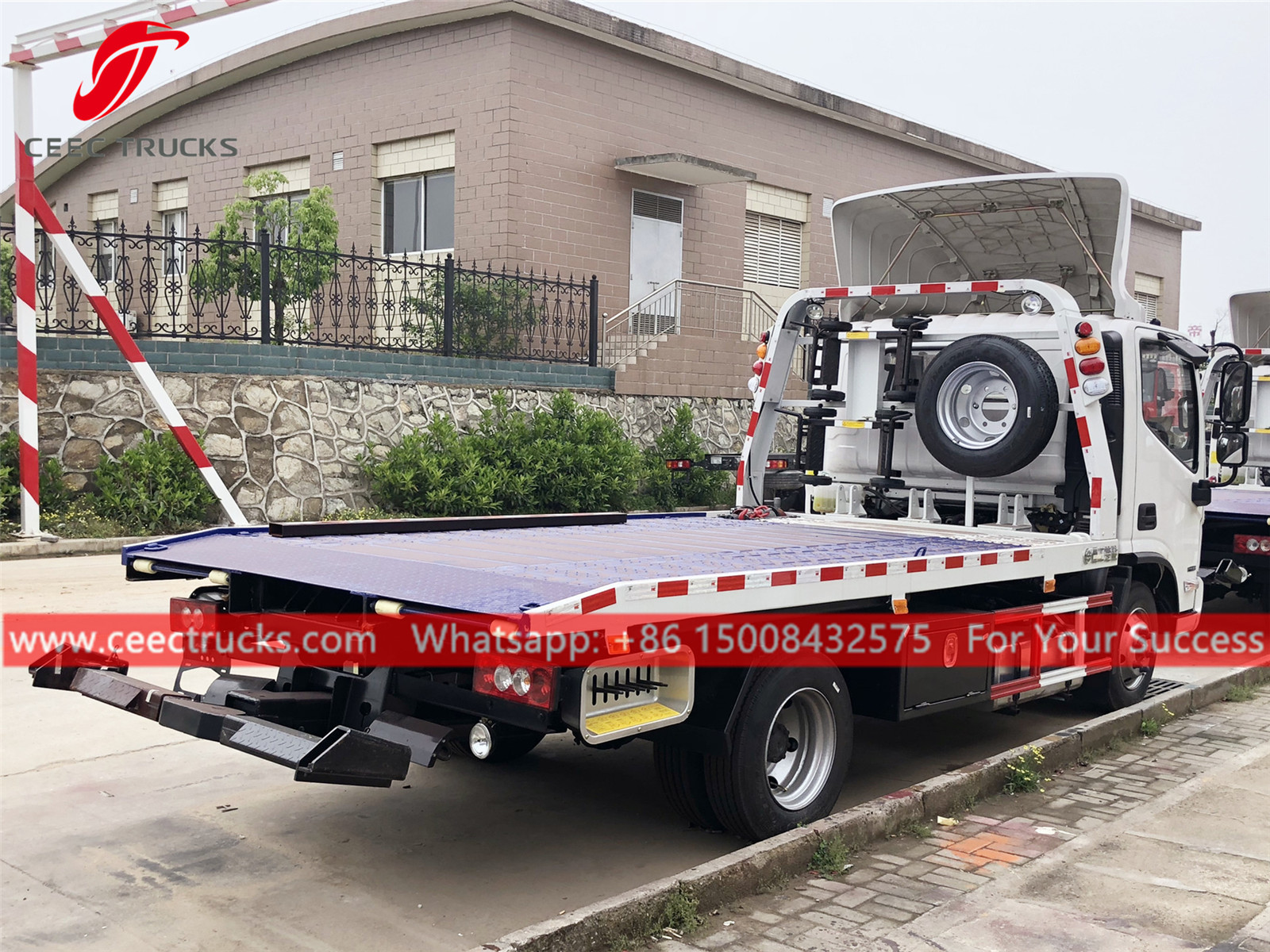

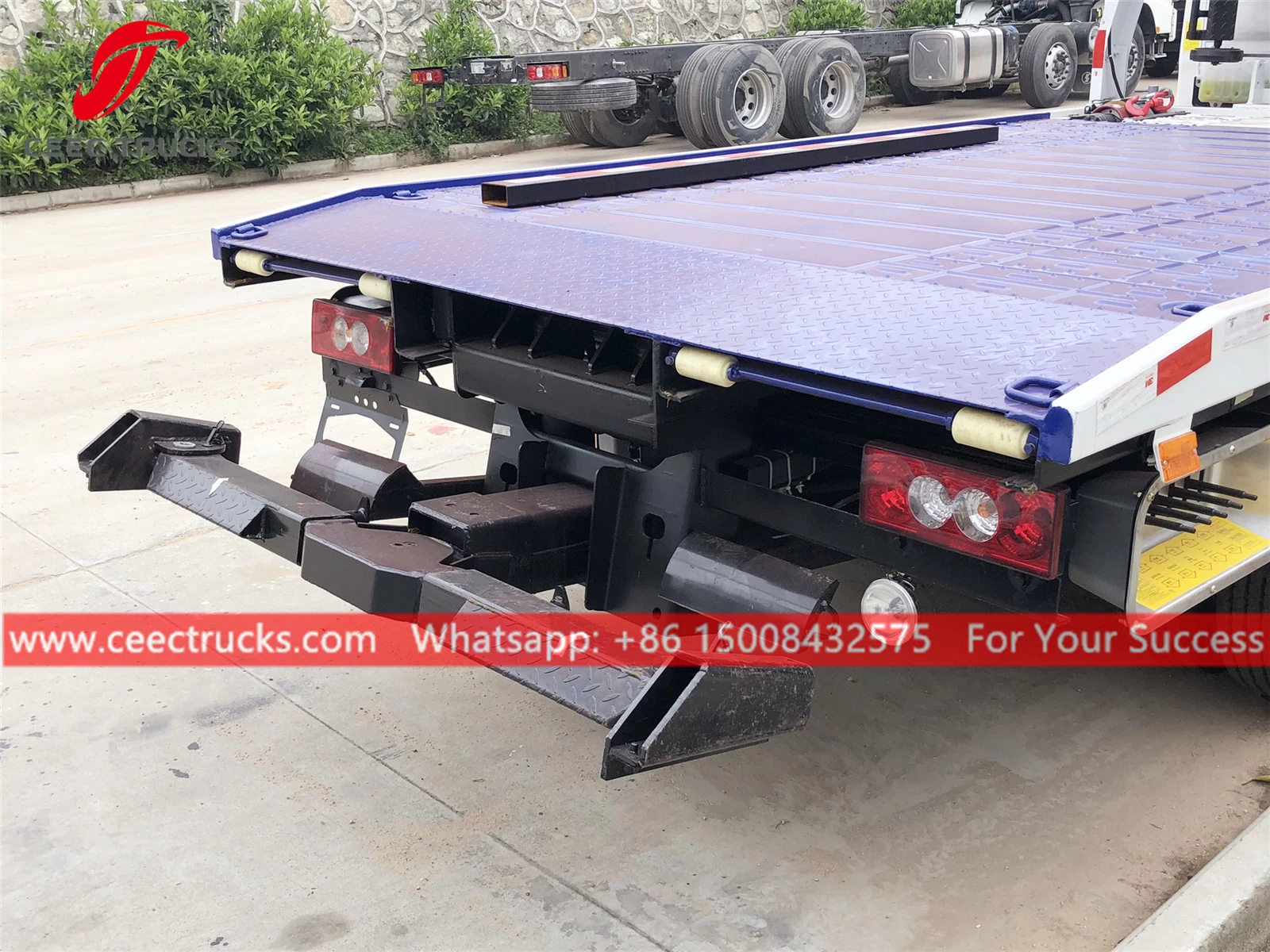

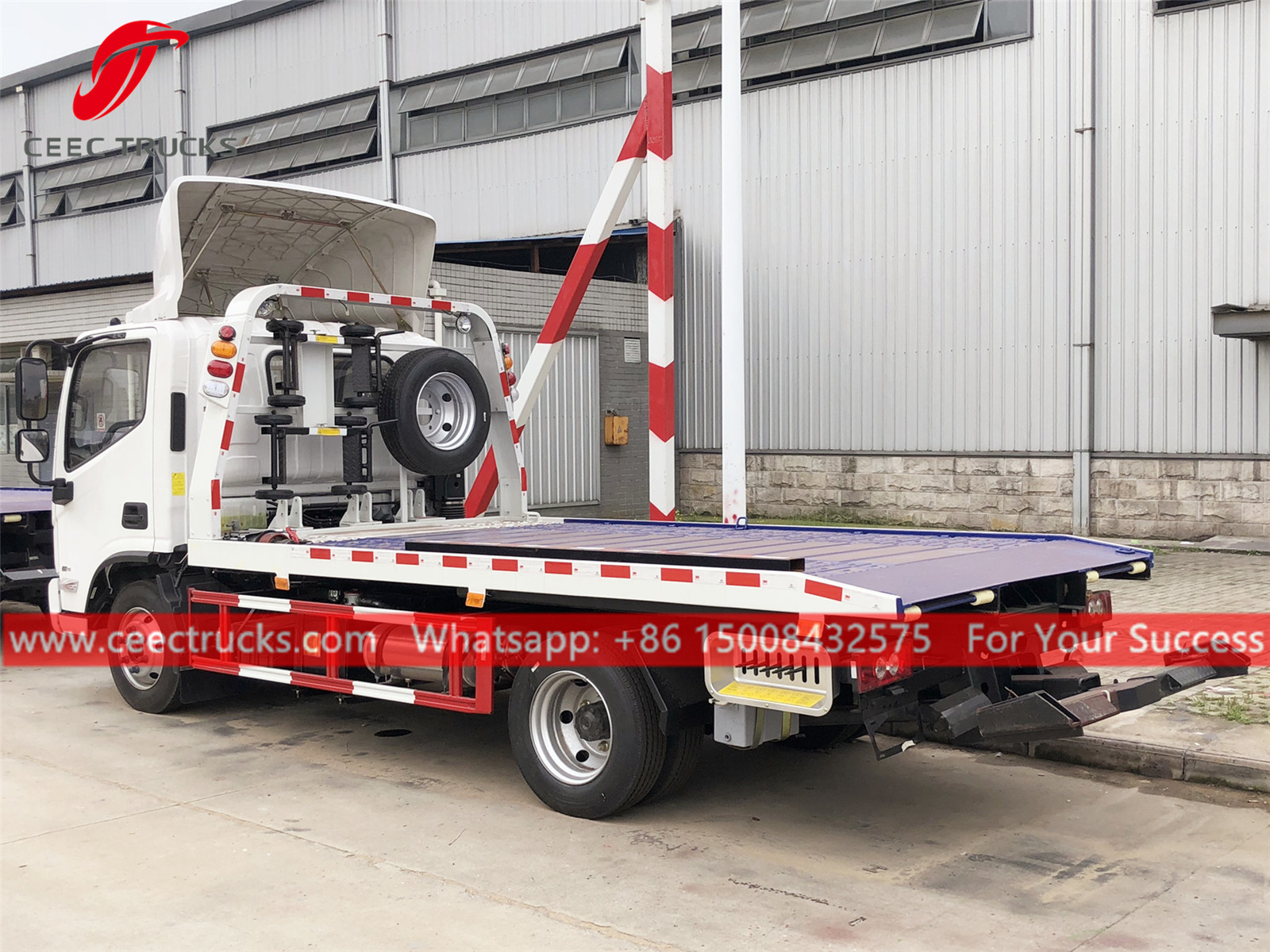

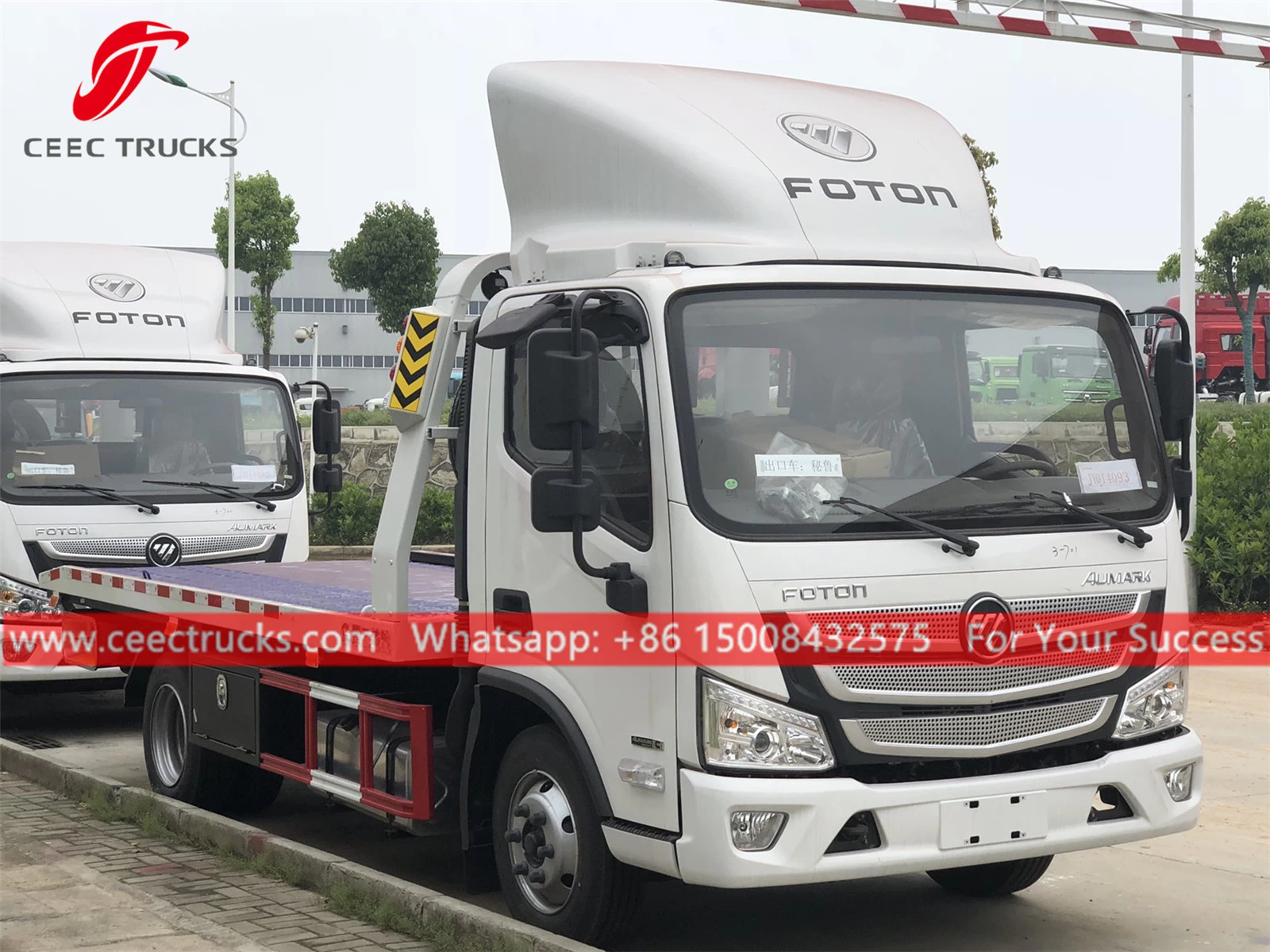

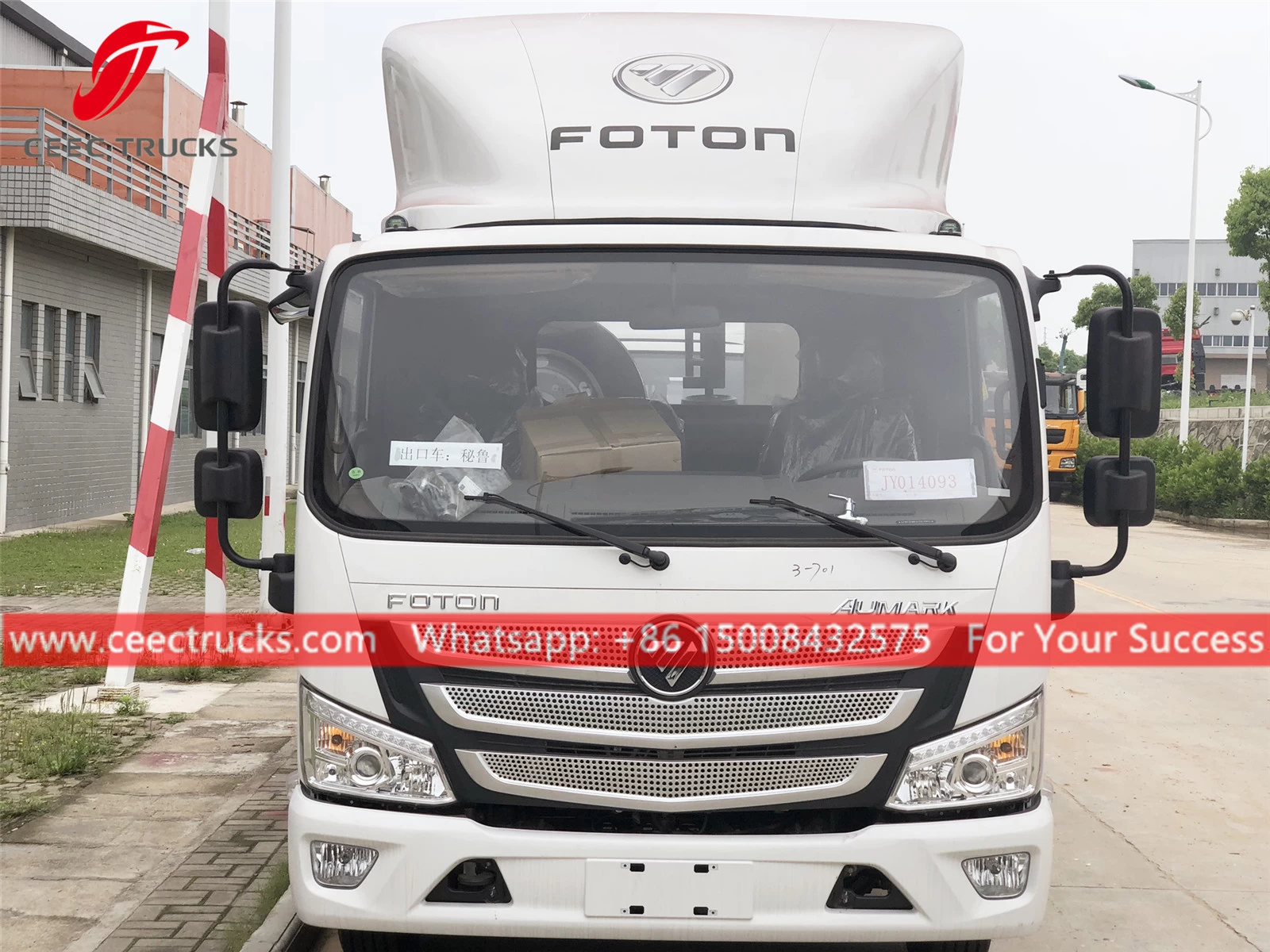

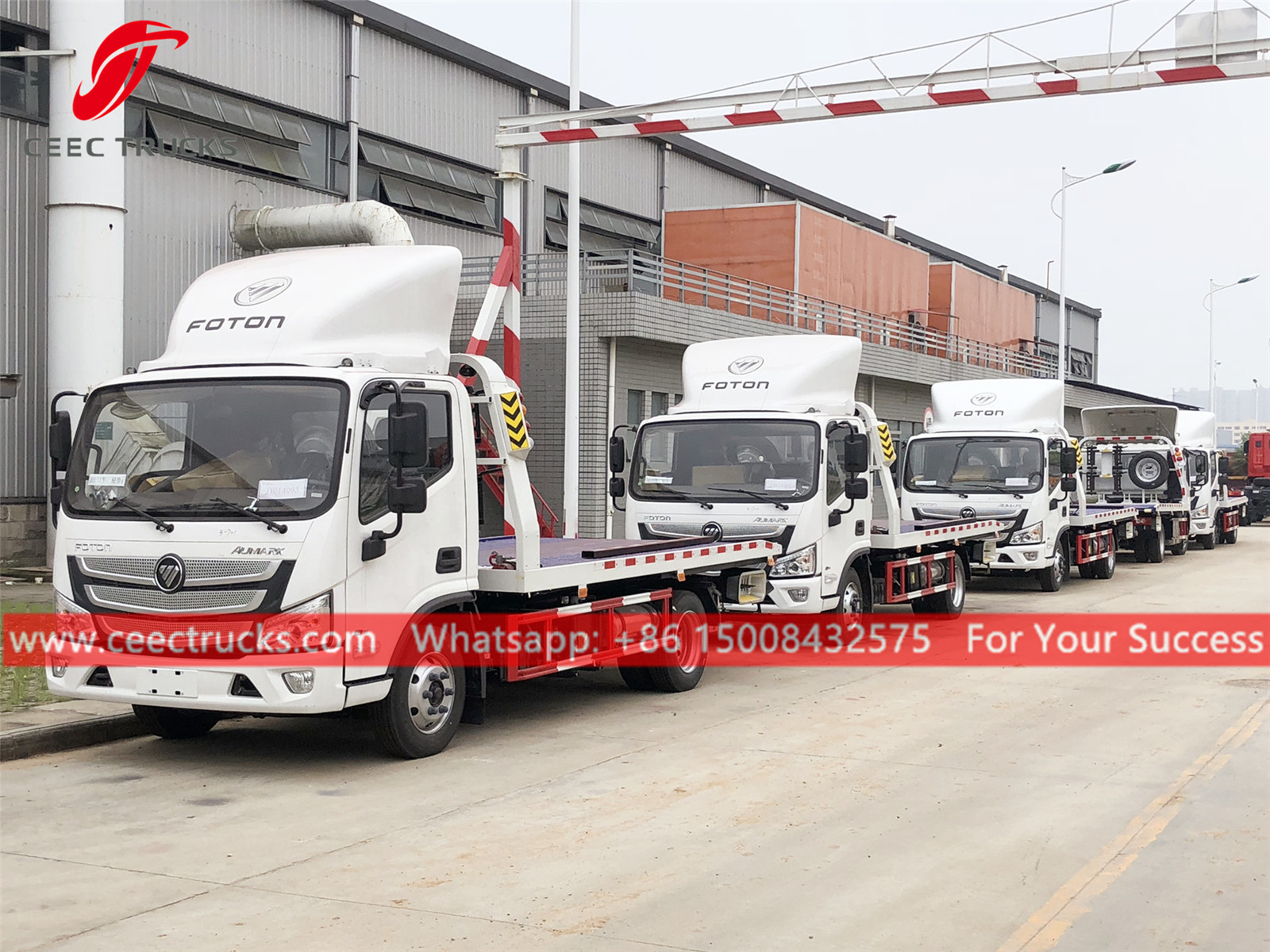

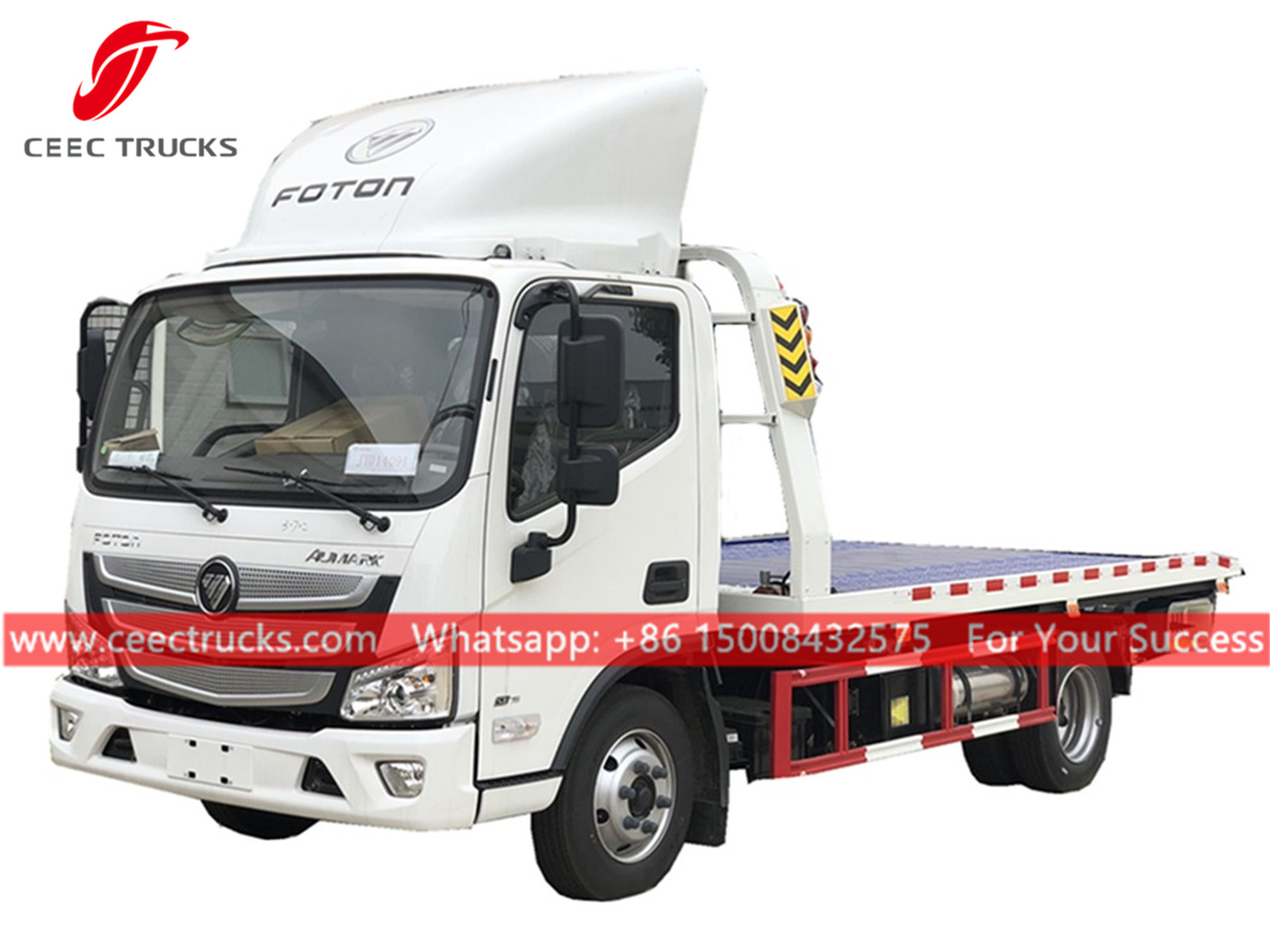

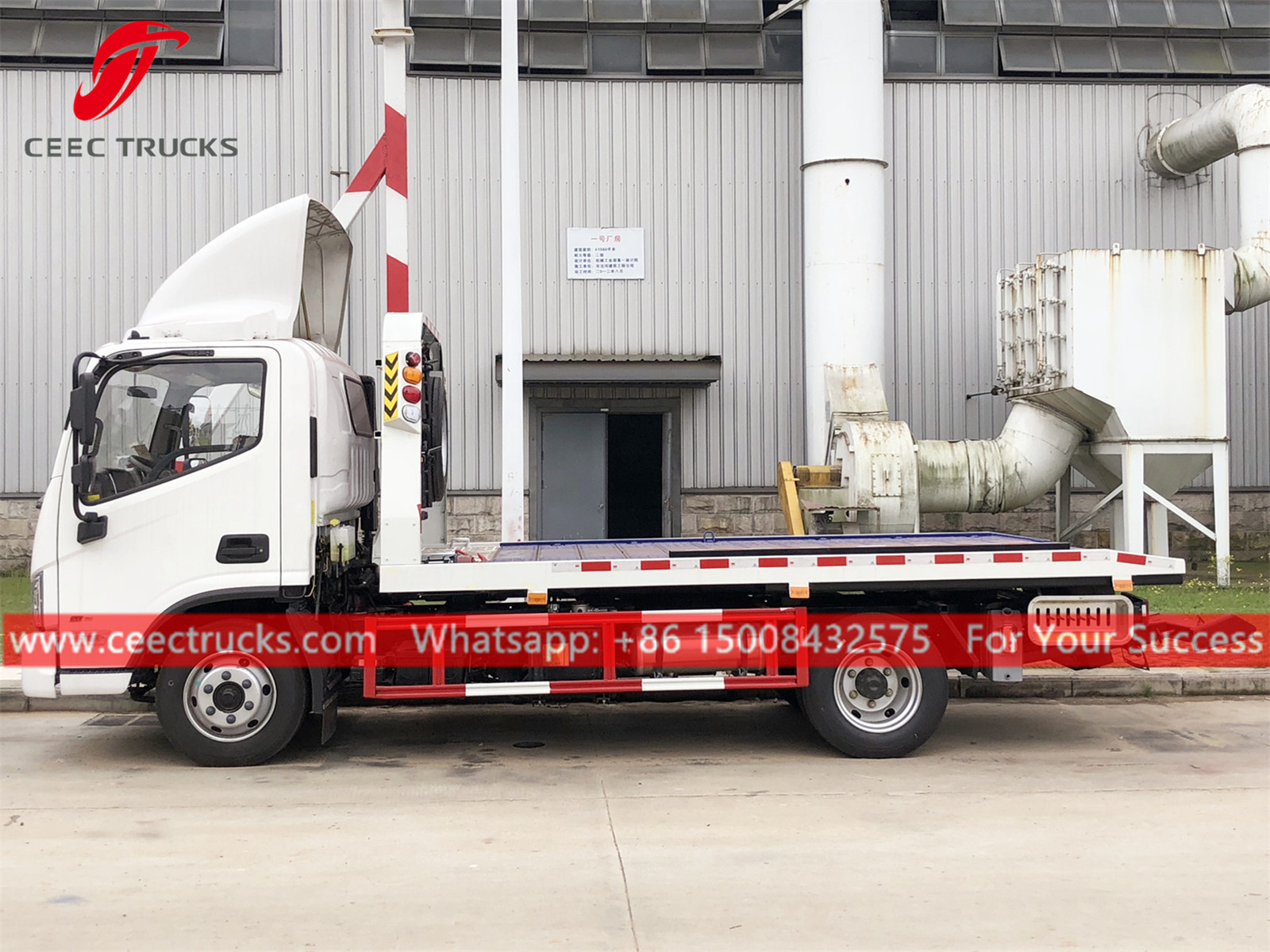

Peru road wrecker
truck FOTON (4Ton)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
FOTON
|
|
Overall Dimension
|
7500 x 2300 x 2650 mm
|
|
GVW / Kerb Weight
|
9,400 kg / 5,300 kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
With air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
CUMMINS engine
|
|
Power
|
156Ps (112KW)
|
|
Displacement
|
3760 ml
|
|
Emission Standard
|
Euro IV
|
|
Chassis
|
Drive Type
|
4X2, left hand drive
|
|
Transmission
|
Manual transmission,
5-forward gears & 1 reverse, no overhaul within 500,000km
|
|
Wheelbase/No. of axle
|
3800 mm / 2
|
|
Tyre Specification
|
8.25-16
|
|
Tyre Number
|
6 tyres and 1 spare tyre
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Flatbed Dimensions
|
5400x2100mm
|
|
Load Capacity
|
4 Tons
|
|
Towing Capacity
|
5 Tons
|
|
Gradient of flat board
|
10 degree
|
|
Control
|
Control panel on both side
|
|
Wire rope
|
21 m
|
|
Max towing speed
|
40 km/h
|
|
Equipment
|
2 units of towing wheel, 1
unit of 4 ton winch, 1 unit of steel wire tope, 1 unit of spare tire, 1unit
of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm
lamp
|
