4x350W LED lamps(IP65);
|
Manual mast made of galvanized steel;
|
|
Maximum height 9 m;
|
Rotation 350°;
|
|
Fast and automatic deployment with safety system;
|
140 litres fuel tank, 85 hours autonomy;
|
|
Noise level 60 dB(A) at 7 meters;
|
Liquids bunding;
|
|
4 deploying stabilizers.
|
|
|
|
4LT1400M9 LED
|
Light coverLight coverage m2
(average 20 luxes)
|
5300
|
|
Lamps(Total Luminous Flux)
|
LED(196000 lm)
|
|
Mast
|
Manual Vertical
|
|
Performance Data
|
|
Rated Frequency
|
Hz
|
50/60
|
|
Rated Voltage
|
VAC
|
230/240
|
|
Rated Power (PRP)
|
kW
|
6/7
|
|
Sound Pressure Level (LpA) at 7m
|
dB(A)
|
65
|
|
Engine
|
|
Model
|
|
Kohler KDW 1003
|
|
Speed
|
rpm
|
1500/1800
|
|
Rated Net Output (PRP)
|
kW
|
7.7/9.1
|
|
Coolant
|
|
Water
|
|
Number of cylinders
|
|
3
|
|
Alternator
|
|
Model
|
|
BTO LT-132D/4
|
|
Rated output
|
kVA
|
8/10
|
Insulation / Enclosure
protection
|
class / IP
|
H / 23
|
|
Consumption
|
|
Fuel tank capacity
|
litre
|
110
|
|
Fuel Autonomy
|
hrs
|
65
|
|
Power Output
|
|
Auxiliary Power
|
kW
|
4.5
|
|
Lights
|
|
Floodlights
|
|
LED
|
|
Wattage
|
W
|
4 x 350
|
|
Mast
|
|
Type
|
|
Manual Vertical
|
|
Rotation
|
degrees
|
340
|
|
Maximum Height
|
m
|
9
|
|
Maximum Speed wind
|
km / h
|
80
|
|
Enclosure and Trailer
|
|
Type
|
|
|
|
Enclosure
|
|
|
|
Dimensions and weigth
|
|
Dimensions in transport Fix Towbar (L x W x H)
|
m
|
4000*1480*1895
|
|
Dry weight
|
kg
|
850
|
|
Dimensions Fully Deployed(L x W x H)
|
|
3041*2955*9000
|
Easy Operating
1.350°pivoting mast on bearings with clutch type braking system;
2. extractable, adjustable and reclinable stabilizers;
3.Easy electric regulations of the lamps radiation angle;
4.Folding handles stabilizing feet;
5.Forklift guides;
6.Central lifting eye.

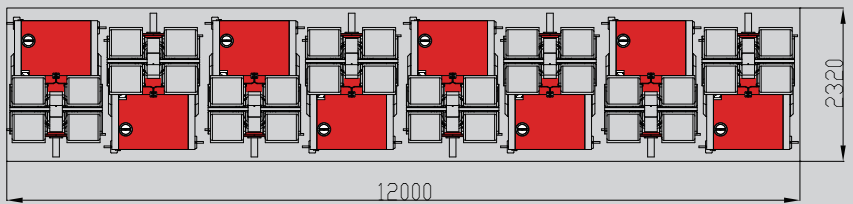

Container load & storing
Its design and reduced dimensions make the product easy to move, storing up to 8 units in a 40ft container.
