4x4 Aluminum Stage Platform Deck
ITSC truss supplies 4x4 Aluminum Stage Platform Deck and Stage Systems. They are supported by aluminum frame suitable for outdoor and indoor events. The height can be adjustable in several heights. The braces are connected to the legs with a standard 4-way corner by means of a single pin. Due to the Stage Decks firmly fixed inside the frame, building the whole Stage Systems is only with one technician! After positioning, the whole stage is stable and will not topple over.
Features:
-
Waterproof and anti-slip for outdoor and indoor concert events
-
Aluminum frame and lightweight for mobile use
-
DIY fast assembling, no any tools
-
Height adjustable for uneven floor
-
Interconnected framework acting as ballast systems for truss roof constructions
-
Factory price only
Specification:
|
Material
|
Aluminum Alloy 6061-T 6
|
|
Dimensions
|
4 x 4 ft(1.22 x 1.22 m )
|
|
Types
|
Square
|
|
Main tubes
|
50 x 3 mm
|
|
Stage Topping
|
18 mm plywood, anti-slip, waterproof
|
|
Self-weight
|
49 kg /p c s
|
Volume
|
0.2 m 3/p c s
|
|
Capacity
|
750 kg / m 2
|

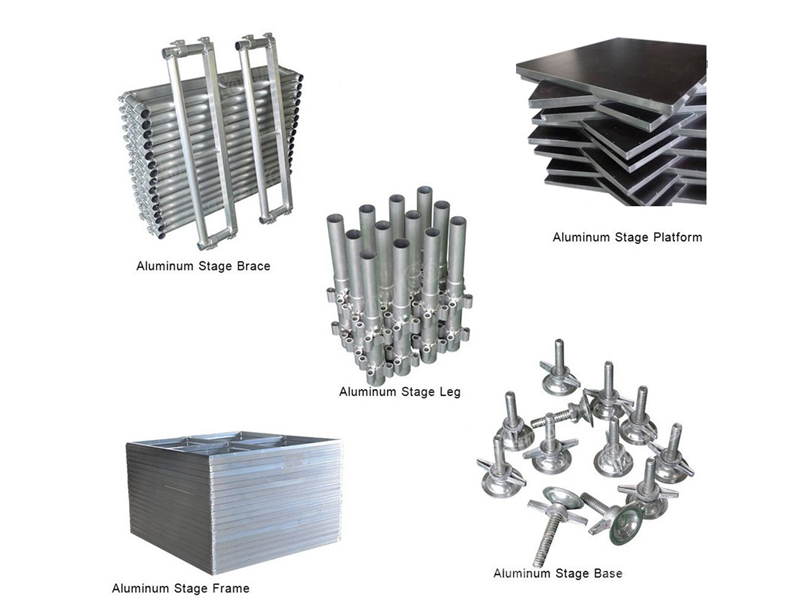

Parts:

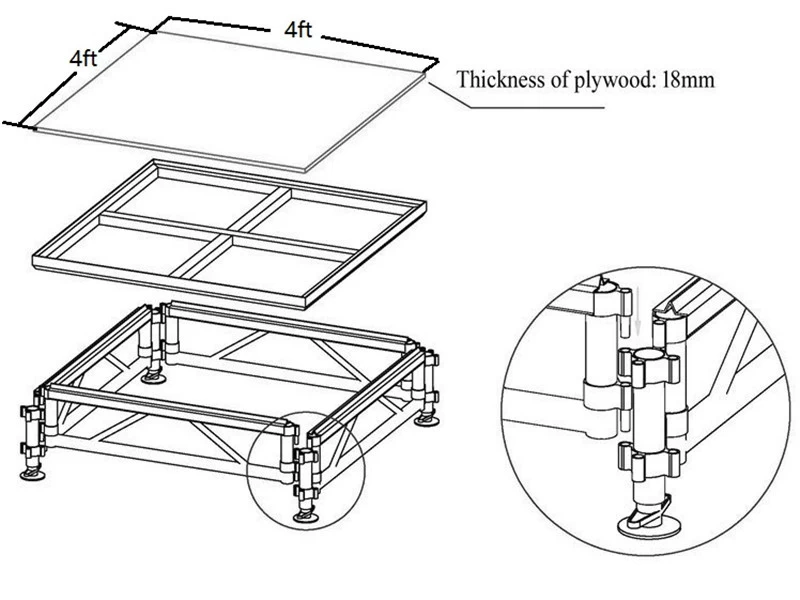

The Aluminum Stage Deck is assembled with brace, boards, legs, frame, and base.

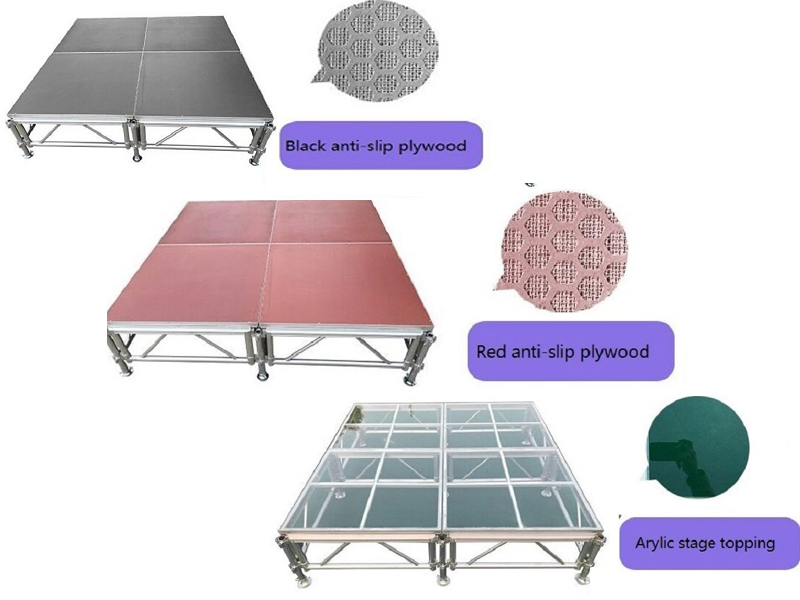

Topping options:

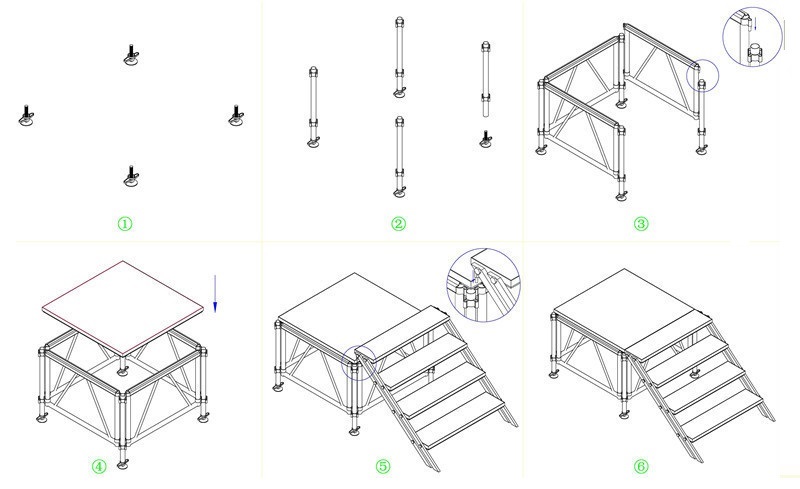

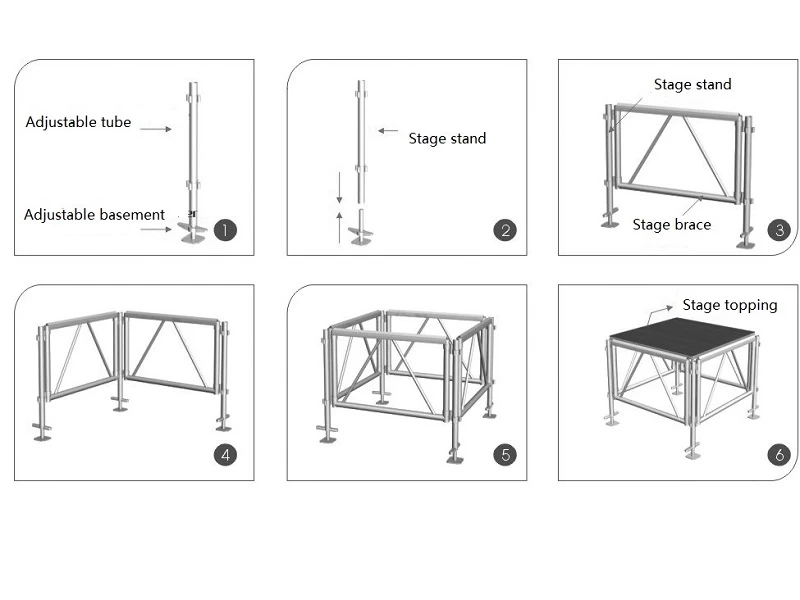

Installation steps:
Application:
This Aluminum Stage Platform is commonly combined with Truss Stage Roof for temporary indoor and outdoor concerts events. if you install them correctly, the whole Potable Stage Systems can work as ballast for the roof.
Problems:
Its maximum height is suggested to be within 6.5 ft (2 m ). If you are supposed to install Portable Staging System to be more than that height, we recommend you our Truss Stage Systems or Steel Deck Stage.
