Structural Parameter
|
|
Dimensions
|
172mm(L) X 80mm(W) X 27mm(D)
|
|
Weight
|
500g
|
|
Display Screen
|
5.0 inch IPS 720 * 1280 px with
Multi-point touch capactive screen
|
|
Expand Port
|
SIM card, Micro SD (TF) Card
|
|
Communication Interface
|
USB2.0 Device
|
|
Input Mode
|
Standard Stylus, Handwriting, touching input or
keyboard input
|
|
Battery Capacity
|
Rechargeable Li-polymer Battery 3.7V 5000mAh
|
|
Frequency
|
8ohm 1W speaker
|
|

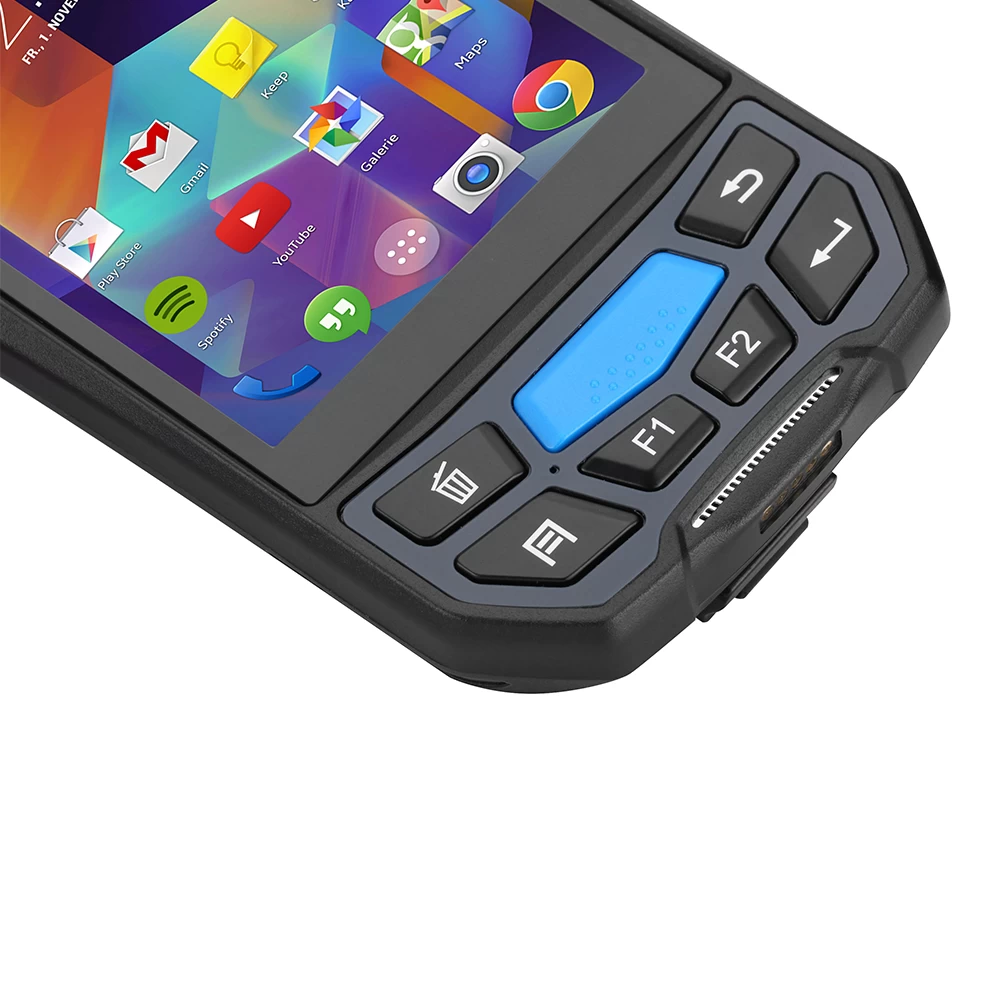

Key
|
13pcs soft silicon key
Front: 1* scann key; 1* Delet key;
1*Enter key; 1*Back key; 1*Function key;
2* Hot keys,Side: Sound -+;
2*scan keys; 1*Custom key; 1*Power
|
|
Performance Parameter
|
|
OS
|
Android 5.1
|
|
CPU
|
ARM Cortex-A53 64bit Quad-Core 1.3G
|
|
RAM
|
2G RAM
|
|
Flash ROM
|
Standard 16G NAND Flash Storage
|
|
|
Micro SD/TF port (Max up to 32G)
|
|
Data Communication
|
|
WI-FI
|
Support IEEE802.11 a/b/g/n protocol,
it need effective wireless LAN signal
cover
|
|
FDD/TDD-LTE 4G
|
TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3)
|
|
WCDMA 3G
|
B1,B2,B5,B8
|
|
GSM 2G
|
GSM/EDGE/GPRS (850,900,1800,1900MHz)
|
|
Bluetooth
|
Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS,
transmission distance is 5-10m
|
|
Standard Modules
|
|
Camera
|
8MP autofocus camera with flash
|
|
GPS
|
Support A-GPS
|
|
Operating Environment
|
|
Operating
|
-20℃ to 50℃
|
|
Storage Temperature
|
-25℃ to 70℃
|
|
Environment Humidity
|
5%RH-95%RH(no condensation)
|
|
Drop Specifications
|
6 sides can bear impact from
1.5m drop to cement floor in the range of
operating temperature
|
|
Roll Specifications
|
1000 times/0.5m, roll on 6 sides contact area
|
|
Sealed Environment
|
IP65
|
|
2D Scanner (OPTIONAL)
|
|
1D CMOS Scanner
|
Symbol SE955, HONEYWELL N4313
|
|
2D CMOS Scanner
|
HONEYWELL N6603,NewLand 3096
|
|
The Sensor Resolution
|
752(level) 480(vertical)pels(gray level)
|
|
Ambient Light
|
All dark 9000ft.candles/96900 lux
|
|
Focus element (VLD)
|
655nm 10nm
|
|
Support bar code type
|
PDF417,MicroPDF417,Composite,
RSS,TLC-39, Datamatrix, QR code,
Micro QR code,Aztec, MaxiCode;
Postal Codes: US PostNet,US Planet,
UK Postal, Australian Postal,
JapanPostal Dutch Postal (KIX)3
|
|
LF RFID Reader (Optional)
|
|
Frequency
|
125kHz, 134kHz (FDX-B / HDX)
|
|
Protocol
|
ISO11784/5, ISO18000-2
|
|
Range
|
3-8cm
|
|
HF RFID Reader (Optional)
|
|
Frequency
|
13.56MHz
|
|
Protocol
|
ISO14443A/B, ISO15693
|
|
Range
|
3-8cm
|
|
NFC Reader (Optional)
|
|
Frequency
|
13.56MHz
|
|
Protocol
|
ISO/IEC 18092 (ECMA 340)
|
|
Range
|
2-4cm
|
|
Integrated Printer (Optional)
|
|
Effective print width
|
48mm
|
|
Print method
|
Thermal line printing
|
|
Print speed
|
Up to 90mm/sec
|
|
Resolution
|
8 dots/mm(203dpi)
|
|
Print font
|
12x24/ 24x24
|
|
Biometric Fingerprint (Optional)
|
|
Sensor
|
TCS2SS
|
|
Sensor type
|
Capacitive Sensor
|
|
Function
|
Enrollment, compare, deletion etc.
|
|
Resolution
|
508DPI
|
|
Memory
|
1,000 PCS fingerprints
|
